PDQ KMS-XLS Template KMS32343 Rev0

TEMPLATE: KMS32343

REV. 0 4-2-2019

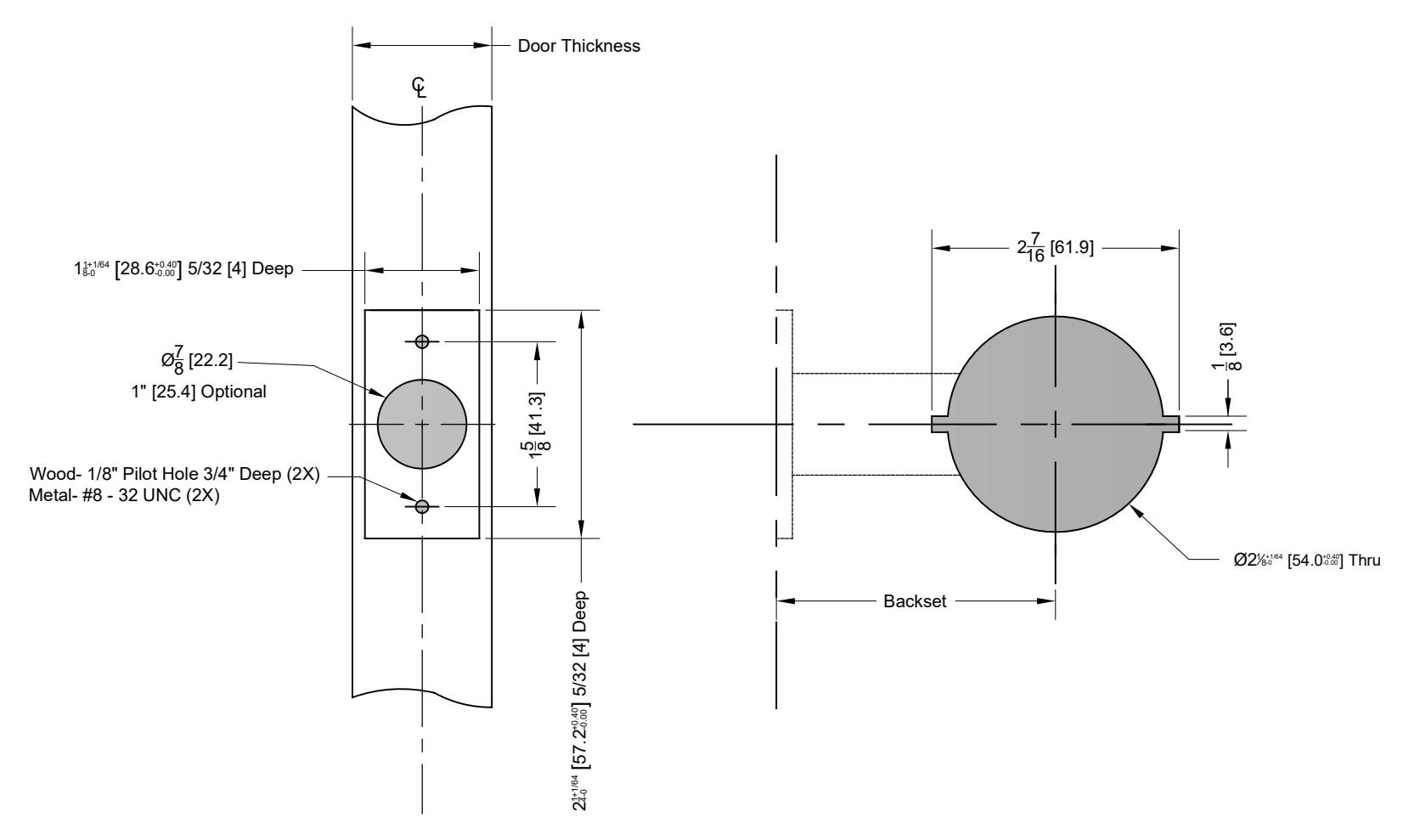

Hollow Metal, Wood or Composite- Square or Beveled Edge Door

Door Thickness 1 3/4" [44.5] Backset 2 3/4" [69.9]

Faceplate 1 1/8" [28.6] Square Corner

NOTES:

1. DIMENSIONS IN INCHES [MM]

2. ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT TEMPLATE REVISION AT WWW.PDQLOCKS.COM
