PDQ KMS-STP Template KMS32344 Rev0

TEMPLATE: KMS32344

REV. 0 4-2-2019

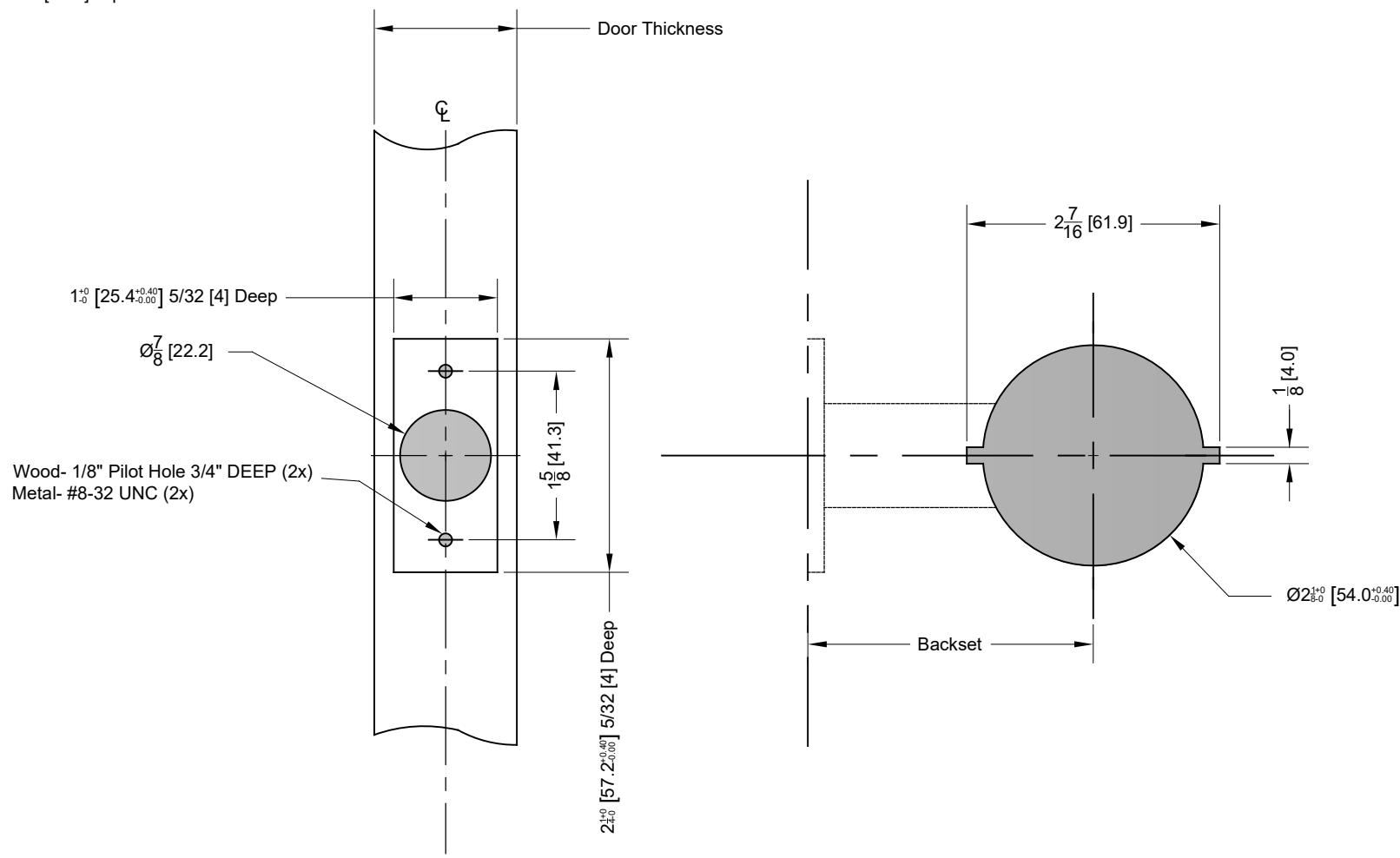

Hollow Metal, Wood or Composite- Square or Beveled Edge Door Door Thickness 1 3/8" [34.9]

Door Thickness 1 3/8" [34.9] Backset 2 3/8" [60.3]

Faceplate 1" [25.4] Square Corner

NOTES:

1. DIMENSIONS IN INCHES

2. ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT TEMPLATE REVISION AT WWW.PDQLOCKS.COM
