GTS pdqSMART INSTALLATION INSTRUCTION

CYLINDRICAL LOCK ALL GTS – EXCLUDING STS

Phone: 866-874-3662 | www.pdqlocks.com

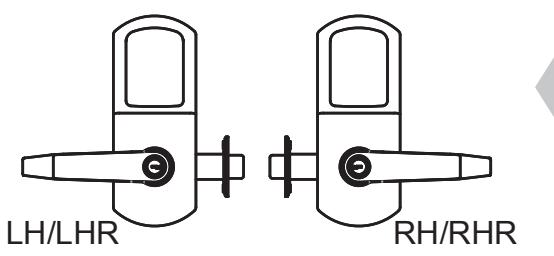

1. CHECK HANDING OF LOCK

• If handing of lock is not correct for opening, see next page for handing instructions.

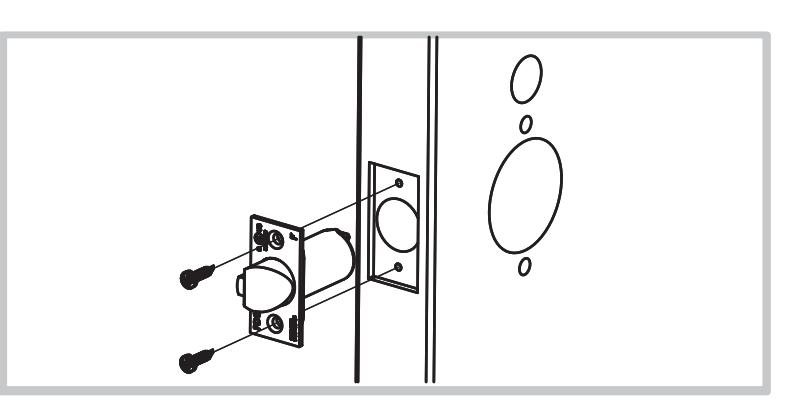

2. PREPARE DOOR & INSTALL LATCH

• Prepare door according to template.
• Install latch, radius toward door frame
• Secure with (2) #8 x ¾" combo screws.

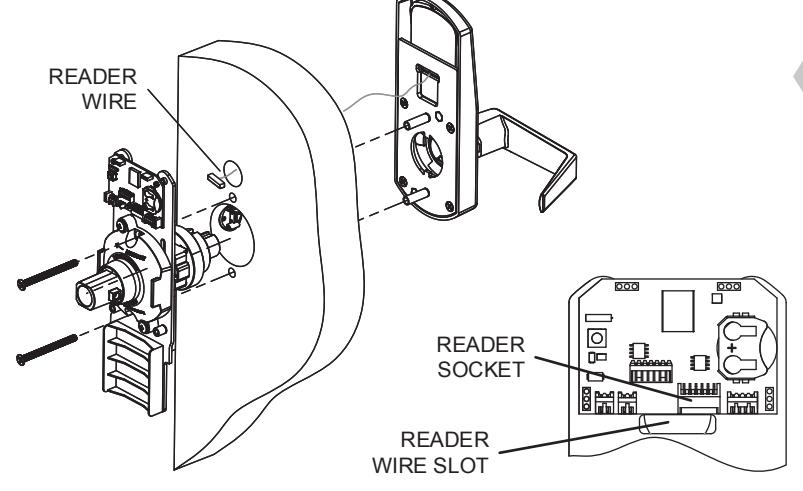

3. INSTALL CHASSIS AND OUTSIDE TRIM

• Install chassis assembly from inside of door.
• Install outside trim assembly feed reader wire through hole and door and through slot under circuit board. Plug into board. Push extra wire into door cavity.
• Secure with (2) M5 x 0.8 x 60mm flat head screws (thru bolts).

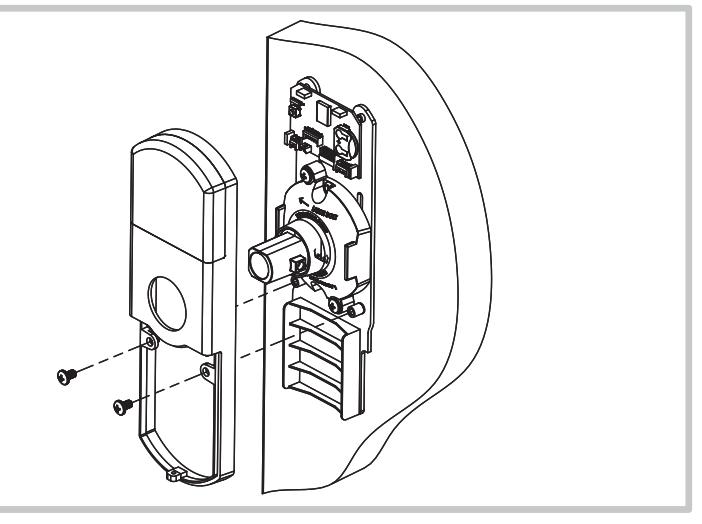

4. INSTALL INSIDE ESCUTCHEON

• Install inside escutcheon.
• Secure with (2) #10-32 x 5/16" pan head screws.

GTS pdqSMART INSTALLATION INSTRUCTION CYLINDRICAL LOCK ALL GTS – EXCLUDING STS

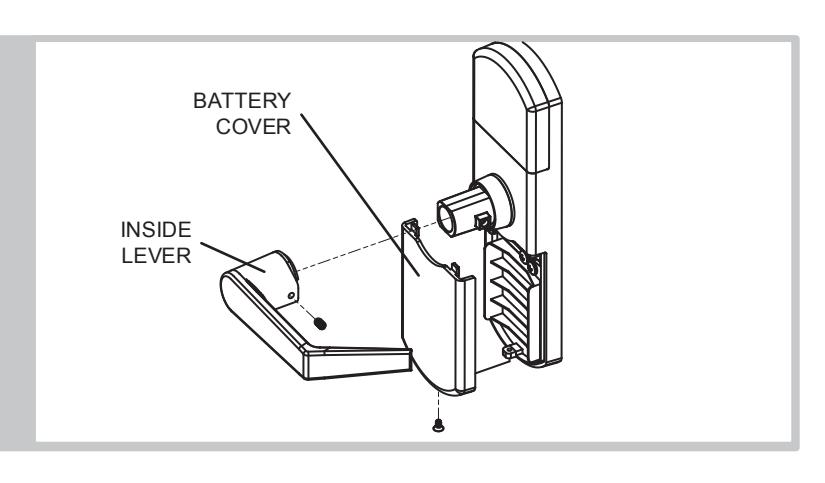

5. INSTALL BATTERIES AND INSIDE LEVER

• Install batteries and battery cover with #6-32 x ¼" flat head screw.
• Install inside lever and secure with M5 x 8mm dog point set screw.

HANDING INSTRUCTIONS

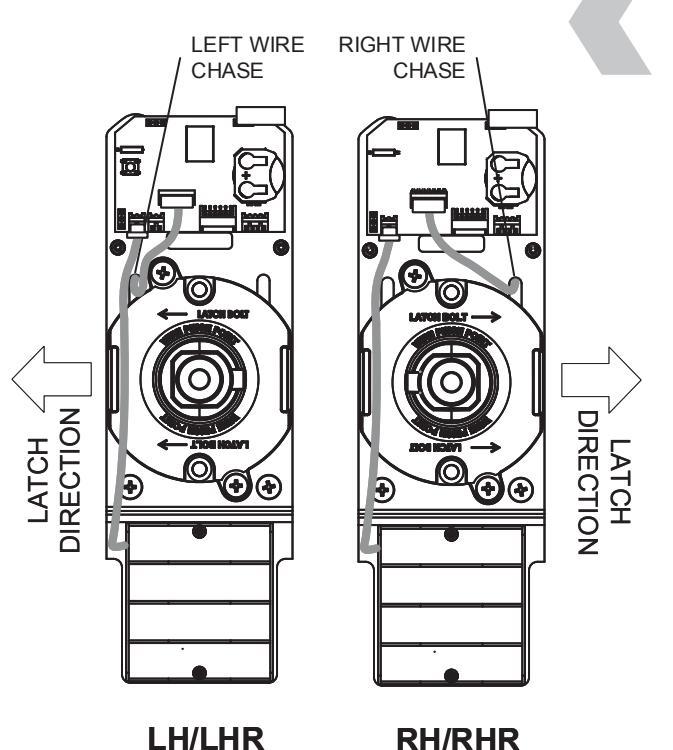

AS REQUIRED, ROTATE INSIDE ROSE PLATE AND CHASSIS TO MATCH HAND OF DOOR

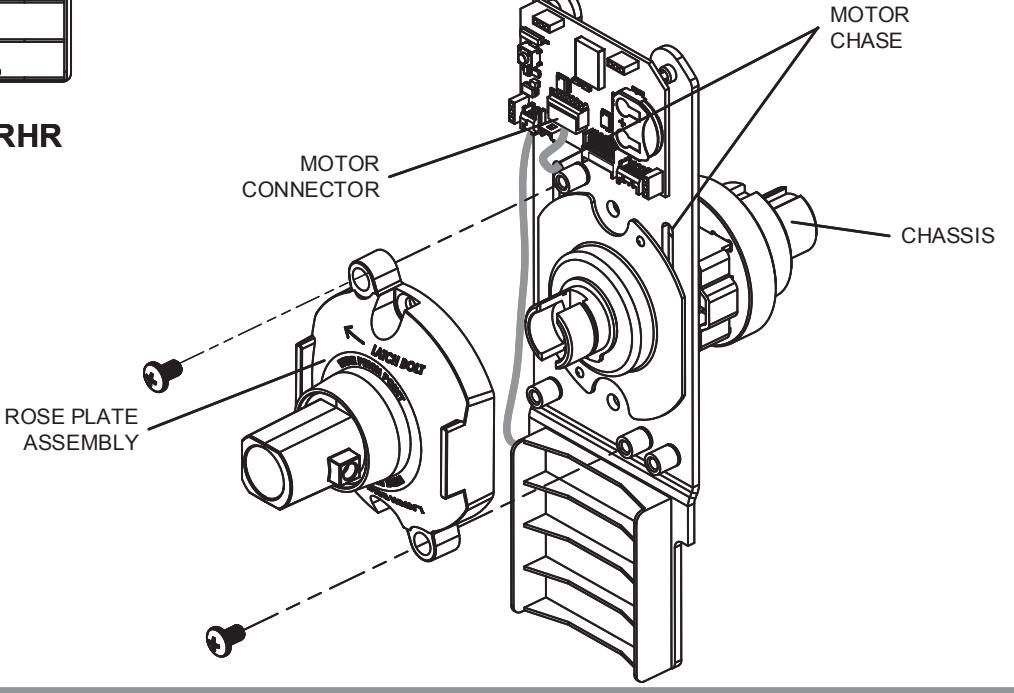

TO ROTATE CHASSIS:

• 1. Remove rose plate mounting screws, then rose plate.
• 2. Unplug motor connector. Feed motor connector and wire back through wire chase slot.
• 3. Rotate chassis 1/2 turn (180°) maximum.
• Feed motor connector and wire forward through wire chase slot on other side. Re-connect motor connector.
• 5. Rotate rose plate to index with chassis. (Arrows point to latch bolt edge of door.)
• 6. Install rose plate, secure with mounting screws.
