Door Closer Hole Spacing Guide

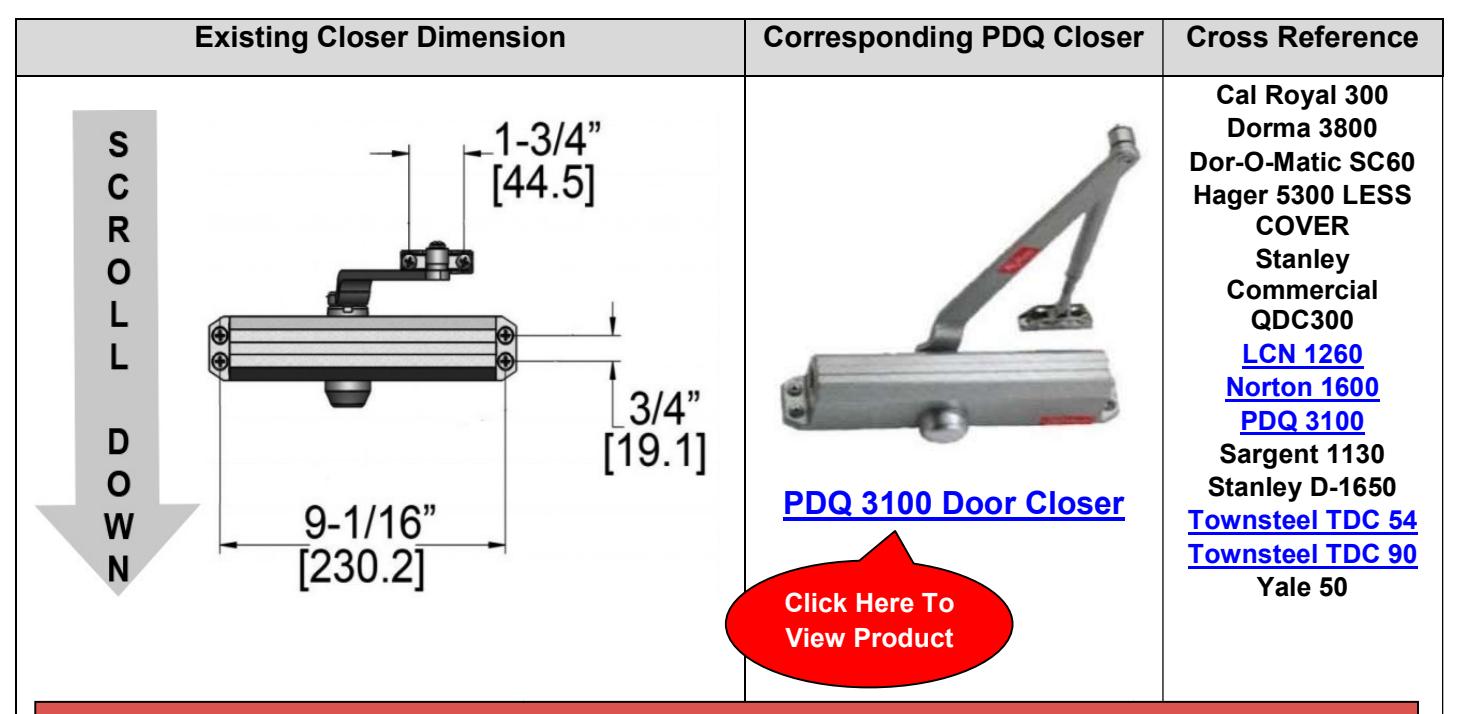

While we may not have this closer listed on Locksandsafes.com, it doesnt mean we dont have it! CLICK HERE To request a quote for any of these items (PLEASE SPECIFY which closer you would like a quote for)
HOW TO ORDER
| SERIES | SIZE | BACKCHECK | ARM TYPES | FINISH | ACCESSORIES |
|---|---|---|---|---|---|
| 31 | 00 | ВС | PA | 689 | - |
|
00 – Adjustable
Size 3-6 01 – Adjustable Size BF - 4 |
BC – Adjustable
Hydraulic Backcheck |
DS – Door Saver
Arm DSHO – Door Saver Hold Open Arm HO – Hold Open, Tri-Pack PA – Tri-Pack (standard) RA – Regular Arm SCS – Spring Cushion Stop SCSHO – Spring Cushion Stop Hold open TA – Track Arm TAHO – Track Arm Hold Open |
689 – Aluminum
695 – Duro Bronze 696 – Gold |
BP – Back Plate BS – Blade Stop Spacer DP – Drop Plate NFB – Narrow Frame Bracket SDST – Self Drilling Self Tapping Screws |
HOW TO ORDER
| SERIES | SIZE | BACKCHECK | ARM TYPES | FINISH | ACCESSORIES |
|---|---|---|---|---|---|
| 51 | 01 | BC | PA | 689 | - |
|
01 – Non Delayed
Action 41 – Delayed Action (In Addition To Backcheck) |
BC – Adjustable
Hydraulic Backcheck |
DS – Door Saver
Arm DSHO – Door Saver Hold Open Arm EDA – Extra Duty Arm EDA HO – Extra Duty Arm Hold Open HO – Hold Open, Tri-Pack PA – Tri-Pack (standard) RA – Regular Arm SCS – Spring Cushion Stop SCSHO – Spring Cushion Stop Hold open TA – Track Arm TAHO – Track Arm Hold Open |
605 – Polished
Brass 625 – Satin Chrome 689 – Aluminum 695 – Duro Bronze 696 – Gold |
BP – Back Plate
BS – Blade Stop Spacer DPPA – Parallel Arm Drop Plate DPTJ – Top Jamb Drop Plate FCM – Full Metal Cover specify hand NFB – Narrow Frame Bracket SDST – Self Drilling Self Tapping Screws |
| SERIES | SIZE | BACKCHECK | ARM TYPES | FINISH | ACCESSORIES |
|---|---|---|---|---|---|
| 53 | 01 | BC | PA | 689 | - |
|
53 – Slim Cover
55 – Full Cover |
01 – Non Delayed
Action 41 – Delayed Action (In Addition To Backcheck) |
BC – Adjustable
Hydraulic Backcheck |
DS – Door Saver
Arm DSHO – Door Saver Hold Open Arm EDA – Extra Duty Arm EDAHO – Extra Duty Arm Hold Open HO – Hold Open, Tri-Pack PA – Tri-Pack (standard) RA – Regular Arm SCS – Spring Cushion Stop SCSHO – Spring Cushion Stop Hold open TA – Track Arm TAHO – Track Arm Hold Open DA – Delayed Action |
605 – Polished
Brass 625 – Satin Chrome 689 – Aluminum 695 – Duro Bronze 696 – Gold |
BP – Back Plate
BS – Blade Stop Spacer DPPA – Parallel Arm Drop Plate DPTJ – Top Jamb Drop Plate NFB – Narrow Frame Bracket SDST – Self Drilling Self Tapping Screws |
HOW TO ORDER
| SERIES | SIZE | BACKCHECK | ARM TYPES | FINISH | ACCESSORIES |
|---|---|---|---|---|---|
| 71 | 01 | BC | PA | 689 | - |
|
01 – Non Delayed
Action 41 – Delayed Action (In Addition To Backcheck) |
BC – Adjustable
Hydraulic Backcheck |
DS – Door Saver
Arm DSHO – Door Saver Hold Open Arm EDA – Extra Duty Arm EDAHO – Extra Duty Arm Hold Open HO – Hold Open, Tri-Pack PA – Tri-Pack (standard) RA – Regular Arm SCS – Spring Cushion Stop SCSHO – Spring Cushion Stop Hold open TA – Track Arm |
605 – Polished
Brass 625 – Satin Chrome 689 – Aluminum 695 – Duro Bronze 696 – Gold |
BP – Back Plate
BS – Blade Stop Spacer DPPA – Parallel Arm Drop Plate DPTJ – Top Jamb Drop Plate FCM – Full Metal Cover specify hand NFB – Narrow Frame Bracket SDST – Self Drilling Self Tapping Screws |
| Existing Closer Dimension |
Corresponding PDQ
Closer |
Cross
Reference |
|---|---|---|
| N/A | Townsteel TDC 53 |

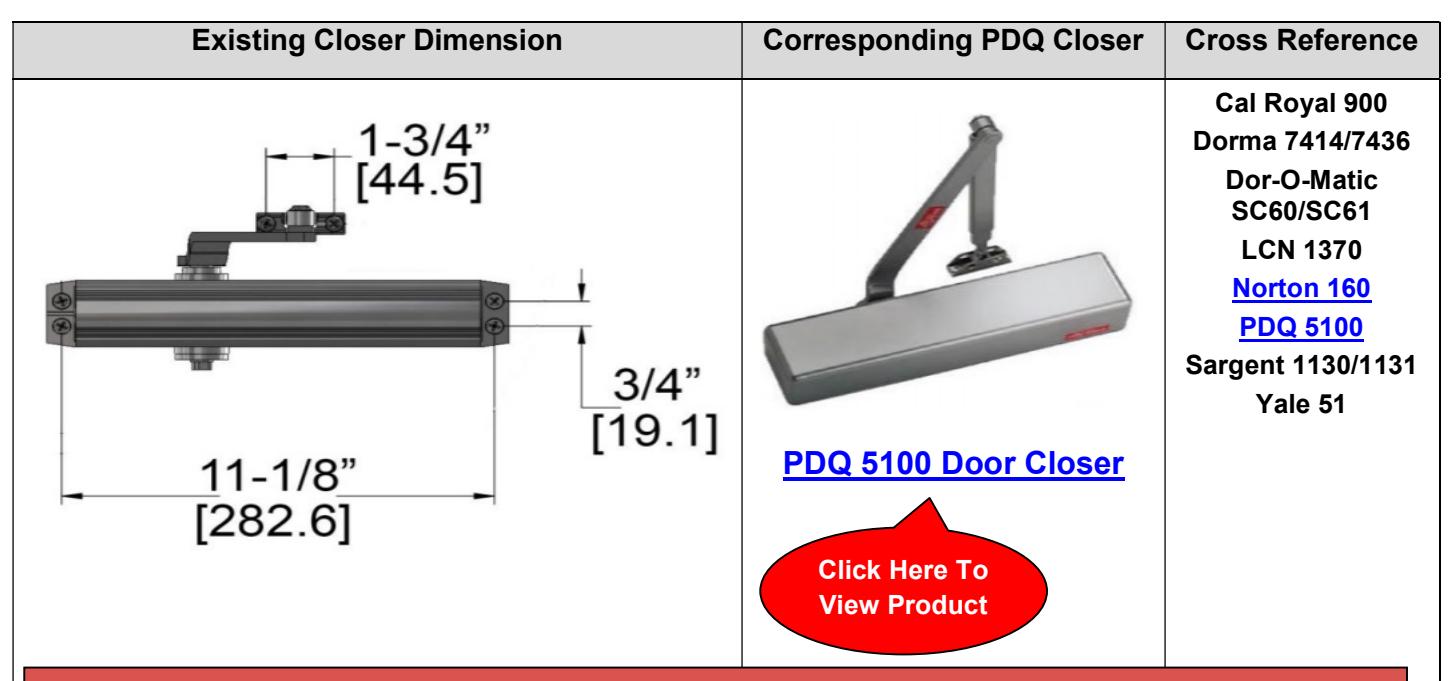

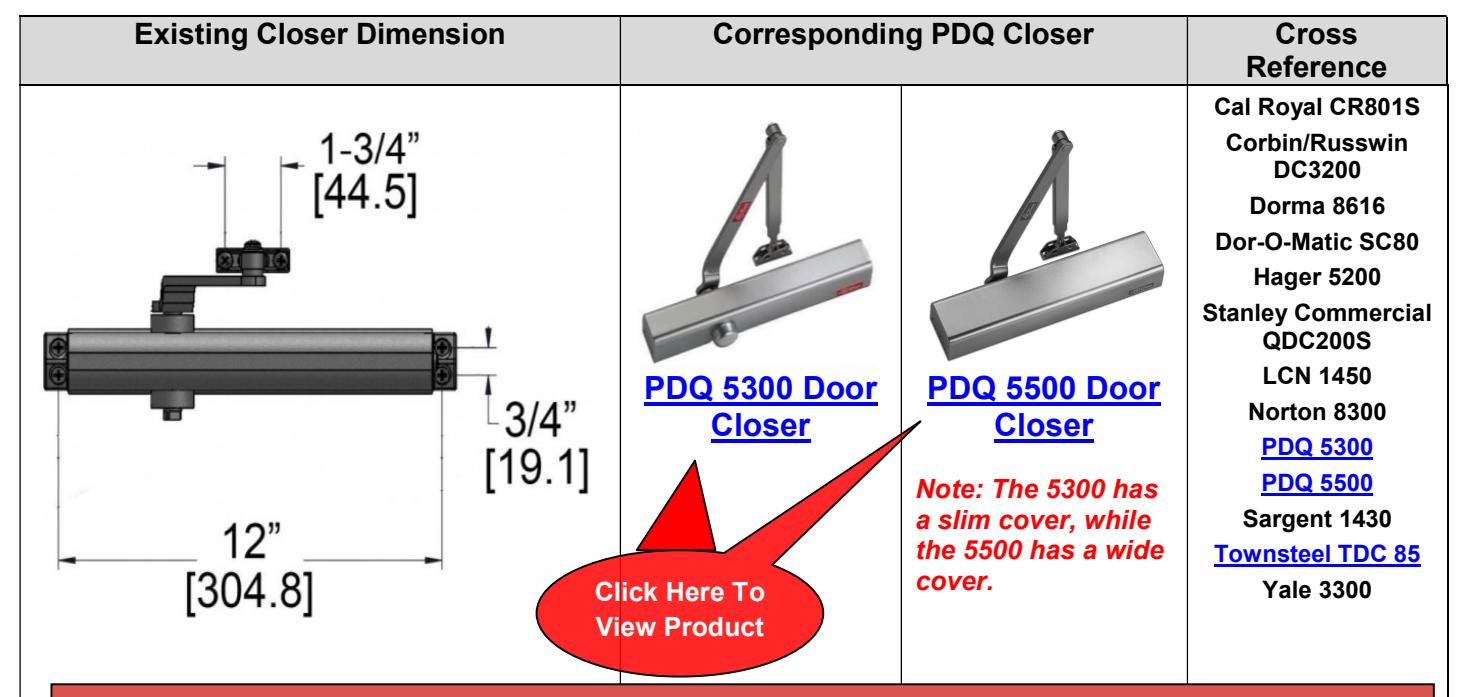

| Existing Closer Dimension |
Corresponding PDQ
Closer |
Cross
Reference |
|||
|---|---|---|---|---|---|
| N/A |
LCN 4050
Falcon SC71A Norton 7500 Yale 4400 Dexter DCH1000 |
||||
|
While we may not have this closer listed on Locksandsafes.com, it doesnt mean we dont have
it! CLICK HERE To request a quote for any of these items (PLEASE SPECIFY which closer you |
|||||
| would like a quote for) | |||||

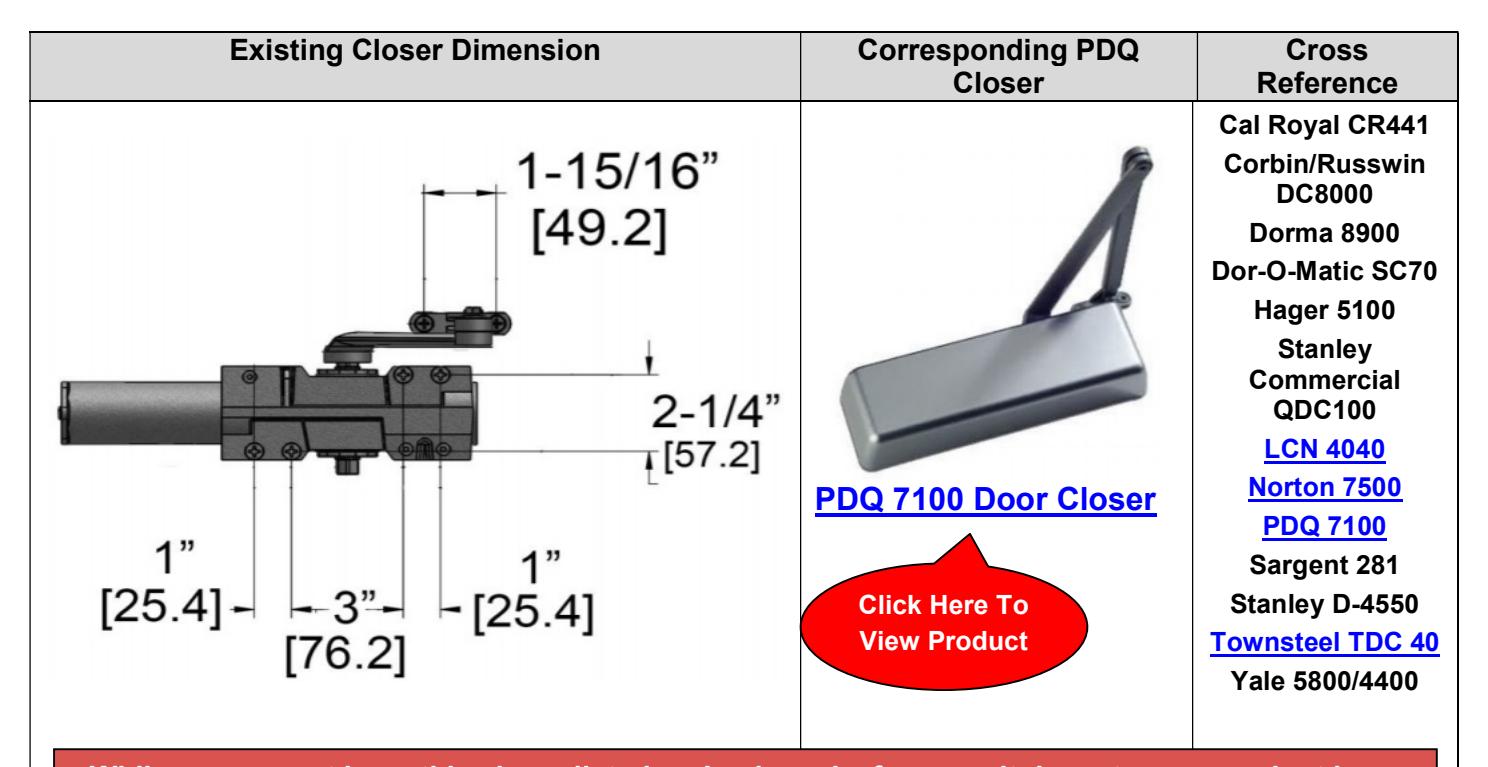

| Existing Closer Dimension |
Corresponding PDQ
Closer |
Cross
Reference |
|---|---|---|
| N/A | LCN 1461 |
| Existing Closer Dimension |
Corresponding PDQ
Closer |
Cross
Reference |
|---|---|---|
| N/A |
LCN 4011,
LCN 4021, LCN 4111 |
| Existing Closer Dimension |
Corresponding PDQ
Closer |
Cross
Reference |
|---|---|---|
| N/A | Dorma 8916 |
| Existing Closer Dimension |
Corresponding PDQ
Closer |
Cross
Reference |
|---|---|---|
| N/A | Dorma 7414 |
While we may not have this closer listed on Locksandsafes.com, it doesnt mean we dont have it! CLICK HERE To request a quote for any of these items (PLEASE SPECIFY which closer you would like a quote for)
| Existing Closer Dimension |
Corresponding PDQ
Closer |
Cross
Reference |
|---|---|---|
| N/A |
Cal-Royal
N900PBF |
|
|
While we may not have this closer listed on Locksandsafes.com, it doesnt mean we dont have
it! CLICK HERE To request a quote for any of these items (PLEASE SPECIFY which closer you would like a quote for) |
| Existing Closer Dimension |
Corresponding PDQ
Closer |
Cross
Reference |
||
|---|---|---|---|---|
| N/A | Sargent 1431 | |||
|
While we may not have this closer listed on Locksandsafes.com, it doesnt mean we dont have
it! CLICK HERE To request a quote for any of these items (PLEASE SPECIFY which closer you |

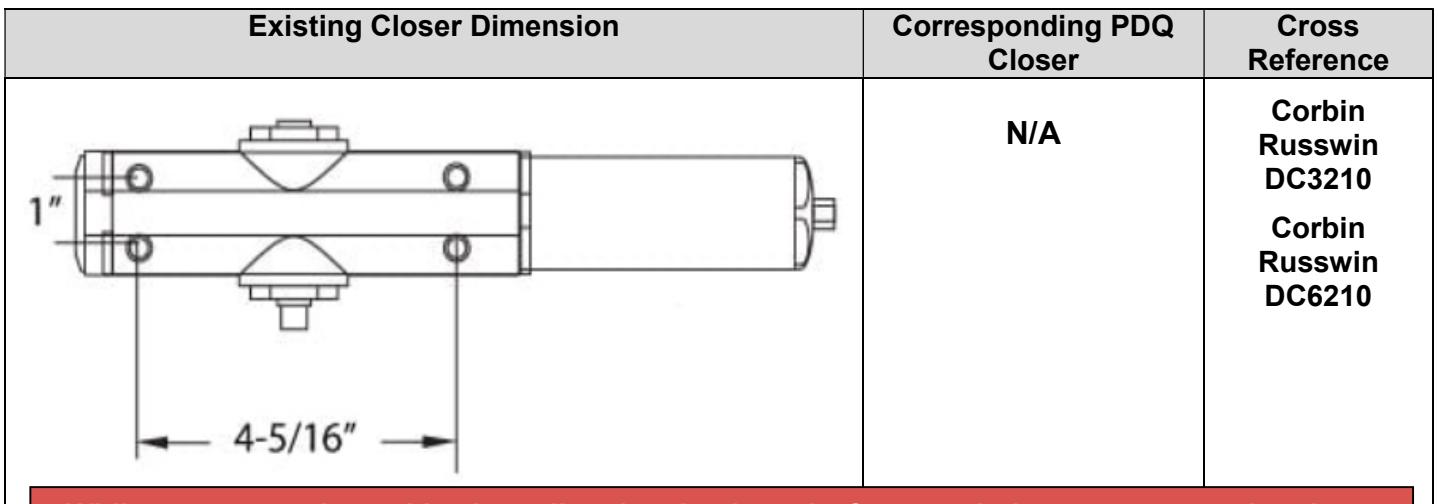

||||
| would like a quote for) | ||||
| Existing Closer Dimension |
Corresponding PDQ
Closer |
Cross
Reference |
|---|---|---|
| N/A | Sargent 281 | |
