PDQ Door Closer Hole Spacing Guide

Door Closer Hole Spacing Guide

While we may not have this closer listed on Locksandsafes.com, it doesnt mean we dont have it! CLICK HERE To request a quote for any of these items (PLEASE SPECIFY which closer you would like a quote for)

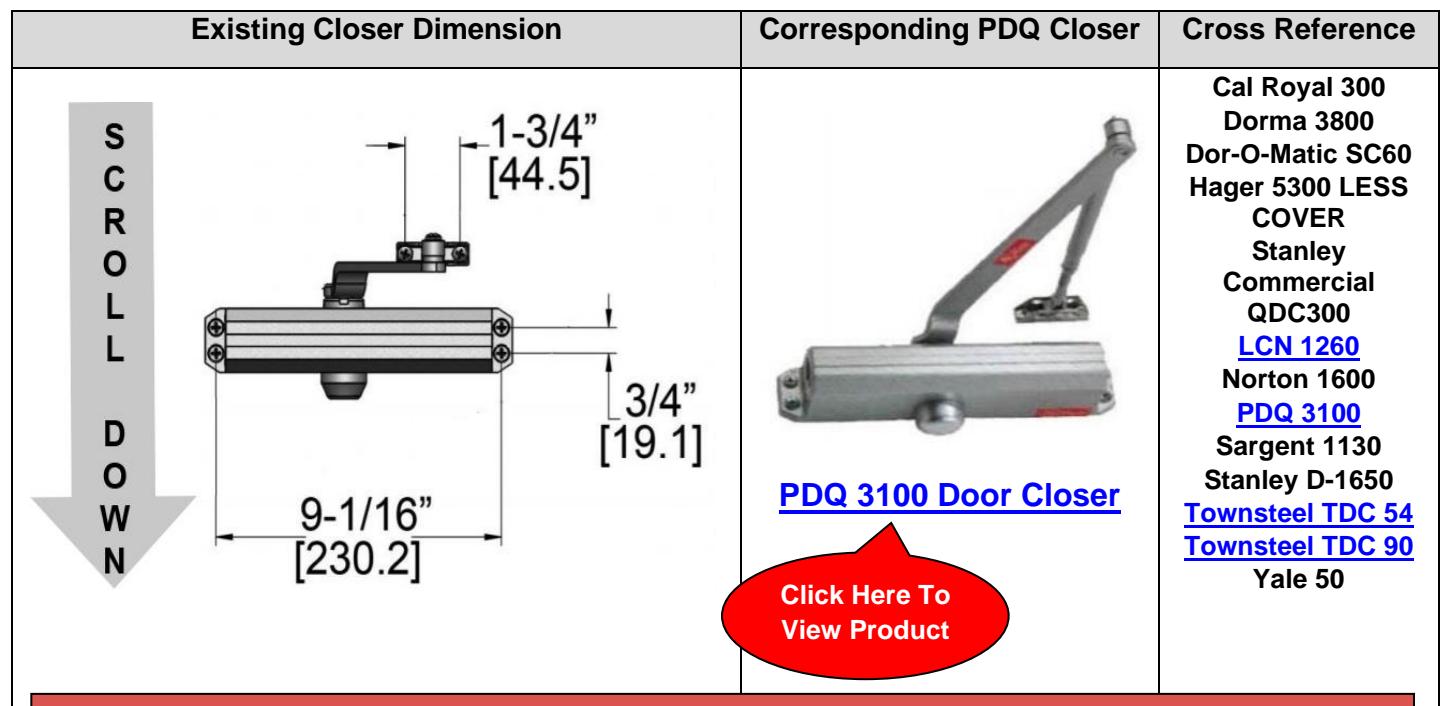

HOW TO ORDER

SERIES	SIZE	BACKCHECK	ARM TYPES	FINISH	ACCESSORIES
31	00	BC	PA	689	-
	00 – Adjustable Size 3-6 01 – Adjustable Size BF - 4	BC – Adjustable Hydraulic Backcheck	DS – Door Saver Arm DSHO – Door Saver Hold Open Arm HO – Hold Open, Tri-Pack PA – Tri-Pack (standard) RA – Regular Arm SCS – Spring Cushion Stop SCSHO – Spring Cushion Stop Hold open TA – Track Arm TAHO – Track Arm Hold Open	689 – Aluminum 695 – Duro Bronze 696 – Gold	BP – Back Plate BS – Blade Stop Spacer DP – Drop Plate NFB – Narrow Frame Bracket SDST – Self Drilling Self Tapping Screws

While we may not have this closer listed on Locksandsafes.com, it doesnt mean we dont have it! CLICK HERE To request a quote for any of these items (PLEASE SPECIFY which closer you would like a quote for)

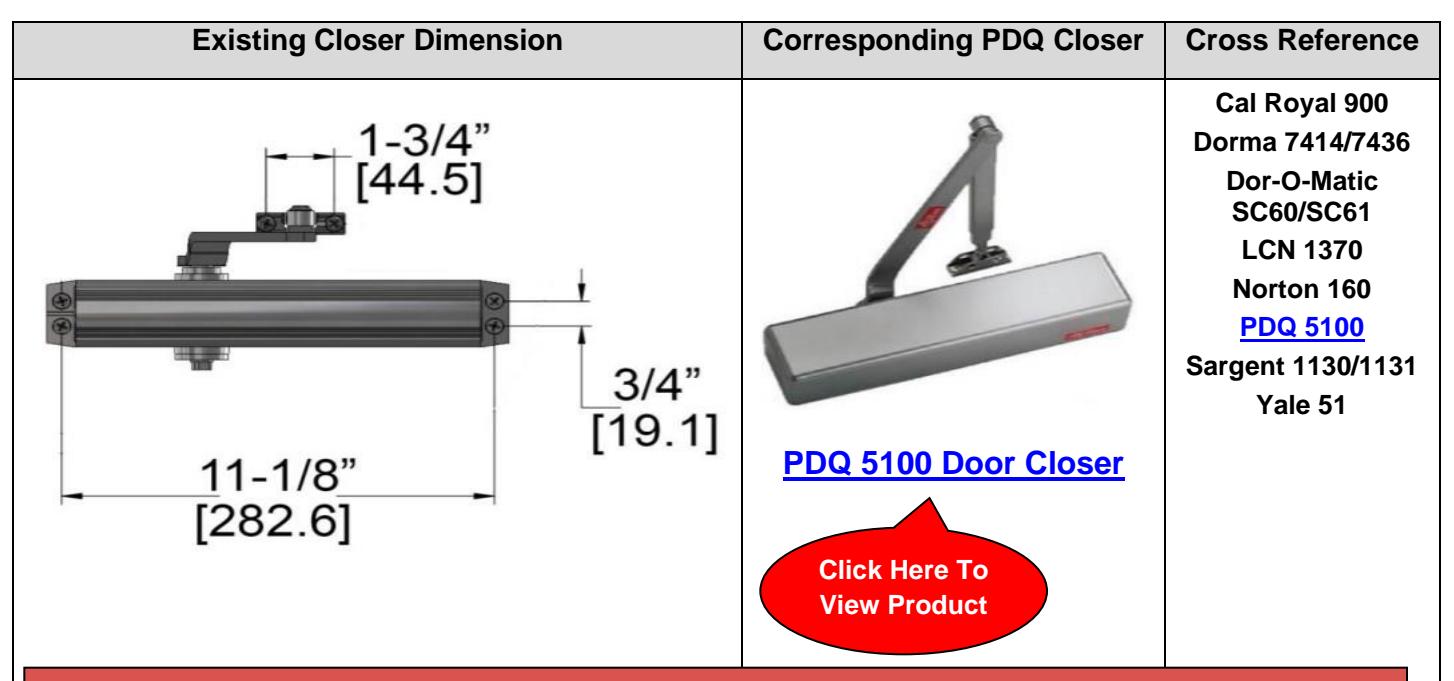

HOW TO ORDER

SERIES	SIZE	BACKCHECK	ARM TYPES	FINISH	ACCESSORIES
51	01	BC	PA	689	-
	01 – Non Delayed Action 41 – Delayed Action (In Addition To Backcheck)	BC – Adjustable Hydraulic Backcheck	DS – Door Saver Arm DSHO – Door Saver Hold Open Arm EDA – Extra Duty Arm EDA HO – Extra Duty Arm Hold Open HO – Hold Open, Tri-Pack PA – Tri-Pack (standard) RA – Regular Arm SCS – Spring Cushion Stop SCSHO – Spring Cushion Stop Hold open TA – Track Arm TAHO – Track Arm Hold Open DA – Delayed Action	605 – Polished Brass 625 – Satin Chrome 689 – Aluminum 695 – Duro Bronze 696 – Gold	BP – Back Plate BS – Blade Stop Spacer DPPA – Parallel Arm Drop Plate DPTJ – Top Jamb Drop Plate FCM – Full Metal Cover specify hand NFB – Narrow Frame Bracket SDST – Self Drilling Self Tapping Screws

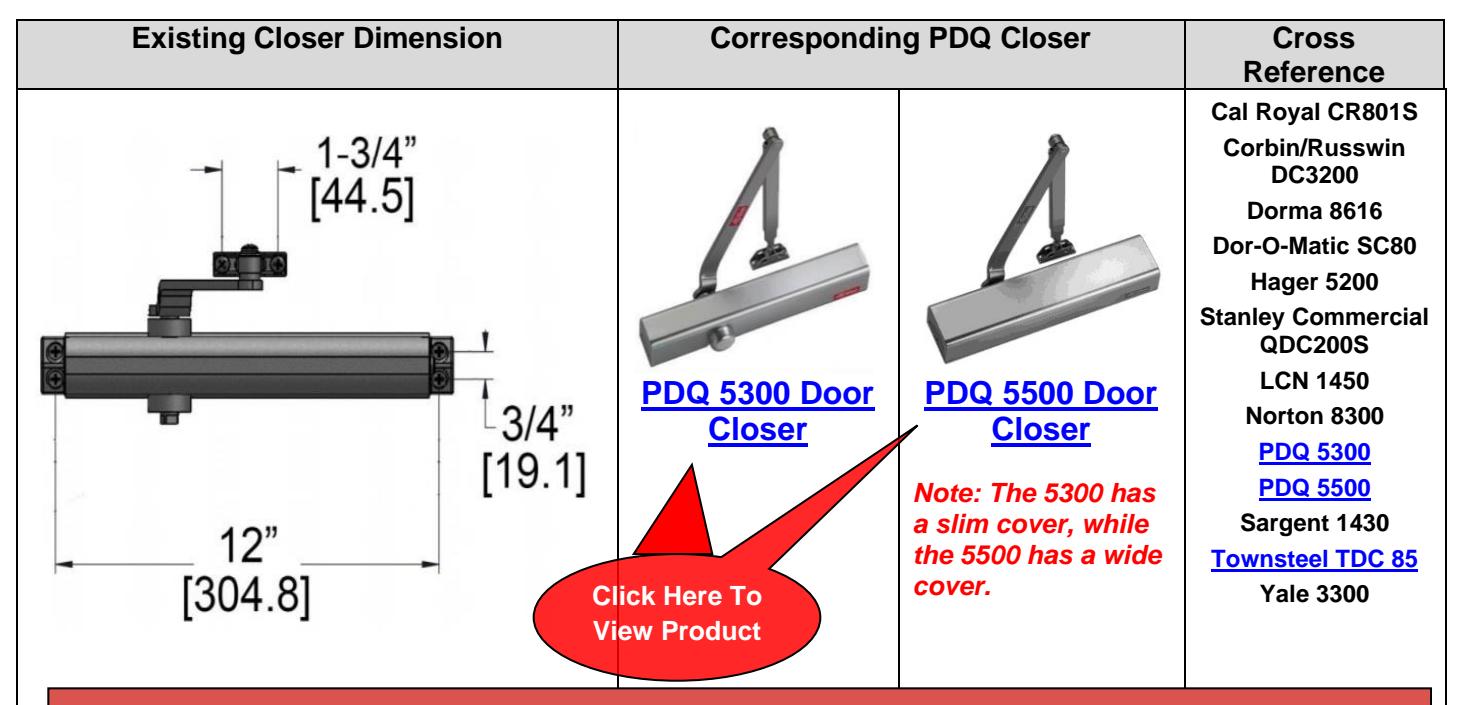

HOW TO ORDER While we may not have this closer listed on Locksandsafes.com, it doesnt mean we dont have it! CLICK HERE To request a quote for any of these items (PLEASE SPECIFY which closer you would like a quote for)

SERIES	SIZE	BACKCHECK	ARM TYPES	FINISH	ACCESSORIES
53	01	BC	PA	689	-
53 – Slim Cover 55 – Full Cover	01 – Non Delayed Action 41 – Delayed Action (In Addition To Backcheck)	BC – Adjustable Hydraulic Backcheck	DS – Door Saver Arm DSHO – Door Saver Hold Open Arm EDA – Extra Duty Arm EDAHO – Extra Duty Arm Hold Open HO – Hold Open, Tri-Pack PA – Tri-Pack (standard) RA – Regular Arm SCS – Spring Cushion Stop SCSHO – Spring Cushion Stop Hold open TA – Track Arm TAHO – Track Arm Hold Open DA – Delayed Action	605 – Polished Brass 625 – Satin Chrome 689 – Aluminum 695 – Duro Bronze 696 – Gold	BP – Back Plate BS – Blade Stop Spacer DPPA – Parallel Arm Drop Plate DPTJ – Top Jamb Drop Plate NFB – Narrow Frame Bracket SDST – Self Drilling Self Tapping Screws

While we may not have this closer listed on Locksandsafes.com, it doesnt mean we dont have it! CLICK HERE To request a quote for any of these items (PLEASE SPECIFY which closer you would like a quote for)

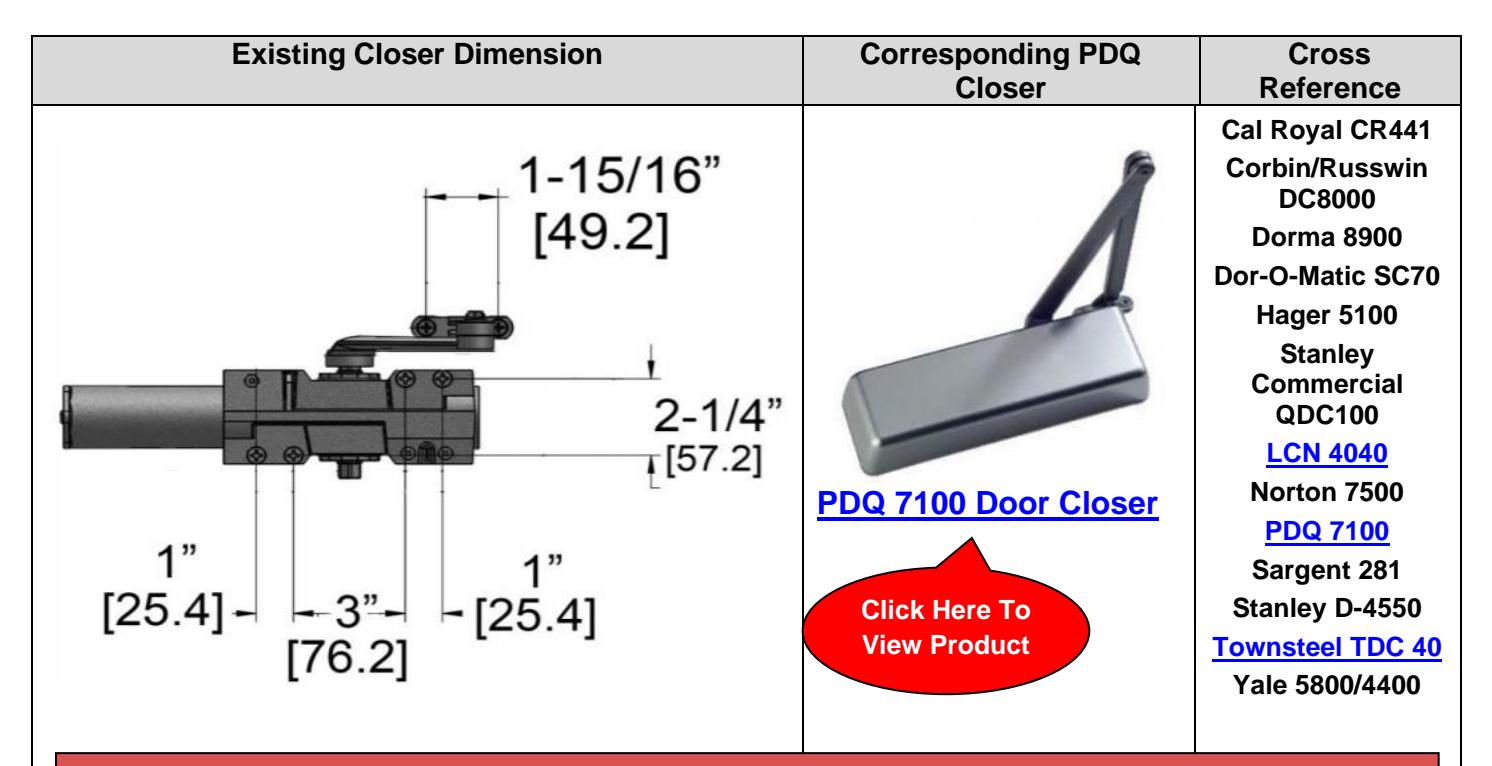

HOW TO ORDER

SERIES	SIZE	BACKCHECK	ARM TYPES	FINISH	ACCESSORIES
71	01	BC	PA	689	-
	01 – Non Delayed Action 41 – Delayed Action (In Addition To Backcheck)	BC – Adjustable Hydraulic Backcheck	DS – Door Saver Arm DSHO – Door Saver Hold Open Arm EDA – Extra Duty Arm EDAHO – Extra Duty Arm Hold Open HO – Hold Open, Tri-Pack PA – Tri-Pack (standard) RA – Regular Arm SCS – Spring Cushion Stop SCSHO – Spring Cushion Stop Hold open TA – Track Arm TAHO – Track Arm Hold Open	605 – Polished Brass 625 – Satin Chrome 689 – Aluminum 695 – Duro Bronze 696 – Gold	BP – Back Plate BS – Blade Stop Spacer DPPA – Parallel Arm Drop Plate DPTJ – Top Jamb Drop Plate FCM – Full Metal Cover specify hand NFB – Narrow Frame Bracket SDST – Self Drilling Self Tapping Screws

Existing Closer Dimension	Corresponding PDQ Closer	Cross Reference
	N/A	Townsteel TDC 53

LCN 4050 N/A Falcon Norton 7500 Yale 4400 While we may not have this closer listed on Locksandsafes.com, it doesnt mean we dont have it! CLICK HERE To request a quote for any of these items (PLEASE SPECIFY which closer you	Existing Closer Dimension	Corresponding PDQ Closer	Cross Reference
			SC71A Dexter DCH1000
would like a quote for)

Existing Closer Dimension	Corresponding PDQ Closer	Cross Reference
	N/A	LCN 1461

Existing Closer Dimension	Corresponding PDQ Closer	Cross Reference
	N/A	LCN 4011, LCN 4021, LCN 4111

Existing Closer Dimension	Corresponding PDQ Closer	Cross Reference
	N/A	Dorma 8916

While we may not have this closer listed on Locksandsafes.com, it doesnt mean we dont have it! CLICK HERE To request a quote for any of these items (PLEASE SPECIFY which closer you would like a quote for)

Existing Closer Dimension	Corresponding PDQ Closer	Cross Reference
	N/A	Dorma 7414

While we may not have this closer listed on Locksandsafes.com, it doesnt mean we dont have it! CLICK HERE To request a quote for any of these items (PLEASE SPECIFY which closer you would like a quote for)

Existing Closer Dimension	Corresponding PDQ Closer	Cross Reference
	N/A	Cal-Royal N900PBF
While we may not have this closer listed on Locksandsafes.com, it doesnt mean we dont have it! CLICK HERE To request a quote	for any of these items (PLEASE SPECIFY which closer you

would like a quote for)

Existing Closer Dimension	Corresponding PDQ Closer	Cross Reference
	N/A	Corbin Russwin DC3210
		Corbin Russwin DC6210

While we may not have this closer listed on Locksandsafes.com, it doesnt mean we dont have it! CLICK HERE To request a quote for any of these items (PLEASE SPECIFY which closer you would like a quote for)

Existing Closer Dimension	Corresponding PDQ Closer	Cross Reference
	N/A	Sargent 1431
While we may not have this closer listed on Locksandsafes.com, it doesnt mean we dont have

it! CLICK HERE To request a quote for any of these items (PLEASE SPECIFY which closer you would like a quote for)

Existing Closer Dimension	Corresponding PDQ Closer	Cross Reference
	N/A	Sargent 281
