CLS pdqSMART INSTALLATION INSTRUCTION INTERCONNECTED LOCK

Phone: 833-2-PDQTEC | www.pdqlocks.com

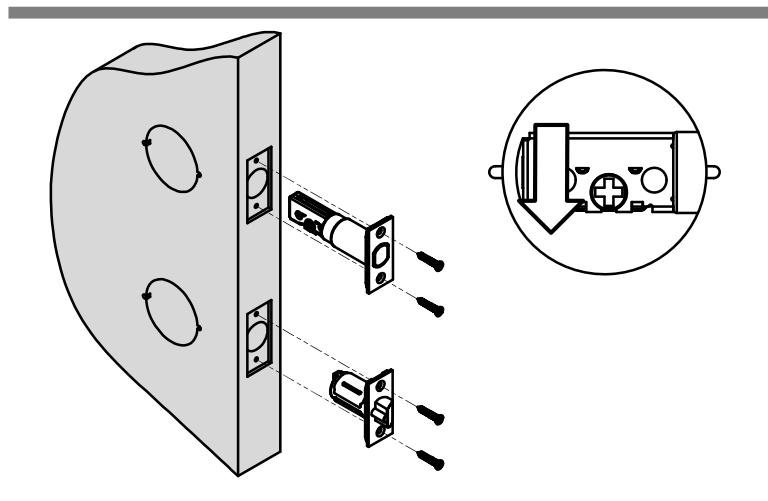

1. PREPARE DOOR & INSTALL LATCHES

• Prepare door according to template.
• Install deadbolt latch in top hole with cross slot for tailpiece toward bottom.
• Install beveled latch on bottom with bevel toward door frame.
• Secure with (4) #8 x ¾" combo screws.

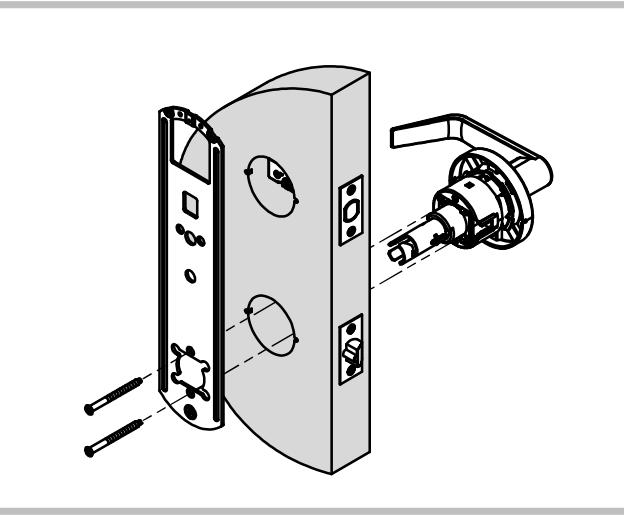

2. INSTALL LOCK ASSEMBLY

• Install lock chassis into bottom hole making sure to properly engage lock body into latchbolt.
• Install inside mounting plate and secure with (2) screws.

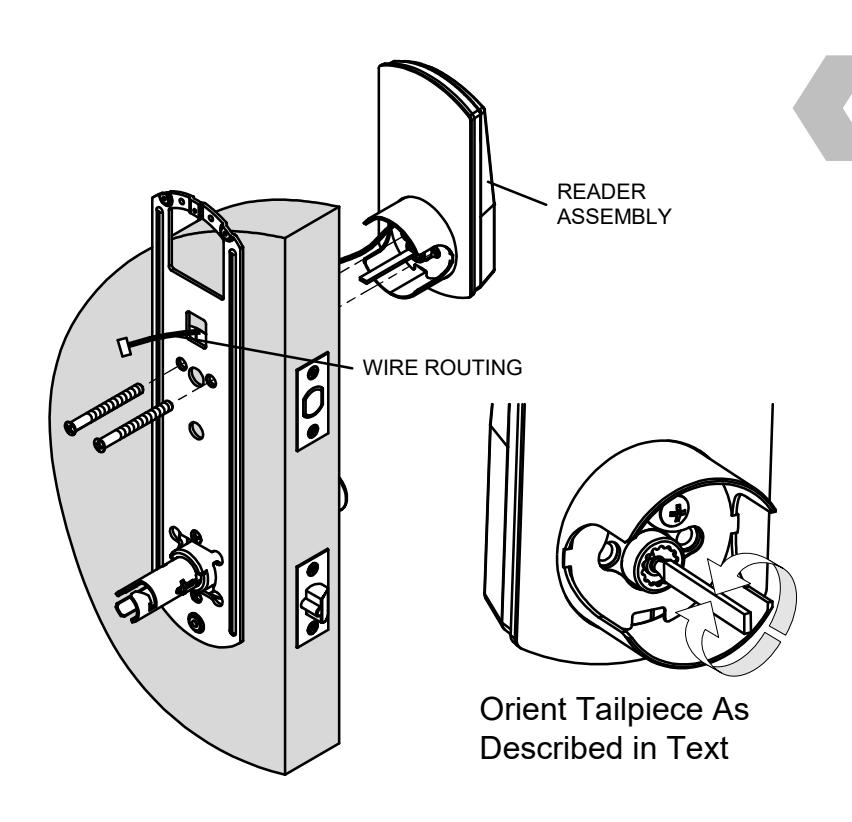

3. INSTALL READER ASSEMBLY

Install reader assembly from outside of door – feeding reader wire through chassis hole in door and through square hole in mounting plate – wire routes above deadbolt latch.

Ensure deadbolt is retracted:

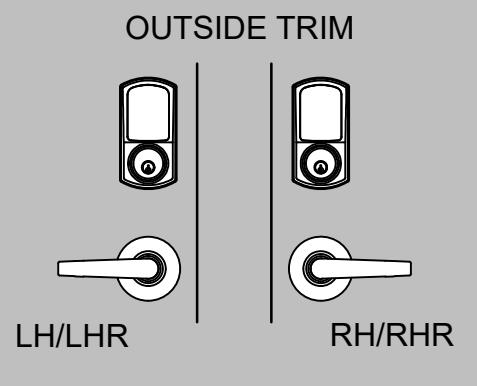

Left Hand Door – Rotate tailpiece clockwise until it stops in the vertical orientation.

Right Hand Door – Rotate tailpiece counterclockwise until it stops in the vertical orientation.

CLS pdqSMART INSTALLATION INSTRUCTION INTERCONNECTED LOCK

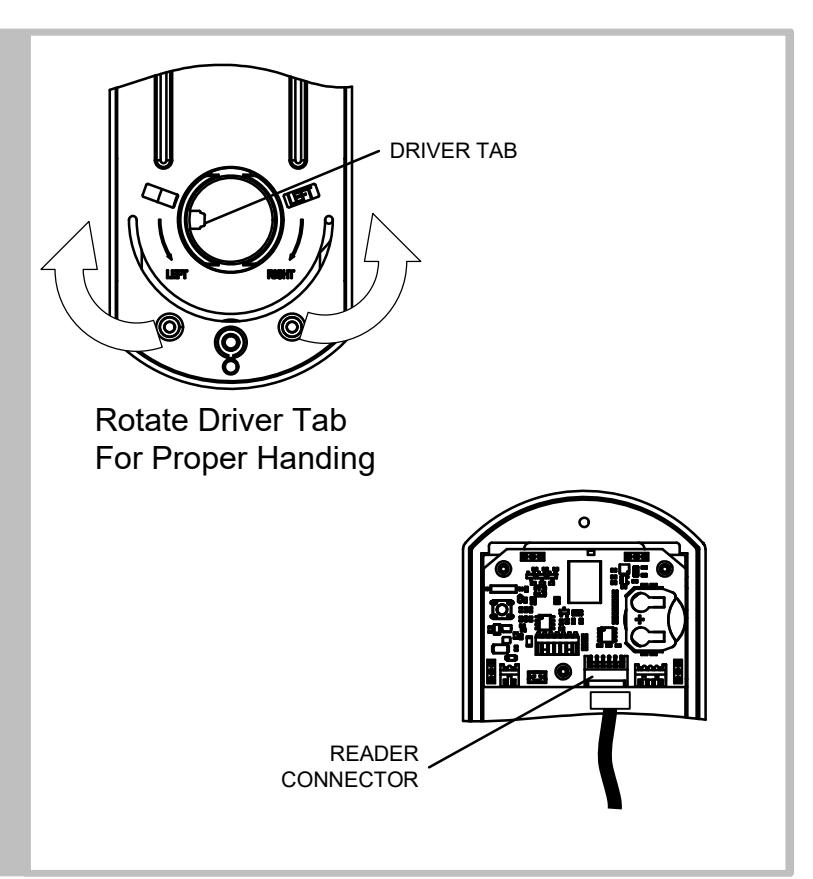

4. PREPARE INSIDE ESCUTCHEON

• Rotate lever driver tab to correct orientation as shown.
• Hold escutcheon up to door and connect reader wire to control board.

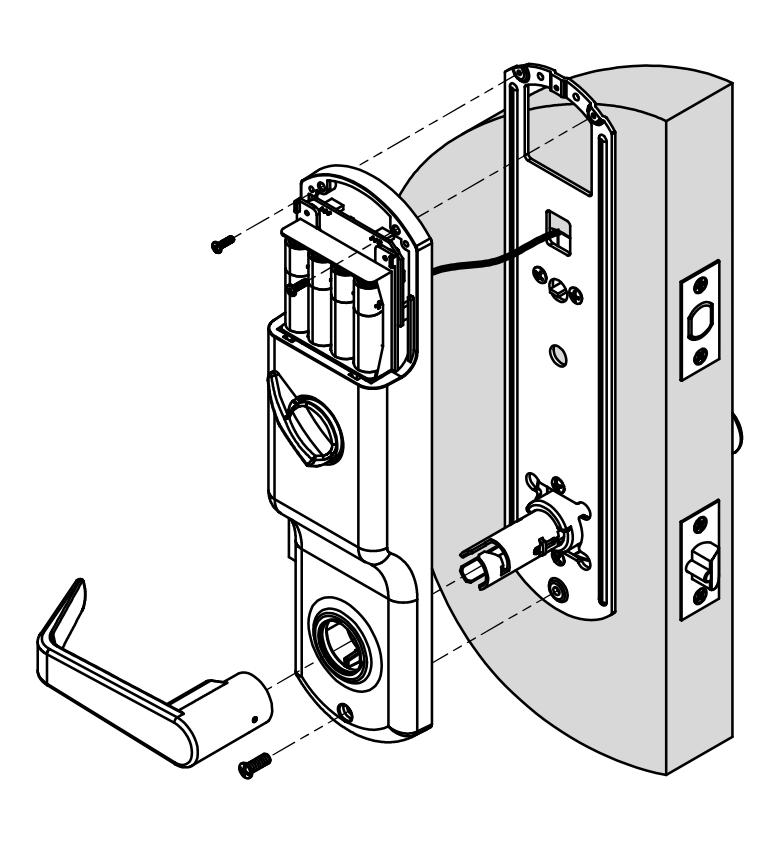

5. INSTALL INSIDE ESCUTCHEON AND LEVER

• Rotate thumb turn away from leading edge of door
• Install inside escutcheon. Push excess wire into door cavity.
• Secure escutcheon using two screws.

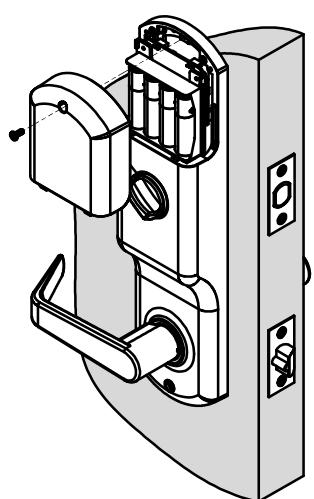

• Install batteries and battery cover.
