TABLE 0F CONTENTS

PRODUCT SPECIFICATIONS	2
FINSHES	2
LEVER DESIGNS	3
PAST PERFORMANCE LOCATIONS	3
FUNCTIONS, CROSS REFERENCE, HANDING	4
HOW TO ORDER	5
KEYWAYS	5
CYLINDERS, CORES	6
LOCK BODY DIMENSIONS	6
STRIKES, LATCHBOLTS	7

SPECIFICATIONS

• FOR DOORS: 1-3/8" and 1-3/4" thick.
• PREPARATION: ANSI/BHMA A156.115 for 4" or 5-1/2" hole centers
  • DUST BOX: Included for Latchbolt and Deadbolt.
• LATCHBOLT BACKSET: 2-3/8" and 2-3/4" (Default). Specify when ordering DEADBOLT BACKSET: • Field adjustable for 2-3/8" and 2-3/4" (Default).

STRIKE: • "T"-Strike (Default). • ASA or Full-Lip optional ROSE: • 3-3/8" DIA

INSIDE ESCUTCHEON: • 3-3/4"W x 9-3/4"H (Wrought)

LATCHBOLT: • 1/2" Throw DEADBOLT: • 1" Throw THUMBTURN: • ADA Compliant

HANDING: • Non-handed (Except for Memphis Lever)

KEYS: • Two (2) per Lock

KEYWAYS: • SCC Default (Schlage C Compatible).

For additional keyways, see Cylinders and Keying section.

INTERCHANGEABLE

CORE: • 6-pin or 7-pin • Compatible with Best SFIC.

CONVENTIONAL KEY IN KNOB/LEVER CYLINDER: • 6-pin Cylinder keyed to 5-pins

KEYING: • Options: MK, CMK, or GMK, Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA)

• Can be keyed into existing master key systems. See Keyways Section.

FINISHES: • 605 (US3) Bright Brass, 613 (US10B) Oil Rubbed Bronze, 626 (US26D) Satin Chrome

CERTIFICATIONS, • Complies with ANSI/BHMA 156.12-2013, Grade 2)

LISTINGS, • UL/CUL 10C listed for 3 hrs, for single doors up to 4'0" x 8'0"

COMPLIANCES: • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings

WARRANTY: • Two (2) year Limited Warranty

Note: Other finishes available. Contact Customer Service for quote and leadtime. Indicator Showing

^A NT ^I MICROB ^I AL ^{C O A T I N G}

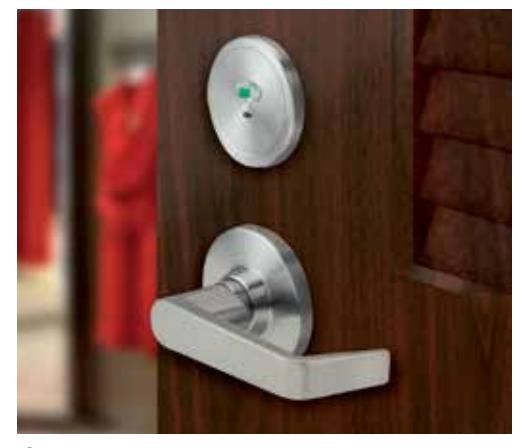

CL176 Privacy w/Indicator

Unoccupied

Indicator Showing Occupied

FINISHES

605 (US3) Bright Brass, Clear Coated

613 (US10B) Oil Rubbed Bronze, Oxidized Satin Bronze, Oil Rubbed, No Coating NEW

626 (US26D) Satin Chromium Plated, No Coating

NEW

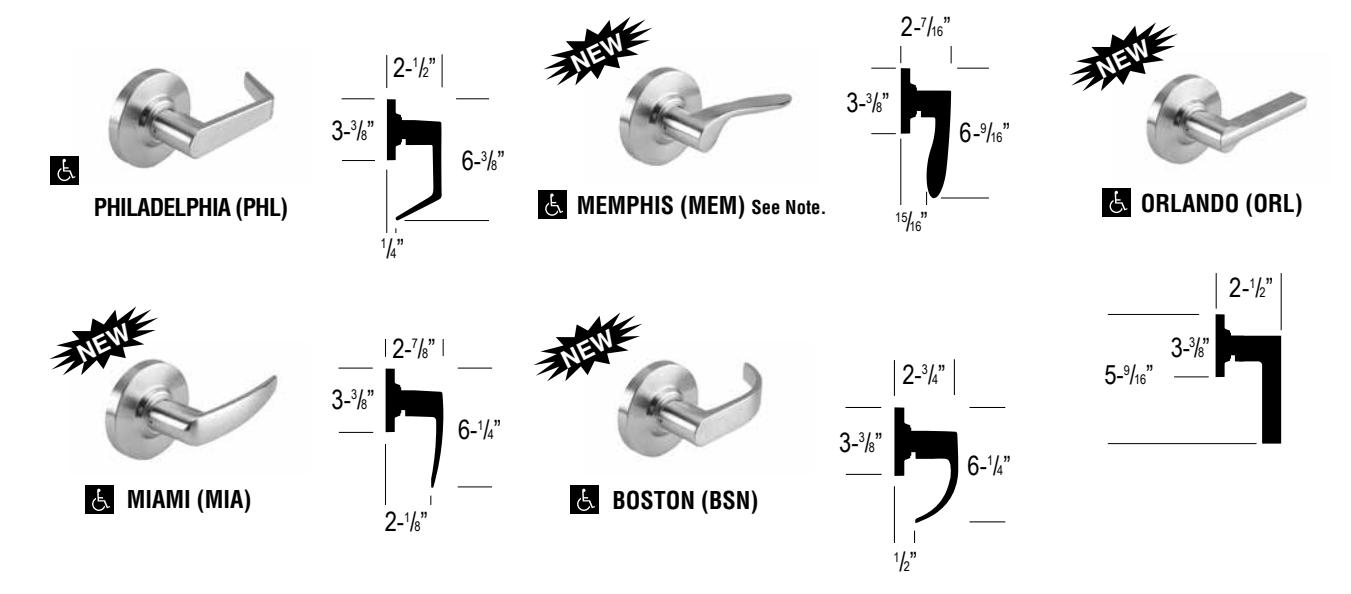

LEVER DESIGNS

$\{\backslash bf\; NOTE:\; Specify\backslash \; handing\backslash \; when\backslash \; ordering\backslash \; Memphis\backslash \; levers.\}$

& Denotes Compliance with ADA Guidelines

PAST PERFORMANCE LOCATIONS

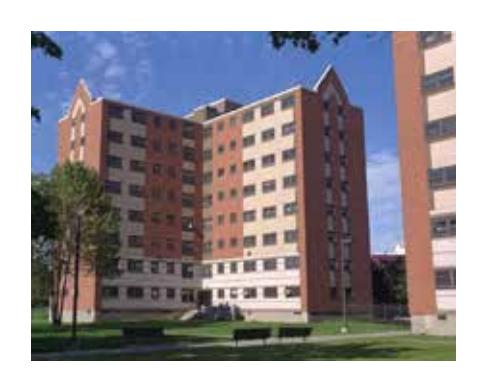

BUFFALO HOUSING PROJECT Buffalo, NY

ASSISTED LIVING Litiz, PA

SPRINGFIELD APARTMENTS Springfield, MA

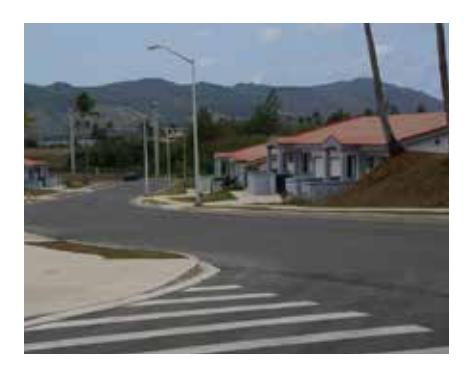

US NAVY HOUSING Guam

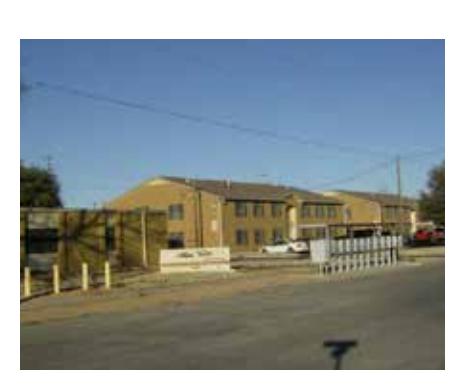

MULTI-FAMILY San Antonio, TX

PDQ FUNCTIONS

FUNCTION	FUNCTION NUMBER	OUTSIDE	INSIDE	DESCRIPTION	ANSI Number
Storeroom Double Cylinder (See note) Privacy Lever	115 NEW	d A		Deadlocking latch bolt is operated by key outside or operating lever Key outside projects or retracts dead bolt. Operating inside lever or key outside retracts dead bolt and deadlocking latch.	F98
Entry Double Cylinder (See note) Privacy Lever	116			Outside lever locked by turn button in inside knob/lever Inside lever always free Unlocking of outside lever requires use of key or manual return of inside turn button Deadbolt is activated by key in outside deadlock or turnpiece inside Turning inside lever retracts deadbolt and latchbolt simultaneously	F97
Entry Single Cylinder Passage Lever	126			Outside and Inside lever always free Deadbolt projected or retracted by key outside or turnpiece inside When deadbolt is projected, turning inside knob/lever retracts deadbolt and latchbolt simultaneously	F95
Privacy with Dead Bolt Indicator No Cylinder Passage Lever	176			Outside and Inside lever always free Indicator outside Thumbturn inside extends/retracts deadbolt Emergency key outside retracts deadbolt When deadbolt is projected, turning inside lever retracts deadbolt and latchbolt simultaneously	_

NOTE: Memphis lever not available in SFIC.

CROSS REFERENCE

ANSI NUMBER / Function	PDQ	CAL-ROYAL	DORMA	FALCON	HAGER	SCHLAGE®	STANLEY®	YALE
95 / ENTRY, SINGLE Cylinder	CL 126	HIL00, JHIL00	J310	_	3710	CS/RS 210 SE- RIES	QCI230 SERIES	4851LN
97 / ENTRY, DOUBLE Cylinder	CL 116	HIL30, JHIL30	J353	H101DG	3753	CS/RS 250 SE- RIES	QCI250 SERIES	4871LN
98 / STOREROOM, Double Cylinder	CL 115	_	_	_	_	CS/RS 280 SE- RIES	QCI285 SERIES	_
PRIVACY W/INDICATOR, NO CYLINDER	CL 176	_	_	_	_	_	QCI285 SERIES	_

Out Swing Door

HANDING

In Swing Door

OUTSIDE LEFT HAND (LH) RIGHT HAND (RH)

LEFT HAND REVERSE (LHR) OUTSIDE

ORDERING GUIDE

TYPE	LEVER DESIGNS3	BACKSET	HANDING2	STRIKE	KEYWAY
CL — Interconnected Lock	BSN — Boston MEM — Memphis3 (Specify handing) MIA — Miami ORL — Orlando PHL — Philadelphia	238 — 2-3/8" 234 — 2-3/4" (Default)	LH — Left Hand RH — Right Hand	ASA — ASA FL — Full Lip T — "T" Strike (Default)	SCC — Default Others - See Keyways Table below
CL 126	PHL 626	234	— —	T SCC	D KD
115 — Storeroom, Double Cylinder 116 — Entry, Double Cylinder 126 — Entry, Single Cylinder 176 — Privacy With Dead Bolt Indicator. No Cylinder	605 — Bright Brass 613 — Oil Rubbed Bronze 626 — Satin Chrome		AM — Anti-microbial	D — Conventional Key in Knob/Lever Cylinder (Default) L — Less Cylinder SF6 — SFIC w/Core, 6 Pin SF7 — SFIC w/Core, 7 Pin SF6L — SFIC 6 Pin Housing less core SF7L — SFIC 7 Pin Housing less core	KD — Keyed Different Others - See Keying Table Below
FUNCTION	FINISHES1		SPECIAL FINISH COATING	CYLINDER OR HOUSING	KEYING

Ordering Example: CL 126 PHL 626 234 T D SCC KD

Notes: 1- Other finishes available. Contact Customer Service. 2 - Specify handing when ordering Memphis lever.

KEYWAYS

	CONVENTIONAL CYLINDER	SMALL FORMAT INTERCHANGEABLE CORE
KEYWAY	PDQ KEYWAY DESIGNATOR	KEYWAY (BEST COMPATIBLE)	PDQ KEYWAY DESIGNATOR
Schlage C (Default)	SCC
PDQ Restricted	TA	BEST A (Default), B, C, D, E, F,	A (Default), B, C, D, E, F, G,
Arrow AR1	AR1	G, H, J, K, L, M, Q, R, WA, WB,	H, J, K, L, M, Q, R, WA, WB,
Corbin 59A1	CO59A1	WG, WH, TB, TD, TE, R	WG, WH, TB, TD, TE, R
Corbin 60	CO6
Corbin L4	CL4
Russwin D1	RUD		PDQ1
Russwin 981	RUD981	PDQ Exclusive	PDQ2
Schlage E	SCE	PDQ Exclusive and Restricted	PDQ3
Schlage C	SCC
Schlage C-K	SCC-K
Sargent LA	SAL
Sargent RA-RC	RA-RC
Yale E1R	YA8
Yale GA	GA
Falcon E-R	FAL
Kwikset	KW

KEYING

DESCRIPTION	PDQ KEYING DESIGNATOR
Keyed Different (Default)	KD
Keyed Alike	KA
"O" Zero Bitted	KO
Master Keyed	MK
Construction Master Keyed	CMK
Grand Master Keyed	GMK

^{3 -} Memphis lever not available in SFIC.

CYLINDERS/CORES

PDQ cylinders and cores are designed to interface with the keyways of most major lock manufacturers. Insert cylinders are designed to accept 6 pins and are combinated for 5 pins. These cylinders are shipped with two keys. Interchangeable core cylinders are available combinated or uncombinated for 6 and 7 pins and must be specified when ordering. Available in two finishes—606 (US4) and 626 (US26D); specify when ordering separately.

Key in Knob/Lever Cylinder (Default)

Small Format Interchangeable Core.

CYLINDERS & CORES

		PINS	FINISHES
	DESCRIPTION		606	626
	Conventional Key In Knob/Lever Cylinder (Default)	6 Pin	V4802-8	V4802-7
	Small Format, Best® Compatible - Uncombinated	6 Pin 7 Pin	I5206 -8 I5207-8	I5206 -7 I5207-7
	Small Format, Best® Compatible - Combinated	6 Pin 7 Pin	I5206-1-8 I5207-1-8	I5206-1 -7 I5207-1 -7

NOTE: Part Numbers Listed For Default Keyway. For Other Keyways, See Keyways Section.

HIGH SECURITY CYLINDERS & CORES

		FINISHES
DESCRIPTION	PINS	606	626
Key in Knob/Lever Cylinder	6 Pin	HSC125-8	HSC125-7
Key in Knob/Lever Cylinder - UL437	6 Pin	HSC425-8	HSC425-7
Small Format, Best® Compatible - Combinated	6 Pin	HSC806-8	HSC806-7
Small Format, Best® Compatible - Combinated	7 Pin	HSC807-8	HSC807-7

NOTE: Part Numbers Listed For Default Keyway. For Other Keyways, See Keyways Section.

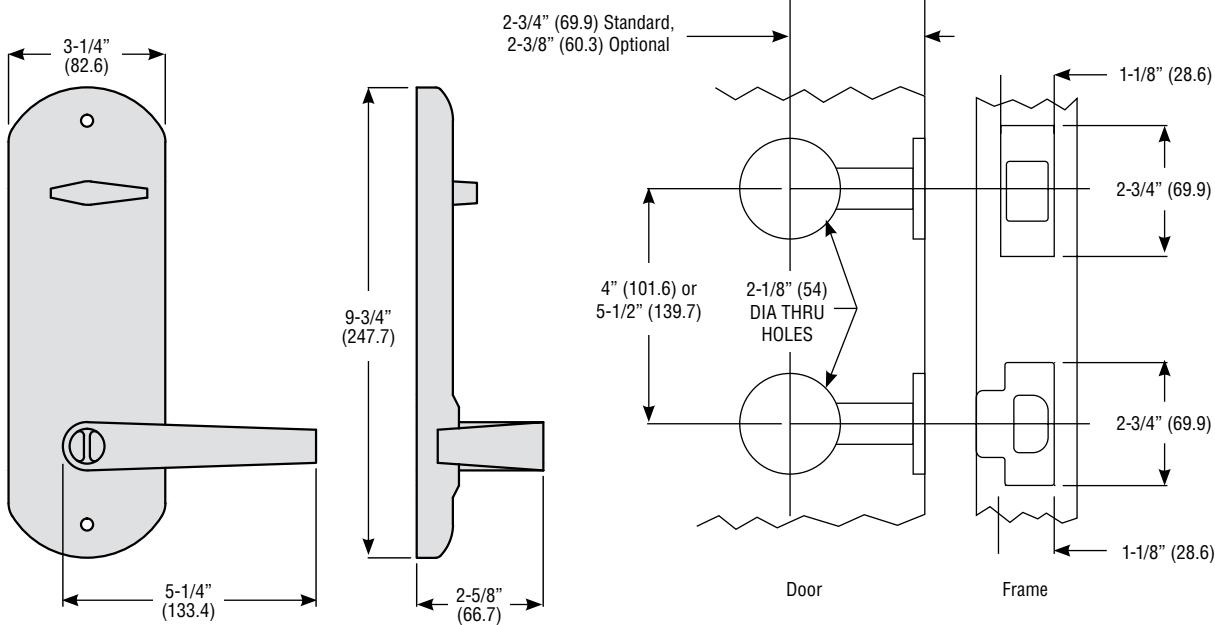

DIMENSIONS

Note: Dimensions in parenthesis in millimeters Note: Fits ANSI/BHMA 156.115 door preparation for Interconnected Locks

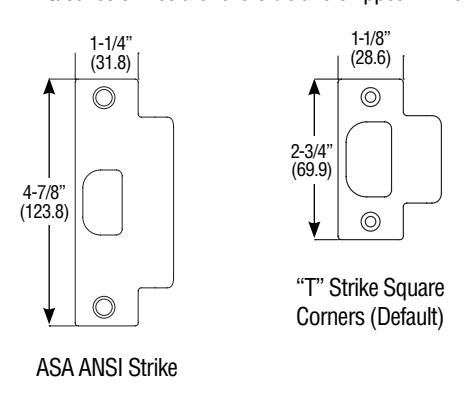

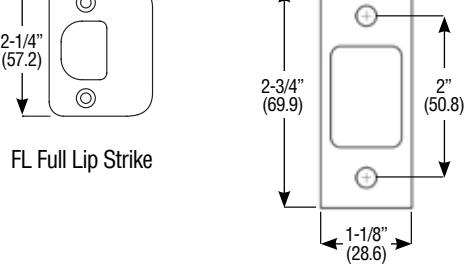

STRIKES

All PDQ series strikes are reversible and shipped with screws. Specify finish when ordering.

Deadbolt Strike Square Corners

NOTE: Dimensions in parenthesis in millimeters

STRIKES

DESCRIPTION	FINISH N/A	605 (US3)	613 (US10B)	630 (US32D)
ASA Strike (any finish) 1-1/4" x 4-7/8"		V91900-5	V91901-6	V91901-1
T-Strike (any finish) 1-1/8" x 2-3/4"		V91901-5	V91901-6	V91901-1
Full Lip Strike (any finish) 1-5/8" x 2-1/4"		14702-5	14702-6	14702-1
Deadbolt Strike (any finish) 2-3/4" x 1-1/8"		V91901-5	V91901-6	V91901-1
Dust Box	I4587	—	—	—

Note 1 - Dust Boxes for Deadbolt and Latchbolt included with the lock.

LATCHBOLTS

BACKSET	TYPE	FACEPLATE	CORNERS	PDQ NUMBER
		2-1/4" X 1	SQUARE (DEFAULT)	V21900-722
	SPRINGLATCH	2-1/4" X 1-1/8"	SQUARE	V21900-724
		2-1/4" X 1	1/4" RADIUS	V21900-722R
2-3/8"	DEADLATCH	2-1/4" X 1	SQUARE (DEFAULT)	V21900-721
		2-1/4" X 1-1/8"	SQUARE	V21900-723
		2-1/4" X 1	1/4" RADIUS	V21900-721R
			SQUARE	V21900-714
	SPRINGLATCH	2-1/4" X 1-1/8"	SQUARE (DEFAULT)	V21900-712
2-3/4"		2-1/4" X 1	SQUARE	V21900-711
	DEADLATCH	2-1/4" X 1-1/8"	SQUARE (DEFAULT)	V21900-713

Latchbolt w/Dead Latch

Springlatch (w/out Deadlatch)

DEADBOLTS

BACKSET	TYPE	FACEPLATE	CORNERS	PDQ NUMBER
		2-1/4" X 1	SQUARE (DEFAULT)	I04507
2-3/8" AND 2-3/4"	ADJUSTABLE	2-1/4" X 1	1/4" RADIUS	I04507R

Deadbolt

Headquarters: 2754 Creek Hill Road • Leola, PA 17540 • 800.441.9692 • 717.656.6892 Fax Regional Distribution Centers: Kansas City, MO, Salt Lake City, UT, Seattle, WA www.pdqlocks.com
