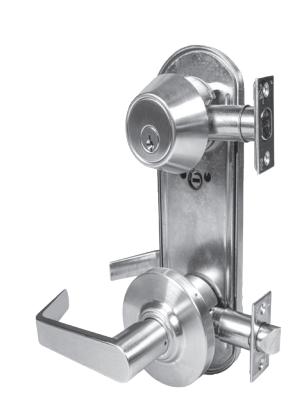

Grade 2 Standard Duty SERIES Interconnected Lock

Architectural Submittal Sheet

Typical Applications

• Assisted Living
• Hospitality
• Military Housing
• Multi-family
• Offices
• Retail

Specifications

opoomoutions	ADA COMPLIAN
FOR DOORS:	• 1-3/8" and 1-3/4" thick.
PREPARATION:	ANSI/BHMA A156.115 for 4" and 5-1/2" hole centers, field selectable.
DUST BOX:	Included for Latchbolt and Deadbolt.
LATCHBOLT BACKSET:	• 2-3/8" or 2-3/4" (Default). Specify when ordering
DEADBOLT BACKSET:	• Field adjustable for 2-3/8" and 2-3/4" (Default).
STRIKE:	"T"-Strike (Default) ASA or Full-Lip optional
LEVERS:	Boston, Miami, Memphis, Orlando, Philadelphia
ROSE:	• 2-3/8" Round Rose, 2-15/16" Square Rose
INSIDE ESCUTCHEON:	• 3-3/4"W x 9-3/4"H (Wrought)
LATCHBOLT:	• 1/2" Throw
DEADBOLT:	• ADA compliant.
HANDING:	Non-handed (Except for Memphis Lever)
KEYS:	• Two (2) per Lock
KEYWAYS:	SCC Default (Schlage C Compatible). For additional keyways, see Cylinders and Keying section.
INTERCHANGEABLE CORE:	● 6-pin or 7-pin • Compatible with Best SFIC. • Not available in high security.
CONVENTIONAL KEY IN KNOB/LEVER CYLINDER:	• 6-pin Cylinder keyed to 5-pins
KEYING:	Options: MK, CMK, or GMK, Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems. See Keyways Section.
FINISHES:	• 605 (US3) Bright Brass, 613 (US10B) Oil Rubbed Bronze, 622 (US19) Flat Black, 626 (US26D) Satin Chrome (See Note)
CERTIFICATIONS, LISTINGS, COMPLIANCES:	ANSI, Grade 2 UL listed for 3 hrs, for single doors up to 4'0" x 8'0" Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
WARRANTY:	Two (2) year Limited Warranty
	·

CL SERIES Grade 2 Standard Duty Interconnected Lock

PDQ Functions

FUNCTION	FUNCTION NUMBER	INSIDE | OUTSIDE	DESCRIPTION	ANSI NUMBER
Entry Single Cylinder Passage Lever	126		• Outside and Inside lever always free • Deadbolt projected or retracted by key outside or turnpiece inside • When deadbolt is projected, turning inside knob/lever retracts deadbolt and latchbolt simul taneously	F95
Storeroom Double Cylinder (See note) Passage Lever	115		• Deadlocking latch bolt is operated by key outside or inside lever • Key outside projects or retracts dead bolt. • Operating inside lever or keys outside retracts dead bolt and deadlocking latch.	F98
Entry Double Cylinder (See note) Privacy Lever	116		• Outside lever locked by turn button in inside knob/lever • Inside lever always free • Unlocking of outside lever requires use of key or manual return of inside turn but ton • Deadbolt is activated by key in outside deadlock or turnpiece inside • Turning inside lever retracts deadbolt and latchbolt simultaneously	F97
Privacy with Dead Bolt Indicator No Cylinder Passage Lever	176		• Outside and Inside lever always free • Indicator outside • Thumbturn inside extends/retracts deadbolt • Emergency key outside retracts deadbolt • When deadbolt is projected, turning inside lever retracts deadbolt and latchbolt simul taneously	—

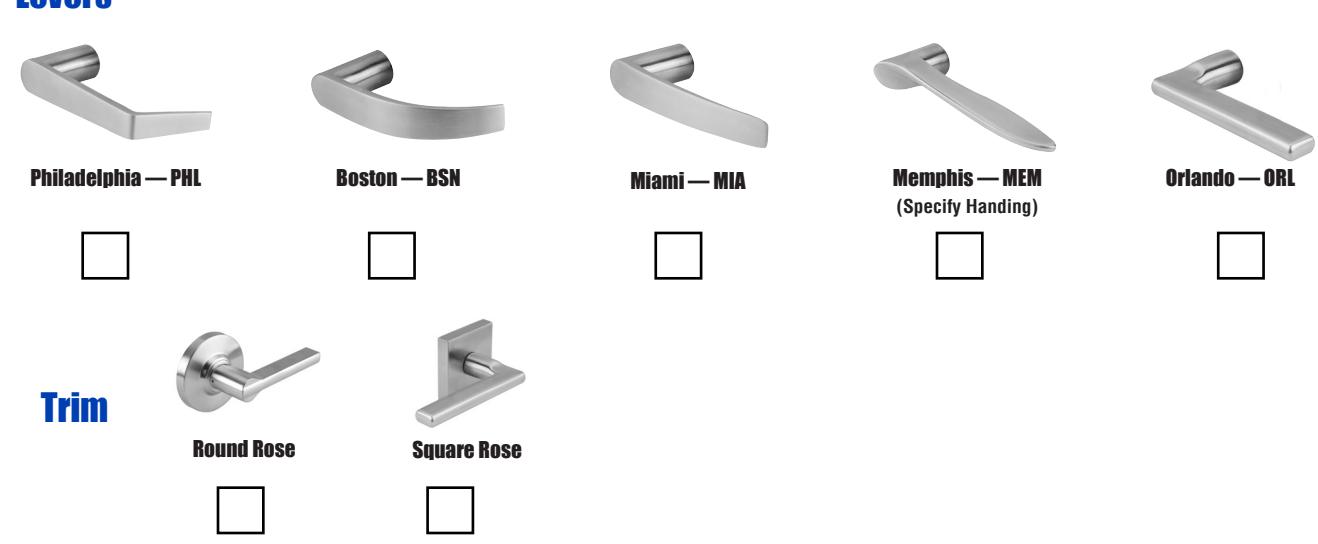

Levers

CL SERIES Grade 2 Standard Duty Interconnected Lock

Options

CODE	DESCRIPTION
DB	Dust Box
