PDQ 7101 Door Closer Models – 719303 REV0 7100 PA HO NHO Parallel Arm Installation Template

7101 DOOR CLOSER MODELS

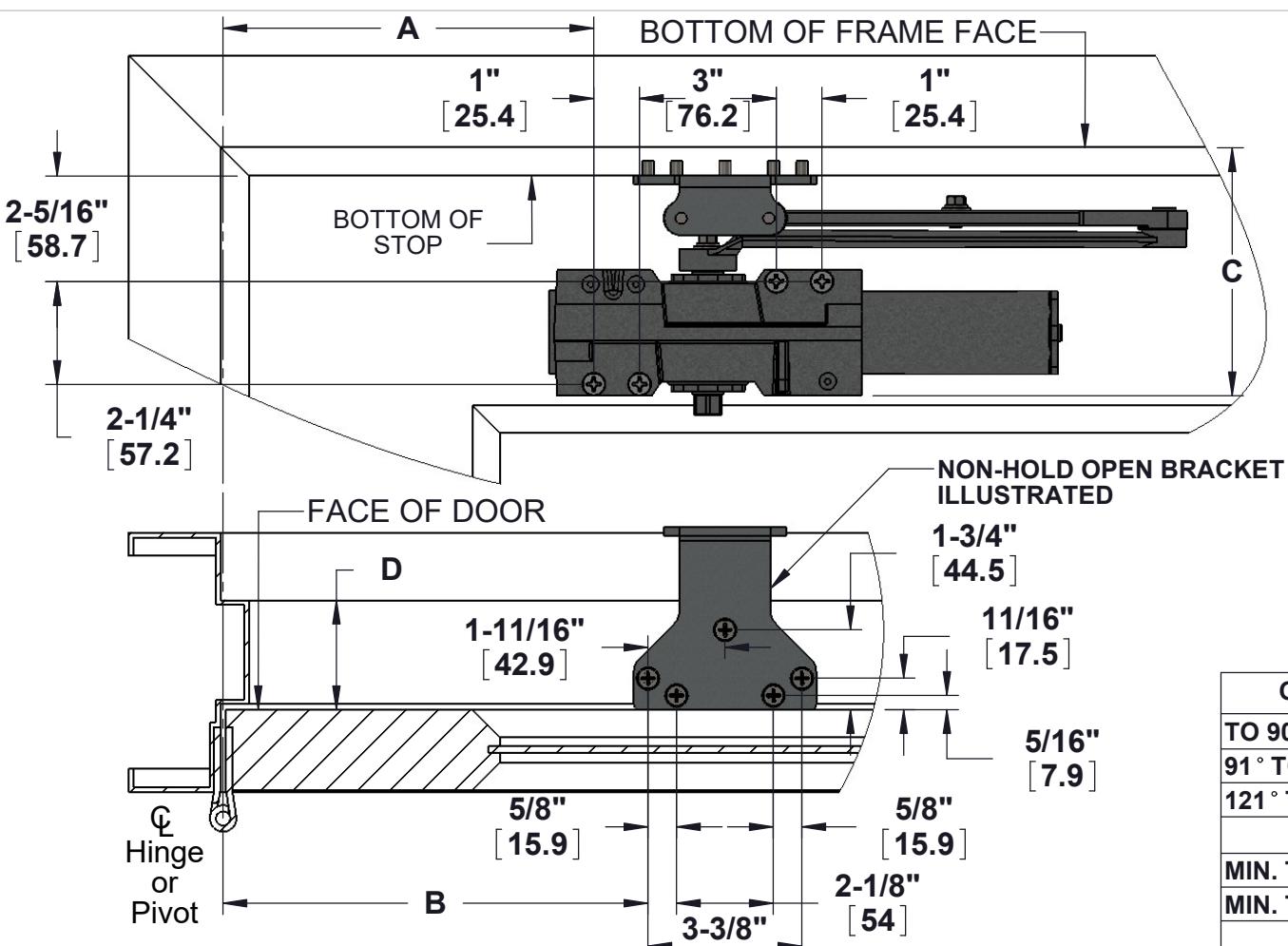

PARALLEL ARM INSTALLATION - PUSH SIDE NON-HOLD OPEN AND HOLD OPEN APPLICATIONS

TEMPLATE: 719303, REV. 0 02-17-12

HINE SCREWS: #7 OR 13/64" [5.1] DRILL AND 1/4-20 TAP
D DOOR/FRAME SCREWS: 5/32" [4] DRILL

SEX NUTS:

USE 3/8" [9.5] DRILL (CLOSER TO DOOR)

Opening	Dim. A	Dim. B
TO 90°	9-1/2" [241.3]	9-13/16" [249.2]
91° TO 120°	8" [203.2]	8-5/16" [211.1]
121° TO 180°	6-1/2" [165.1]	6-3/16" [157.2]
Dim. C *
MIN. TO BOTTOM OF CLOSER		5-3/8" [136.5]
MIN. TO BOTTOM OF COVER 6" [152.4]
Dim. D
MIN. STOP DEPTH RECOMMENDED 1-1/4" [31.8]

* MIN. RAIL DIMENSIONS BASED ON 5/8" [15.9] STOP HEIGHT AND 1/8" [3.2] TOP DOOR GAP.

1. DRAWING IS NOT TO SCALE.

2. DIMENSIONS IN INCHES

NOTES:

• 2. LEFT HAND DOOR SHOWN. FOR RIGHT HAND DOOR REVERSE IMAGE.
• 3. DIMENSIONS BASED ON 4-1/2" X 4-1/2" BUTT HINGES.
• 4. DOOR SWING MAY BE ALTERED DUE TO OTHER LIMITING CONDITIONS.
• 5. CAUTION: SEX NUTS MAY BE REQUIRED FOR UNREINFORCED DOORS OR COMPOSITE FIRE DOORS. CONSULT MANUFACTURER'S RECOMMENDATIONS.

85.7

• 6. HOLD OPEN ARMS CAN NOT BE USED ON LABELED FIRE DOORS.
• 7. ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT REVISION AT WWW.PDQLOCKS.COM.

833-2 PDQTEC www.pdqlocks.com
