7101 DOOR CLOSER MODELS

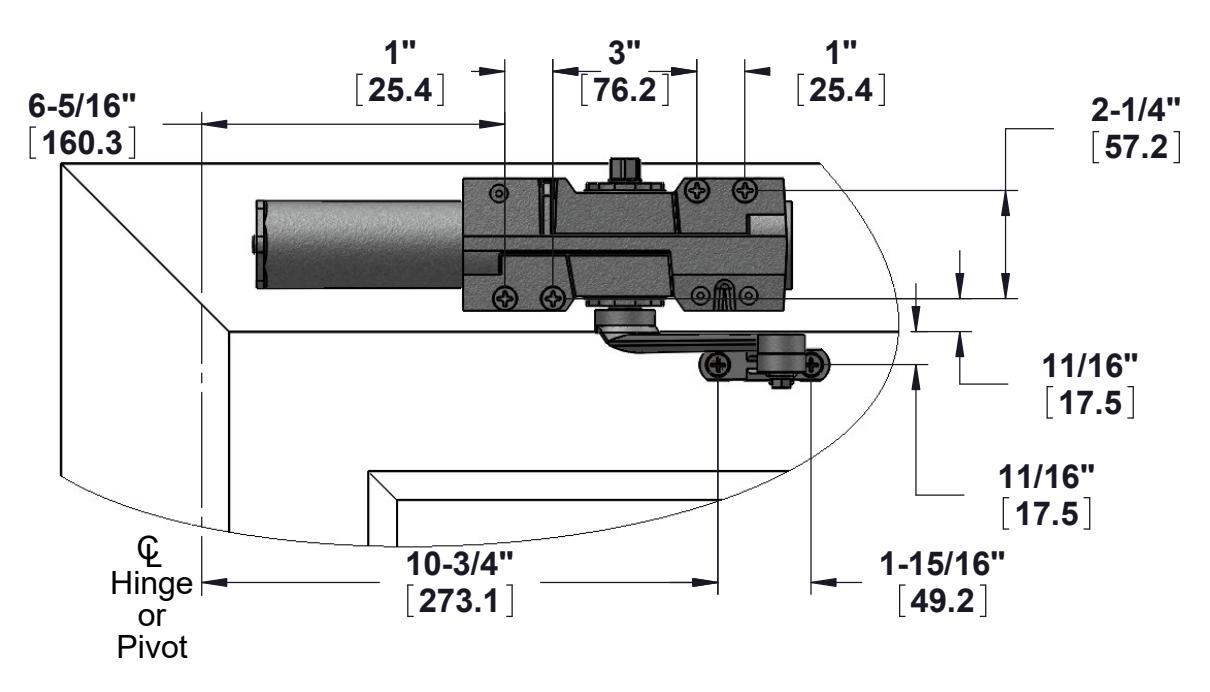

TOP JAMB INSTALLATION - PUSH SIDE (FLUSH HEADER OR SINGLE RABBET FRAME) NON-HOLD OPEN AND HOLD OPEN APPLICATIONS

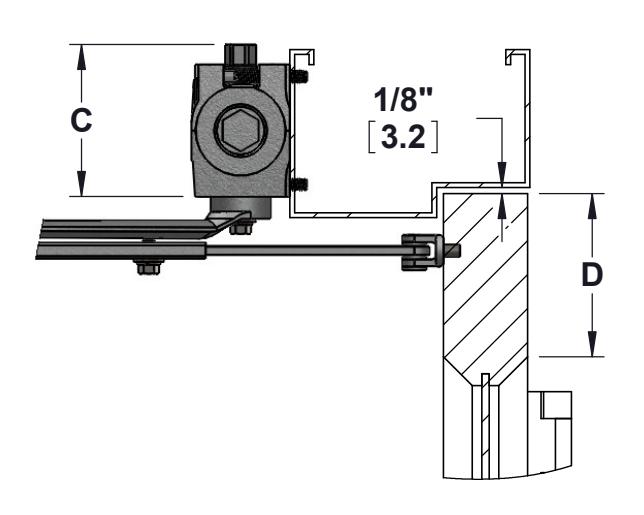

Dim. C
MIN. FRAME FACE TO MOUNT CLOSER *	3-1/4" [82.6]
MIN. CEILING CLEARANCE TO FULL COVER	3-7/8" [98.4]

^* TYPICAL DOUBLE RABBETED FRAME WITH FACE LESS THAN 3-1/4" REQUIRES OPTIONAL TOP JAMB BACK PLATE #719024 OR TOP JAMB DROP PLATE #719023.

NOTES:

• 1. DRAWING IS NOT TO SCALE.
• 2. DIMENSIONS IN INCHES [MM]
• 3. LEFT HAND DOOR SHOWN, FOR RIGHT HAND DOOR REVERSE IMAGE.
• 4. DIMENSIONS BASED ON 4-1/2" X 4-1/2" BUTT HINGES.
• 5. MAXIMUM DOOR SWING 120°
• 6. DOOR SWING MAY BE ALTERED DUE TO OTHER LIMITING CONDITIONS.
• 7. CAUTION: SEX NUTS MAY BE REQUIRED FOR UNREINFORCED DOORS OR COMPOSITE FIRE DOORS. CONSULT MANUFACTURER'S RECOMMENDATIONS.
• 8. HOLD OPEN ARMS CAN NOT BE USED ON LABELED FIRE DOORS.
• 9. ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT REVISION AT WWW.PDQLOCKS.COM.

Dim. D MIN. RAIL TO MOUNT NHO ARM 1-5/8" [41.3] MIN. RAIL TO MOUNT HO ARM 1-7/8" [47.6]

REV. 0

TEMPLATE: 719302,

02-15-12

MACHINE SCREWS:

USE #7 OR 13/64" [5.1] DRILL AND 1/4-20 TAP

WOOD DOOR/FRAME SCREWS:

USE 5/32" [4] DRILL

SEX NUTS:

USE 3/8" [9.5] DRILL (FOOT TO DOOR)
