7101 DOOR CLOSER MODELS

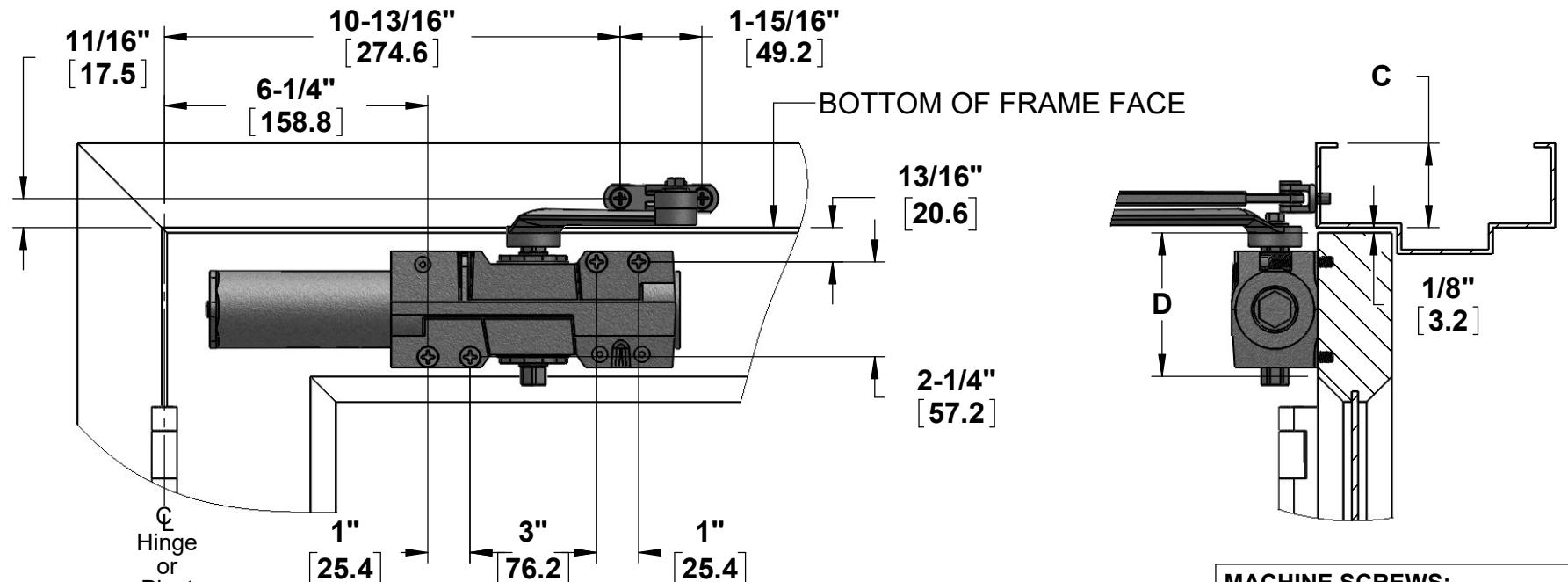

REGULAR ARM INSTALLATION - PULL SIDE NON-HOLD OPEN AND HOLD OPEN APPLICATIONS

Dim. C
MIN. CEILING CLEARANCE NON-HOLD OPEN	1-3/16" [30.2]
MIN. CEILING CLEARANCE HOLD OPEN	1-5/8" [41.3]
MIN. FACE HEIGHT NON-HOLD OPEN	1-1/16" [27]
MIN. FACE HEIGHT HOLD OPEN	1-1/2" [38.1]

Dim. D
MIN. RAIL TO MOUNT CLOSER	3-1/4" [82.6]
MIN. RAIL TO BOTTOM OF FULL COVER	3-3/4" [95.3]

RFV. 2

TEMPLATE: 719301,

7-13-12

• Pivot 1. DRAWING IS NOT TO SCALE.
• INCHES 2. DIMENSIONS IN IMM1 ·

NOTES:

• 3. RIGHT HAND DOOR SHOWN. FOR LEFT HAND DOOR REVERSE IMAGE.
• 4. DIMENSIONS BASED ON 4-1/2" X 4-1/2" BUTT HINGES.
• 5. MAXIMUM DOOR SWING 120°
• 6. DOOR SWING MAY BE ALTERED DUE TO OTHER LIMITING CONDITIONS.
• 7. CAUTION: SEX NUTS MAY BE REQUIRED FOR UNREINFORCED DOORS OR COMPOSITE FIRE DOORS. CONSULT MANUFACTURER'S RECOMMENDATIONS.
• 8. HOLD OPEN ARMS CAN NOT BE USED ON LABELED FIRE DOORS.
• ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT REVISION AT WWW.PDQLOCKS.COM.

MACHINE SCREWS:

USE #7 OR 13/64" [5.1] DRILL AND 1/4-20 TAP

WOOD DOOR/FRAME SCREWS:

USE 5/32" [4] DRILL

SEX NUTS:

USE 3/8" [9.5] DRILL (CLOSER TO DOOR)
