This sheet covers 3 installation options. Select appropriate installation. All measurements are to be made manually.

Diagram measurements are for reference only (NOT TO SCALE!).

Installation Instructions

PUSH SIDE-STOP MOUNTED TRACK

7100TA/TAHO Series Slide Track Door Closer Push Side - Stop Mounted Track Maximum Door Opening 120° (Conditions Permitting)

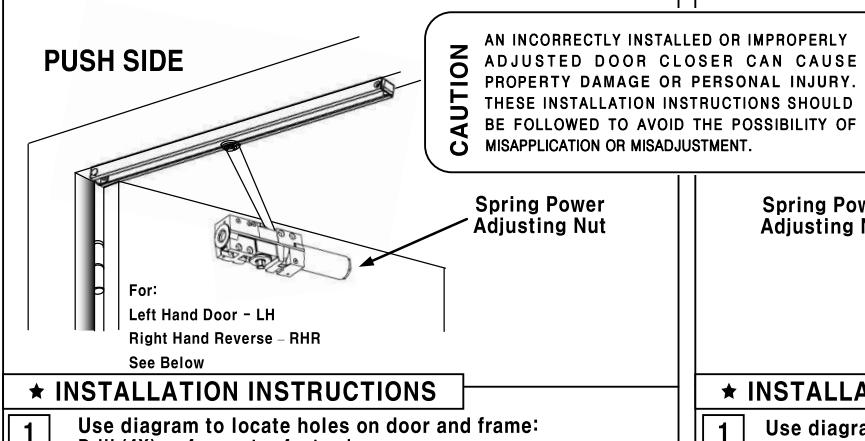

PUSH SIDE

Use diagram to locate holes on door and frame: Drill (4X) on frame stop for track assembly. Drill (4X) on door for closer body. Track to Stop Metal: Use # 21 or 5/32" drill & 10-32 tap Wood: Use 1/8"pilot drill

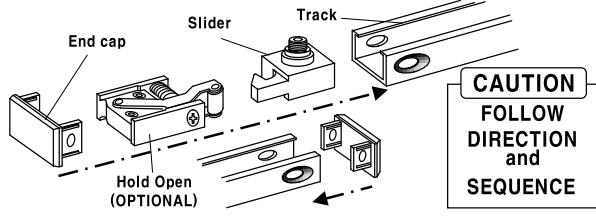

Hold Open: Install Slider, Hold Open & End cap in direction/

Non-Hold Open: Install Slider & End cap in sequence shown.

Install closer body to door using four (4) screws provided. Install track to frame stop using four (4) screws provided. Insert two (2) filler plugs in front of track.

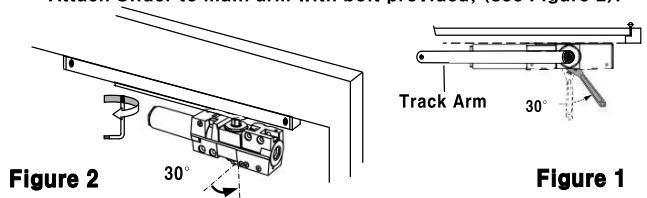

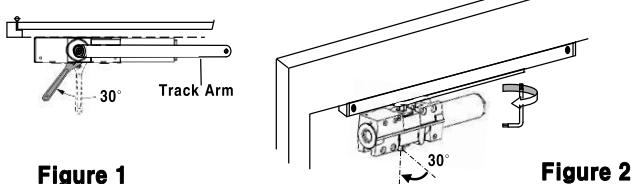

4 Use wrench to rotate pinion shaft 30° toward hinges, (see Figure 1) & secure main arm to pinion as shown. Attach Slider to main arm with bolt provided, (see Figure 2).

5 OPTIONAL HOLD OPEN

Engage slider into hold open. Open door to desired hold open angle. Secure Hold Open with set screw.

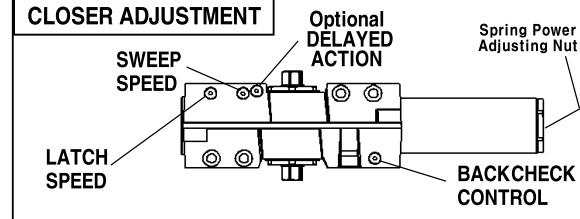

Complete all spring and closer adjustments (see page 3).

Secure cover with screws provided. Separate limiting door stop REQUIRED!

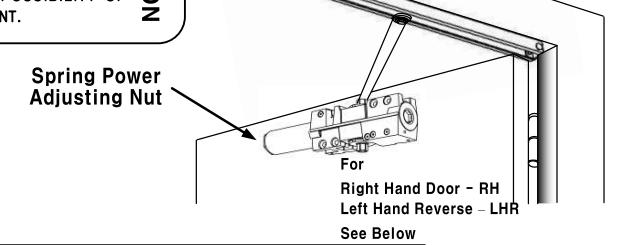

★ INSTALLATION INSTRUCTIONS

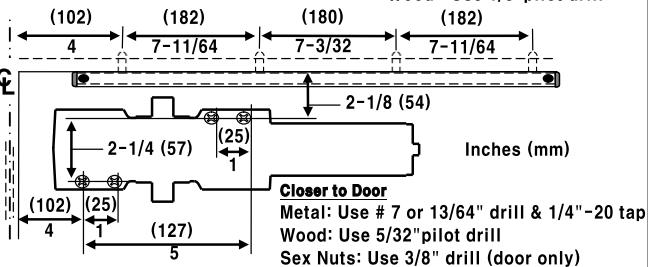

Use diagram to locate holes on door and frame: Drill (4X) on frame stop for track Track to Stop Metal: Use # 21 or 5/32" drill & 10-32 tap Wood: Use 1/8" pilot drill Drill (4X) on door for closer body. (182)(180)(182)(102)7-11/64 7-3/32 7-11/64 2-1/8 (54) 2-1/4 (57) Inches (mm) Closer to Door Metal: Use # 7 or 13/64" drill & 1/4"-20 tap (127)(102)Wood: Use 5/32"pilot drill Sex Nuts: Use 3/8" drill (door only)

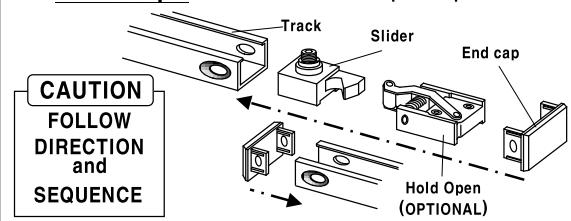

2 Hold Open: Install Slider, Hold Open & Side cap in direction/ sequence shown.

Non-Hold Open: Install Slider & End cap in sequence shown.

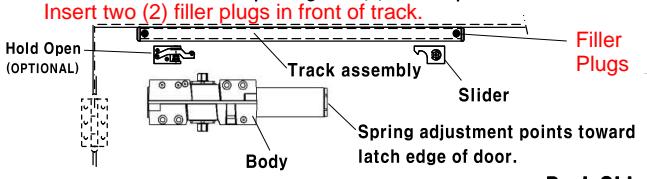

Install closer body to door using four (4) screws provided. Install track to frame stop using four (4) screws provided. Insert two (2) filler plugs in front of track. Filler Plugs Track assembly Hold Open (OPTIONAL) Spring adjustment points toward

Push Side

latch edge of door.

Use wrench to rotate pinion shaft 30° toward hinges, (see Figure 1) & secure main arm to pinion as shown. Attach Slider to main arm with bolt provided, (see Figure 2).

5 OPTIONAL HOLD OPEN

Engage slider into hold open. Open door to desired hold open angle. Secure Hold Open with set screw. Complete all spring and closer adjustments (see page 3)

Secure cover with screws provided. Separate limiting door stop REQUIRED!

PULL SIDE-DOOR MOUNTED TRACK

7100TA/TAHO Series Slide Track Door Closer Pull Side - Stop Mounted Track Maximum Door Opening 180° (Conditions Permitting)

Installation Instructions

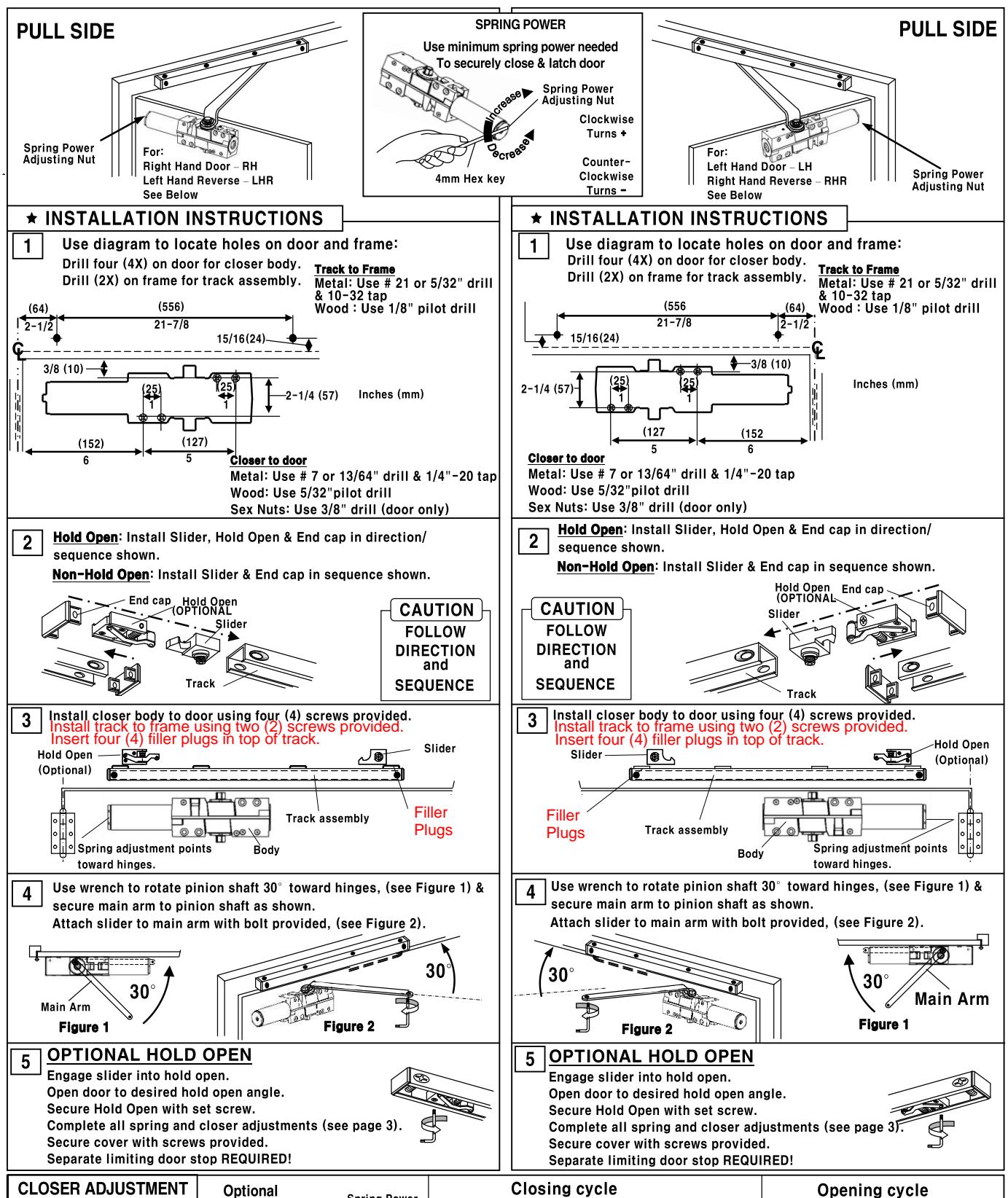

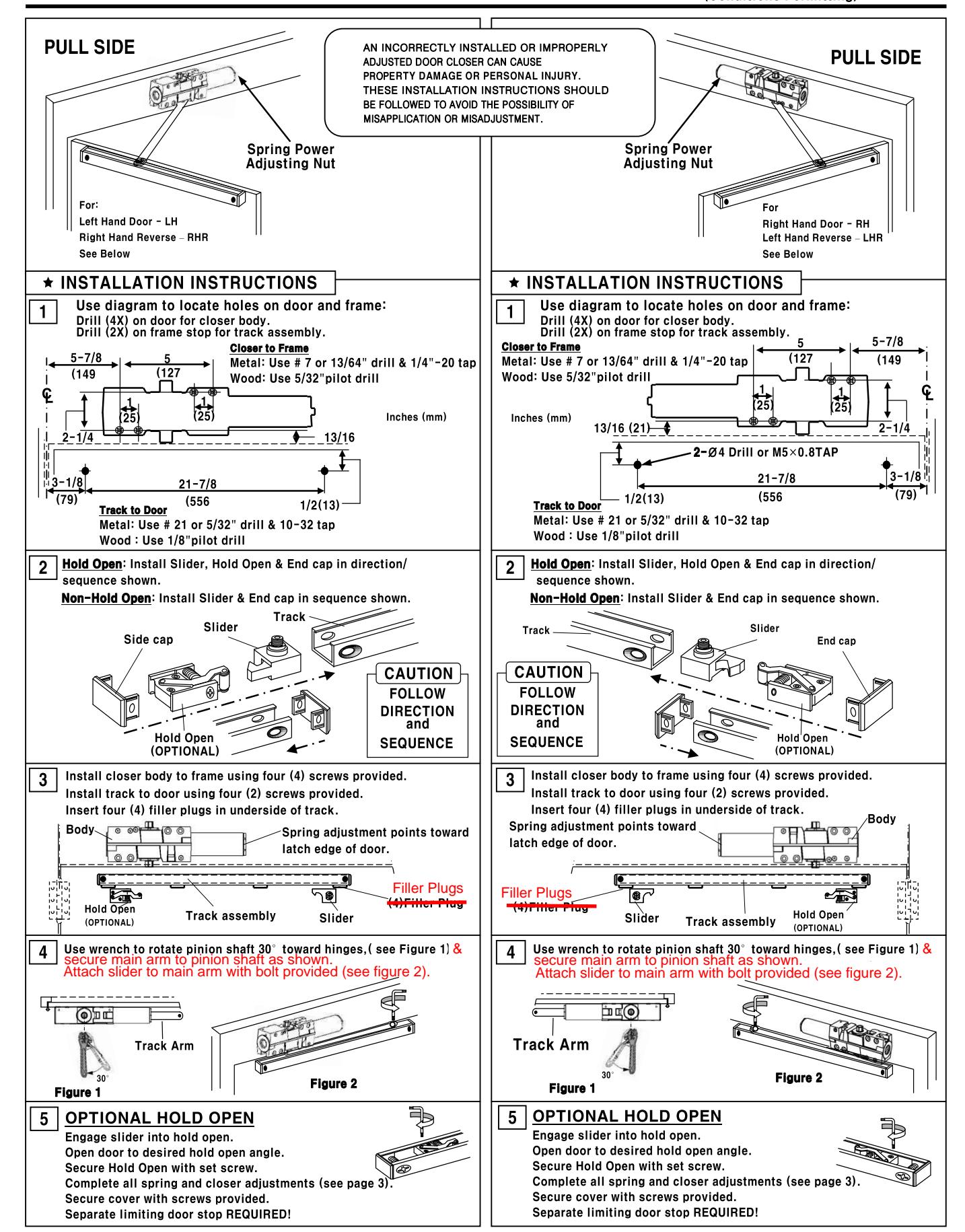

PULL SIDE, FRAME MOUNTED TRACK

7100TA/TAHO Series Slide Track Door Closer Pull Side – Stop Mounted Track Maximum Door Opening 120° (Conditions Permitting)

Do not allow to slam! Injury could occur!

Do not completely close BC valve.

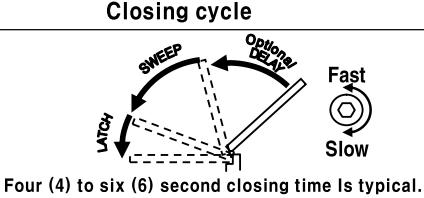

Decrease

Increase
