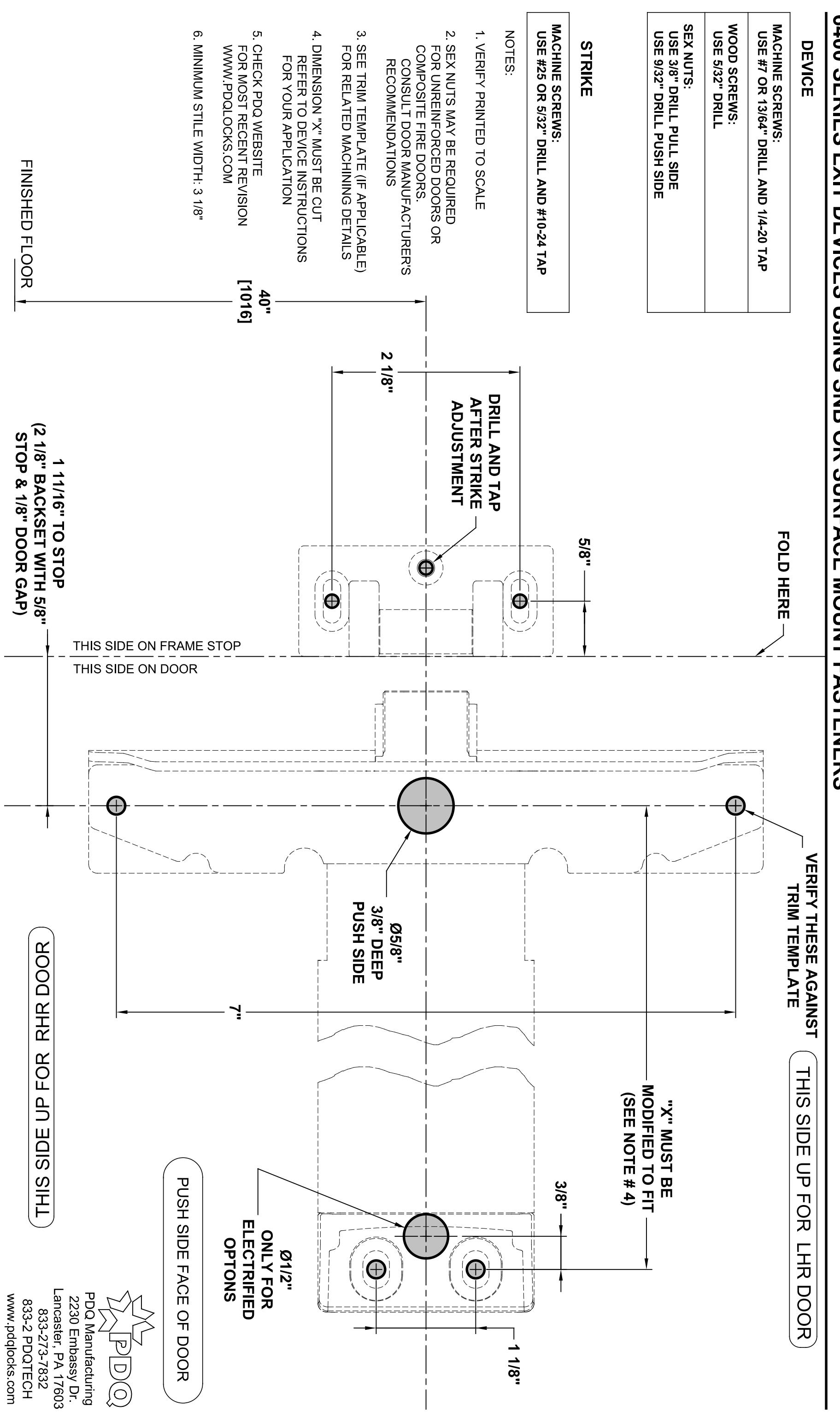

PDQ 6400R 6400RF – Rim Device Template – 639312 Rev0

6400R - PANIC & 6400RF - FIRE L ABELED H 639027 PANIC OR 639057 FIRE STR

TEMPLATE: 639312 REV. 0 1/20/22

6400 SERIES EXIT DEVICES USING SNB OR SURFACE MOUNT FASTENERS
