PDQ 6400C 6400CF – CVR Device Template – 639327 Rev0
Open the original PDF document
View PDF6400C & 6400CF CVR EXIT - 3-1/2"+ STILE DOOR
6400 SERIES EXIT DEVICES
TEMPLATE: 639327 REV. 0 03-18-22

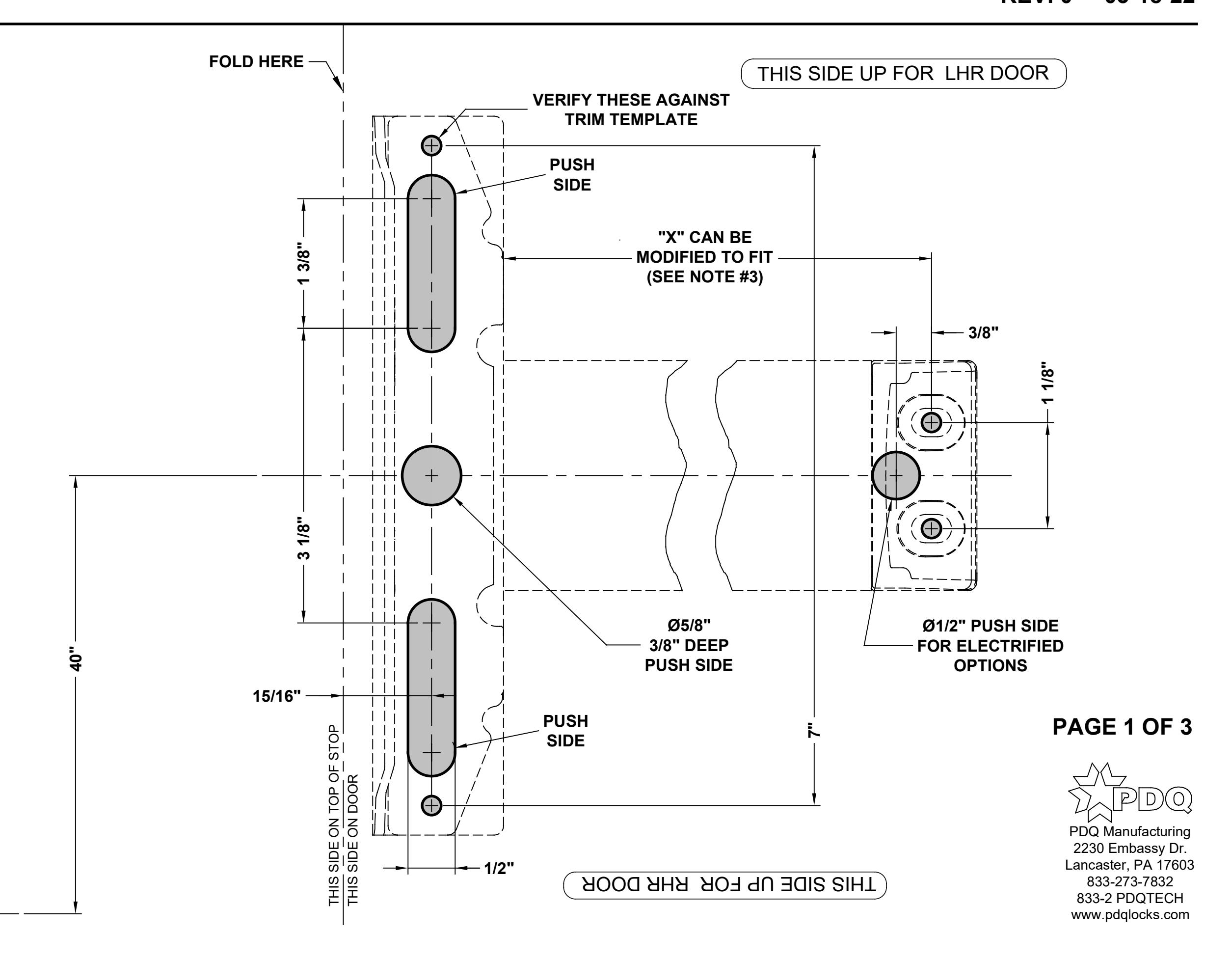

MACHINE SCREWS: USE #7 OR 13/64" DRILL AND 1/4-20 TAP
NOTES:
- 1. VERIFY PRINTED TO SCALE
- 2. SEE TRIM TEMPLATE (IF APPLICABLE) FOR RELATED MACHINING DETAILS
- 3. DIMENSION "X" SIZED FOR DOOR. REFER TO DEVICE INSTRUCTIONS WHEN CUTTING DOWN FOR NARROWER OPENING
- 4. CHECK PDQ WEBSITE FOR MOST RECENT REVISION WWW.PDQLOCKS.COM
- 5. MINIMUM STILE WIDTH: 3-1/2"
| APPLICATION | BACKSET |
|---|---|
| HOLLOW METAL / WOOD | 1-7/16" |
| ALUMINUM STOREFRONT | 1-5/16" |
FINISHED FLOOR
TEMPLATE: 639327 REV. 0 03-18-22

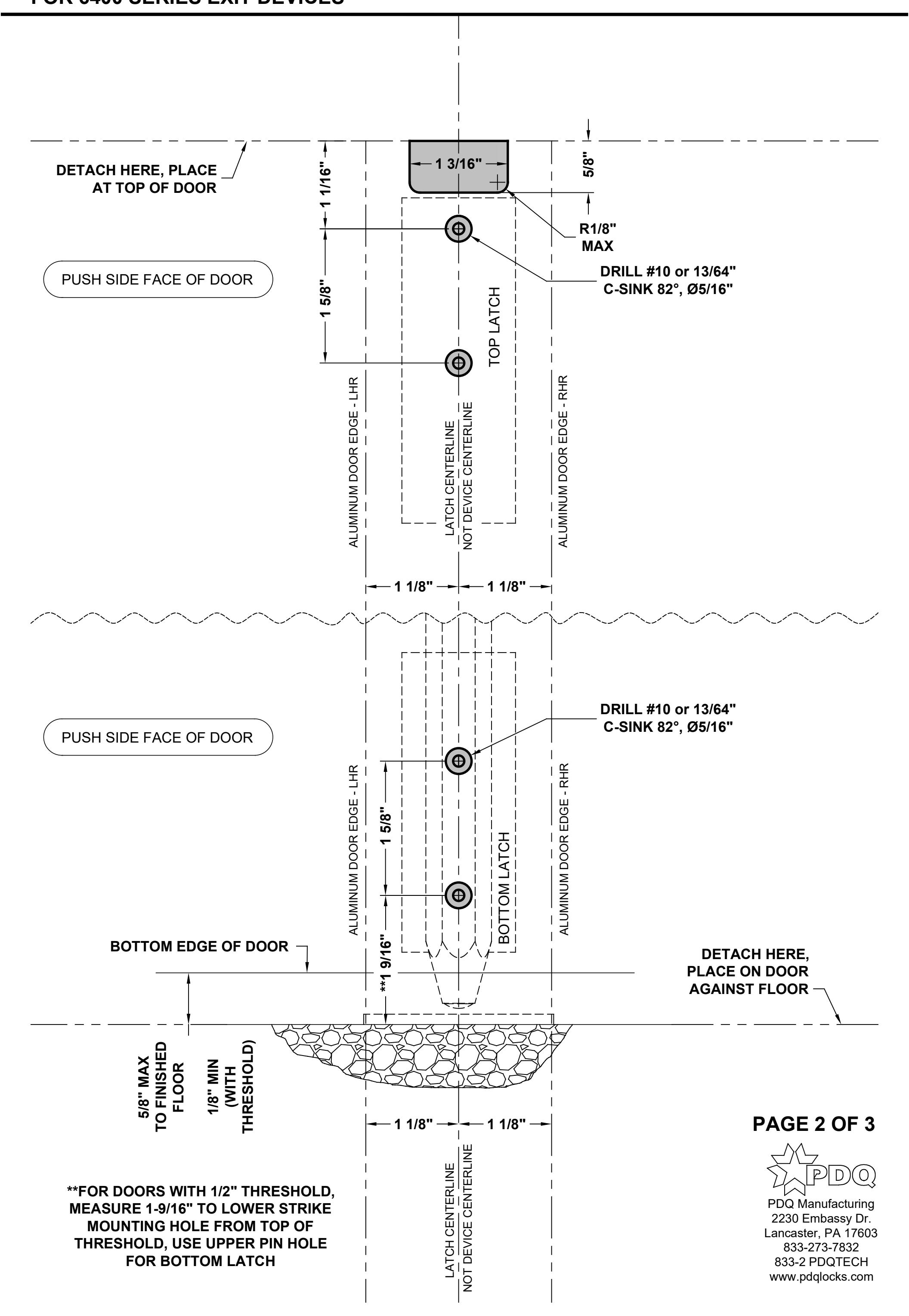

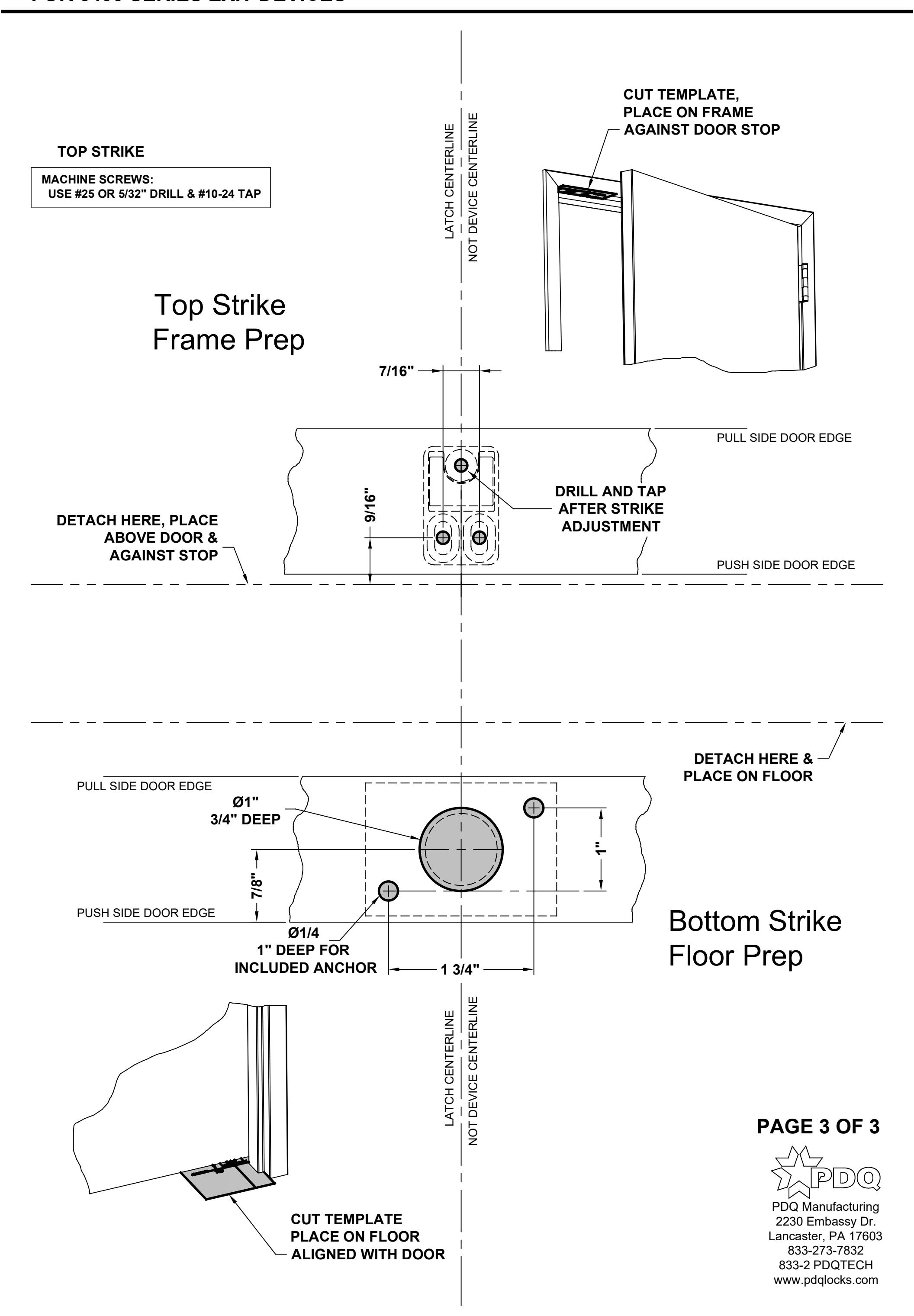

CVR TOP/BOTTOM STRIKE FOR 6400 SERIES EXIT DEVICES
TEMPLATE: 639327 REV. 0 03-18-22
