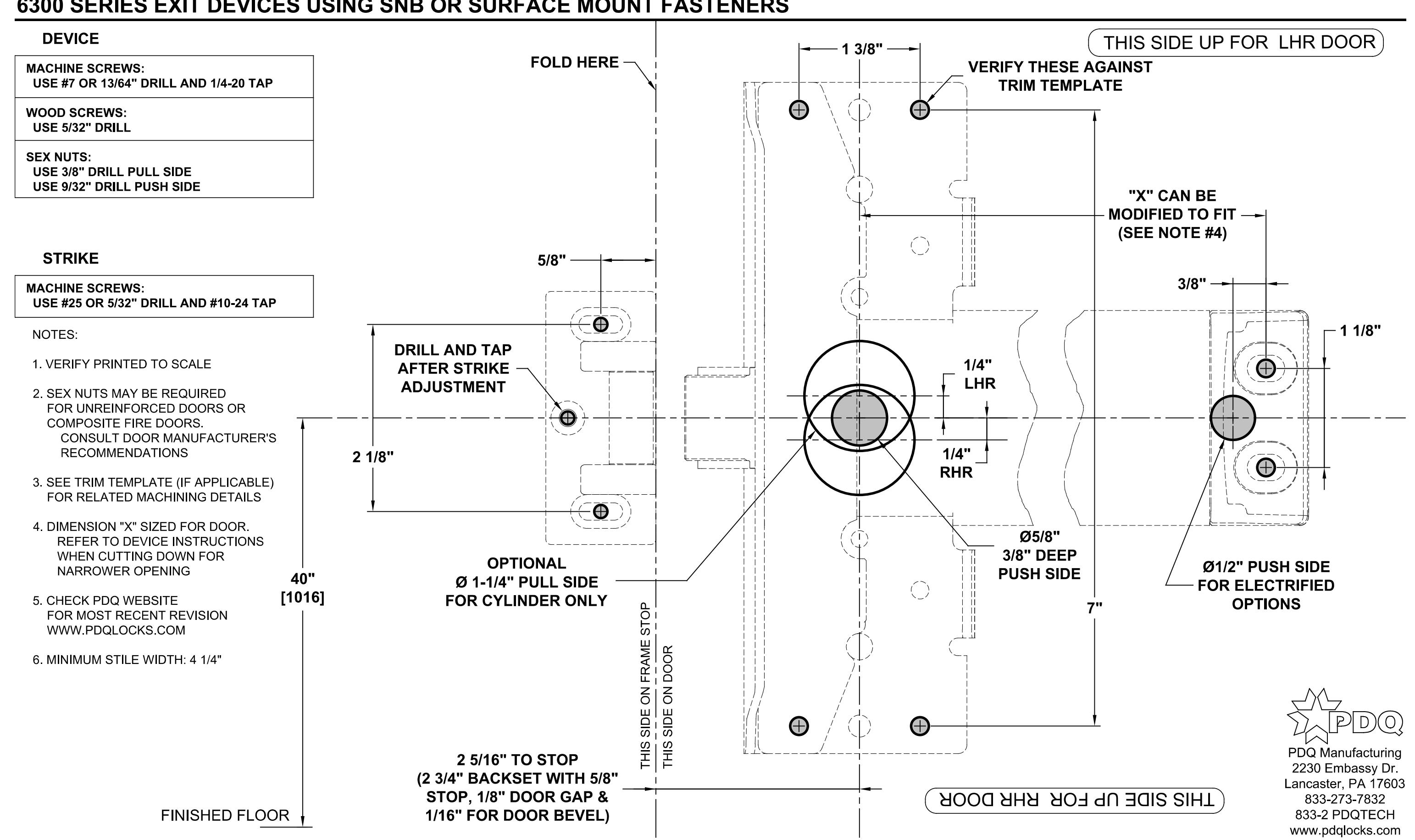

PDQ 6300R – Rim Device Template – 639301 Rev1

6300R - PANIC & 6300RF - FIRE LABELED RIM EXIT DEVICES WITH 639027 PANIC OR 639057 FIRE STRIKE

TEMPLATE: 639301 REV. 1 04/14/22

6300 SERIES EXIT DEVICES USING SNB OR SURFACE MOUNT FASTENERS
