6300D EXIT INSTALLATION INSTRUCTION DUMMY DEVICE

Phone: 833-2-PDQTEC | www.pdglocks.com

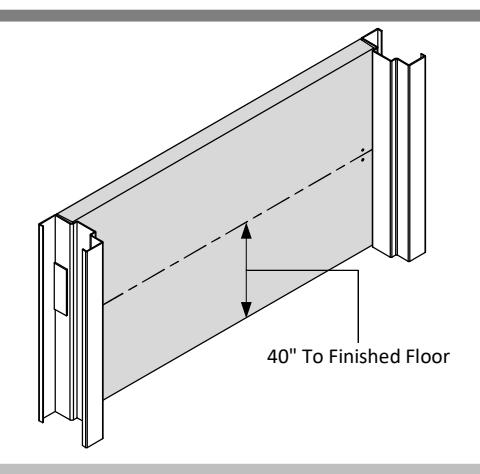

1. PREPARE DOOR

Prepare door and frame according to template.

2. SIZE DEVICE

• Standard lengths are for 36" or 48" door. Device must be cut for other lengths.
• Mark length with tape length equals device size minus desired door size (for 30" door = cut 6" off 36" device) ensuring a square cut.

Maximum cut off length:
	With	Without
	Dogging	Dogging
36" Device	6"	8"
48" Device	12"	14"

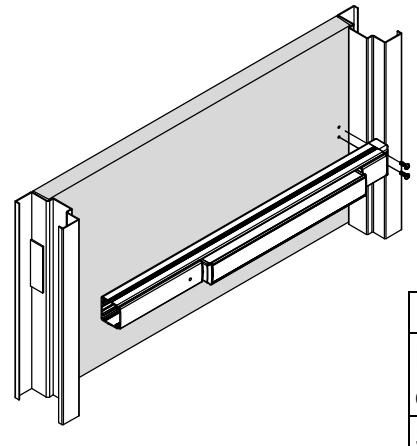

3. INSTALL DEVICE

• Install device with 2 screws.
• Device can be surface mounted to the door, optional sex nuts are available.

Mounting Options:
Reinforced Steel	Surface Mount: Drill/Tap push side for 1/4-20
or Aluminum Door
Solid Wood Door	Drill 1/8" Pilot Hole for #10 Wood Screw
All Others	Use optional Sex Bolts. Drill push side with
	9/32" drill bit. Drill pull side with 3/8" drill bit.

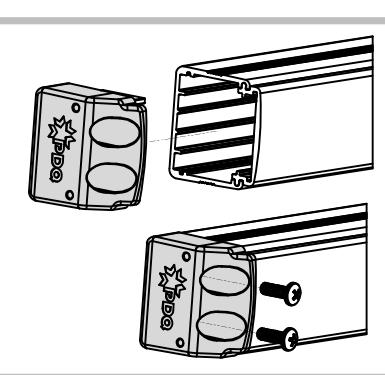

4. INSTALL END CAP

• Slide end cap into rail. Ensure rail is level. Mark the centers of the slots.
• Remove end cap then drill holes using the chart from Step 3.
• Reinstall end cap and fasten with screws.
