PDQ 6300C, 6300CF – CVR Device Template – 639310 Rev0

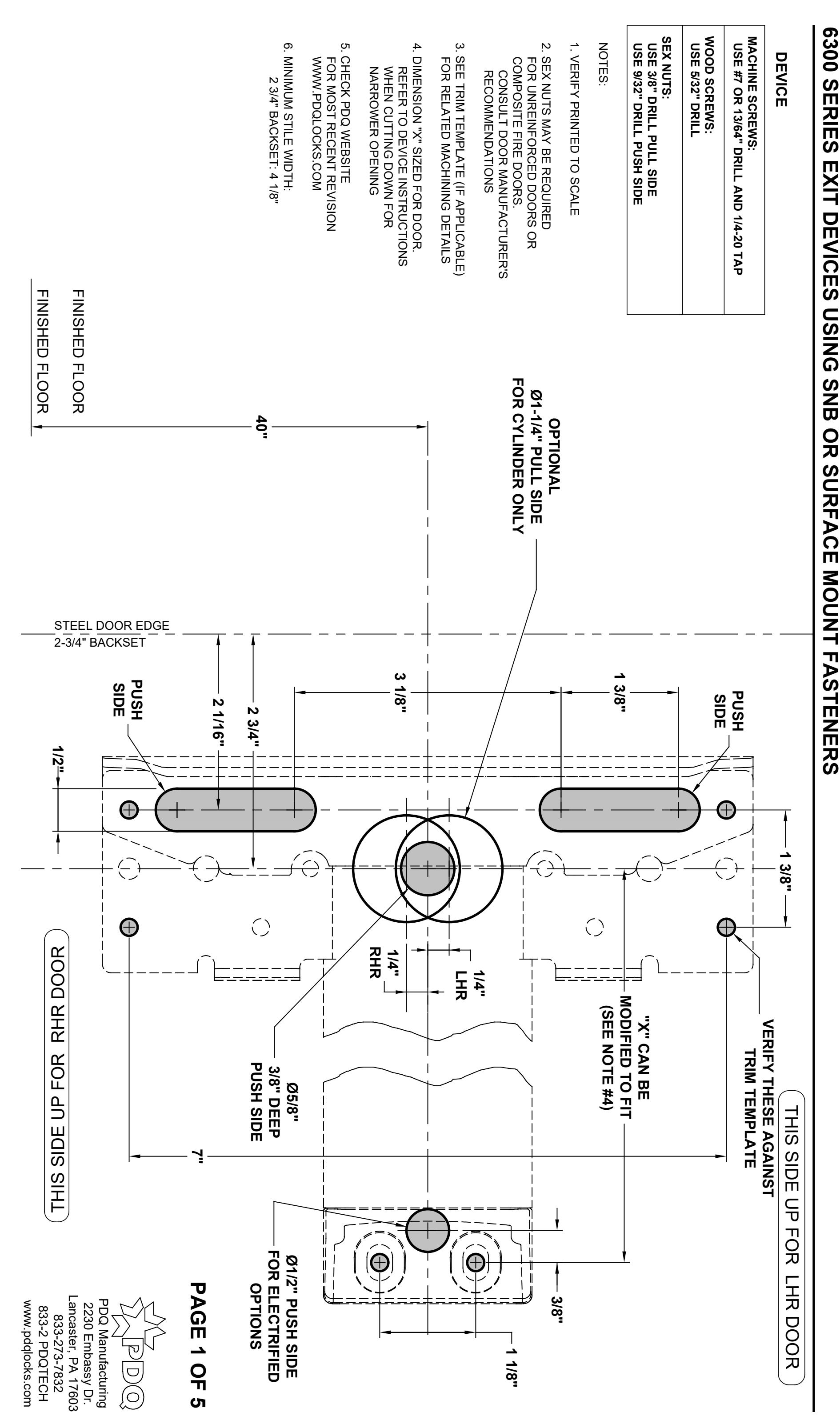

STEEL DOOR - CVR EXIT DEVICE MODELS

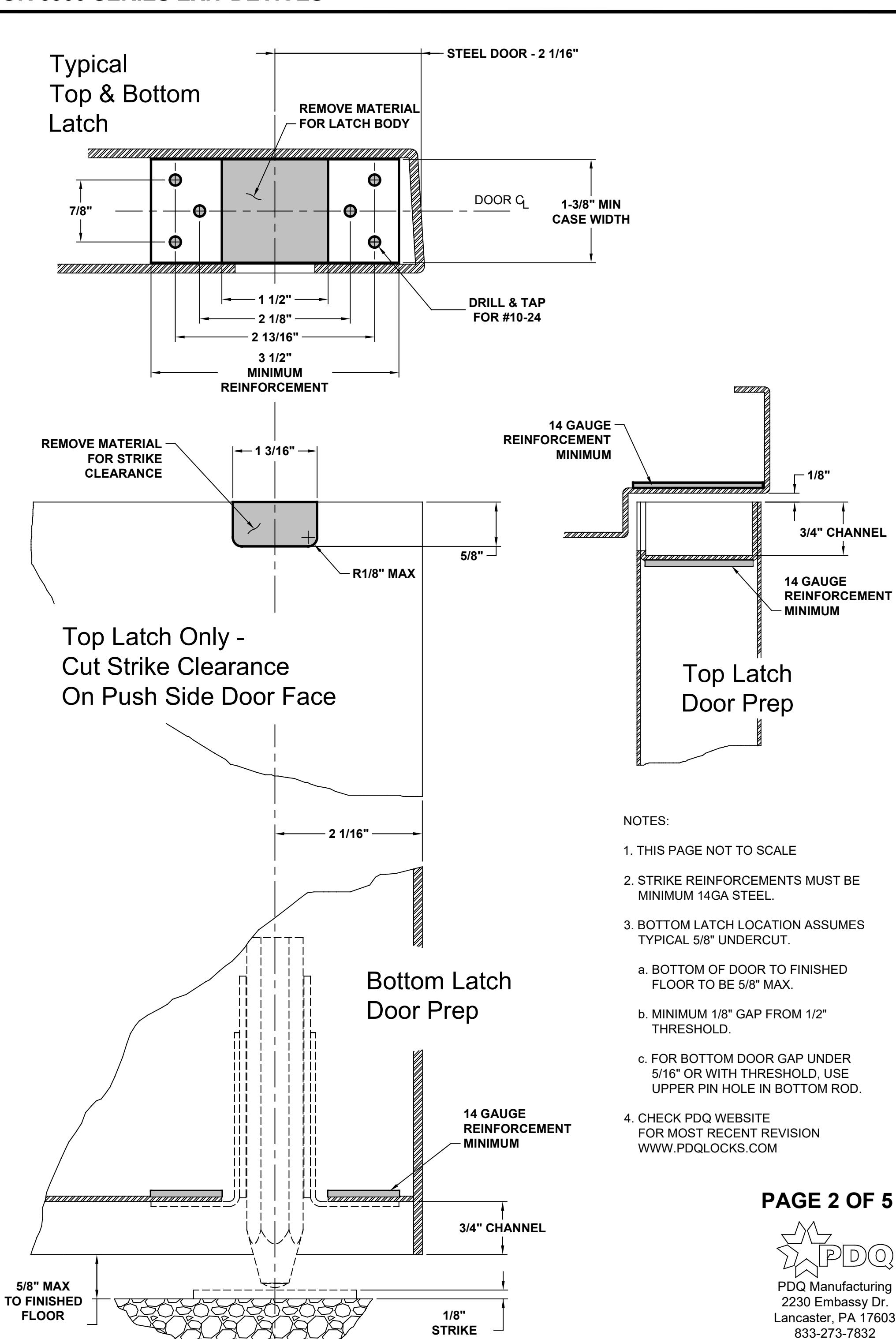

CVR LATCH - STEEL DOOR FOR 6300 SERIES EXIT DEVICES

1/8" MIN

(WITH

THRESHOLD)

TEMPLATE: 639310 REV. 1 03-03-22

833-2 PDQTECH

www.pdqlocks.com

THICKNESS

MODELS

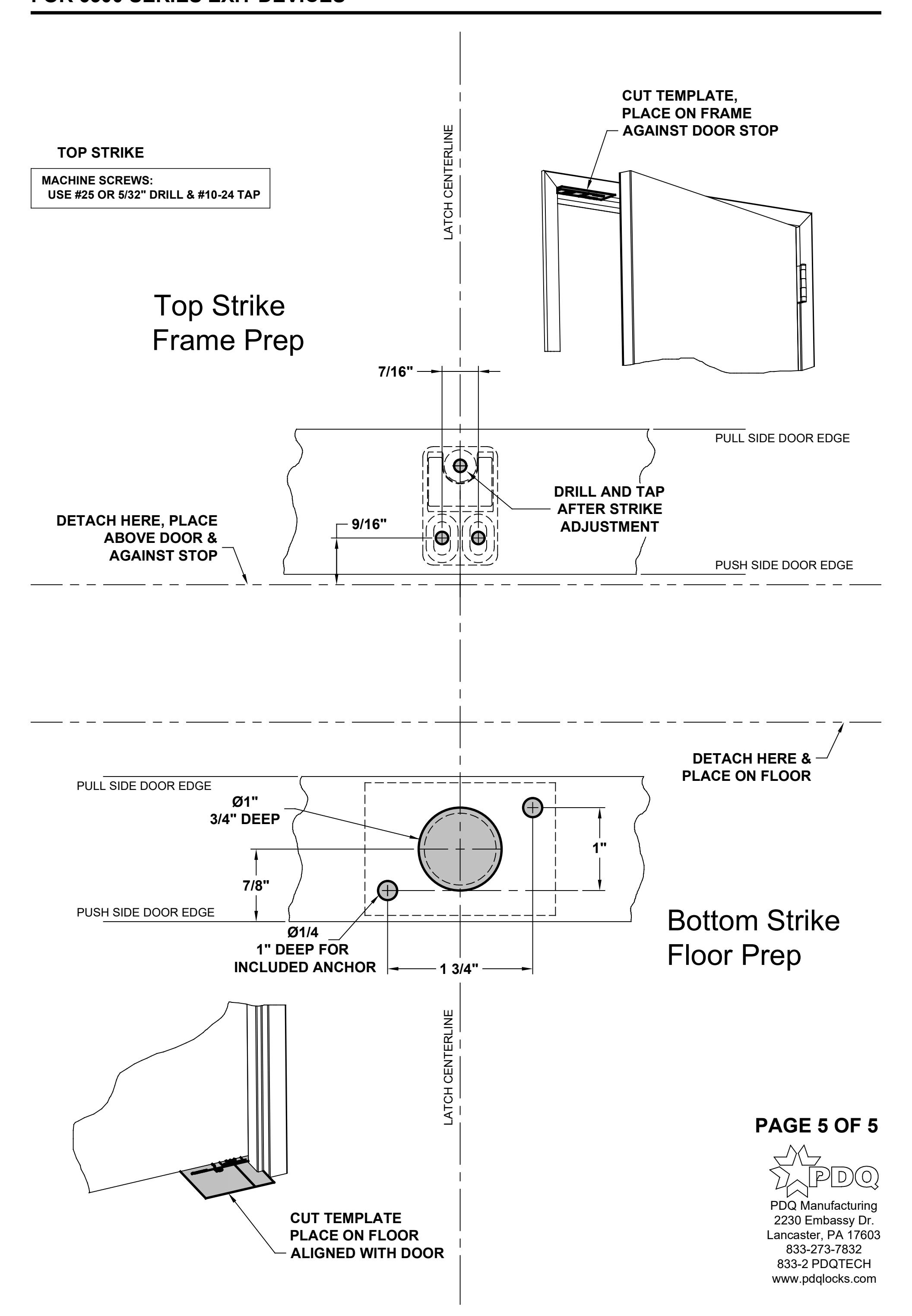

CVR TOP/BOTTOM STRIKE FOR 6300 SERIES EXIT DEVICES
