6300/6400 RAIL FILLER INSTALLATION ALL DEVICES

Phone: 833-2-PDQTEC | www.pdqlocks.com

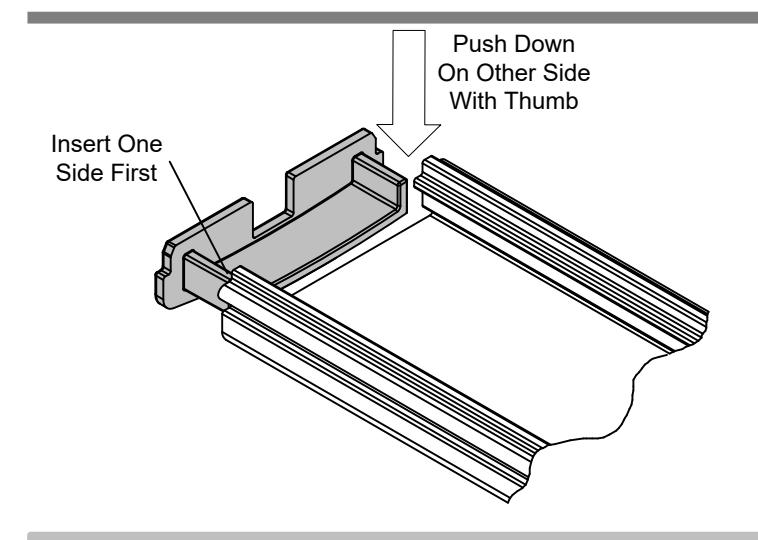

1. INSERT FILLER CAP / RETAINER

  • Insert one corner of Filler Cap into extrusion
  • Filler cap is curved / spring-loaded and will not insert without pushing down on other side.
  • Once both leading corners are engaged, push or tap cap into extrusion.

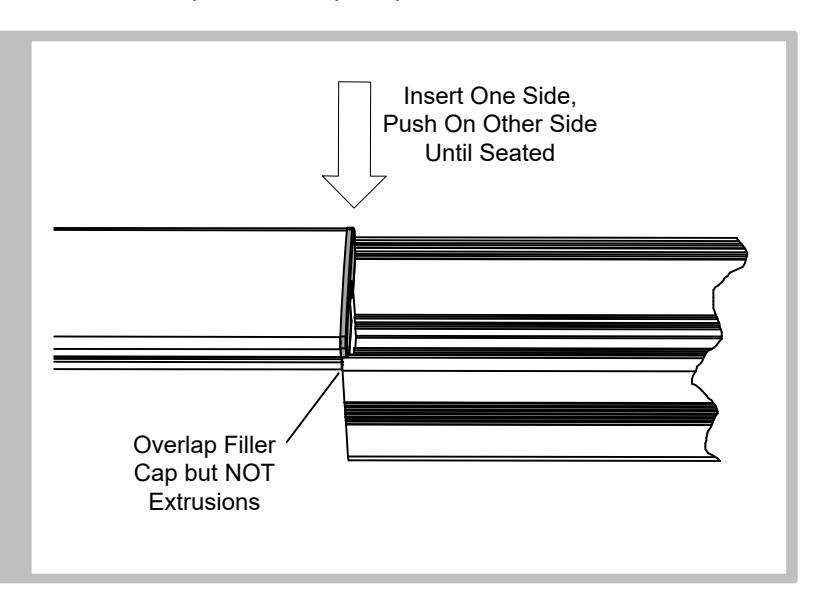

2. START FILLER

  • Overlap plastic Filler Cap onto main rail extrusion being careful not to overlap extrusions.
  • Put one side of filler down into extrusion.
  • Push or tap other side to snap into place so filler will fit and slide into place.

Slide Filler Into

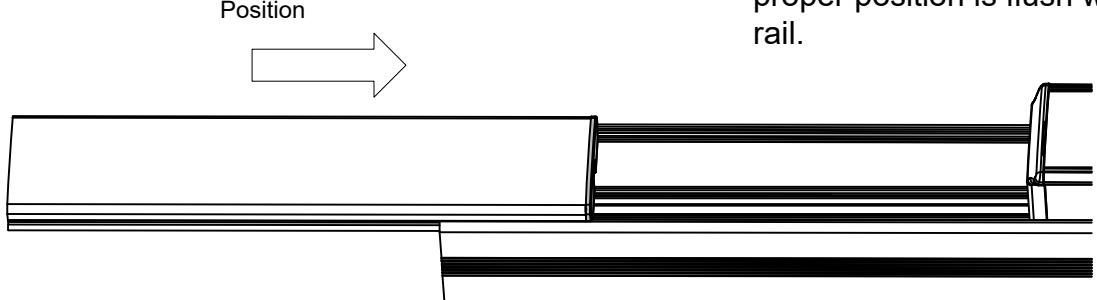

3. SLIDE FILLER INTO PLACE

Slide filler and filler cap into place – proper position is flush with end of main rail.
