6300/6400 SERIES Wide Stile/Narrow Stile

Architectural Exit Device

*Patent Pending

TABLE OF CONTENTS

3	Introducing the 6300/6400 Series Architectural Exit Devices
4	How to Order Exit Device
	6300/6400 Exit Devices
5	Rim Devices
6	Surface Vertical Rod Devices
7	Concealed Vertical Rod Devices
8	Mortise Device
9	Dummy Device
10	Device Ordering Options
11	Rim Strike Options
12	Introducing the 6300/6400 Series Trims
13	How to Order Trims
14	Exit Device Trims
20	Electrified Options
24	Cylinders and Keying

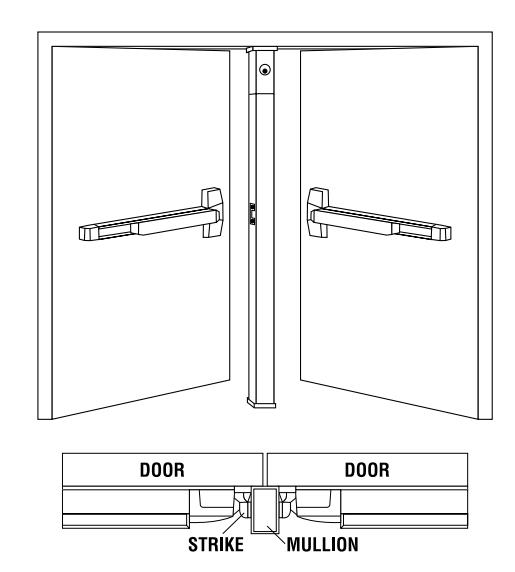

26	9300 Mullion
28	Additional Information
28	Fire Ratings

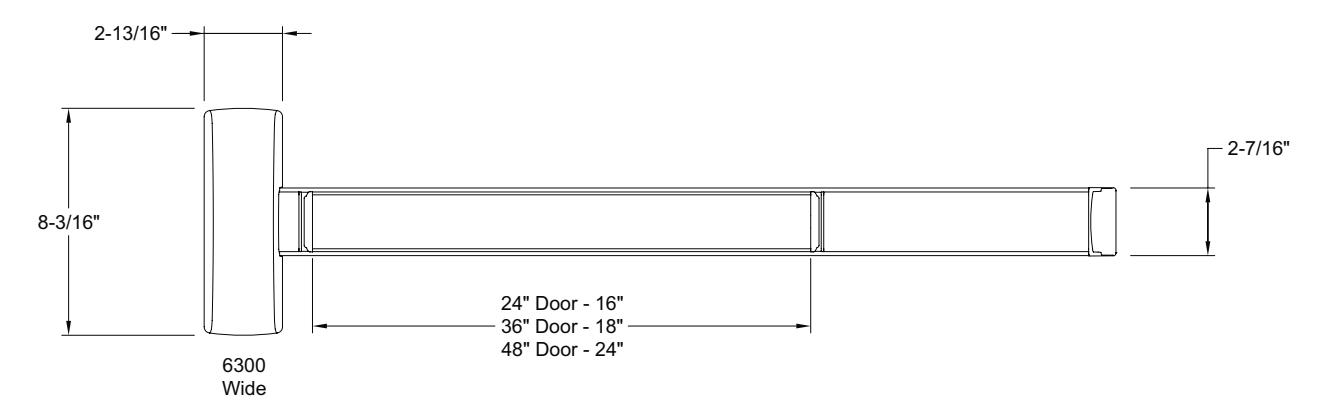

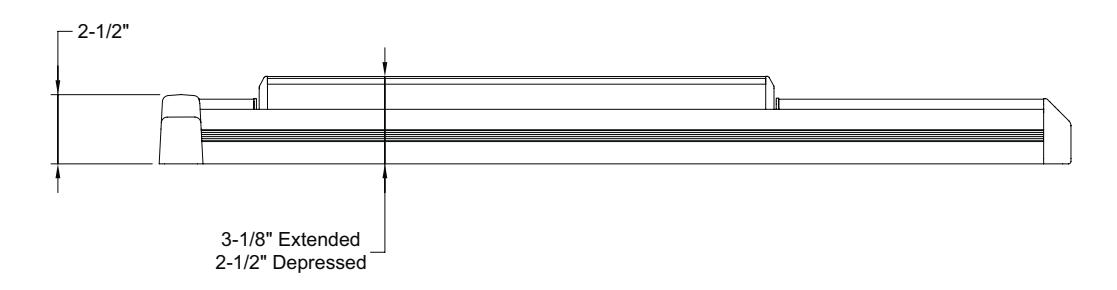

29	Device Dimensions
30	Trim Dimensions
31	Door Width Chart
32	Cross Reference

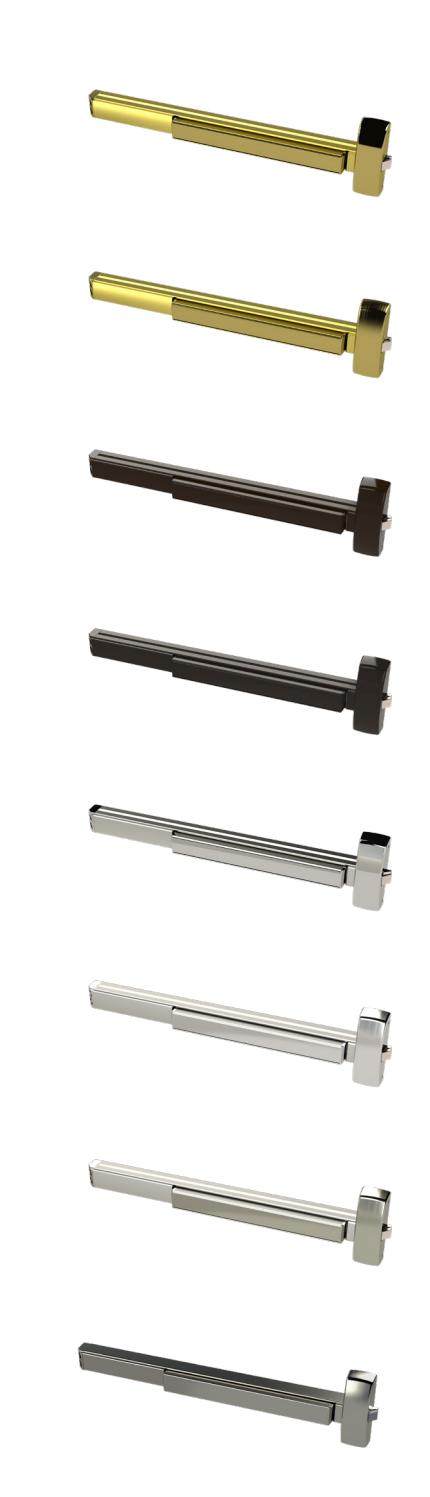

33	Finishes and Levers

Customer Support and Information 800.441.9692 help@pdqlocks.com www.pdqlocks.com www.youtube.com/user/PDQLocks Ordering orders@pdqlocks.com

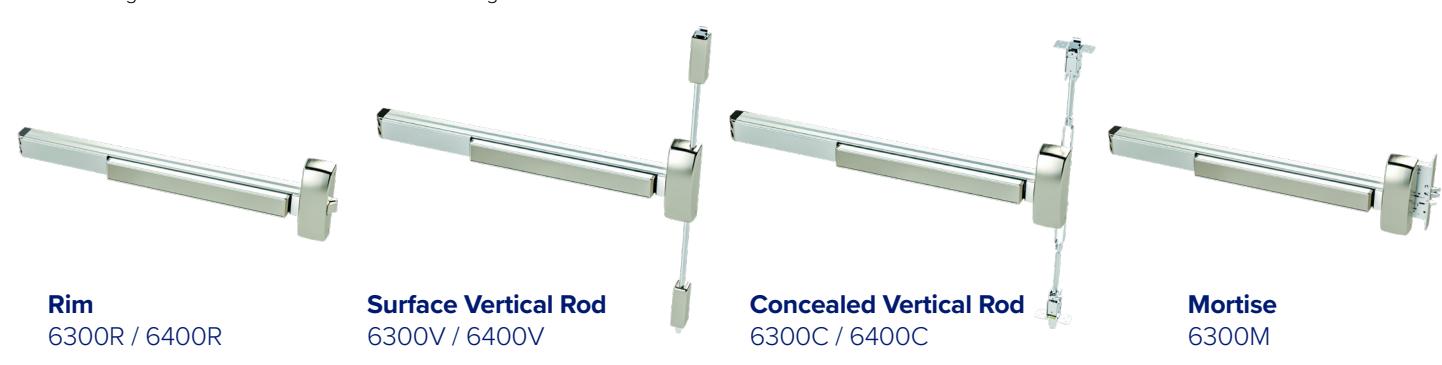

Introducing the 6300/6400 SERIES Architectural Exit Device

Chassis support is cast for high strength.

Patent pending Cush spring quiets device in both directions. Compression spring returns the touch bar providing more reliability than a torsion type spring.

Push bar has angled ends and is nearly flush when dogged.

Flush end cap is standard, heavy duty engineered casting keys into the rail for ultimate pry resistance.

Features

• Rugged, reliable, flexible, and simple design
• Designed & Assembled in Lancaster, PA
• Patent Pending
• Quiet operation large heavy-duty spring cushion quiets both the compression/extension of the push bar
• Internal compression spring ensures long lasting push bar return
• Engineered strong and overbuilt for the most demanding environments
• Durable, heavy-duty flush end cap is standard and resist prying
• Stands up to cart abuse, heavy-duty flush end cap and tapered push bar designed to deflect hits and minimize damage
• Simple field door prep and installation
• Dogging holds bar in a retracted position nearly flush with head cover and rail
• Hex Key provided to lock and unlock the device
• No exposed screws on back of bar
• True 2-3/4" backset (with 5/8" frame stop and 1/8" door gap)
• Wood and machine screws included with each device
• Devices and trim are non-handed
• Ten (10) year warranty

6300/6400 Exit Device

How to Order

Series	For Door Width	Device Type	Rating	Finish	Options	Electrified Options
63	00	R		630
63 - Wide Stile Device 64 - Narrow Stile Device	00 - 36" Door 10 - 48" Door 20 - 24" Door	R - Rim Device V - SVR Device C - CVR Device D - Dummy Device M - Wide Stile Mortise Device*	Blank - Panic Rated F - Fire Rated	*605 - Bright Brass *606 - Satin Brass 613 - Dark Bronze 622 - Satin Black *625 - Bright Chrome 626 - Satin Chrome 630 - Satin SS/ Anodized Alum 630F - Fully Finished SS	Dogging (Panic Rated Only): Blank - Hex Key Dogging CD - Cylinder Dogging LD - Less Dogging* Strikes: BS - Blade Stop Strike (Rim) DD - Double Door Strike (Rim) LBR - Less Bottom Rod (SVR/CVR) LBR-FP - Less Bottom Rod with Fire Pin (SVR/ CVR) WS - Florida HVHZ (Rim) SVR Pending EC - End Cap Cover TLA - Head Cover SNB - Sex Nuts & Bolts AM - Anti-Microbial SK - Shim Kit 7 - 7' door (default) 8 - 8' door 10 - 8'-10' Door	MLR - Motorized Latch Retr. AL - Alarm Kit* SS - Signal Switch on touch bar LM - Latchbolt Monitor ISMC - Industry Standard Molex Connector

*Mortise in wide stile device only

*Extended lead time - Contact factory for details

*Multiple Selections Allowed *Dogging options only apply to Panic Rated

*MLR Can be combined with LM *AL can be combined with LM *MLR and AL cannot be combined *ISMC available on all *AL - Specify Handing

Cylinder Dogging Part Number Additions

CYLINDER TYPE	KEYWAY	KEYING
D	SCC	KD
D Default L Less Cylinder SF6 Lock is SFIC prepped w/ 6 pin core SF7 Lock is SFIC prepped w/ 7 pin core SFL Lock is SFIC prepped but less core SFC Lock is SFIC prepped w/ construction core SFP Lock is SFIC prepped w/ plastic construction core LF6 Lock is Schlage LFIC prepped w/ Schlage core LFL Lock is Schlage LFIC prepped but less core LFC Lock is Schlage LFIC prepped w/ construction core *Cores sold separately - option only speci fies factory installation *Cylinder only needs to be specified for cylinder dogging	SCC – Schlage C OTHERS – See Keyway Table Page 22	KD – Keyed Different KA – Keyed Like K0 - Zero Bitted MK – Master Keyed CMK – Construction Keyed GMK – Grand Master Keyed

24" DEVICE
No cut
No electric options

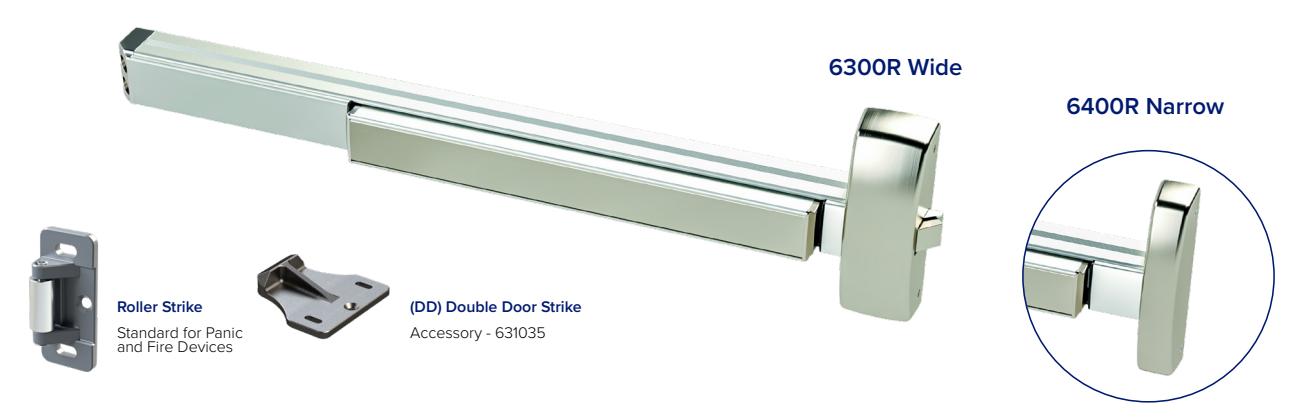

6300 Wide Stile/6400 Narrow Stile

Panic & Fire Rated

6300R/RF - Wide Stile Rim exit device with 3/4" pullman latch. Use for wide stile single door applications or for double door applications with a mullion.

6400R/RF - Narrow Stile Rim exit device with 3/4" pullman latch. Use for narrow stile single door applications or for double door applications with a mullion. Can also be used when a narrow look is desired.

Rail	• Extruded aluminum • Specify 630F for full stainless surfaces (roll formed)
Latch	• Stainless steel dead locking with 3/4" throw
Hand	• Device is non-handed • Trim is non-handed or field reversible
Dogging	• Hex key dogging standard • Cylinder dogging optional • Dogging not available for fire labeled devices
Minimum Stile Width	• See chart on optional strike page 9
Door Thickness	• 1-3/4" - 2" (Consult factory for other)
Door Width	• 24", 36", 48" standard
Door Height	• Panic - Up to 10' • Fire - See fire ratings charts page 26
Strike Options	• Default roller • Blade stop • Double door • Windstorm/Mullion
Finishes	• 605 - Polished Brass, 606 - Satin Brass, 613 - Dark Bronze, 622 - Flat Black, 626 - Satin Chrome, 630 - Satin Stainless Steel, 630F – Full Satin Stainless Surfaces • Optional Anti Microbial Coating available on 626, 630 & 630F
Fasteners	• Includes machine and wood screws • SNB Optional
Warranty	• Ten (10) year limited warranty
Electrified Options	• Motorized Latch Retraction • Request to Exit/Signal Switch • Alarmed Exit • Latch Bolt Monitor • ISMC Connectors
Certifications Compliances Listings	• Listed for UL 305 "Panic", listed for UL 10C "Fire Exit Hardware" up to 3 hours. • Certified to ANSI/BHMA A156.3 Grade 1 • Approved for Florida HVHZ (High Velocity Hurricane Zone). +60/65 • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings • Meets requirements of the Buy American Act

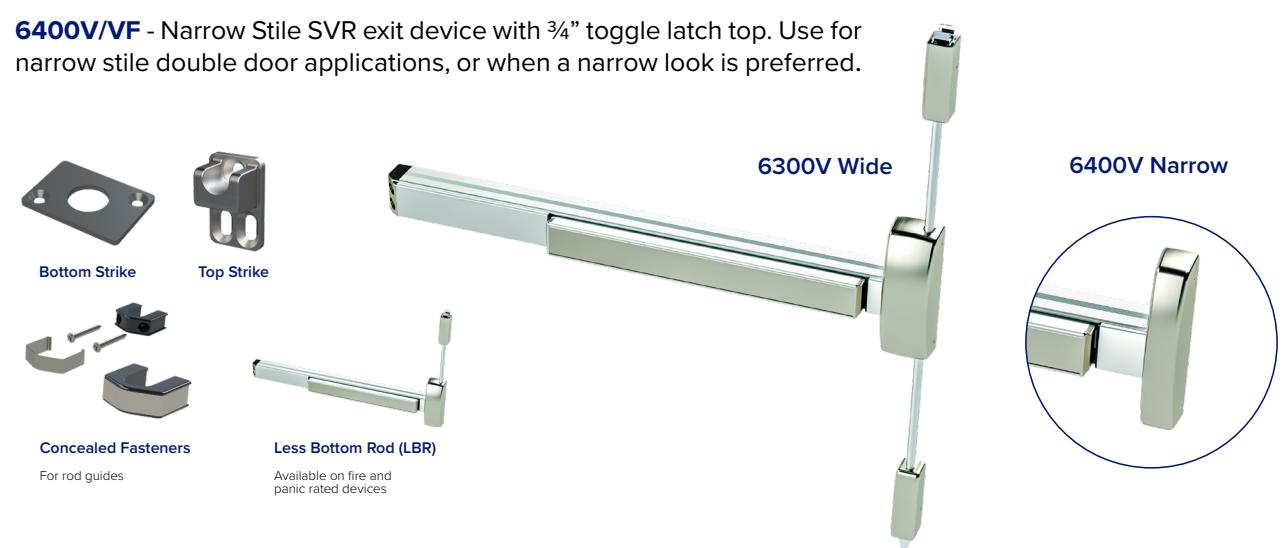

Surface Vertical Rod Device

6300V Wide Stile/6400V Narrow Stile

Panic & Fire Rated

6300V/VF - Wide Stile SVR exit device with 3/4" toggle latch top, and 5/8" travel drop bolt on the bottom. Use for wide stile double door applications.

Rail	• Extruded aluminum • Specify 630F for full stainless surfaces (roll formed)
Latch	• Top - Stainless Steel 3/4" toggle • Bottom - 5/8" Travel Drop Bolt • Less bottom rod option
Hand	• Device is non-handed • Trim is non-handed or field reversible
Dogging	• Hex key dogging standard • Cylinder dogging optional • Dogging not available for fire labeled devices
Minimum Stile Width	• 6300 - 3-1/2" • 6400 - 2-1/8"
Door Thickness	• 1-3/4" - 2" (Consult factory for other)
Door Width	• 24", 36", 48" sized devices available
Door Height	• Panic - Up to 10' • Fire - See fire ratings charts page 26
Strike Options	• Default strikes only - Cast top strike, plate bottom strike
Finishes	• 605 - Polished Brass, 606 - Satin Brass, 613 - Dark Bronze, 622 - Flat Black, 626 - Satin Chrome, 630 - Satin Stainless Steel, 630F – Full Satin Stainless Surfaces • Optional Anti Microbial Coating available on 626, 630 & 630F
Fasteners	• Includes machine screws and wood screws • SNB Optional
Warranty	• Ten (10) year limited warranty
Electrified Options	• Motorized Latch Retraction • Request to Exit/Signal Switch • Alarmed Exit • Latch Bolt Monitor • ISMC Connectors
Certifications Compliances Listings	• Listed for UL 305 "Panic", listed for UL 10C "Fire Exit Hardware" up to 3 hours. • ANSI/BHMA A156.3 Grade 1 • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings • Meets requirements of the Buy American Act

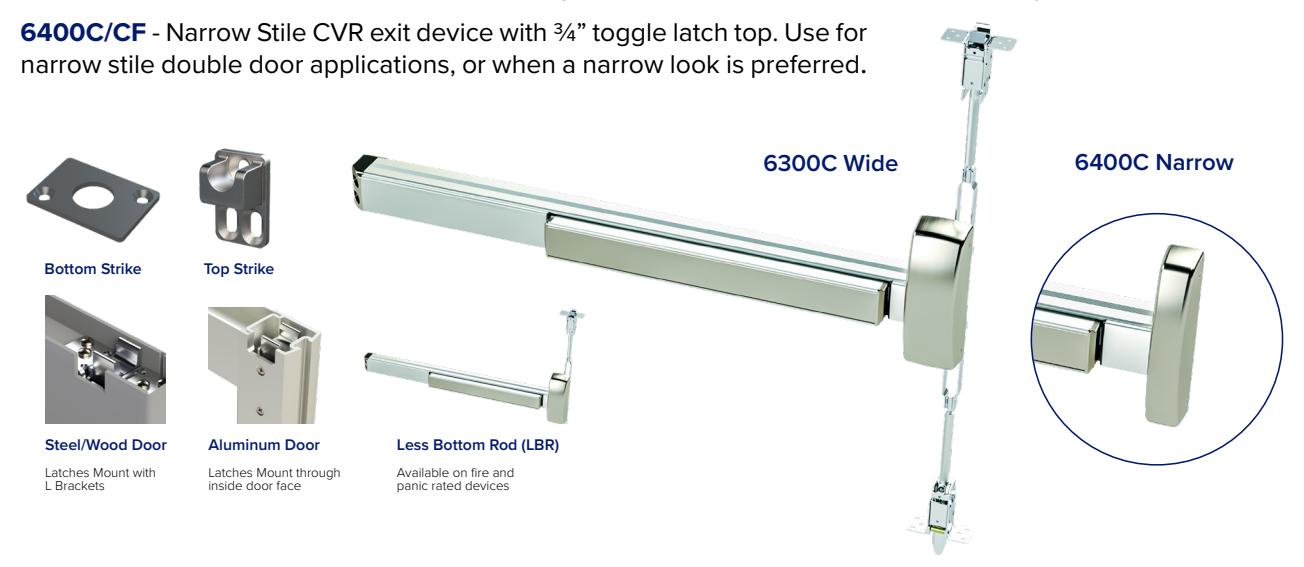

Concealed Vertical Rod Device

6300C Wide Stile/6400C Narrow Stile

Panic & Fire Rated

6300C/CF - Wide Stile CVR exit device with 3/4" toggle latch top, and 5/8" travel drop bolt on the bottom. Use for wide stile double door applications and for single door applications where more security is needed.

Rail	• Extruded aluminum • Specify 630F for full stainless surfaces (roll formed)
Latch	• Top - Stainless Steel 3/4" toggle • Bottom - 5/8" Travel Drop Bolt • Less bottom rod option
Hand	• Device is non-handed • Trim is non-handed or field reversible
Dogging	• Hex key dogging standard • Cylinder dogging optional • Dogging not available for fire labeled devices
Minimum Stile Width	• 6300 - 3-1/2" • 6400 - 2-1/8"
Door Thickness	• 1-3/4" - 2" (Consult factory for other)
Door Width	• 24", 36", 48" sized devices available
Door Height	• Panic - Up to 10' • Fire - See fire ratings charts page 26
Strike Options	• Default strikes only - Cast top strike, plated bottom strike
Finishes	• 605 - Polished Brass, 606 - Satin Brass, 613 - Dark Bronze, 622 - Flat Black, 626 - Satin Chrome, 630 - Satin Stainless Steel, 630F – Full Satin Stainless Surfaces • Optional Anti Microbial Coating available on 626, 630 & 630F
Fasteners	• Includes machine and wood screws • SNB Optional
Warranty	• Ten (10) year limited warranty
Electrified Options	• Motorized Latch Retraction • Request to Exit/Signal Switch • Alarmed Exit • Latch Bolt Monitor • ISMC Connectors
Certifications Compliances Listings	• Listed for UL 305 "Panic", listed for UL 10C "Fire Exit Hardware" up to 3 hours. • ANSI/BHMA A156.3 Grade 1 Pending • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings • Meets requirements of the Buy American Act

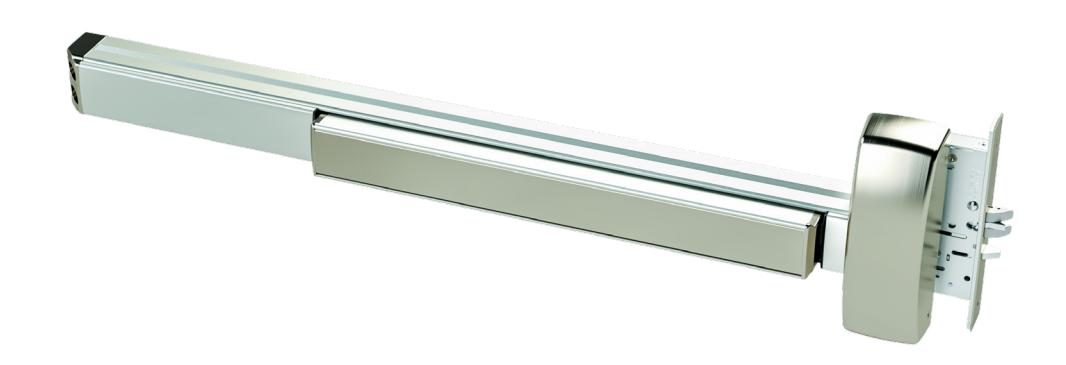

6300M Wide Stile

Panic & Fire Rated

6300M - Wide Stile Mortise exit device with 3/4" throw latch bolt. Use for wide stile single door applications. Also, use for retrofit or pair with SVR/CVR/flush bolts and open back strike.

• This device is built around our signature MR series mortise lock. Easily retrofit an existing mortise lock opening with a mortise device.

• Extruded aluminum • Specify 630F for full stainless surfaces (roll formed)
• Stainless steel dead locking with 3/4" throw
• Field reversible
• Hex key dogging standard • Cylinder dogging optional • Dogging not available for fire labeled devices
• 5"
• 1-3/4" - 2" (Consult factory for other)
• 24", 36", 48" sized devices available
• Panic - Up to 10' • Fire - See fire ratings charts page 26
• Default ASA (4-7/8")
• 605 - Polished Brass, 606 - Satin Brass, 613 - Oil Rubbed Bronze, 622 - Flat Black, 626 - Satin Chrome, 630 - Satin Stainless Steel, 630F – Full Satin Stainless Surfaces • Optional Anti Microbial Coating available on 626, 630 & 630F
• Includes machine screws and wood screws • SNB Optional
• Ten (10) year limited warranty
• Motorized Latch Retraction • Request to Exit/Signal Switch • Alarmed Exit • Latch Bolt Monitor • ISMC Connectors
• Listed for UL 305 "Panic", listed for UL 10C "Fire Exit Hardware" up to 90 minutes. Certifications • ANSI/BHMA A156.3 Grade 1 Pending Compliances • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings Listings • Meets requirements of the Buy American Act

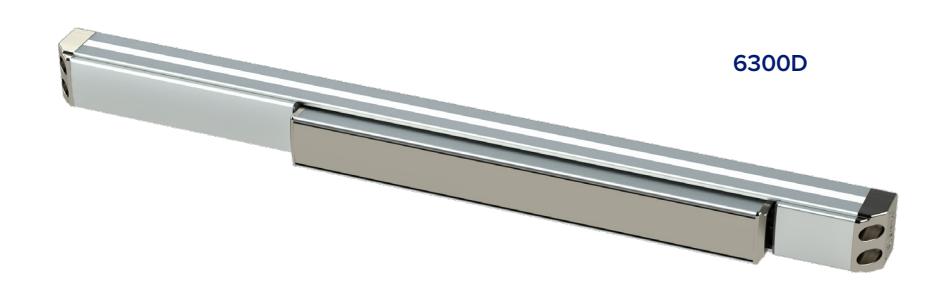

Dummy Device

6300 Dummy

6300D - A dummy device with no latching. The device comes with an active push bar, but can also be dogged/ locked down with the included dogging kit. Order with a signal switch to operate a mag lock or other electronic devices. The device is commonly used on inside vestibule doors where latching is not required, or as an electrical switch for an auxiliary device.

Rail	• Extruded aluminum
Hand	• Device is non-handed
Dogging	• Dogging standard • Active push bar, dog to make inactive
Minimum Stile Width	• 6300 - 3-1/2" • 6400 - 2-1/8"
Door Thickness	• 1-3/4" - 2" (Consult factory for other)
Door Width	• 24", 36", 48" sized devices available
Finishes	• 605 - Polished Brass, 606 - Satin Brass, 613 - Dark Bronze, 622 - Flat Black, 626 - Satin Chrome • Optional Anti Microbial Coating available on 626, 630 & 630F
Fasteners	• Includes machine and wood screws • SNB Optional
Warranty	• Ten (10) year limited warranty
Electrified Options	• Request to Exit/Signal Switch • ISMC Connectors
Certifications • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings Compliances • Meets requirements of the Buy American Act Listings

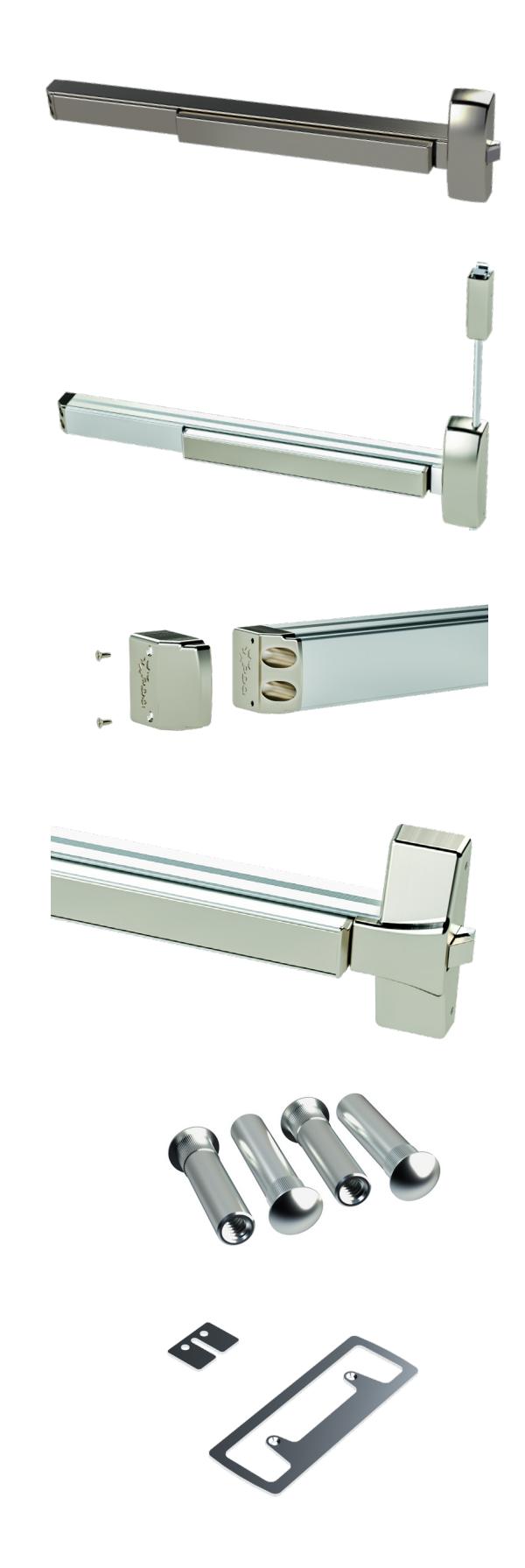

6300C / 6400C Device Ordering Options Explained

The following options are available when ordering 6300/6400 devices.

630F

This finish option provides a device with main rail, push bar, and filler plates fully clad in brushed stainless steel.

LBR

Less Bottom Rod is available on SVR and CVR devices. This option deletes the bottom latch on applications where the bottom latch would impede access, or where a floor strike is not desired. LBR option is available on both panic and fire rated devices.

EC

End Cap Cover option provides a cover for the standard end cap. Can be used if the look is preferred, or to cover the end of the rail on devices that have been cut down.

TLA

The TLA head cover can be ordered to make the 6300 device better match the previous generation 6200 devices. The head cover is available in 630 finish only.

SNB

Order the SNB option if Sex Nuts are required. These are used on devices when trim is not used, and door construction is not sufficient to hold screws (such as wood or composite core).

SK

The Shim Kit is used to space the device out from the door. Shims are 1/8" Thick.

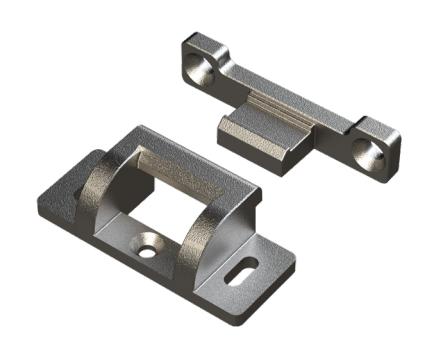

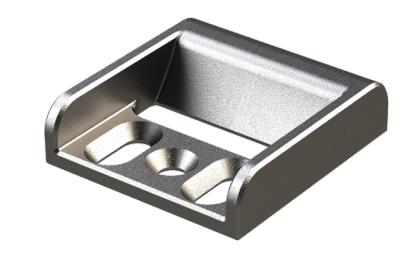

Rim Strike Ordering Options

The following Rim Strike options are available when ordering 6300/6400 devices.

BS – Blade Stop Strike (631041) – Rim Device

This strike is used on aluminum store front doors with a 1 ⁄ 2" blade stop. Strike comes with a protective plate to cover latch rubbing on frame and required mounting hardware.

Strike is optional on both 6300 and 6400 devices.

ML – Mullion Fire Strike (639080) – Rim Device

This strike must be used for fire labeled rim devices when used on the 9300 mullion. It is also used for windstorm HVHZ labeled devices.

(2) ML strikes are included with every fire rated mullion.

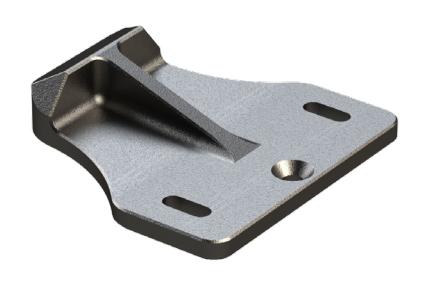

DD – Double Door Strike (631035) – Rim Device

This strike is used to mount a rim device on a pair of doors where one door is fixed by another means (e.g. Flush bolts, Surface bolts)

Rim Device Stile Width Chart

Order Option	Strike #	Application	6300 Min Stile	6400 Min Stile
Default Panic	639027	Standard Panic Labeled	4-1/4"	3-1/8"
Default Fire	639057	Standard Fire Labeled	4-1/4"	3-1/8"
Default Panic	639027	Panic Labeled Mullion	4-3/4"	3-5/8"
ML	639080	Fire Labeled Mullion	4-7/8"	3-3/4"
WS	639080	Windstorm	4-3/8"	3-1/4"
DD	631035	Double Door Strike	4-1/4"	3-1/8"
BS	631041	Panic Labeled Blade Stop	3-1/2"	2-1/8"

Introducing the 6300/6400 Trim Family

Trims are non-handed and use simple door prep based on a 2 hole bolt pattern with 7" centers, or a 4 hole bolt pattern with 7"x1-3/8" centers.

Narrow escutcheons work with both wide and narrow stile devices. Wide escutcheons work only with wide stile devices.

6N Narrow Escutcheon - A narrow profile escutcheon for 6300 or 6400 device. Available in 6 lever styles, and in 6 functions. Use with narrow stile devices or a wide stile device when a slimmer look is desired.

6W Wide Escutcheon - A wide escutcheon for the 6300 device. Available in 6 lever styles, and 5 functions - including electric locking. Use with wide stile devices, when a more substantial look is desired, or for retrofit where covering existing holes is important.

*Not compatible with 6400 narrow stile devices

6T Thumb Latch - A grip pull with a thumb latch for 6300 or 6400 devices. Available in 3 functions.

*Not compatible with 6400C narrow stile devices.

6P Pull Plate - Stainless Steel pull plate for 6300 device.

*Not compatible with 6400 narrow stile devices.

6G Grip Pull - A grip pull for 6300 or 6400 devices. Made of stainless steel, this grip pull is available in 2 functions.

6S Rose Trim - Rose trim that fits into standard 161 prepped door with thru bolts. Works with 6300 rim, SVR and CVR devices. Available in 3 lever styles and in 4 functions.

*Not compatible with 6400 narrow stile devices

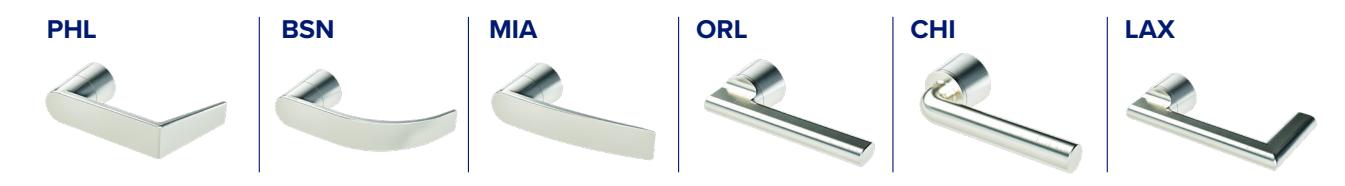

Lever Styles

6300/6400 Exit Device Trim

How to Order

TRIM TYPE	LEVER	FINISH	CYLINDER TYPE	KEYWAY	KEYING
6N08	PHL	630	D	SCC	KD
Narrow Escutcheon 6N01 – Narrow, Blank (No lever) 6N02 – Narrow, Fixed Lever 6N03 – Narrow, Cylinder Only (No Lever) Night Latch 6N08 – Narrow, Classroom 6N09 – Narrow Storeroom 6N14 – Narrow Passage Wide Escutcheon 6W02 – Wide, Fixed Lever 6W08 – Wide, Classroom 6W09 – Wide, Storeroom 6W14 – Wide, Passage 6W99 – Electrified Sectional/Rose 6S02 – Sectional, Rigid Lever 6S08 – Sectional, Classroom 6S09 – Sectional, Storeroom 6S14 – Sectional, Passage Thumb Latch	PHL – Philadelphia BSN – Boston MIA – Miami *CHI – Chicago *ORL – Orlando *LAX – Los Angeles *Not available with S Trim	*605 – Bright Brass *606 – Satin Brass 613 – Dark Bronze 622 – Satin Black *625 – Bright Chrome 626 – Satin Chrome 630 – Satin Stainless *Extended lead time - Contact factory for details	D Default L Less Cylinder SF6 Lock is SFIC prepped w/ 6 pin core SF7 Lock is SFIC prepped w/ 7 pin core SFL Lock is SFIC prepped but less core SFC Lock is SFIC prepped w/ construction core SFP Lock is SFIC prepped w/ plastic construction core LF6 Lock is Schlage LFIC prepped w/ Schlage core LFL Lock is Schlage LFIC prepped but less core LFC Lock is Schlage LFIC prepped w/ construction core *Cores sold separately - option specifies	SCC – Schlage C OTHERS – See Keyway Table Page 22	KD – Keyed Different KA – Keyed Like K0 – Zero Bitted MK – Master Keyed CMK – Construction Master Keyed GMK – Grand Master Keyed OPTIONS
6T05 – Thumb Latch, Classroom 6T06 – Thumb Latch, Storeroom 6T15 – Thumb Latch, Passage Pull Plate			factory installation		TC - Tactile Abrasive Coating (Lever trims only)
6P03 – Pull Plate, Cylinder Grip Pull 6G02 – Pull only					AM - Anti-Microbial

6G03 – Storeroom

6N Narrow Escutcheon 01, 02, 03, 08, 09, 14

6W Wide Escutcheon 02, 08, 09, 14, 99

6G Grip Pull 02, 03

6T Thumb Latch 05, 06, 15

6P Pull Plate 03

6S Sectional/Rose 02, 08, 09, 14

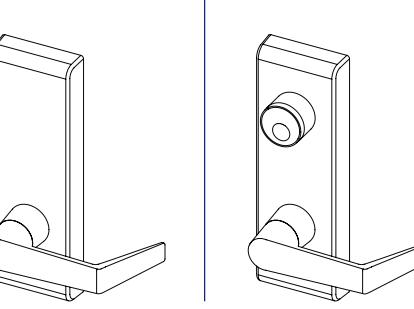

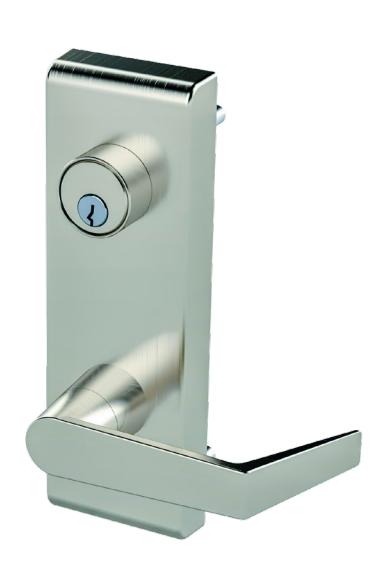

6N Escutcheon Trim

Features

• Works with 6300 or 6400 device
• Uses standard 1-1/8" mortise cylinder
• Standard, SFIC, and other cylinders available
• 6 Available lever styles
• Finishes: 605, 606, 613, 622, 626, 630
• Escutcheon Size 1 13/16" x 9"
• ADA Compliant

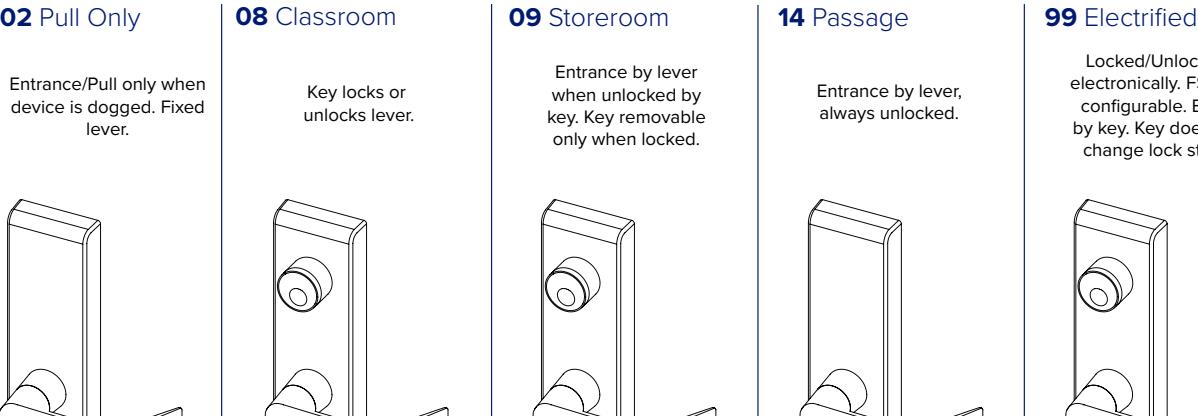

6N Functions

Blank Escutcheon

01 Blank 02 Pull Only 03 Night Latch 08 Classroom 09 Storeroom 14 Passage

Entrance/Pull only when device is dogged. Fixed lever.

Entrance when latch retracted by key. Key removable only when locked.

Key locks or unlocks lever.

Entrance by lever when unlocked by key. Key removable only when locked.

Entrance by lever, always unlocked.

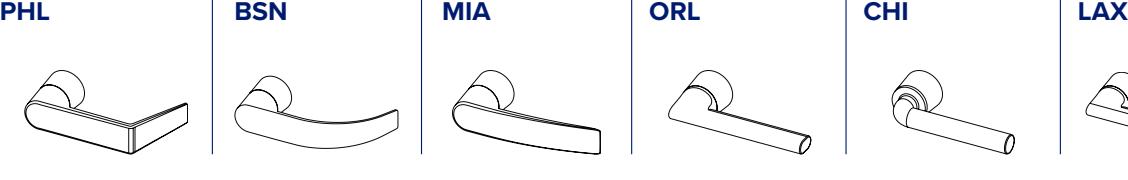

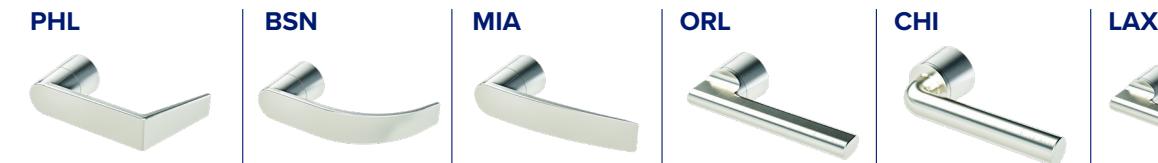

6N Lever Styles

PHL BSN MIA ORL CHI LAX

• 6400R Narrow Rim Device
• 6400V Narrow Surface Vertical Device
• 6400C Narrow Concealed Vertical Device
• 6300R Wide Stile Rim Device
• 6300V Wide Surface Vertical Device
• 6300C Wide Concealed Vertical Device
• 6300M Wide Mortise Device (Except 03 function)

6W Escutcheon Trim

6W Functions

Features

• Works only with 6300 wide device
• Uses standard 1-1/8" mortise cylinder
• Standard, SFIC, and other cylinders available
• 6 Available lever styles
• 08/09 Function conversion kit factory installed
• Finishes: 605, 606, 613, 622, 626, 630
• Escutcheon Size 3" x 9"
• ADA Compliant

6W Lever Styles

Key locks or unlocks lever.

• 6300R Wide Stile Rim Device
• 6300V Wide Surface Vertical Device
• 6300C Wide Concealed Vertical Device
• 6300M Wide Mortise Device

6T Thumb Latch Escutcheon Trim

Features

• Works with 6300 or 6400 device
• Uses standard 1-1/8" mortise cylinder
• Standard, SFIC, and other cylinders available
• Finishes: 613, 622, 630
• Escutcheon Size 1 13/16" x 9"

SFIC LFIC Standard

6T Functions

Key locks or unlocks thumb piece.

05 Classroom 06 Storeroom 15 Passage

Entrance by thumb piece when released by key. Key removable only when locked.

Entrance by lever when unlocked by key. Key removable only when locked

• 6300R Wide Stile Rim Device
• 6300V Wide Surface Vertical Device
• 6300M Wide Mortise Device
• 6400R Narrow Rim Device
• 6400V Narrow Surface Vertical Device

6P Pull Plate Trim

6P Functions

03 Night Latch

Entrance when latch retracted by key. Key removable only when locked.

Applicable Devices

• 6300R Wide Stile Rim Device
• 6300V Wide Surface Vertical Device
• 6300C Wide Concealed Vertical Device

Features

• Works with 6300 only
• Uses standard rim cylinder
• Standard, SFIC, and other cylinders available
• Finishes: 613, 622, 630
• Escutcheon Size 1 13/16" x 9"

SFIC LFIC Standard

6G Grip Pull Trim

Features

• Works with 6300 or 6400 device
• Uses standard rim cylinder
• Standard, SFIC, and other cylinders available
• Finish: 613, 622, 630
• Escutcheon Size 2" x 13"

SFIC LFIC Standard

6G Functions

Entrance/Pull only when device is dogged.

02 Pull Only 03 Night Latch

Entrance when latch retracted by key. Key removable only when locked.

M03 Mortise Storeroom

Entrance when latch retracted by key. Key removable only when locked.

• 6300R Wide Stile Rim Device
• 6300V Wide Surface Vertical Device
• 6300C Wide Concealed Vertical Device
• 6300M Wide Mortise Device (02 Function only)
• 6400R Narrow Rim Device
• 6400V Narrow Surface Vertical Device
• 6400C Narrow Concealed Vertical Device

6S Rose Trim

Features

• Works only with 6300 device
• Uses standard KIK/IC cylinder
• Standard, SFIC, and other cylinders available
• 3 Available lever styles
• Finishes: 605, 606, 613, 619, 622, 625, 626
• Rose Diameter 3 3/8"
• ADA Compliant

6S Functions

Entrance/Pull only when device is dogged. Lever is fixed.

08 Classroom 09 Storeroom 14 Passage

Key locks or unlocks lever.

Entrance by lever when key inserted. Key removable only when locked.

Entrance by lever. Always unlocked.

6S Lever Styles

PHL BSN MIA

• 6300R Wide Stile Rim Device
• 6300V Wide Surface Vertical Device
• 6300C Wide Concealed Vertical Device

Option	Description	MLR	AL	SS	LM	ISMC
MLR	Motorized Latch Retraction			O	O	O
AL Alarmed Exit					O*	O
SS	Signal Switch on touch bar	O			O	O
LM	Latch bolt Monitoring	O	O	O		O
ISMC	Industry Standard Connec tor (Molex® Type)	O	O	O	O

O= option O*= Standard on SVR Not compatible Cannot be combined

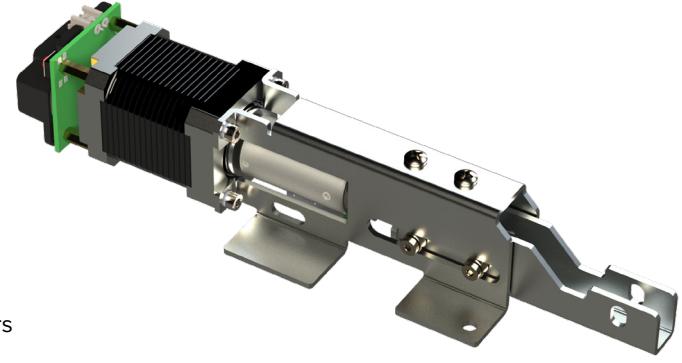

MLR - Motorized Latch Retraction

Operation

When power is applied the MLR retracts the latch(es) allowing the door to be opened. Duration of latch retraction is controlled by the access control system. Power can be continuously applied to electronically dog the exit device.

Features

• Works with 6300 wide stile or 6400 narrow stile devices; panic or fire labeled
• Innovative motor drive retracts push pad
• Allows free egress at all times
• Suitable for pairing with Low Energy Power Operators
• UL Listed

Electrical Specifications

• Input voltage 24 VDC ± 10%
• Non-polarized power leads
• Latch Retraction Speed: ~300mS
• Average in-rush current: 900mA
• Average holding current: 200mA

Retrofit kit part number: 639065

• Designed to field retrofit 6300 or 6400 series devices
• Includes motor drive module, connectors and fasteners

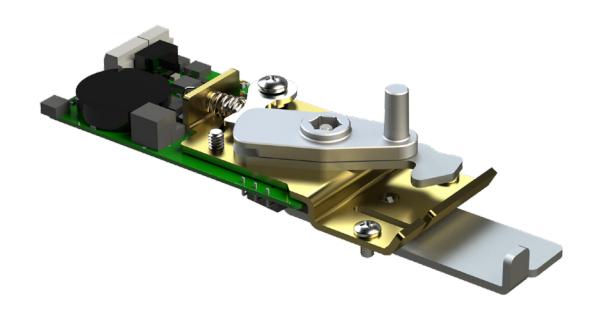

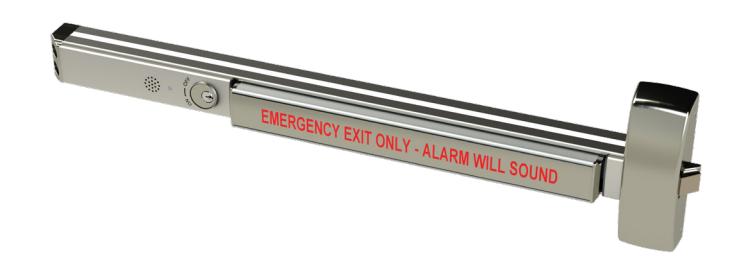

AL - Alarm Kit ALHW - Alarm Kit (Hardwire power & relay output)

Operation

Battery powered self-contained alarm kit for 6300 or 6400 exit device.

The alarm kit is armed via clockwise rotation of the key. If armed, a siren sounds, and the red LED rapidly flashes when the touch bar is depressed. Factory default is continuous alarm. Rotate key counterclockwise to silence siren and disarm the unit.

Alarm kit for panic devices include a third position for dogging the device.

Alarm Mode: Unit can be configured to auto silence the alarm after 7, 3 or 1 minute.

Armed State: Red LED blinks every 10-seconds to indicate unit is armed.

Armed State: Red LED blinks every 10-seconds to indicate unit is armed.

Low Battery: Siren will intermittently chirp when battery is low (<7VDC). Siren chirps regardless of arming state. Battery Life: 1-year life expectancy in armed, unactuated

state.

Siren Intensity: 95dB @ 4in

Operating Temperature: 0 C – 49 C

Max Relative Humidity: 85% (non-condensing)

Included Decal: "EMERGENCY EXIT ONLY – ALARM WILL

SOUND"

Latchbolt Monitor: Standard for SVR device

Optional Rim Latchbolt Monitor: Adds latchbolt monitor. When armed, either the touch bar or latchbolt monitor actuate siren.

Optional Relay Output: Adds a Single Pole Double Throw (SPDT) relay and hardwire power input to the unit. When armed, relay state changes when the touch bar is depressed. Can be used with access control systems. Dry contact SPDT rated 125VAC/ 60VDC with 9VDC coil

Bar Length:

36" Device – 2" max cut 48" Device – 8" max cut

Electrical Specifications:

Power Requirements: One 9-VDC Alkaline Battery (included).

Optional (with relay output): 12-24VDC/VAC ±10% hardwired power. Battery can be used as emergency backup. It is protected from hardwired power.

Power Consumption:

Typical: 18μA

During alarming: 18mA

How to order: Specify AL for alarm kit or ALHW alarm kit with optional hardwire and relay output.

Panic rated device -

Position 1: On/Armed

Position 2: Off

Position 3: Off & Dogged

Fire Rated Device -

Position 1: On/Armed

Position 2: Off

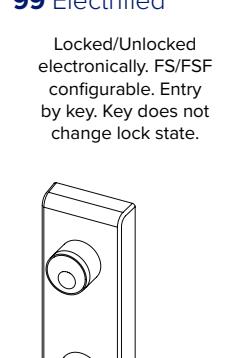

6W 99 - Electrified Locking/Unlocking Trim

For ordering information see trim section

Operation

Field selectable operation - Fail Safe (Unlocked when power removed) or Fail Secure (Locked when power removed). Key allows entry but does not change state of lock.

Features

• Motorized locking/unlocking
• Field changeable from Fail Secure (Default) to Fail Safe
• AC or DC input voltage.
• Works with rim, surface vertical rod and concealed vertical rod devices.
• Two (2) year warranty
• Designed and assembled in the USA, Lancaster, PA.

Electrical Specifications

• Non-polarized power leads
• Power requirements: 12-24VDC/VAC ± 10%
• Average in-rush current: 12-24VDC/VAC: 1A for 1 second
• Average holding current: 12-24VDC: 5mA after 30 seconds
• 12-24VAC: 15mA after 30 seconds
• Power must be applied for a minimum of 5 seconds

SS - Signal Switch/ REX - Request to exit

Operation:

Monitors push bar operation. NO or NC operation.

Electrical Specifications:

Single Pull Double Throw (SPDT): 125VAC – 3A 30VDC – 3A

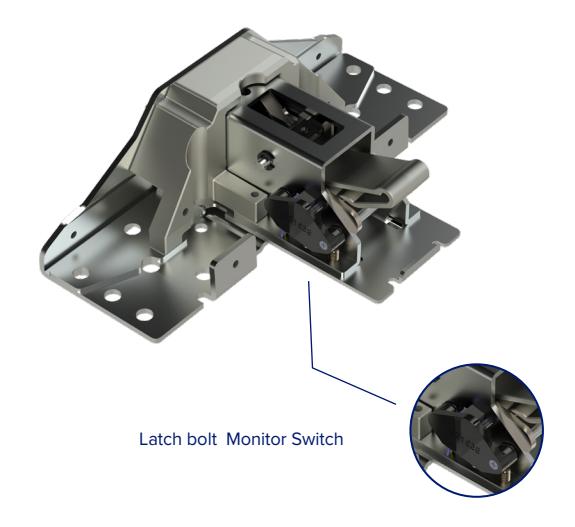

LM - Latch bolt Monitor Switch

Operation:

Monitors latch status. Available on Rim, SVR, CVR and Mortise. NO or NC operation.

Electrical Specifications:

Single Pull Double Throw (SPDT): 125VAC – 3A 30VDC – 3A

ISMC - Industry Standard Molex Connector

Operation:

Molex type connectors for simpler wiring

Terminal insertion end shown for ISMC connector (PDQ P/N 88850)

Function	Wire Color	Optional ISMC Pin#
Power*	White/Blue	1
Power*	White/Blue	2
REX(COM)	Yellow	3
REX(N/O)	Red	4
REX(N/C)	Gray	5
LM(COM)	Black	6
LM(N/0)	Brown	7
LM(N/C)	Blue	8

*Power wires are non-polar

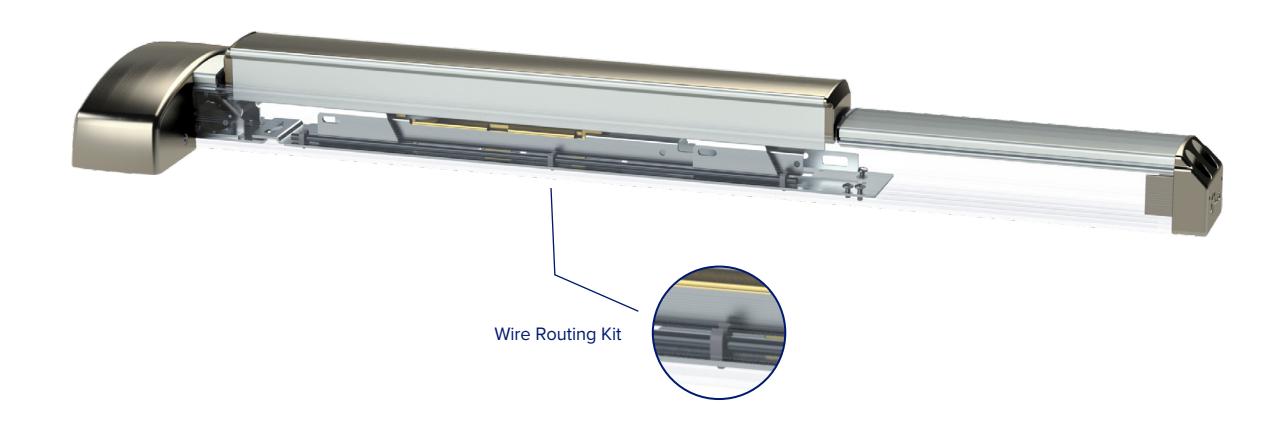

Wire Routing Kit

Included with Latch bolt Monitor Switch, 6W99 Trim, and available as a kit.

Description: Safely route wires through device where they will not be pinched.

Cylinders and Keying

Keyways

Conventional Cylinder		Small Format Interchangeable Core		Large Format Interchangeable Core
PDQ Keyway Keyway Designator		Keyway (BEST Compatible)	PDQ Keyway Designator	Keyway (Schlage Compatible)	PDQ Keyway Designator
Schlage C (Default)	SCC			Schlage C (Default)	SCC (Default)
PDQ Restricted	TA
Arrow AR1	ARA	BEST A (Default), B, C, D, E, F, G, H,	A (Default), B, C, D, E, F, G,
Corbin 59A1	CO59A1	J, K, L, M, Q, R, WA, WB, WG, WH, TB, TD, TE, R	H, J, K, L, M, Q, R, WA, WB, WG, WH, TB, TD, TE, R
Corbin 60	CO6
Corbin L4	CL4
Russwin D1	RUD		PDQ1
Russwin 981	RUD981	PDQ Exclusive	PDQ2
Schlage E	SCE	PDQ Exclusive and Restricted	PDQ3
Schlage C	SCC
Schlage C-K	SCC-K
Sargent LA	SAL
Sargent RA-RC	RA-RC
Yale E1R	YA8
Yale GA	GA
Falcon E-R	FAL
Kwikset	KW

Keying

Description	PDQ Keying Designator
Keyed Different (Default)	KD
Keyed Alike	KA
"O" Zero Bitted	KO
Master Keyed	MK
Construction Master Keyed	CMK
Grand Master Keyed	GMK

Cylinder Application Chart

TRIM TYPE	FUNCTION	IMAGE	STANDARD CYLINDER	BEST SFIC	SCHLAGE STYLE LFIC
CYLINDER ONLY	03 (Less Outside Trim)		Rim cylinder (use rim cylinder included collar, mounting plate & screws)	SFIC Rim Housing (use rim housing included collar, mounting plate & screws)	LFIC Rim Housing (use rim housing included collar, mounting plate & screws)
CYLINDER DOGGING/ ALARM KIT	All Devices		1-1/8" Mortise Cylinder 631093 Trim Ring Yale Cam	SFIC 7 pin housing (2) 631093 Trim Rings Yale Cam	LFIC housing 631094 Collar (5/8") Yale Cam
6W	All Keyed Functions		1-1/8" Mortise Cylinder 631094 Collar (5/8") Corbin A06 or Yale Cam	SFIC 7 pin housing 631094 Collar (5/8") Corbin A06 or Yale Cam	LFIC housing 631094 Collar Flipped (3/4") 631093 Trim Ring Corbin A06 or Yale Cam
6N	08, 09	1-1/8" Mortise Cylinder SFIC 7 pin housing 631094 Collar (5/8") 631094 Collar (5/8") Corbin A06 Corbin A06 or Yale Cam or Yale Cam			LFIC housing 631094 Collar Flipped (3/4") 631093 Trim Ring Corbin A06 or Yale Cam
6N	03	Rim Cylinder		SFIC rim housing	LFIC rim housing
6S	All Keyed Functions		Must order product with KIK / Standard cylinder lever	Must order product with SFIC lever	Must order product with Schlage style LFIC Lever
6T	All Keyed Functions		1-1/8" Mortise Cylinder 631094 Collar (5/8") Corbin A06 or Yale Cam	SFIC 7 pin housing 631094 Collar (5/8") Corbin A06 or Yale Cam	LFIC housing 631094 Collar Flipped (3/4") 631093 Trim Ring Corbin A06 or Yale Cam
6G	All Keyed Functions		Rim Cylinder Standard rim cylinder trim ring	SFIC rim housing Standard rim cylinder trim ring	LFIC rim housing Standard rim cylinder trim ring
6P	All Keyed Functions		Rim Cylinder Standard rim cylinder trim ring	SFIC rim housing Standard rim cylinder trim ring	LFIC rim housing Standard rim cylinder trim ring

Mullion

9300 Mullion

The PDQ 9300 Series removable mullions are designed for use with the 6300/6400 Series Rim Exit Devices on pairs of doors. They are designed for quick removal from the top bracket by simple operation of the rim cylinder when a clear, unobstructed large opening is required. Once the mullion is removed, carts, gurneys, large machinery and the like can freely pass through the opening. When the mullion is re-installed, the unit will self lock in place without a key.

Specifications

Mullion Head/Foot brackets:	• Cast Stainless Steel
Tube Dimensions:	• Powder Coated 2" x 3" Steel - 3/16" Wall
Strike:	• ML 639080 Strike standard for Fire Labeled
Size:	• 8' or 10' lengths - Can easily be cut to shorter size in field
Finish:	• Powder Coated 689 (Aluminum) - can be painted
Electrified Options:	• Wire routing w/ plugs
Warranty:	• One (1) year limited warranty
Certifications: Compliances: Listings:	• Fire model is 3 hour fire labeled for pairs up to and including 8' x 8' (With 6300RF/6400RF Rim Device) • Meets requirements of the Buy American Act

Orientation

Key Removable

Non Key Removable

How to order

DEVICE TYPE	FOR DOOR HEIGHT	REMOVABLE TYPE	RATING	OPTIONS
93	0	0	—
93 - Mullion	0 - 8' and under Door 1 - 10' and under Door	0 - Key Removable 1 - Non Key Removable	Blank - Non Fire Rated F - Fire Rated	EM - Electrified Mullion

Key Removable Only

CYLINDER TYPE	KEYWAY	KEYING
D	SCC	KD
D Default L Less Cylinder SF6 Lock is SFIC prepped w/ 6 pin core SF7 Lock is SFIC prepped w/ 7 pin core SFL Lock is SFIC prepped but less core SFC Lock is SFIC prepped w/ construction core SFP Lock is SFIC prepped w/ plastic construction core LF6 Lock is Schlage LFIC prepped w/ Schlage core LFL Lock is Schlage LFIC prepped but less core LFC Lock is Schlage LFIC prepped w/ construction core	SCC – Schlage C OTHERS – See Keyway Table Page 22	KD – Keyed Different KA – Keyed Like K0 - Zero Bitted MK – Master Keyed CMK – Construction Keyed GMK – Grand Master Keyed

639081 - Mullion Storage Kit

Kit includes items necessary to mount/store mullion on the wall when not in use

Fire Ratings

6300RF / 6400RF Rim Devices

	RATING	MAX OPENING	APPLICATION
Single Door	3 Hour Rated	4' x 8' Door
Double Door with Mullion	3 Hour Rated	8' x 8' Pair	Single Egress Pairs (Swing Same Direction)

6300VF / 6400VF Surface Vertical Devices

	RATING	MAX OPENING	APPLICATION
Double Door Top/Btm Latches or Less Bottom Rod (LBR)	3 Hour Rated	8' x 8' Pair	Single Egress Pairs (Swing Same Direction)
Double Door Top/Btm Latches or Less Bottom Rod (LBR)	3 Hour Rated	8' x 8'	Double Egress Pairs (Swing Opposite Directions)

6300CF / 6400CF Concealed Vertical Devices

	RATING	MAX OPENING	APPLICATION
Double Door Top/Btm Latches or Less Bottom Rod (LBR)	3 Hour Rated	8' x 8' Pair	Single Egress Pairs (Swing Same Direction)
Double Door Top/Btm Latches or Less Bottom Rod (LBR)	3 Hour Rated	8' x 8' Pair	Double Egress Pairs (Swing Opposite Direc tions)

6300MF Mortise Devices

	RATING	MAX OPENING	APPLICATION
Single Door	90 Minute Rated	4' x 8' Door

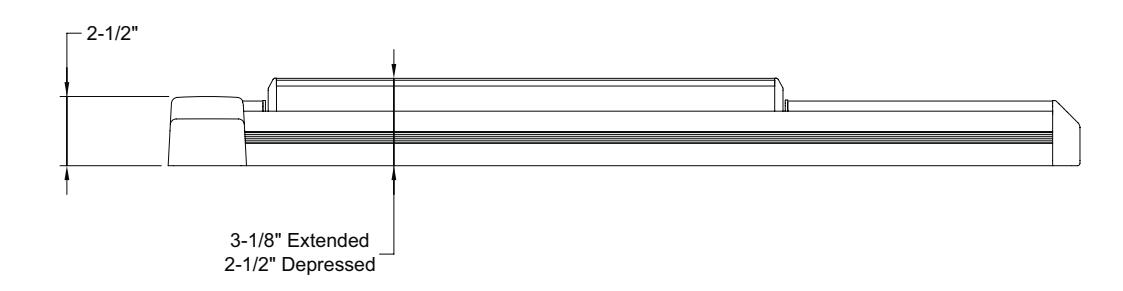

Device Dimensions

6300 Series Wide Stile

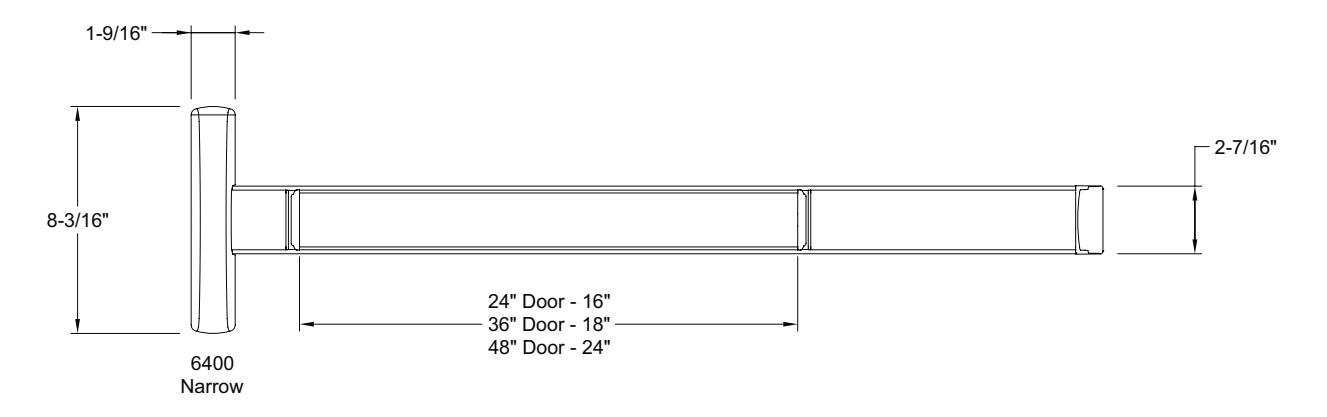

6400 Series Narrow Stile

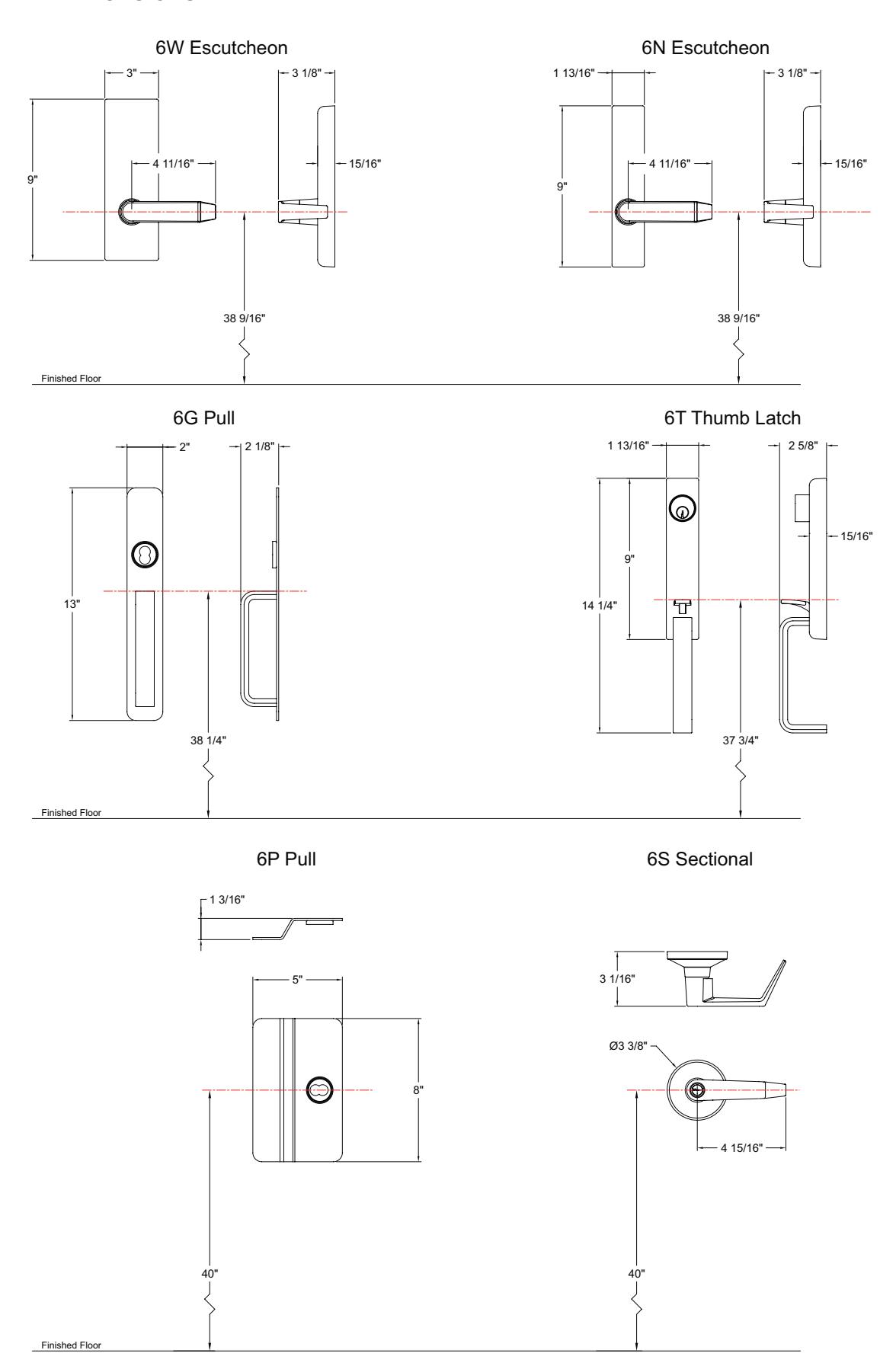

Trim Dimensions

Door Width Chart

6300/6400 Series

PART	DESCRIPTION	FOR DOOR	MAX CUT 1,2
6300R-CD	6300 Rim Cylinder dogging	36"	6"
6300R	6300 Rim Hex Key dogging	36"	6"
6300RF	6300 Rim Fire	36"	8"
6301V	6300 SVR Cylinder dogging	36"	6"
6300V	6300 SVR Hex Key dogging	36"
6300VF	6300 SVR Fire	36"	8"
6300C	6300 CVR Hex Key dogging	36"	6"
6300CF	6300 CVR Fire	36"
6311R	6300 Rim Cylinder dogging	48"	12"
6310R	6300 Rim Hex Key dogging	48"	12"
6310RF	6300 Rim Fire	48"	14"
6311V	6300 SVR Cylinder dogging	48"
6310V	6300 SVR Hex Key dogging	48"
6310VF	6300 SVR Fire	48"	14"

24" DEVICE
No cut
No electric options

^1: For the MLR Motorized Latch Retraction option: 3 ft devices, maximum cut is 3". 4 ft devices, maximum cut is 9".

^2: For the Alarm option: 3 ft devices, maximum cut is 2". 4 ft devices, maximum cut is 8".

6300/6400 Exit Device Cross Reference

6300 Wide Stile

	EXIT DEVICE SERIES/TYPE
MANUFACTURER	RIM	RIM FIRE	VERTICAL ROD	VERTICAL ROD FIRE	CONCEALED VERTICAL ROD	CONCEALED VERTICAL ROD FIRE	MORTISE	MORTISE FIRE
PDQ	6300R	6300RF	6300V	6300VF	6300C	6300CF	6300M	6300MF
CORBIN	ED5200	ED5200A	ED5400	ED5400A	ED5860	ED5860B	ED5600	ED5600A
DORMA	9300	F9300	9400	F9400	9100	F9100	9500	F9500
FALCON	25-R	F-25-R	25-V	F-25-V	25-C	F-25-C	25-M	F-25-M
HAGER	4501 RIM	4501 RIM FR	4501 SVR	4501 SVR FR	4500 CVR	4500 CVR FR	4500 MOR	4500 MOR FR
SARGENT®	8800	12-8800	8700	12-8700	8600	12-8600	8900	12-8900
VON DUPRIN	98/99	98/99-F	98/9927	98/9927-F	98/9947	98/9947-F	98/9975	98/9975-F
YALE	7100	7100F	7110	7110F	7160	7160F	7130	7130F

6400 Narrow Stile

	EXIT DEVICE SERIES/TYPE
MANUFACTURER	RIM	RIM FIRE	VERTICAL ROD	VERTICAL ROD FIRE	CONCEALED VERTICAL ROD	CONCEALED VERTICAL ROD FIRE
PDQ	6400R	6400RF	6400V	6400VF	6400C	6400CF
CORBIN	ED4200	ED4200MA	ED4400	ED4400MA	ED4800	ED4800MA
DORMA	9700	F9700	9800	F9800	9600	F9600
FALCON	24-R	F-24-R	24-V	F-24-V	24-C	F-24-C
HAGER	4601 RIM	4601 RIM FR	4601 SVR	4601 SVR FR	4601 CVR	4601 CVR FR
SARGENT®	8500	12-8500	N/A	N/A	8400	12-8400
VON DUPRIN	33A/35A	33A/35A-F	3327A/3527A	3327A/3527A-F	3347A/3547A	3347A/3547A-F
YALE	7200	7200F	7210	7210F	7220	7220F

Lever Options

Not all products are available in levers shown.

Finish Options

605

Bright Brass

Gold anodized aluminum rail (matte), push bar sides and dogging filler Polished brass plated cast head cover and end caps. Polished brass plated heavy gauge stamped push bar face.

606

Satin Brass

Gold anodized aluminum rail (matte), push bar sides and dogging filler Brushed brass plated cast head cover and end caps. Brushed brass plated heavy gauge stamped push bar face.

613

Dark Bronze

Dark bronze anodized aluminum rail, push bar sides and dogging filler Powder coated cast head cover and end caps. Powder coated heavy gauge stamped push bar face.

622

Flat Black

Black anodized aluminum rail, push bar sides and dogging filler Powder coated cast head cover and end caps. Powder coated heavy gauge stamped push bar face

625

Bright Chrome

Clear anodized aluminum rail (matte), push bar sides and dogging filler Polished chrome plated cast head cover and end caps. Polished chrome plated heavy gauge stamped push bar face.

626

Satin Chrome

Clear anodized aluminum rail (matte), push bar sides and dogging filler Brushed chrome plated cast head cover and end caps. Brushed chrome plated heavy gauge stamped push bar face.

630

Satin Stainless

Clear anodized aluminum rail (matte), push bar sides and dogging filler Plated (stainless look) cast head cover and end caps. Brushed stainless heavy gauge stamped push bar face.

630F

Full Satin Stainless

Brushed stainless fully clad rail, push bar and dogging filler Plated (stainless look) cast head cover and end caps.

Phone: 800.441.9692

Tech Support: 833.273.7832 Email: help@pdqlocks.com

Headquarters: 2230 Embassy Drive, Lancaster, PA 17603

P.O. Box 6426, Lancaster, PA 17607

Regional Distribution Centers: Lancaster, PA | Norcross, GA

Kansas City, MO | Auburn, WA

pdqlocks.com
