6300/6400 Parts / Service Manual

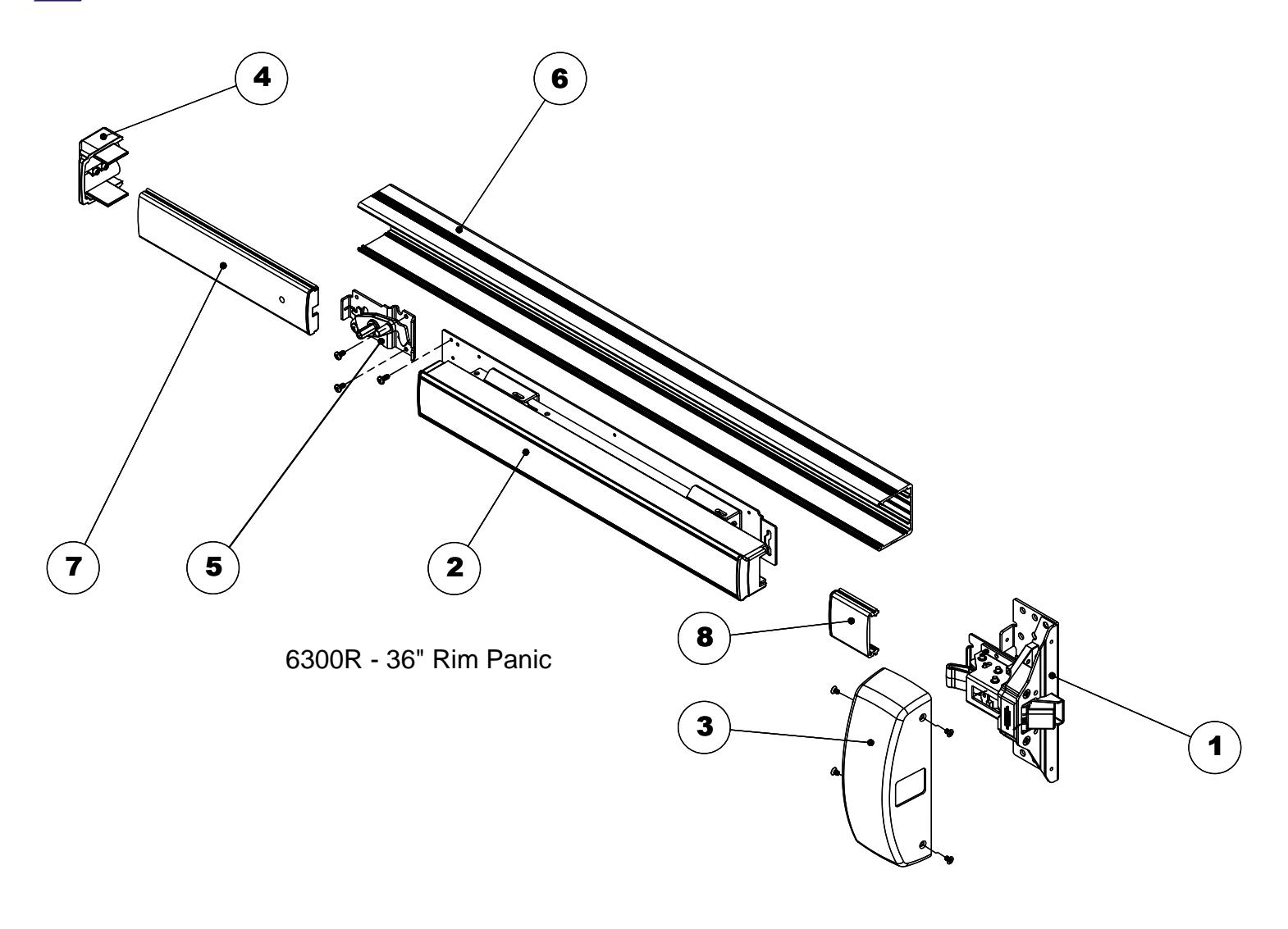

		Same for all device types	Device Type Specific	Device Length Specific	Colored / Finished Item
1	Chassis/Case/Head		X
2	Push Bar	X		X	X
3	Chassis/Case/Head Cover		X		X
4	End Cap	X			X
5	Dogging Assembly	X
6	Rail Extrusion	X		X	X
7	Dogging Filler	X		X	X
8	Head Filler	X			X

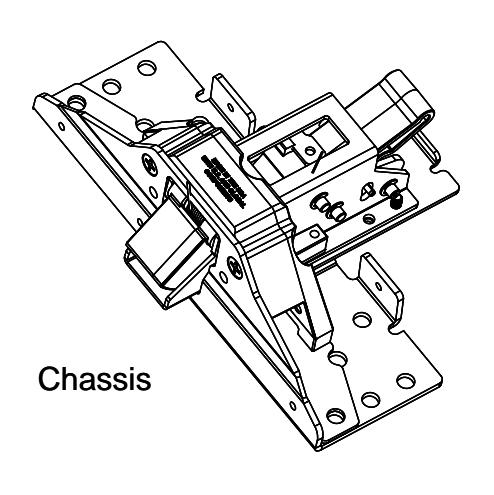

Chassis/Case/Head
Rim Panic Wide	639001-R
Rim Fire Wide	639001-RF
Rim Panic Narrow	649001-R
Rim Fire Narrow	649001-RF
SVR Wide	639001-V
SVR Narrow	649001-V
CVR Wide	639001-C
CVR Narrow	649001-C
Mortise Wide	639001-M
Mortise Lock Body	J163

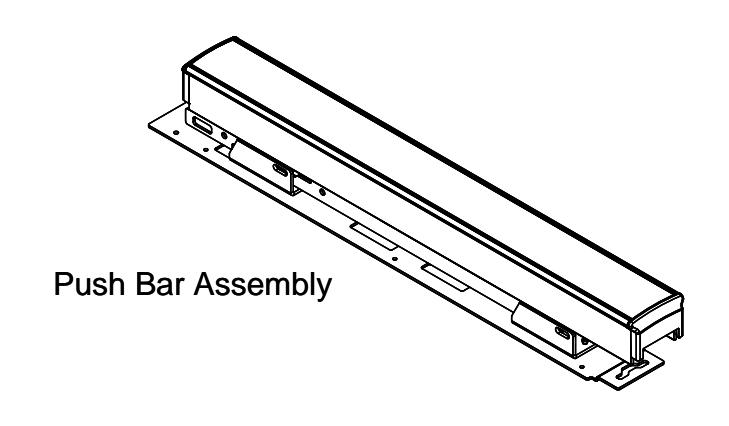

- Specify Push Bar Assembly Finish
36" Device	639703-36-XXX
48" Device	639703-48-XXX

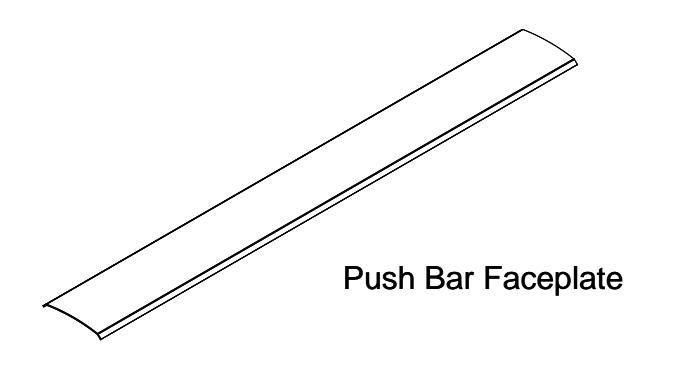

- Specify Push Bar Faceplate Finish
36" Device	631030-18-XXX
48" Device	631030-24-XXX

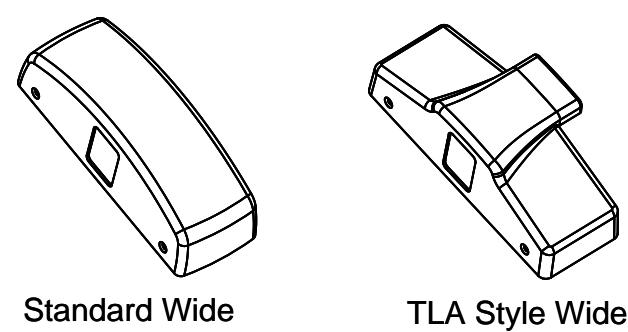

Covers / Caps - Specify Finish

Head/Chassis		Covers

Rim Wide	639704RW-XXX
Rim Narrow	639704RN-XXX
Rim Wide TLA	639705RW-630
Rim Narrow TLA	639705RN-630
SVR Wide	639704VW-XXX
SVR Narrow	639704VN-XXX
SVR Wide TLA	639705VW-630
SVR Narrow TLA	639705VN-630
CVR Wide	639704BW-XXX
CVR Narrow	639704BN-XXX
CVR Wide TLA	639705BW-630
CVR Narrow TLA	639705BN-630
Mortise Wide	639704BW-XXX
Mortise Wide TLA	639705BW-630

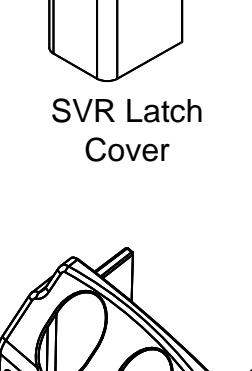

SVR Latch Cover	639706-XXX
End Cap	631032-XXX
End Cap Cover	639707-XXX

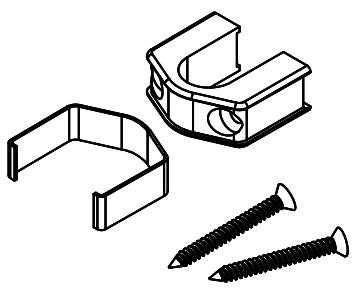

SVR Rod Guide Assembly	639708-XXX
Dogging Filler Plastic End

Cap ⁶³¹⁰³⁴

Note: Panic/Fire Label not included – we cannot provide labels with components

End Cap End Cap Cover

Dogging Filler Plastic End Cap

6300/6400 Strikes

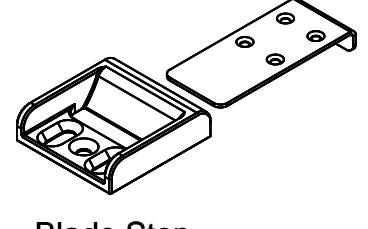

Blade Stop Strike

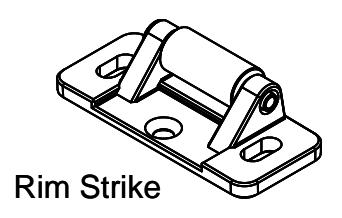

Rim Strikes
Rim Panic Strike	639709
0.100" Shim for Above	631126
Rim Fire Strike	639710
0.100" Shim for Above	631126
Rim Blade Stop Strike	639711
0.100" Shim for Above	631043

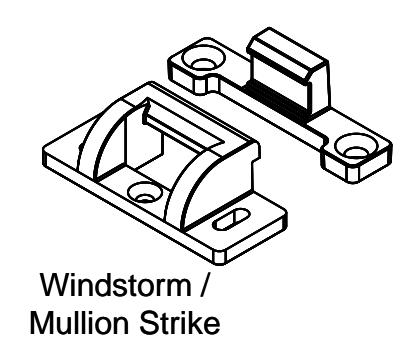

Rim Mullion Fire / Windstorm Strike	639712
0.100" Shim for Above	631619
Rim Double Door Strike	639714

Rim Double Door Strike

SVR/CVR Strikes
SVR/CVR Top Strike	639715
1/16" Shim for Above	631541
SVR/CVR Bottom Strike	639716

SVR/CVR Top Strike

SVR/CVR Bottom Strike

Drill Guides
Standard Roler Rim Strike Drill Guide	631127
Mullion Rim Fire / Windstorm Drill Guide	631620

Cylinder Dogging Conversion Kit - Cylinder trim rings included & not
639701-3WC-XXX	36" Wide Device - Specify finish
639701-3NC-XXX	36" Narrow Device - Specify finish
639701-4WC-XXX	36" Wide Device - Specify finish
639701-4NC-XXX	48" Narrow Device - Specify finish

Cylinder Dogging Retrofit Kit

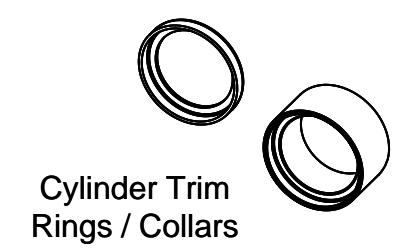

Cylinder Collars - Specify Finish
Tall Trim Ring / Spacer Reversable 5/8" Collar or 3/4" Spacer	631094-XXX
Short Trim Ring / Spacer Reversable No Height Collar or 1/4" Spacer	631093-XXX

Cylinder Application Chart
Type	Function	Image	Standard Cyl	Best SFIC	Schlage LFIC
Cylinder Dogging	All Devices		1-1/8" Mortise Cylinder 631093 Trim Ring	SFIC 7 pin housing (2) 631093 Trim Rings	LFIC housing 631094 Collar (5/8")

Dogging Replacement Parts

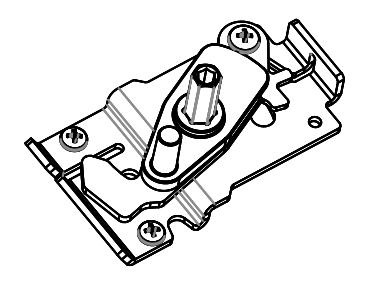

Hex Dogging Mechanism	639022H
Cylinder Dogging Mechanism	639022C

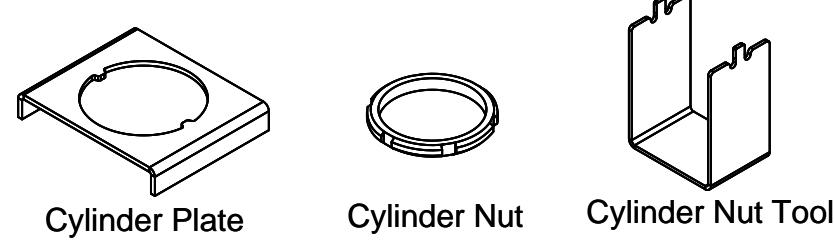

Cylinder anti-rotation plate (alarm kit & cylinder dogging)	631095
Cylinder retaining nut (alarm kit, cylinder dogging, 6N, 6W)	88644
Dogging Key - 3/16" with Loop	631113
Cylinder Nut Tool	88875

Dogging Mechanism Dogging Key

6300/6400 SVR/CVR Parts

SVR/CVR Latch
SVR/CVR Top Latch	639029
SVR/CVR Bottom Latch	639030
SVR Latch Mounting Bracket	631513
CVR Steel/Wood Door Latch Mounting Bracket	631511
LBR Fire Bolt Kit	639720
Cover bottom plug for SVR LBR	631222

SVR/CVR Top Latch

SVR/CVR Bottom Latch

SVR Latch Mounting Bracket

CVR Steel/ Wood Door

LBR Fire Bolt Bottom Cover Plug for SVR LBR

>

Latch Bracket

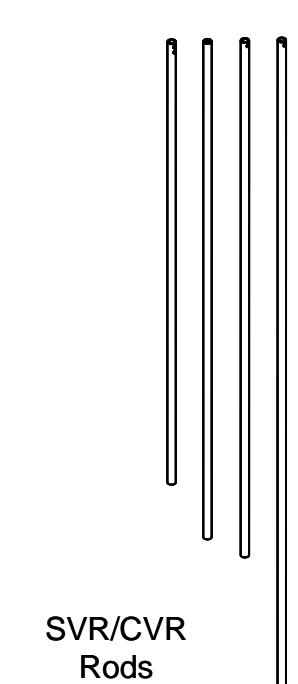

SVR Rods - Specify Finish
Bottom Rod	631212SVRB-XXX
Top Rod - 7' Door	631212SVRT-XXX
Top Rod - 8' Door	6312128SVR-XXX

CVR Rods	All Finishes
Bottom Rod	631212CVRB
Top Rod - 7' Door	631212CVRT
Top Rod - 8' Door	6312128CVR

SVR/CVR Rod Extensions	All Finishes
SVR Rod Connector	631205
Rod Extension Coupler	631206
CVR End Link Assm	639060
3' Top Rod Extension (Specify Finish)	631212-36EXT-XXX

6300/6400 Screwpacks / Shim Kits

Screwpacks

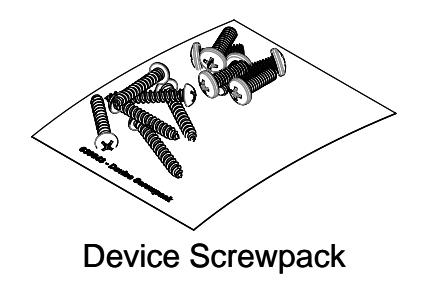

Device Screwpack	639043
SVR Connector Pack	639044
SVR Latch Screwpack	639045
CVR Latch Screwpack	639049
Rim Strike Screwpack	639050
SVR/CVR Strike Screwpack	639054

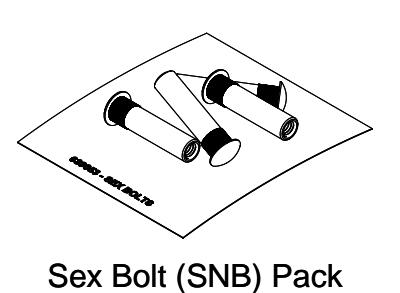

Sex Bolt (SNB) 4 Pack Silver	639053-04
Sex Bolt (SNB) 4 Pack Brown/Black	639053-H
Sex Bolt (SNB) 4 Pack Gold	639053-08

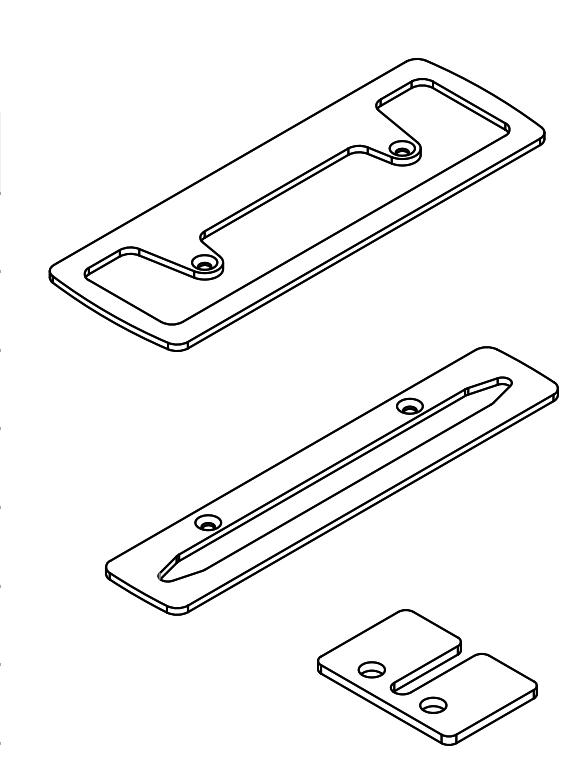

Shim Kits	1/8" Thick	1/4" Thick
Rim Wide	631125-830	631125-430
Rim Narrow	631125-840	631125-440
SVR Wide	631125-832	631125-432
SVR Narrow	631125-842	631125-442
CVR Wide	631125-830	631125-430
CVR Narrow	631125-840	631125-440
Mortise Wide	631125-820	631125-420

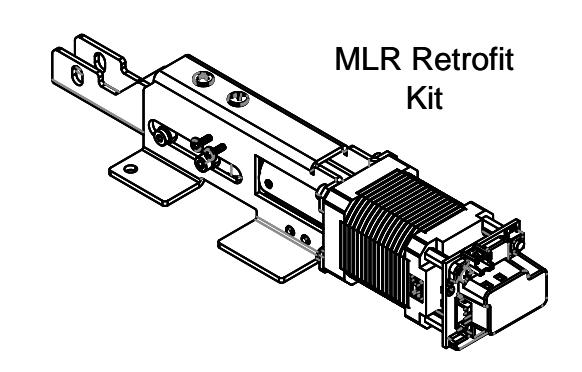

Motorized Latch Retraction (MLR) Conversion Kit

639026 All Devices

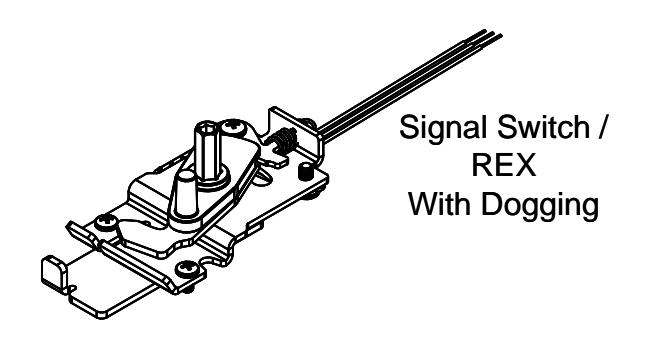

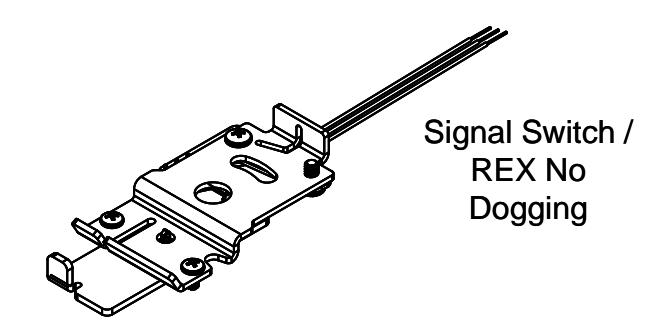

Signal Switch / REX Kit

639718	SS / REX, Panic Rated Device, Dogging
639719	SS / REX, Fire Rated Device, No Dogging

Alarm Conversion Kits - Cylinder and trim rings not included

639702P-3WA-XXX	Panic Device 36" Wide Device - Specify finish
639702P-3NA-XXX	Panic Device 36" Narrow Device - Specify finish
639702P-4WA-XXX	Panic Device 48" Wide Device - Specify finish
639702P-4NA-XXX	Panic Device 48" Narrow Device - Specify finish
639702F-3WA-XXX	Fire Device 36" Wide Device - Specify finish
639702F-3NA-XXX	Fire Device 36" Narrow Device - Specify finish
639702F-4WA-XXX	Fire Device 48" Wide Device - Specify finish
639702F-4NA-XXX	Fire Device 48" Narrow Device - Specify finish

Note: Alarm kits not available for SVR

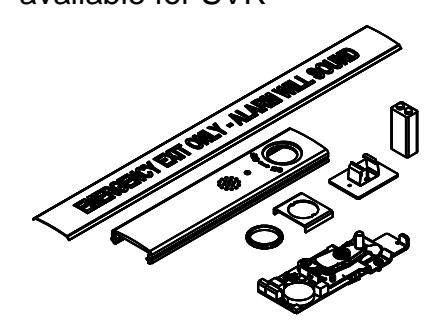

Alarm Retrofit Kit

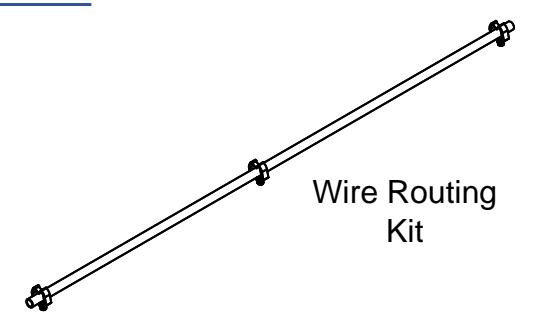

Wire Routing Kit - Safely routes wires through device

639067 Wire Routing Kit - Fits all devices
