PDQ 5300-5500 Door Closer TA-TAHO Installation Template
Open the original PDF document
View PDFInstallation Instruction

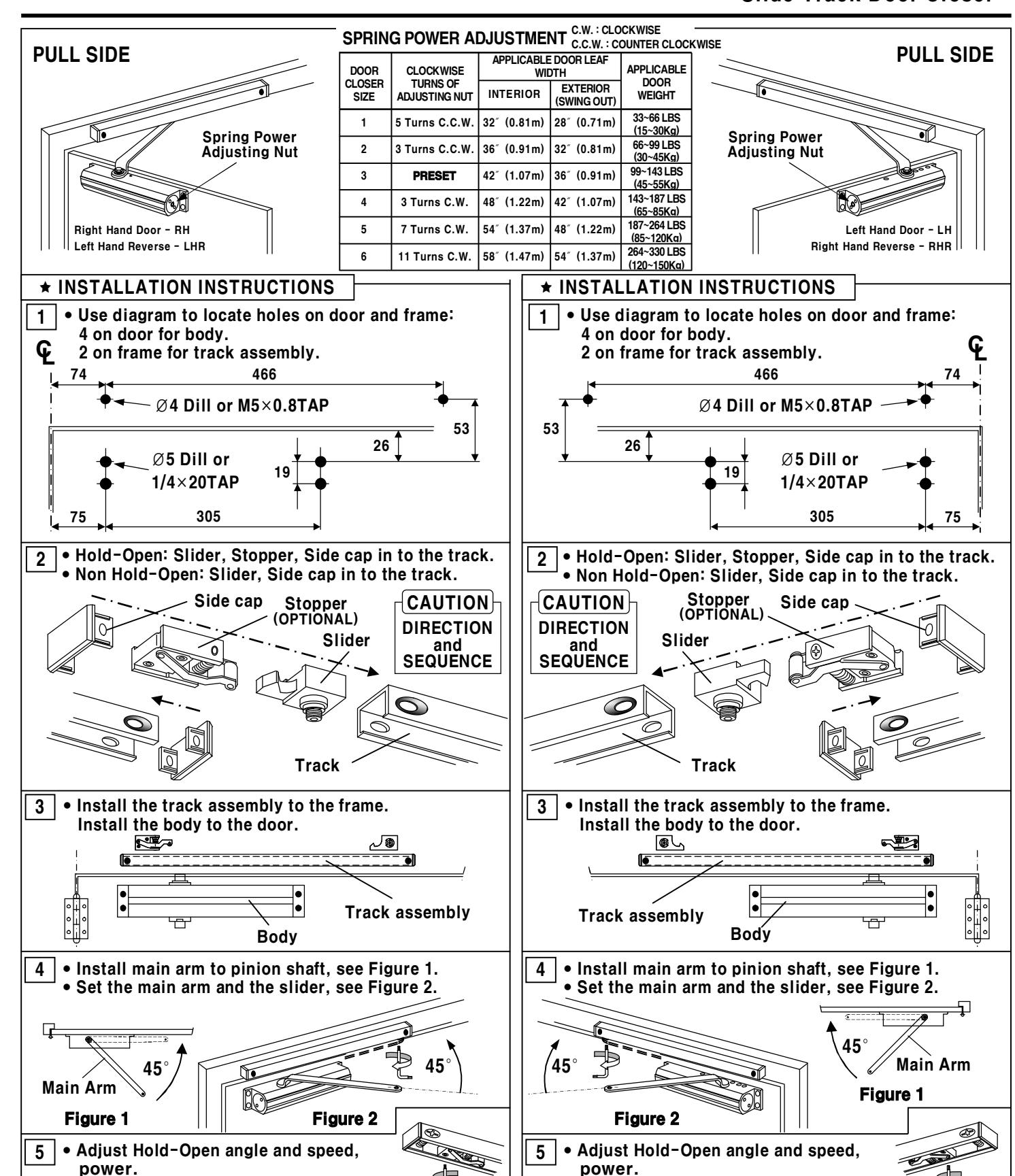

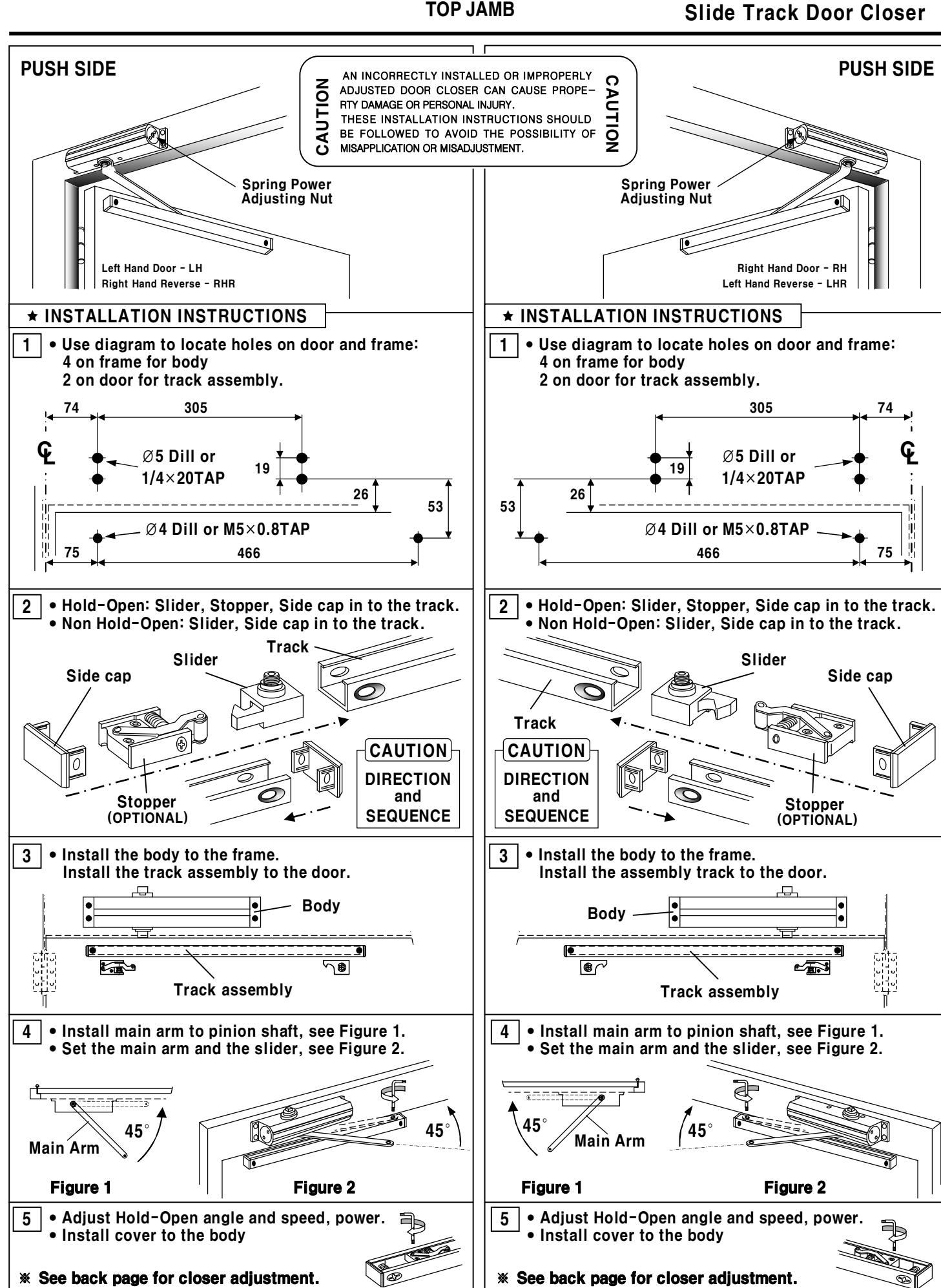

TOP JAMB
5300/5500 Series
Installation Instruction
STANDARD
5300/5500 Series Slide Track Door Closer
Install cover to the body
• Install cover to the body
