5300/5500 DOOR CLOSER MODELS

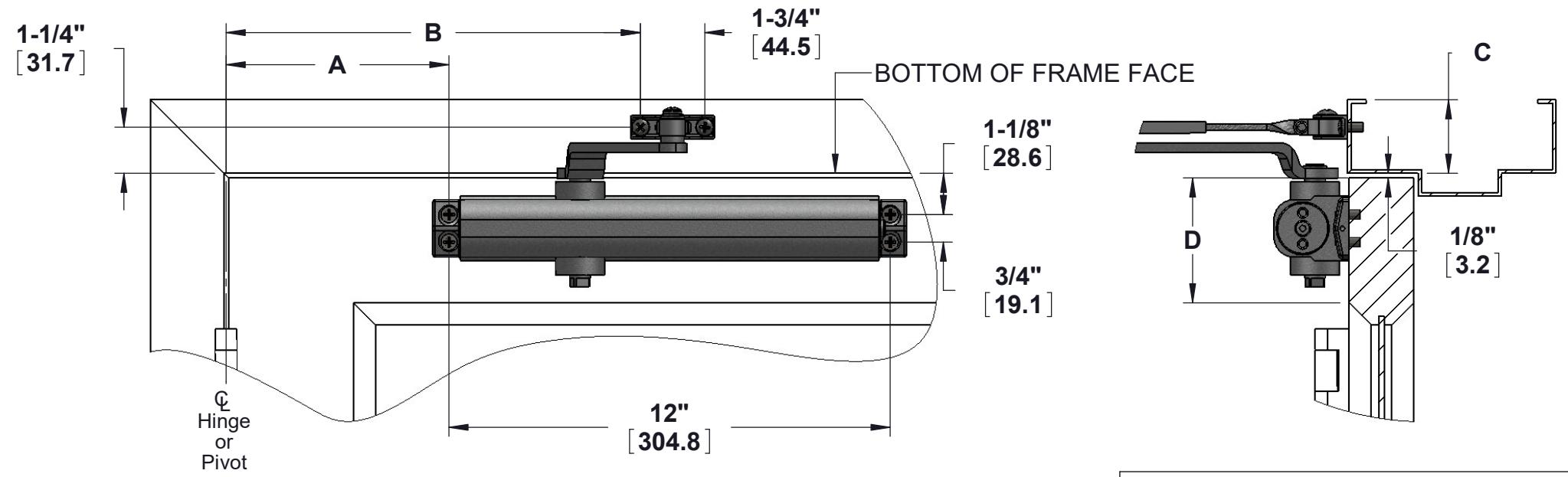

REGULAR ARM INSTALLATION - PULL SIDE NON-HOLD OPEN AND HOLD OPEN APPLICATIONS

Opening	Dim. A	Dim. B
To 100°	7-1/2" [190.5]	13" [330.2]
101° to 130°	6" [152.4]	11-1/2" [292.1]
Over 131°	4-1/2" [114.3]	10" [254]

Dim. C
MIN. CEILING CLEARANCE NON-HOLD OPEN	1-7/8" [47.6]
MIN. CEILING CLEARANCE HOLD OPEN	2" [50.8]
MIN. FACE HEIGHT NON-HOLD OPEN	1-5/8" [41.3]
MIN. FACE HEIGHT HOLD OPEN	1-3/4" [44.5]

Dim. D
MIN. RAIL TO MOUNT CLOSER	2-1/4" [57.2]
MIN. RAIL TO BOTTOM OF DUST CAP WITH STREAMLINE COVER - 5300 SERIES	3" [76.2]
MIN. RAIL TO BOTTOM OF FULL COVER - 5500 SERIES	3-3/8" [85.7]

REV. 0

TEMPLATE: 539301,

01-31-12

NOTES:

• 1. DRAWING IS NOT TO SCALE.
• 2. DIMENSIONS IN INCHES [MM]
• 3. RIGHT HAND DOOR SHOWN. FOR LEFT HAND DOOR REVERSE IMAGE.
• 4. DIMENSIONS BASED ON 4-1/2" X 4-1/2" BUTT HINGES.
• 5. DOOR SWING MAY BE ALTERED DUE TO OTHER LIMITING CONDITIONS.
• 6. CAUTION: SEX NUTS MAY BE REQUIRED FOR UNREINFORCED DOORS OR COMPOSITE FIRE DOORS. CONSULT MANUFACTURER'S RECOMMENDATIONS.
• 7. HOLD OPEN ARMS CAN NOT BE USED ON LABELED FIRE DOORS.
• 8. ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT REVISION AT WWW.PDQLOCKS.COM.

MACHINE SCREWS:

USE #7 OR 13/64" [5.1] DRILL AND 1/4-20 TAP

WOOD DOOR/FRAME SCREWS:

USE 5/32" [4] DRILL

SEX NUTS:

USE 3/8" [9.5] DRILL (CLOSER TO DOOR)
