PDQ 5100 Door Closer Models – 519304 REV0 5100 Heavy Duty Parallel Arm Installation Template

5100 DOOR CLOSER MODELS

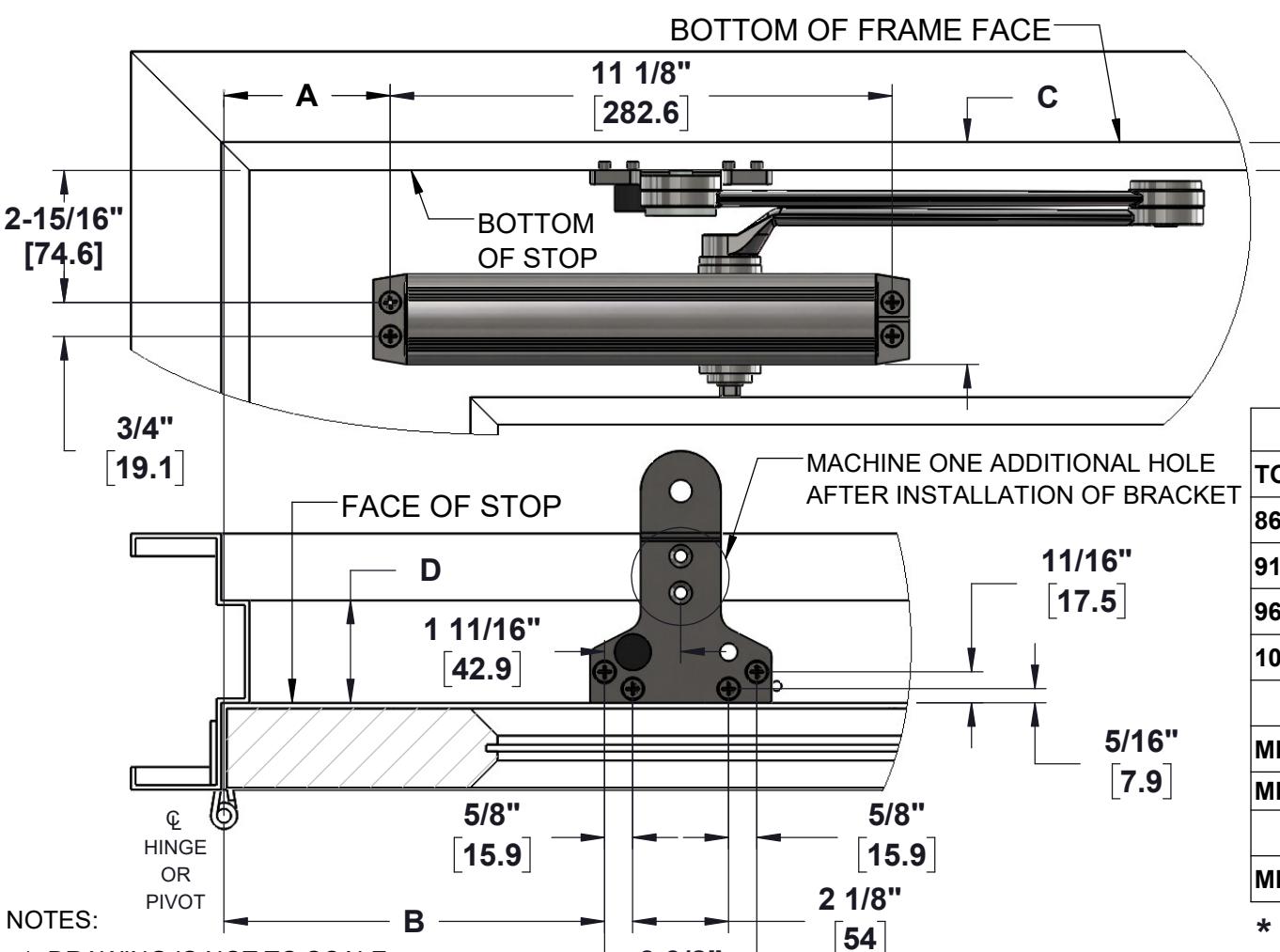

HEAVY DUTY PARALLEL ARM INSTALLATION - PUSH SIDE

W/STOP = DS (NHO)/DSHO (HO) - 105° MAX. CONDITIONS PERMITTING**, W/OUT STOP = EDA (NHO)/EDAHO (HO)

REV. 0 02-19-18 USE #7 OR 13/64" [5.1] DRILL AND 1/4-20 TAP

TEMPLATE: 519304

MACHINE SCREWS:	MA	CHINE	SCREWS:

WOOD DOOR/FRAME SCREWS:

USE 5/32" [4] DRILL

SEX NUTS:

USE 3/8" [9.5] DRILL (CLOSER TO DOOR)

5/8" 15.9

Opening**	Dim. A	Dim. B
TO 85°	4-1/8" [104.8]	9" [228.6]
86° TO 90°	8-1/2" [215.9]
91° TO 95°	2-15/16" [71.4]	7-13/16 [198.4]
96° TO 100°	2-5/16" [58.7]	7-3/16" [182.6]
101° TO 105°	1-3/4" [44.5]	6-5/8" [168.3]
Dim C.*
MIN. TO BOTTOM	5-1/16" [128.6]
MIN. TO BOTTOM	6-1/16" [154]
Dim. D
MIN. STOP DEPTH RECOMMENDED 1-1/4" [31.8]

MIN. RAIL DIMENSIONS BASED ON 5/8" [15.9] STOP HEIGHT AND 1/8" [3.2] TOP DOOR GAP.

• 3. LEFT HAND DOOR SHOWN, FOR RIGHT HAND DOOR REVERSE IMAGE.
• 4. DIMENSIONS BASED ON 4-1/2" X 4-1/2" BUTT HINGES.
• 5. DOOR SWING MAY BE ALTERED DUE TO OTHER LIMITING CONDITIONS.
• 6. CAUTION: SEX NUTS MAY BE REQUIRED FOR UNREINFORCED DOORS OR COMPOSITE FIRE DOORS. CONSULT MANUFACTURER'S RECOMMENDATIONS.

3 3/8"

85.7

• 7. HOLD OPEN ARMS CAN NOT BE USED ON LABELED FIRE DOORS.
• 8. PROJECTION OF FULL COVER = 2-1/2" [63.5]

INCHES

1. DRAWING IS NOT TO SCALE.

2. DIMENSIONS IN

9. ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT REVISION AT WWW.PDQLOCKS.COM.

833-273-7832 833-2 PDQTEC www.pdglocks.com

^** DOOR MAY SWING UP TO 5° BEYOND STOP/HO POINT INDICATED
