PDQ 5100 Door Closer Models – 519303 REV1 5100 Parallel Arm Installation Template

5100 DOOR CLOSER MODELS

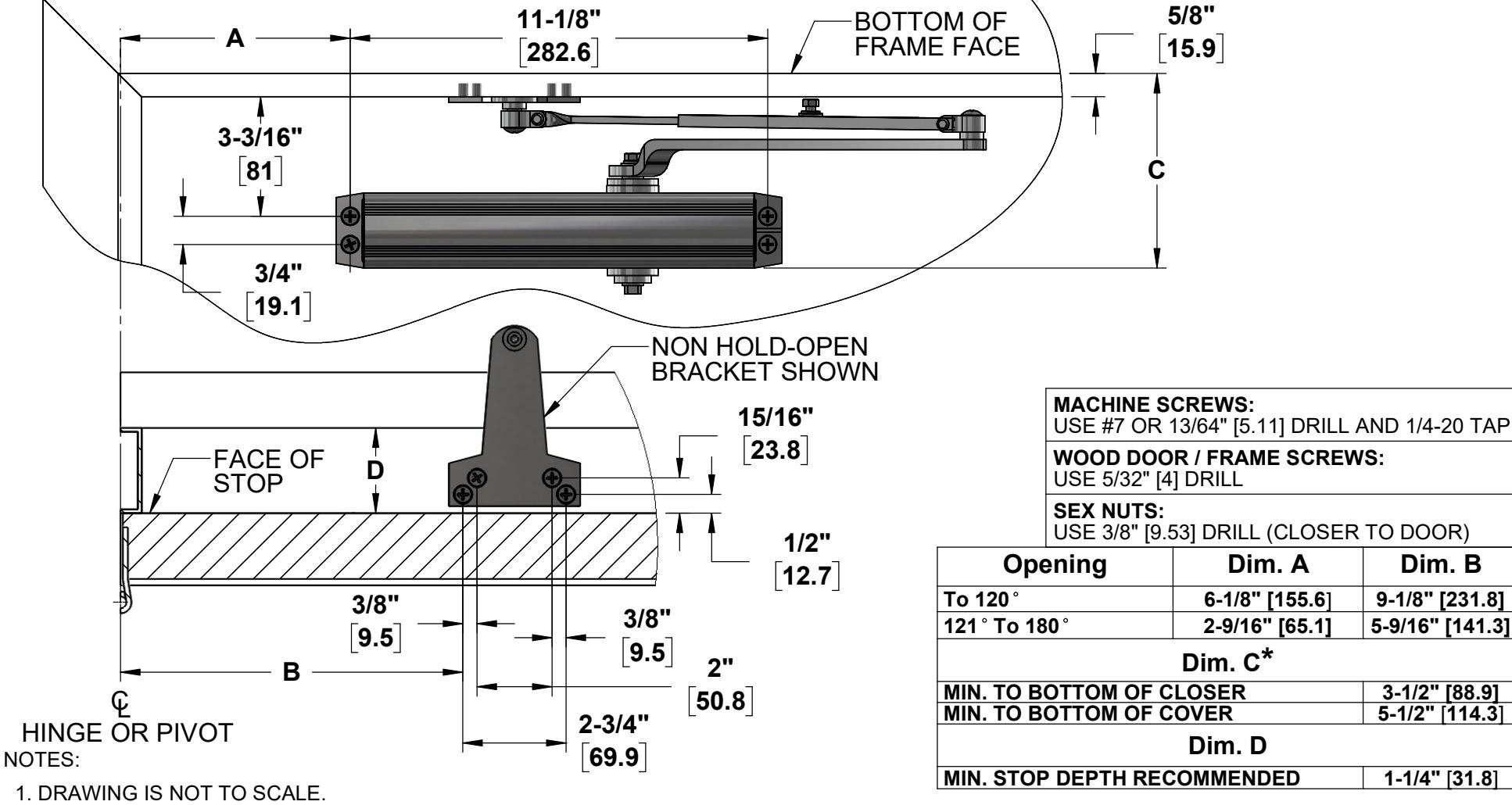

PARALLEL ARM INSTALLATION - PUSH SIDE NON-HOLD OPEN AND HOLD OPEN APPLICATIONS - 180° MAX. CONDITIONS PERMITTING*

TEMPLATE: 519303, REV. 1 01-08-18

• 2. LEFT HAND DOOR SHOWN. FOR RIGHT HAND DOOR, REVERSE IMAGE.
• 3 DIMENSIONS BASED ON 4-1/2" X 4-1/2" BUTT HINGES
• 4. DOOR SWING MAY BE ALTERED DUE TO OTHER LIMITING CONDITIONS.*
• 5. CAUTION: SEX NUTS MAY BE REQUIRED FOR UNREINFORCED DOORS OR COMPOSITE FIRE DOORS. CONSULT MANUFACTURER'S RECOMMENDATIONS.
• 6. HOLD OPEN ARMS CAN NOT BE USED ON LABELED FIRE DOORS.
• 7. PROJECTION OF FULL COVER = 2-1/2" [63.5].
• 8. ALWAYS CHECK PDQ WEB SITE FOR THE MOST RECENT REVISION AT WWW.PDQLOCKS.COM.

MINIMUM RAIL DIMENSIONS BASED ON 5/8" [15.9] STOP HEIGHT AND 1/8" [3.2] TOP DOOR GAP.
