View PDF5100 DOOR CLOSER MODELS

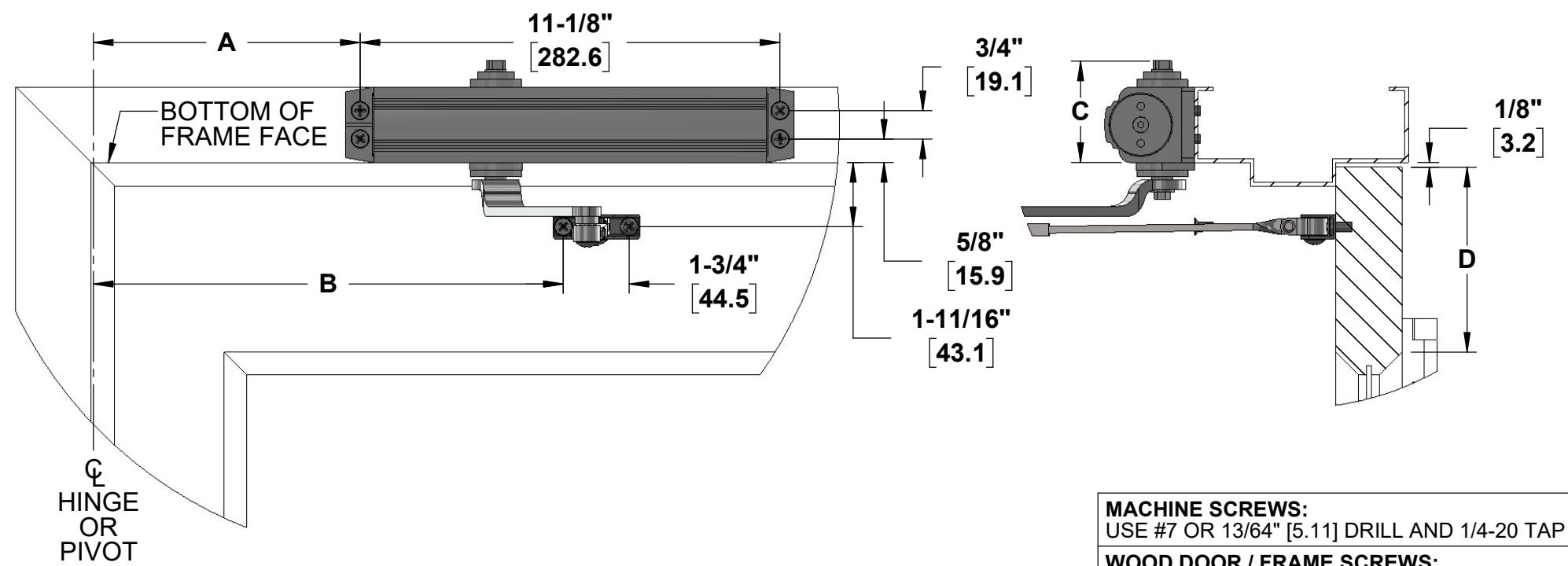

TOP JAMB INSTALLATION - PUSH SIDE
NON-HOLD OPEN AND HOLD OPEN APPLICATIONS - 180° MAX. CONDITIONS PERMITTING*
| Opening | Dim. A | Dim. B | Dim. C | |
|---|---|---|---|---|
| To 120° | 7-1/16" [179.4] | 12-7/16"[315.9] | MIN. FRAME FACE TO MOUNT CLOSER | 1-3/4" [44.5] |
| 121° To 180° | 3-15/16" [100.0] | 9-5/16" [236.5] | MIN. CEILING CLEARANCE TO BOTTOM OF COVER | 3-1/4"" [82.6] |
| Dim. D | |||
|---|---|---|---|
| MIN. RAIL TO MOUNT NHO ARM | 2-3/4" [69.9] | ||
| MIN. RAIL TO HO ARM | 2-7/8" [66.7] | ||
REV. 1
TEMPLATE: 519302.
01-08-18
NOTES:
- 1. DRAWING IS NOT TO SCALE.
- 2. LEFT HAND DOOR SHOWN. FOR RIGHT HAND DOOR, REVERSE IMAGE.
- 3. DIMENSIONS BASED ON 4-1/2" X 4-1/2" BUTT HINGES.
- 4. DOOR SWING MAY BE ALTERED DUE TO OTHER LIMITING CONDITIONS.*
- 5. CAUTION: SEX NUTS MAY BE REQUIRED FOR UNREINFORCED DOORS OR COMPOSITE FIRE DOORS. CONSULT MANUFACTURER'S RECOMMENDATIONS.
- 6. HOLD OPEN ARMS CAN NOT BE USED ON LABELED FIRE DOORS.
- 7. PROJECTION OF FULL COVER = 2-1/2" [63.5]
- 8. ALWAYS CHECK PDQ WEB SITE FOR THE MOST RECENT REVISION AT WWW.PDQLOCKS.COM.
WOOD DOOR / FRAME SCREWS: USE 5/32" [4] DRILL
SEX NUTS:
USE 3/8" [9.53] DRILL (CLOSER TO DOOR)
