5100 DOOR CLOSER MODELS

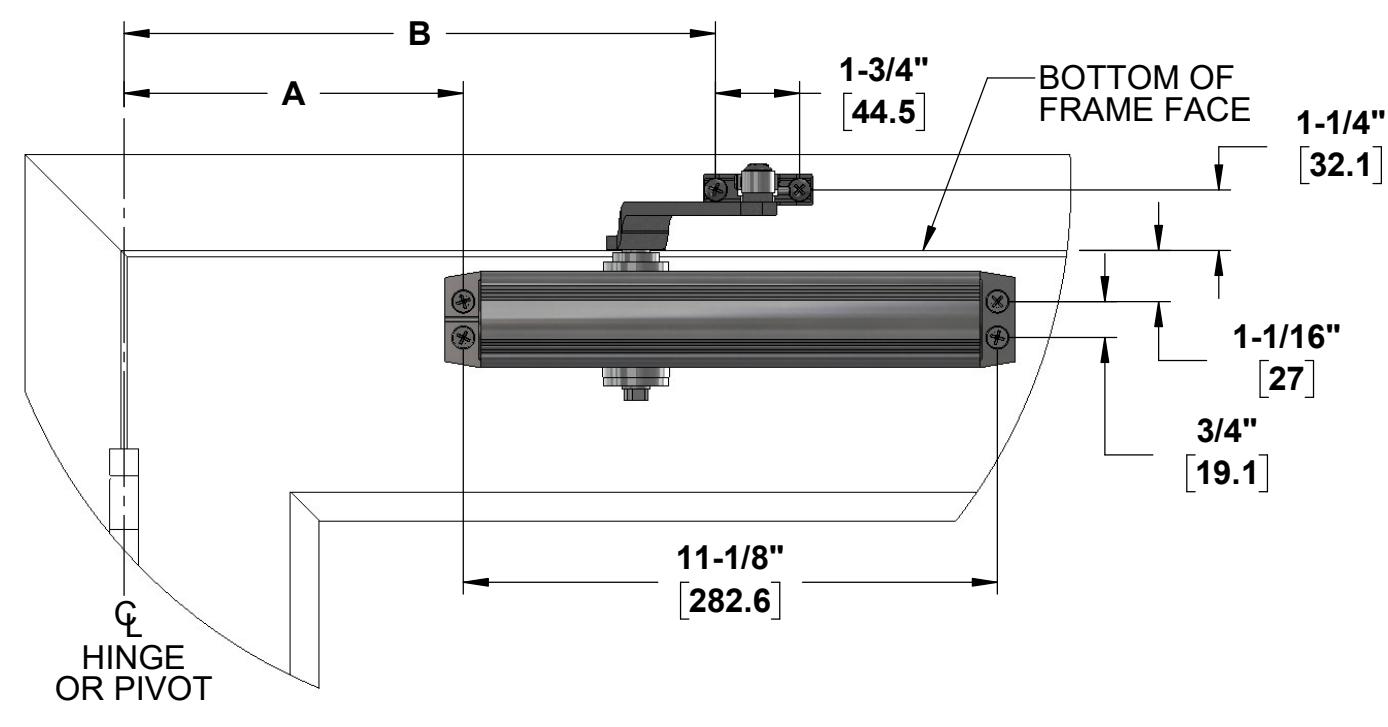

REGULAR ARM INSTALLATION - PULL SIDE

NON-HOLD OPEN AND HOLD OPEN APPLICATIONS - 180° MAX. CONDITIONS PERMITTING*

Opening	Dim. A	Dim. B	Dim. C
To 120°	7-1/16" [179.4]	12-7/16"[315.9]	MIN. CEILING CLEARANCE	4 7/0" [47 6]
Over 121°	3-15/16" [100.0]	9-5/16" [236.5]	NON HOLD-OPEN	1-7/8" [47.6]
			MIN. CEILING CLEARANCE HOLD-OPEN	2" [50.8]
			MIN. FACE HEIGHT NON HOLD-OPEN	1-5/8" [41.3]
			MIN. FACE HEIGHT HOLD-OPEN	1-3/4" [44.5]

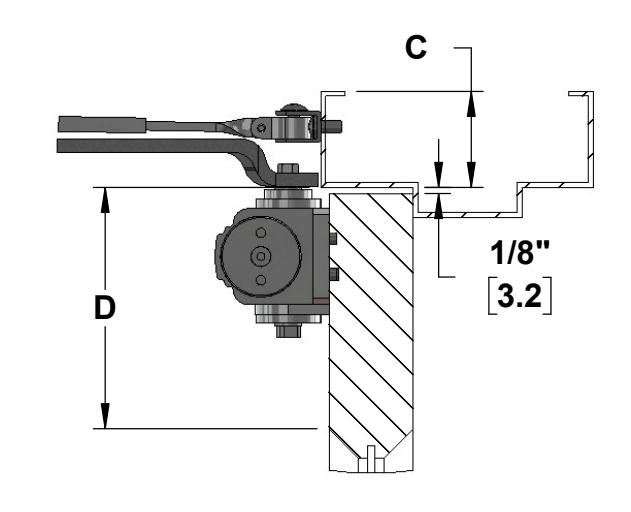

Dim. D
MIN. RAIL TO MOUNT CLOSER	2-1/2" [63.5]
MIN. RAIL TO BOTTOM OF FULL COVER	3-1/2" [88.9]

REV. 1

TEMPLATE: 519301,

01-08-18

MACHINE SCREWS:

USE #7 OR 13/64" [5.11] DRILL AND 1/4-20 TAP

WOOD DOOR / FRAME SCREWS:

USE 5/32" [4] DRILL

SEX NUTS:

USE 3/8" [9.53] DRILL (CLOSER TO DOOR)

NOTES:

• 1. DRAWING IS NOT TO SCALE.
• 2. RIGHT HAND DOOR SHOWN, FOR LEFT HAND DOOR REVERSE IMAGE.
• 3. DIMENSIONS BASED ON 4-1/2" X 4-1/2" BUTT HINGES.
• 4. DOOR SWING MAY BE ALTERED DUE TO OTHER LIMITING CONDITIONS.*
• 5. CAUTION: SEX NUTS MAY BE REQUIRED FOR UNREINFORCED DOORS OR COMPOSITE FIRE DOORS. CONSULT MANUFACTURER'S RECOMMENDATIONS.
• 6. HOLD OPEN ARMS CAN NOT BE USED ON LABELED FIRE DOORS.
• 7. PROJECTION OF FULL COVER = 2-1/2" [63.5]
• 8. ALWAYS CHECK PDQ WEB SITE FOR THE MOST RECENT REVISION AT WWW.PDQLOCKS.COM.
