3100/3101 DOOR CLOSER MODELS

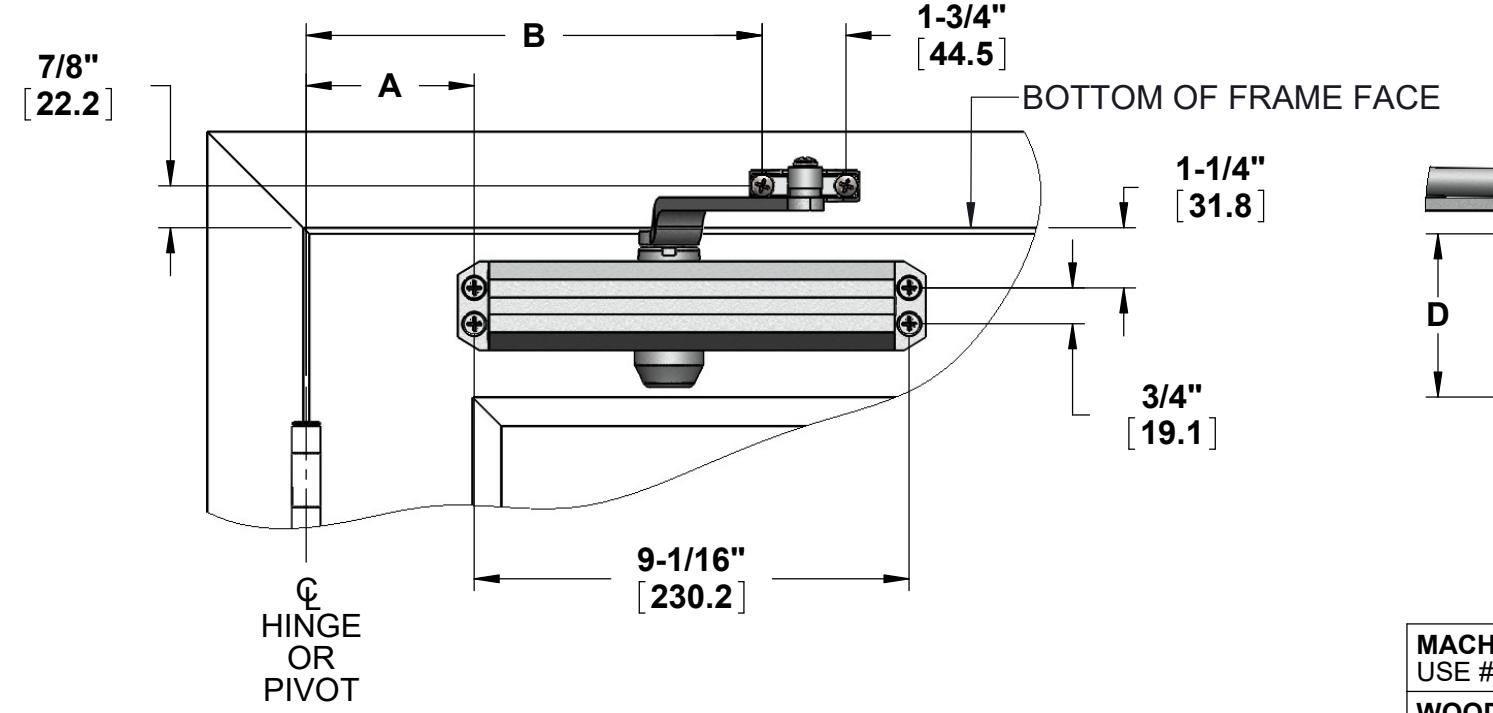

REGULAR ARM INSTALLATION - PULL SIDE NON-HOLD OPEN AND HOLD OPEN APPLICATIONS

Opening	Dim. A	Dim. B
To 100°	7" [178]	13" [330.2]
101° To 120°	6" [152.4]	12" [304.8]
Over 121°	3-1/2" [89]	9-1/2" [241.3]

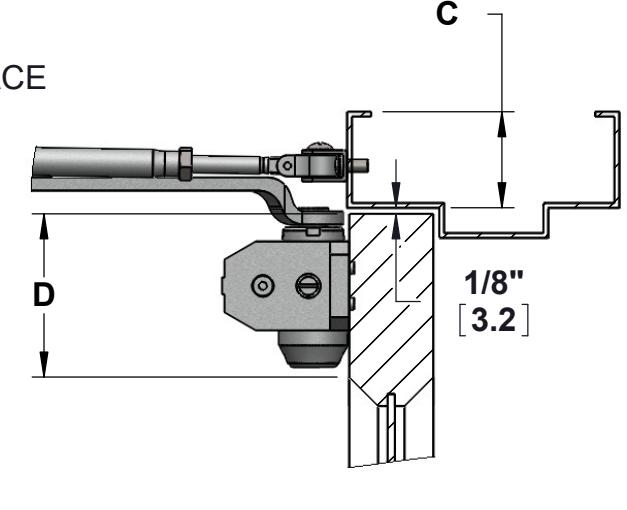

Dim. C
MIN. CEILING CLEARANCE NON-HOLD OPEN	1-1/2" [38.1]
MIN. CEILING CLEARANCE HOLD OPEN	1-5/8" [41.3]
MIN. FACE HEIGHT NON-HOLD OPEN	1-1/4" [31.8]
MIN. FACE HEIGHT HOLD OPEN	1-1/2" [38.1]

Dim. D
MIN. RAIL TO MOUNT CLOSER	2-3/8" [60.3]
MIN. RAIL TO BOTTOM OF DUST CAP	3-1/8" [79.4]
MIN. RAIL TO BOTTOM OF (OPTIONAL) STREAMLINE COVER & INSERT	3-1/4" [82.6]

RFV. 1

TEMPLATE: 319301,

08-21-18

NOTES:

• 1. DRAWING IS NOT TO SCALE.
• 2. RIGHT HAND DOOR SHOWN. FOR LEFT HAND DOOR REVERSE IMAGE.
• 3. DIMENSIONS BASED ON 4-1/2" X 4-1/2" BUTT HINGES.
• 4. DOOR SWING MAY BE ALTERED DUE TO OTHER LIMITING CONDITIONS.
• 5. CAUTION: SEX NUTS MAY BE REQUIRED FOR UNREINFORCED DOORS OR COMPOSITE FIRE DOORS. CONSULT MANUFACTURER'S RECOMMENDATIONS.
• 6. HOLD OPEN ARMS CAN NOT BE USED ON LABELED FIRE DOORS.
• 7. ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT REVISION AT WWW.PDQLOCKS.COM.

MACHINE SCREWS:

USE #7 OR 13/64" [5.11] DRILL AND 1/4-20 TAP

WOOD DOOR/FRAME SCREWS:

USE 5/32" [4] DRILL

SEX NUTS:

USE 3/8" [9.53] DRILL (CLOSER TO DOOR)

833-2 PDQTECH www.pdqlocks.com
