PD18-CVR

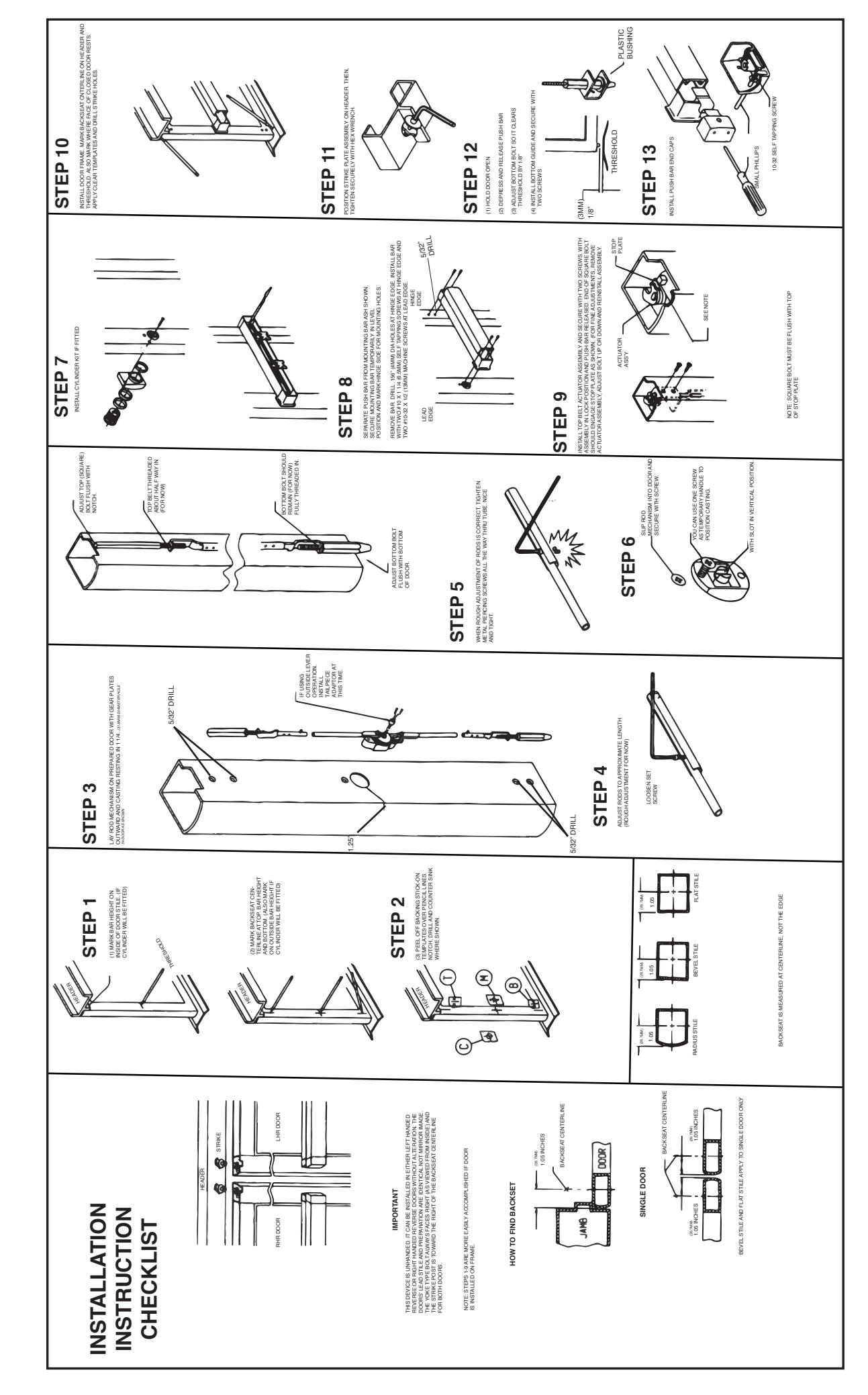

INSTALLATION INSTRUCTIONS

The PD18-CVR is a storefront grade 1 exit device equipped with solenoid driven latch retraction and PM300 power module. Retrofits Adams Rite 8600 series.

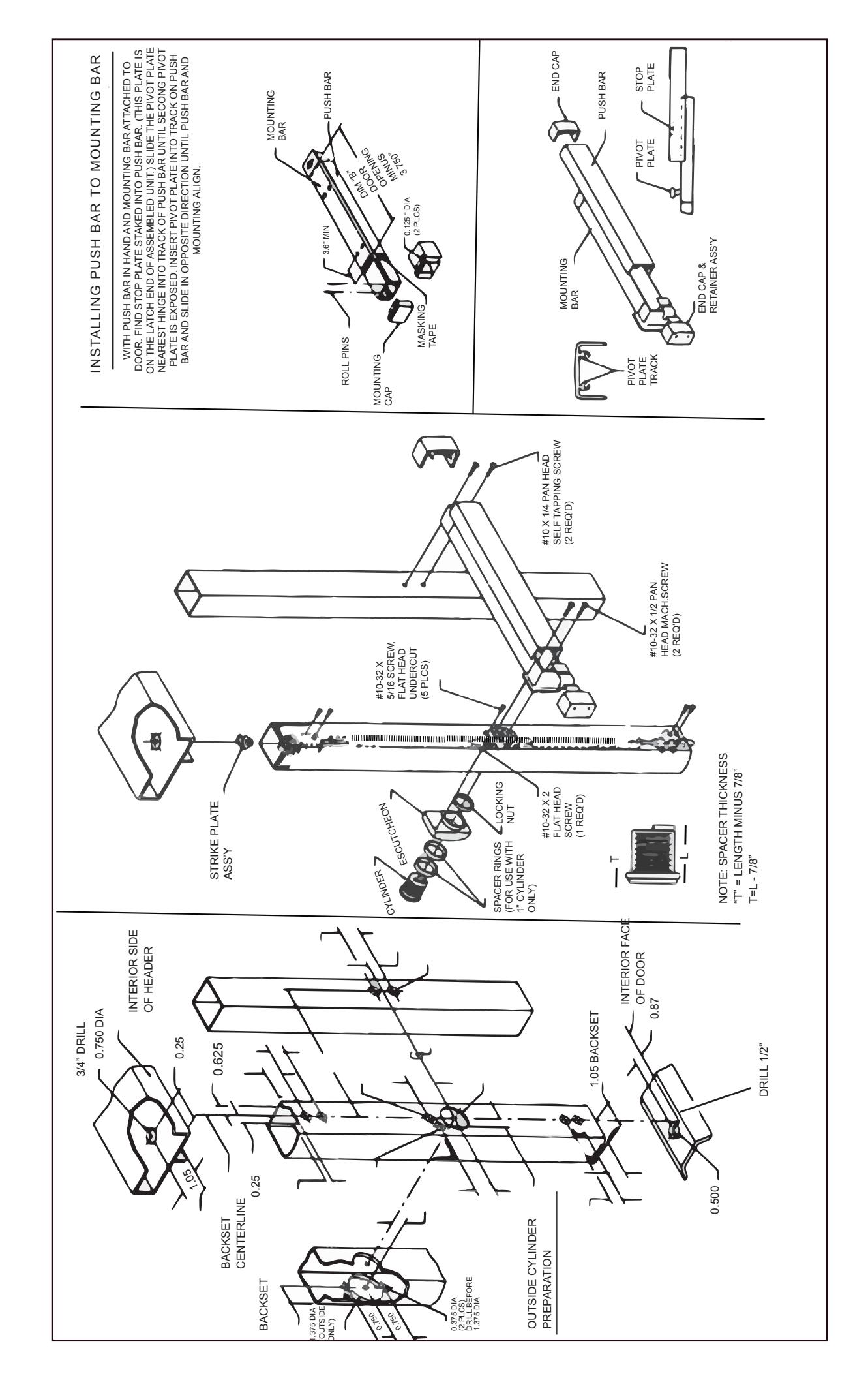

PD18-M-RIM Includes

• A. CVR Device
• B. CVR Rods
• C. Head Cover End Cap
• D. Hinge Stile End Cap
• E. CVR Strike pack
• F. PM300 Installed in exit device
• G. 6' Power Lead

Tools Required

• Cordless Drill
• Needle nose Pliers
• Measuring Tape
• 3/4" Drill Bit
• 5/32 Drill Bit
• Counter Sink Bit
• 1 1/4" Hole Saw

TECHNICAL INFORMATION

SPECIFICATIONS

• Wires: Input to PM300 non-polarized Black (+)(-)
• Operating Voltage Range: 24-30 VDC
• Coil Resistance Primary Coil: 2 ohms; Holding Coil : 125 ohm
• Output from PM300: Yellow=Pull Coil; Orange= Hold Coil; Green=Common

Standard Mode

• Fuse: Glass 3.5 - 5A, Resettable 1A trip

• Relay: 5A or greater

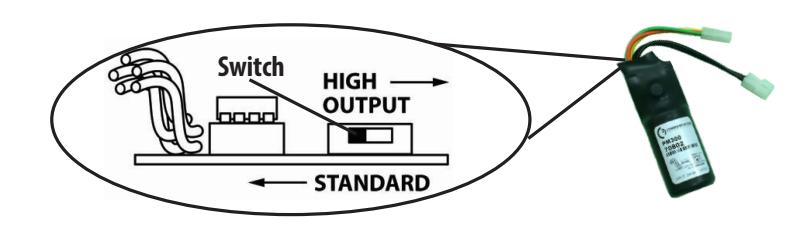

High Output Mode

• Fuse: Resettable 2A trip • Relay: 10A or greater

SCAN ME

PM300 Compatibility Chart

Troubleshooting & Diagnostics

Symptom	Possible Cause	Solution
Solenoid pulls back but releases immediately	Solenoid plunger not seating correctly	- Check voltage at the door. - Check hold-open timing.
Solenoid pulls back and holds, but does not retract latch far enough	Vertical rod out of adjustment	Check vertical rod adjustment
Solenoid has excess delay time and/or drop out	Wire run exceeding the maximum recommended distance	Locate power supply within the distances specified

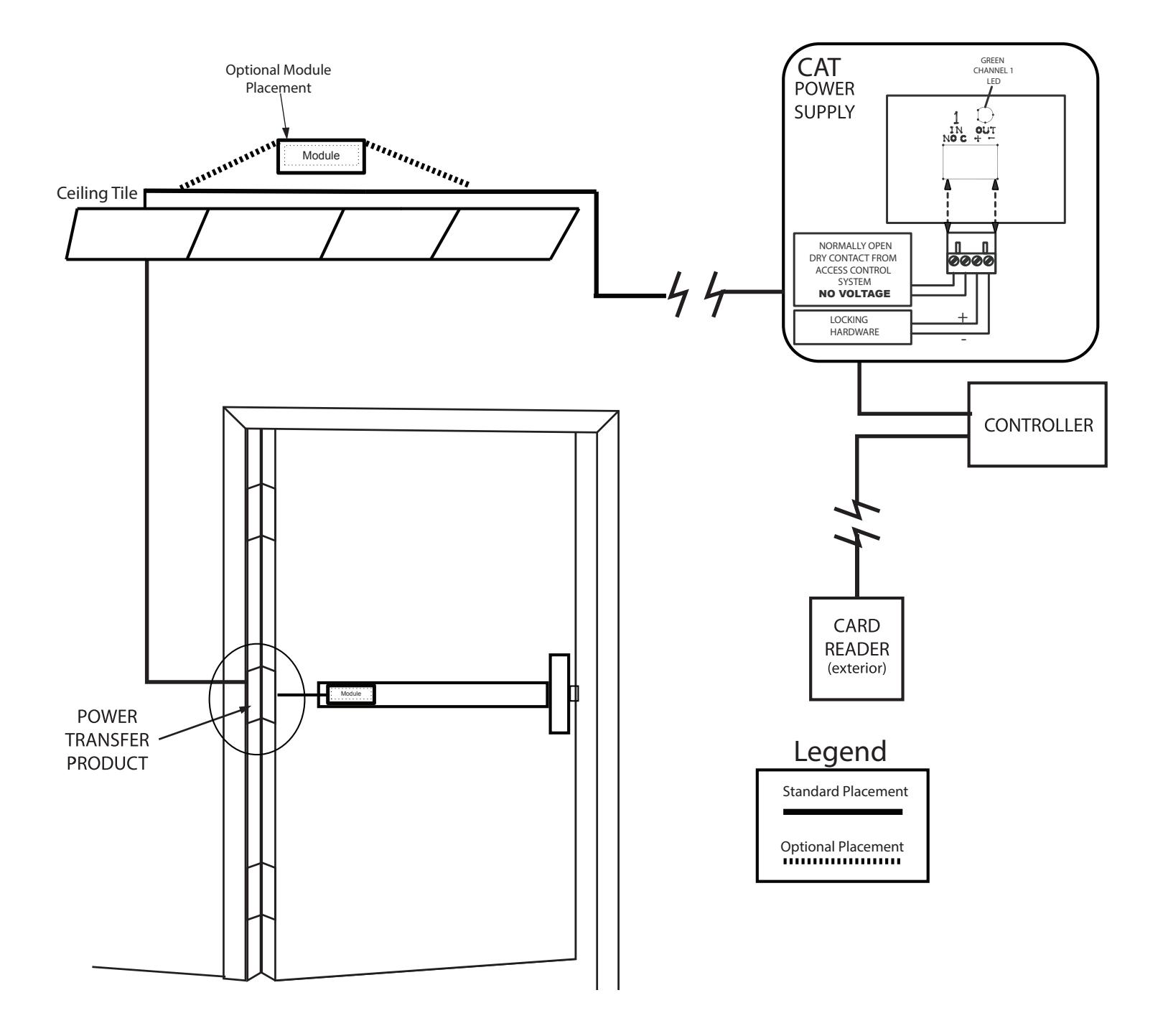

Electrified Exit Device Installation Example

RECOMMEND POWER SUPPLIES:

All Command Access exit devices & field installable kits have been thoroughly cycle tested with Command Access power supplies at our factory.

• PS210

• PS440B
• PS1

• PS5-4

• PS220/220B
• PS480B
• PS2/2B

For more information click here or go to our website
