PD15REXKIT-M-ED

PD15REXKIT-M-ED

INSERT INSTRUCTIONS

Field Installable Request to Exit switch for PD15-UL-M-KIT. The kit's easy "drop-in" installation adds a switch that monitors the position of the push pad. This switch is SPDT (single pull, double throw).

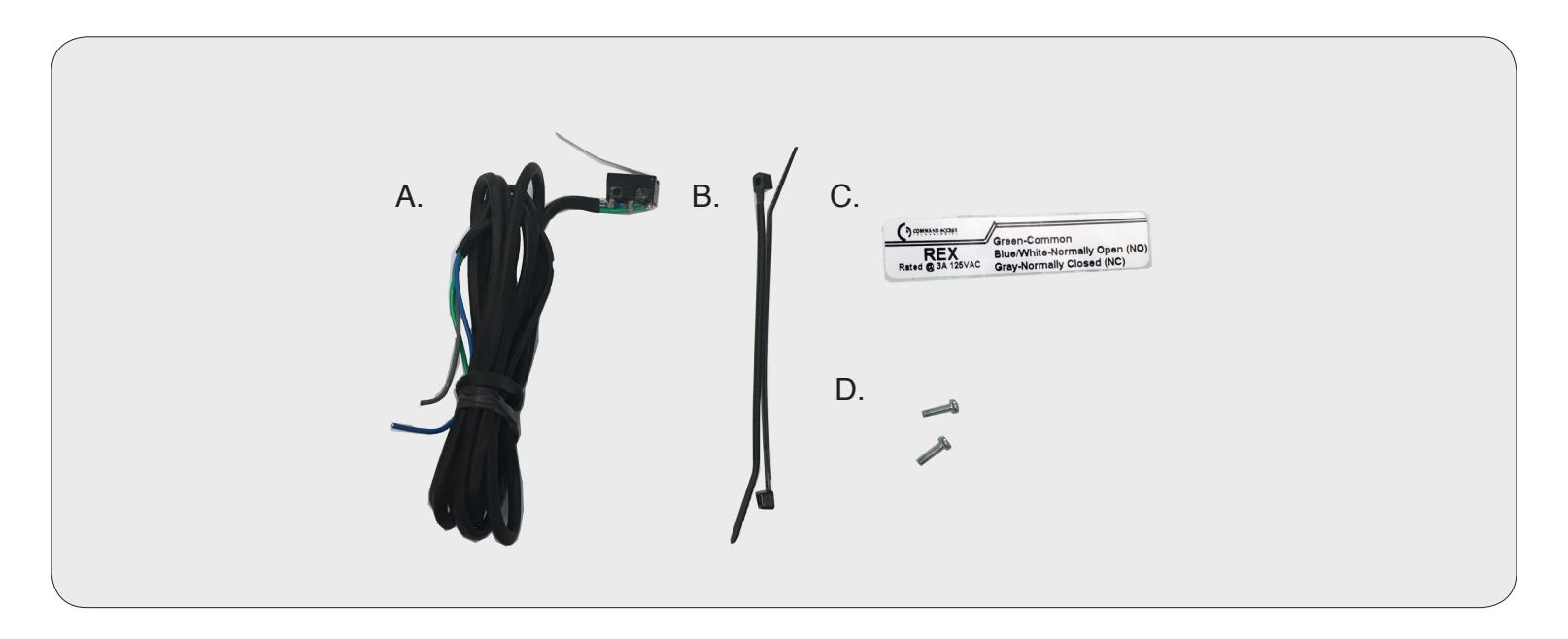

REXKIT INCLUDES | WORKS WITH

A. 1 REX Switch

B. 2 Cable Tie

C. 1 REX Sticker

D. 2 Phillips Screws

PD15-UL-M-KIT

SPECIFICATIONS

• Single Pole - Double Throw (SPDT)

Rating: .5A @24VAC

Configuration: Green - Common (C)

Blue - Normally Open (NO)

Gray - Normally Closed (NC)

1

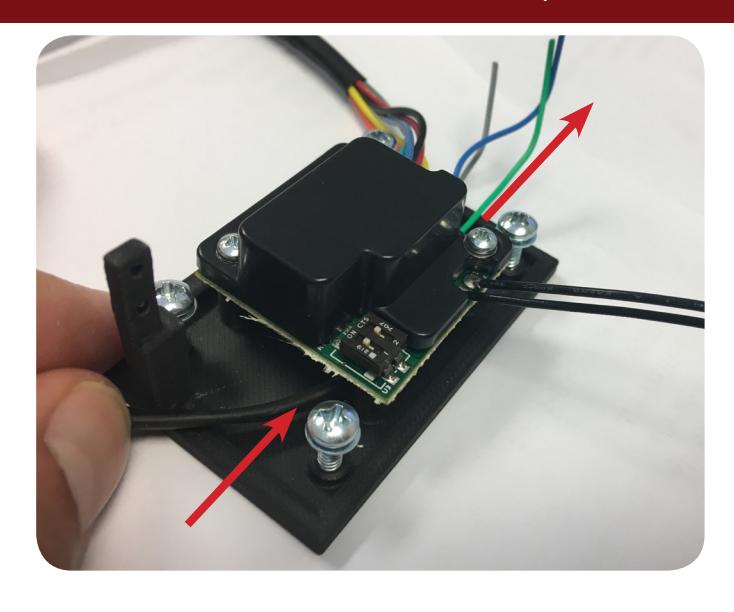

• A. Feed loose wire side of REX switch underneath MM4RM in-between posts.

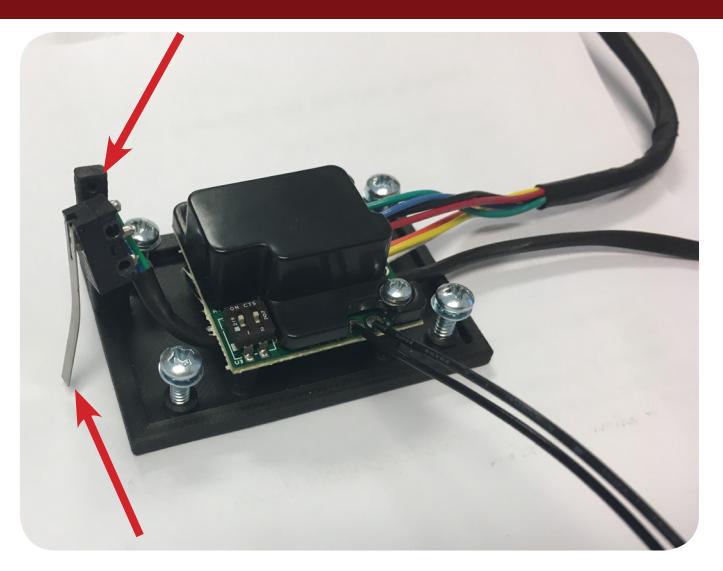

• B. Pull wires thru and line up REX switch with REX post with REX arm facing outwards.

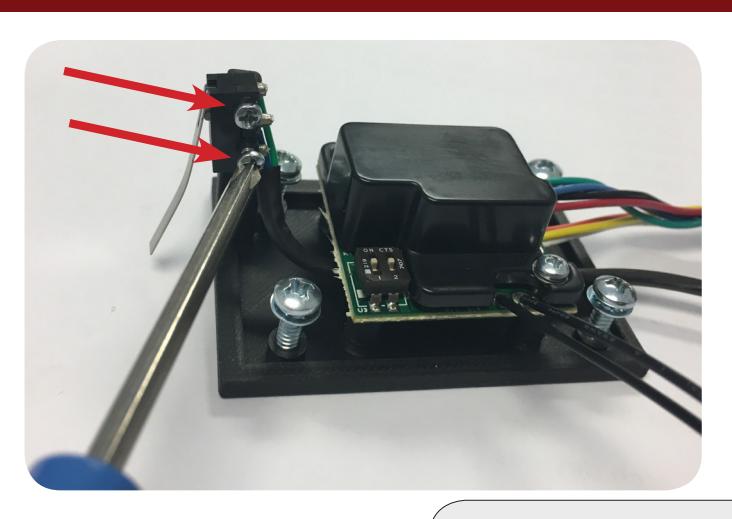

• C. Secure REX switch to post with (2) Phillips screws provided.

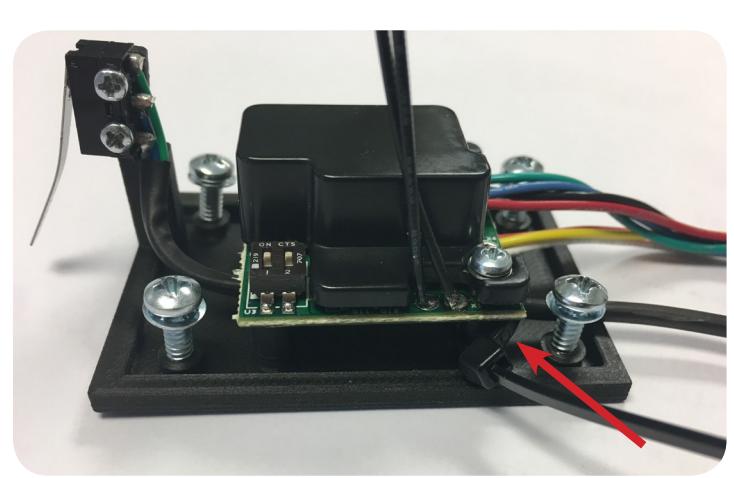

• D. Secure REX wire underneath MM4RM on the back left post with cable tie provided.

Green - Common (C)

Blue - Normally Open (NO)

Gray - Normally Closed (NC)
