PD15REXKIT-ED

INSTALLATION INSTRUCTIONS

The PD15REXKIT-ED is a field installable request to exit switch for AHT 8000/9000, PD15/16,

Jackson 1285/1295, & Kawneer 1686 series exit devices.

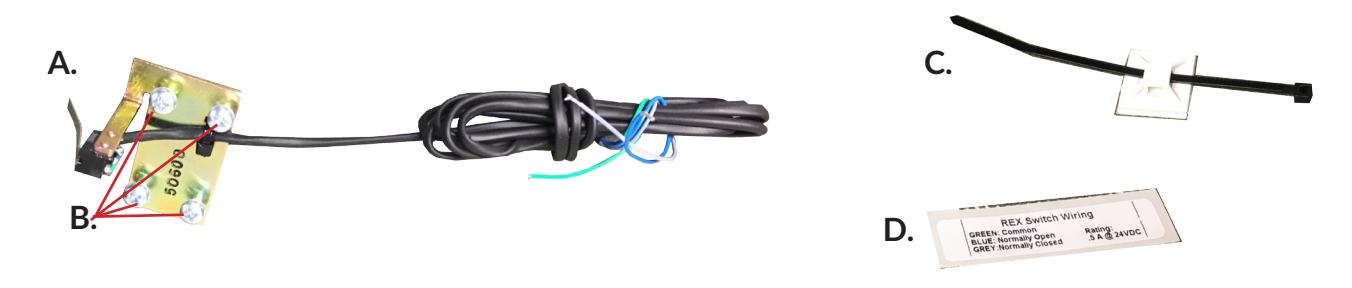

KIT INCLUDES

• A. REX switch
• B. 4 Phillips screws
• C. 2- Sticky pad w/ zip tie
• D. REX sticker

Tools Required

• Phillips screw driver

<u>Specifications</u>

• Rating: .5A @24 VAC
• Configuration: Green Common (C)

Blue - Normally Open (NO)

Gray - Normally Closed (NC)

Visit our website for more details www.CommandAccess.com

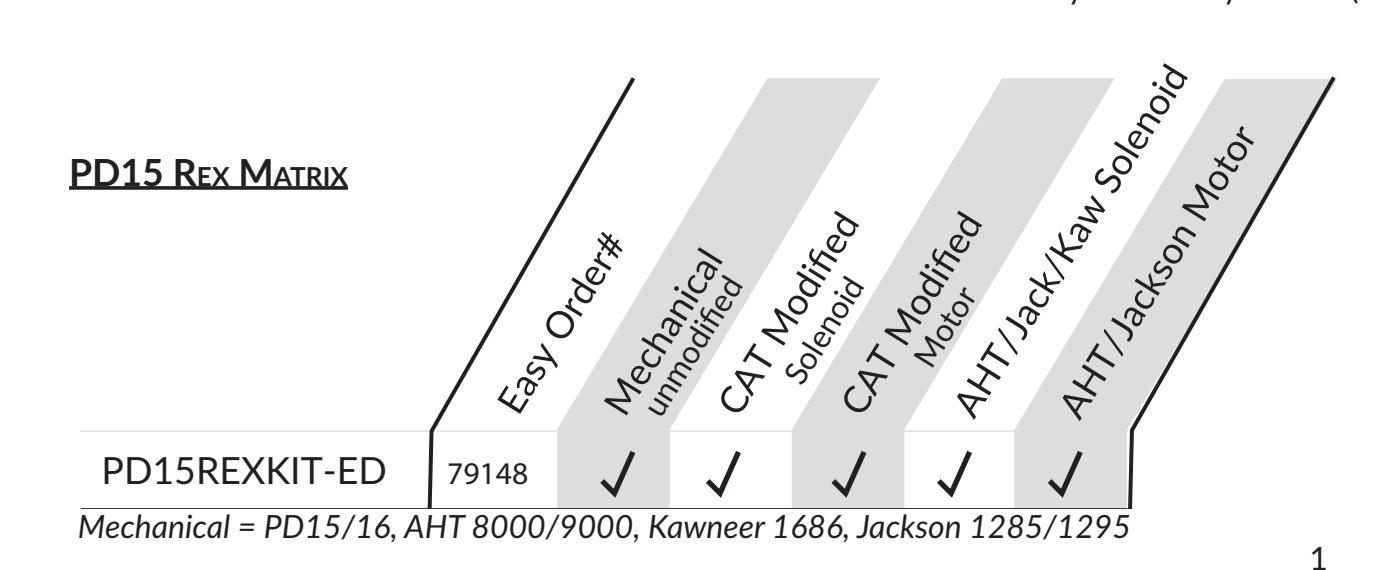

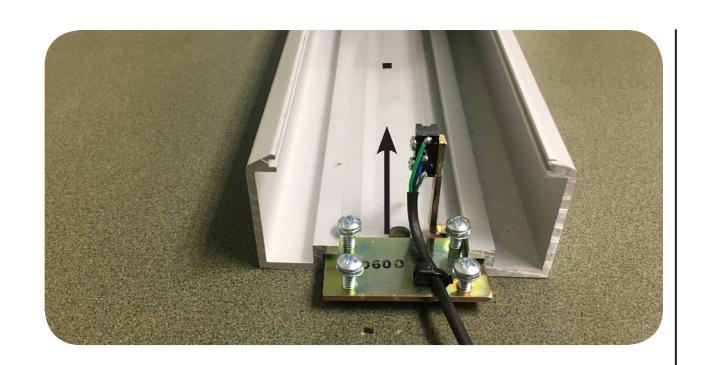

• Remove rear mounting bracket and slide REX bracket into existing groove in housing towards push pad.

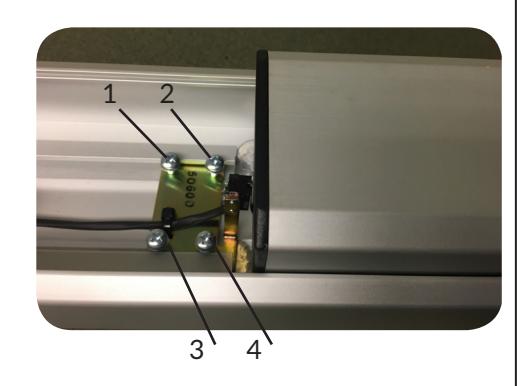

• Depress pushpad and slide until REX triggers on the pushpad, secure REX bracket by tightening all (4) screws.

• Test placement by depressing pushpad to make sure switch activates.

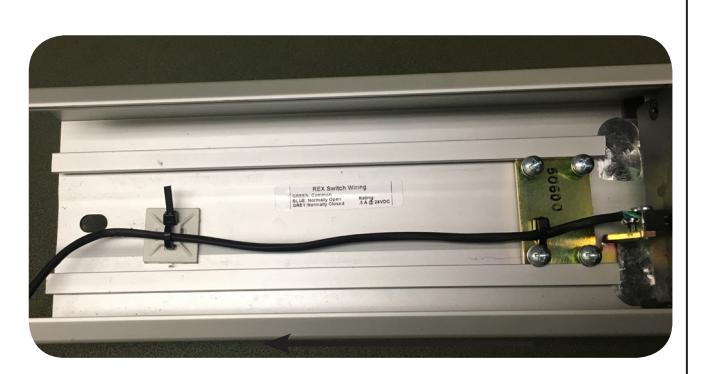

• Add sticky pad and zip tie to secure REX wires and add wire configuration sticker.
