PD18-RIM

INSTALLATION INSTRUCTIONS

The PD18-RIM is a storefront grade 1 exit device equipped with motor driven latch retraction. Retrofits Adams Rite 8800 series.

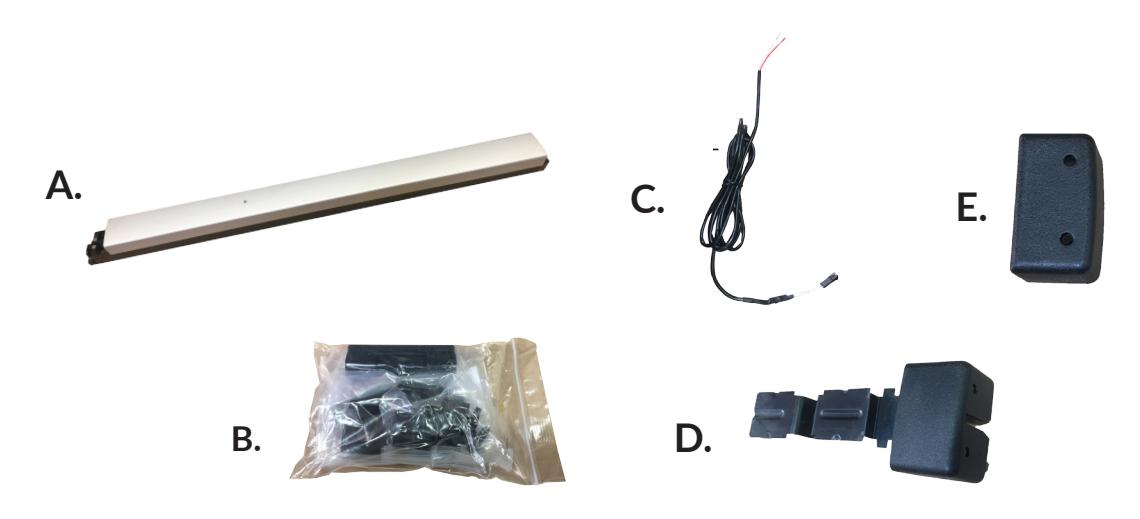

PD18-RIM Includes

• A. RIM Exit Device
• B. Hardware pack
• C. 5' Lead
• D. Lock Stile End Cap pack
• E. Hinge Stile End Cap pack

Tools Required

• Cordless Drill
• Needle Nose Pliers
• Measuring Tape
• 1/8 Drill Bit
• 1/4 Drill Bit
• #25 Drill Bit

TECHNICAL INFORMATION

Specifications

• Input Voltage:24VAV/DC or 12VAC/DC+/- 10%
• Solenoid Amperage 12V: 900mA
• Solenoid Amperage 24V: 450mA
• Wire gauge: Minimum 18 gauge

Troubleshooting & Diagnostics

Symptom	Possible Cause	Solution
Solenoid pulls back but releases immediately	Solenoid plunger not seating correctly	- Check plunger rod adjustment. - Check vertical rod adjustment. - Make sure the plunger set screw has been installed correctly.
Solenoid pulls back and holds, but does not retract latch far enough	Plunger rod out of adjustment	Check plunger rod adjustment
Solenoid has excess delay time and/or drop out.	Wire run exceeding the maximum recommended distance	Locate power supply within the distances specified

Electrified Exit Device

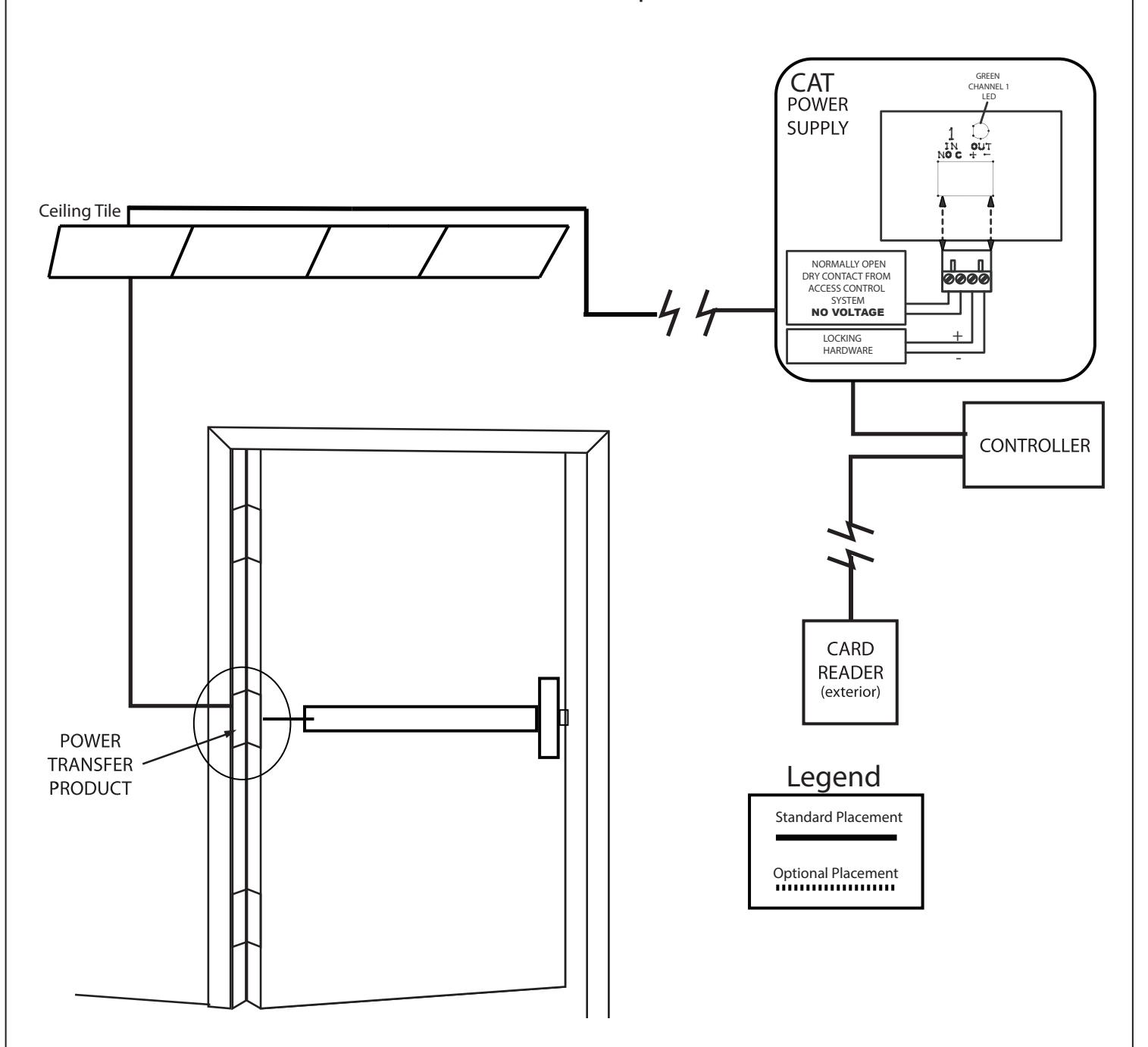

Installation Example

RECOMMEND POWER SUPPLIES:

All Command Access exit devices & field installable kits have been thoroughly cycle tested with Command Access power supplies at our factory.

• PS210

• PS204/204B
• PS480B
• PS2/2B

• PS220/220B
• PS440B
• PS1

• PS5-4

For more information click here or go to our website

DIA	DO SIZ OR E
26	30
.88	"
32	36
.88	"
38	42
.88	"
44	48
.88	"

CUT-OFF INSTRUCTIONS FOR NON STANDARD DOORS

DRIVE OUT TWO ROLL PINS

1.

2.

• REMOVE MOUNTING CAP
• 3. COLLAPSE BAR AND TAPE DOWN IN THE AREA OF CUT-OFF 4. RIVET DETERMINE EXTRUSION LENGTH (8" DIM) DIMENSIONS FROM
• CENTERLINE TO NEW CUT-OFF LENGTH

5.

6.

7.

• EXTRUSION LENGTH ON TAPE MEASURE MOUNTING BAR (NOT PUSH BAR) AND MARK SAW OFF EXCESS LENGTH, REMOVE TAPE AND DE-BURR
• TO DRILL TWO 1/8" DIAMETER HOLES. LAY MOUNTING CAP OVER MOUNTING BAR AND USE AS GUIDE
• 8. TWO ROLL PINS INTO HOLES. REINSTALL MOUNTING CAP INTO MOUNTING BAR AND DRIVE

SEPARATING PUSH BAR AND MOUNTING BAR PROCEDURE

DRILL .250 DIA

SPACER (ONLY IF NEEDED) SPACER

NOSE CAP. REMOVE BOTH END CAPS. THE RETAINER IS ATTACHED TO THE

1.

2.

3.

SLIDE PUSH BAR TOWARD HINGE SIDE OF DOORCONTINUE TO SLIDE THE PUSH BAR PAST THE PIVOT PLATE HAT RIDES IN PUSH BAR TRACK.

1.50

4. PLATE. PLATE OUT OF TRACK UNTIL PUSH BAR IS FREE OF MOUNTING SLIDE PUSH BAR IN OPPOSITE DIRECTION KEEPING PIVOT

(FOR HOLLOW STEEL JAMB, CUT AWAY STOP

(OUTSIDE ONLY) .1.156 DIA

INSTALLING PUSH BAR TO MOUNTING BAR

1.

PUSH BAR AND MOUNTING BAR ALIGN. TRACK ON PUSH BAR AND SLIDE IN OPPOSITE DIRECTION UNTIL SECOND PIVOT PLATE IS EXPOSED. INSERT PIVOT PLATE INTO PLATE NEAREST HINGE INTO TRACK OF PUSH BAR UNTIL IS ON THE LATCH END OF ASSEMBLED UNIT) SLIDE THE PIVOT DOOR, FIND STOP PLATE STAKED INTO PUSH BAR.( THIS PLATE WITH PUSH BAR IN HAND AND MOUNTING BAR ATTACHED TO

INSTALL INSTRUCTIONS

• ACCORDING TO INSTRUCTIONS WITH RIVNUT TOOL. 1. CRIMP ALL RIVNUTS IN STILE AND JAMB SKIP STEPS 2 AND 3 IF CYLINDER IS NOT USED. 2. INSTALL CYLINDER, USING SCREWS SUPPLIED WITH
• CYLINDER. 3. INSTALL MOUNTING BAR ( IF CYLINDER IS USED. BE SURE THAT TAILPIECE PROTRUDES 3/16
• 5. INSTALL END CAPS 4. INSTALL PUSH BAR TO MOUNTING BAR. ERLY.)

INCH TO ENGAGE CYLINDER PROP

6. INSTALL STRIKE AND STRIKE PLUG. USE ENOUGH 1/16"

.406

17.45

.750

104.78

26.88

25.40

29.36

32.88

762.00

1 1/8

682.75

1.500

METRIC EQUIVALENTS

987.55 1066.80

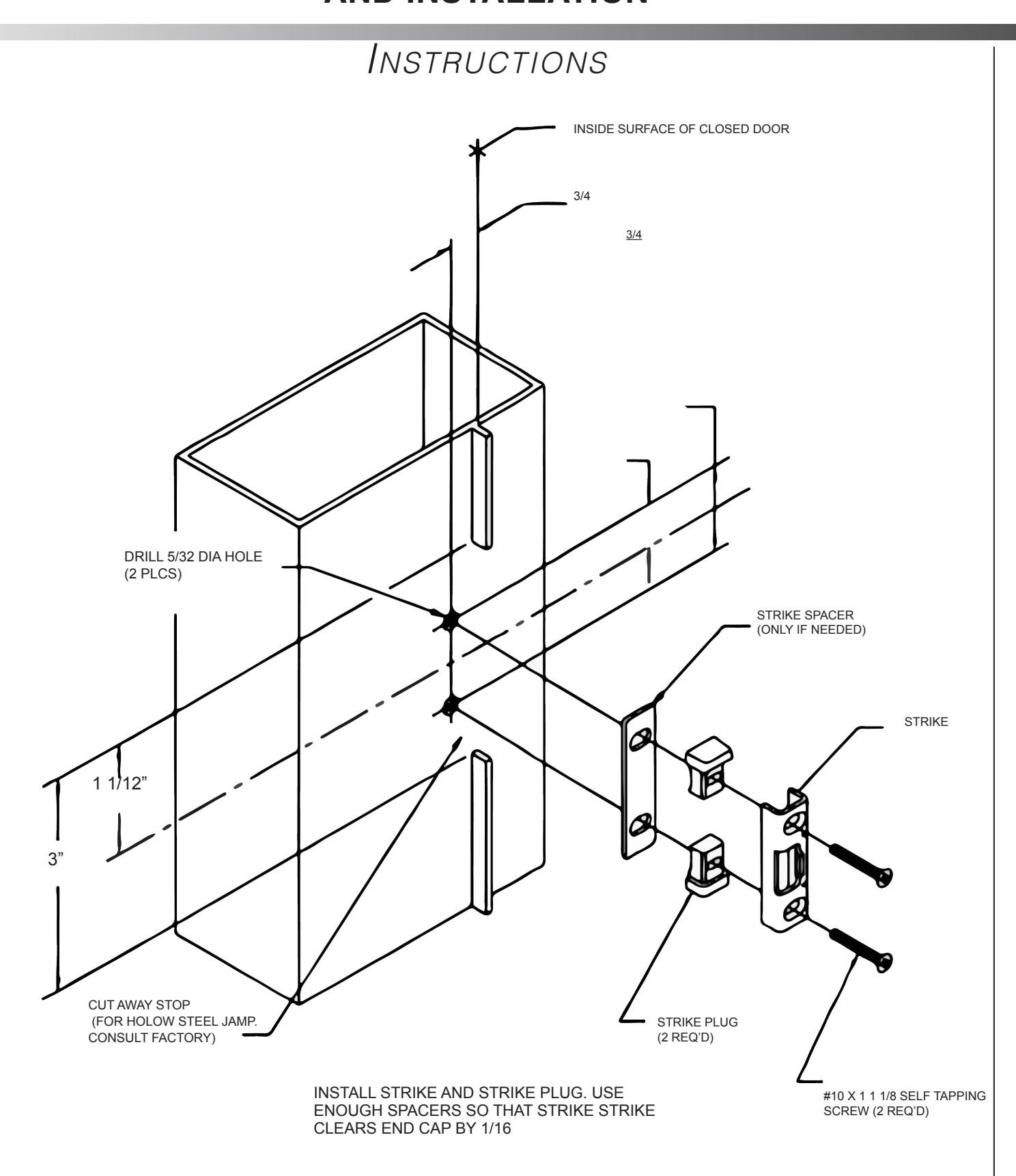

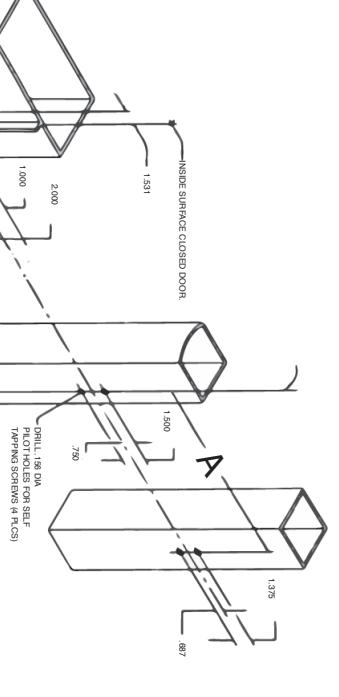

STRIKE PREPARATION AND INSTALLATION
