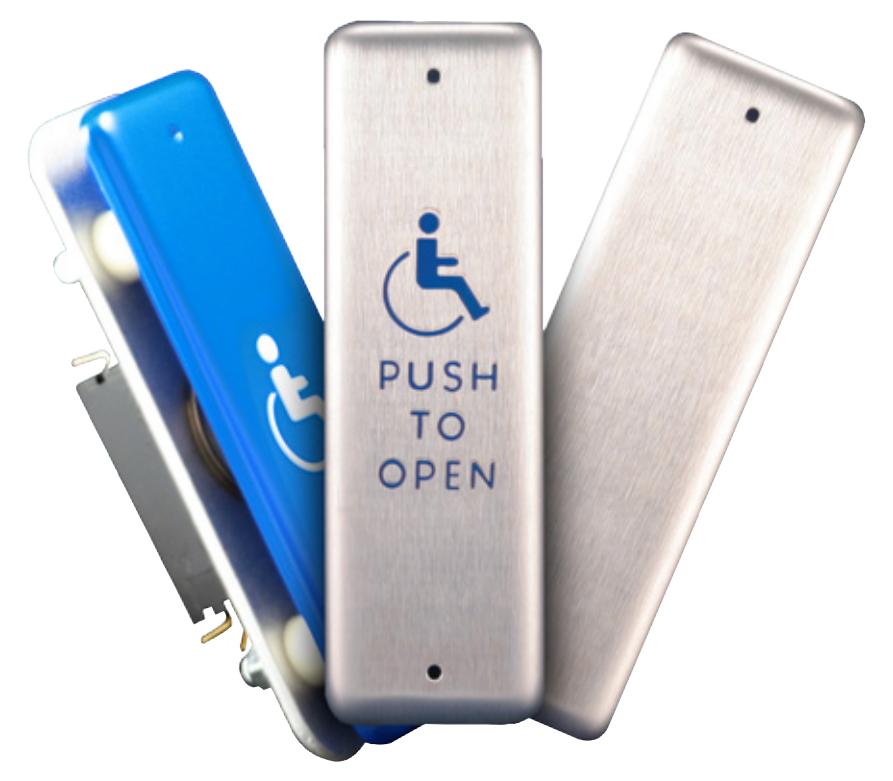

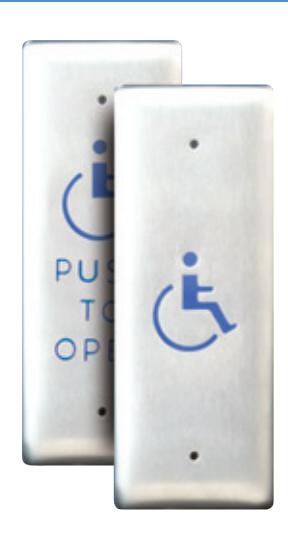

1½" X 4¾" JAMB STYLE EASY INSTALLATION

PBJM SERIES

INNOVATION QUALITY SERVICE

The PBJM Series is designed to fit neatly into a IDC jamb style push plate box and is a practical solution to guide rail applications.

• Narrow design makes an easy application on guide rails and swing doors
• Beveled edges provide a tamper and vandal resistant solution
• Universal touch area at any "push" location
• Stainless steel finish is scratch/scuff resistant and will not deteriorate or rust
• Text and logo are baked onto the surface for maximum durability
• Available in multiple colors and styles to meet specifications and
• Customer requests

TECHNICAL SPECS

• A. 16 gauge, 304 2B Stainless Steel Faceplate
• B. 1/8" thick, Aluminum Back Plate
• C. Stainless Steel 6-32 x 1: Allen head mounting screws
• D. Cherry Switch: Single-pole, 15A, COM / NO / NC contact

PBJ SERIES FAMILY OF PRODUCTS

10PBJ - Text only 10PBJL - Logo only 10PBJ1 - Text and Logo 10PBJ10 - Plain 10PBJ1B - Text and Logo Blue

10PBJLB - Logo only Blue

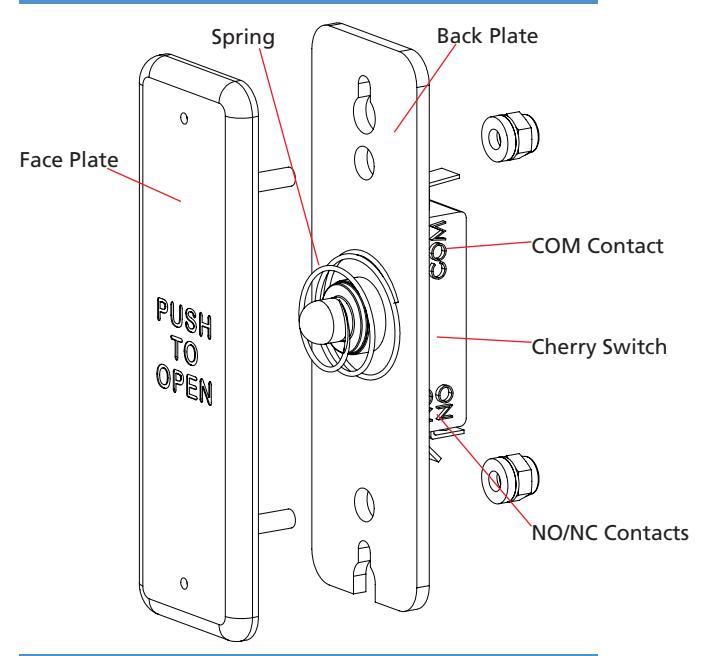

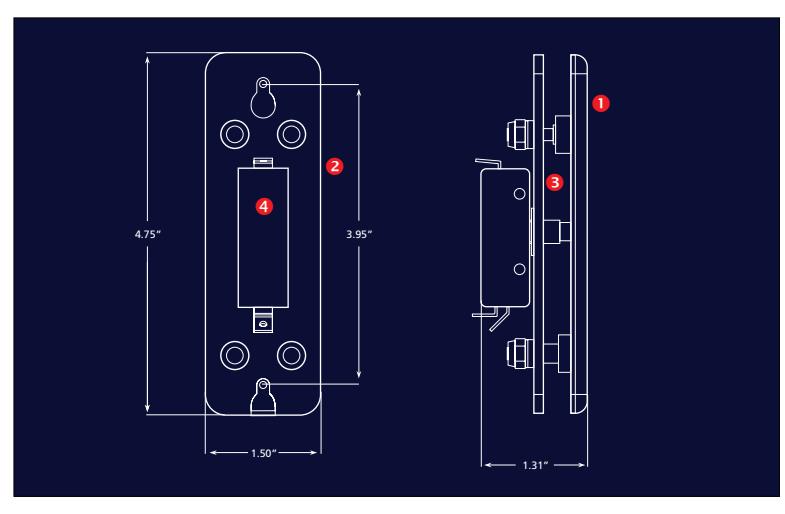

COMPONENTS

• Front Plate
• Back Plate
• Weatherboot
• Cherry Switch

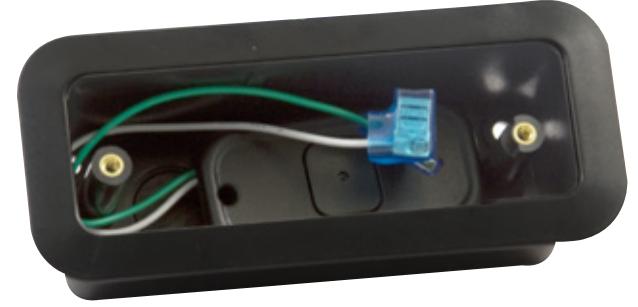

FLUSH MOUNT BOX

PBJ SERIES DETAILS

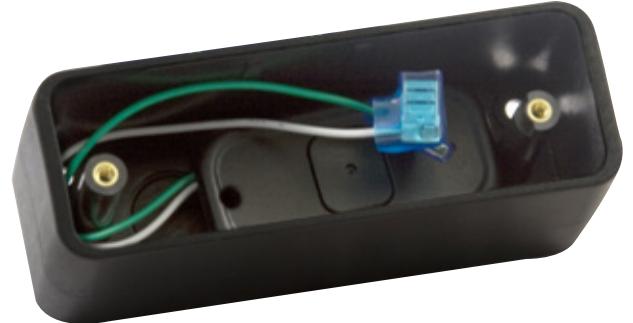

SURFACE MOUNT BOX

WITH 3-VOLT TRANSMITTER WITH 3-VOLT TRANSMITTER

RELATED PRODUCTS

10BOXJAMBFM Jamb Flush Mount Box

10BOXJAMBSM Jamb Surface Mount Box

LPR Push plate 36" Faceplate For Maximum Accessibility

10RD433 Digital Receiver with Sequencing Function

10TD433PB3V 3-Volt Transmitters are Used with the Mounting Boxes

International Door Closers, Inc.

COPYRIGHT 2018 INTERNATIONAL DOOR CLOSERS, INC www.intldoorclosers.com

West: 800-544-4422 • East: 800-225-6737

1½" X 4¾" JAMB STYLE EASY INSTALLATION

PBJMS SERIES

• Microswitch design allows for easy installation
• Beveled edges provide a tamper and vandal-proof solution
• Universal touch area at any "push" location
• Stainless steel finish is scratch/scuff resistant and will not deteriorate or rust
• Text and logo are baked onto the surface for maximum durability
• Available in two styles; with plain logo or logo and text

TECHNICAL SPECS

• A. 16 gauge, 304 2B Stainless Steel Faceplate
• B. 1/8" thick, Aluminum Back Plate
• C. Stainless Steel 6-32 x 1: Allen head mounting screws
• D. C&K Switch: Single-pole, 1A

PBJ SERIES FAMILY OF PRODUCTS

10PBJM1 - Text and Logo 10PBJML - Logo only

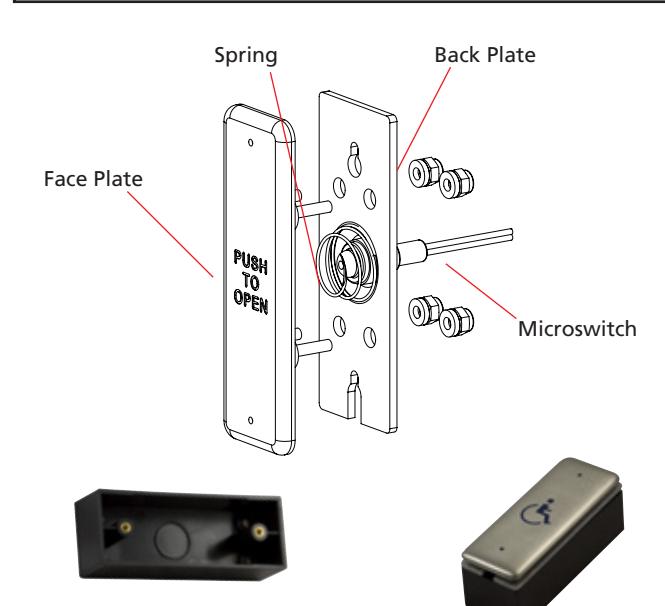

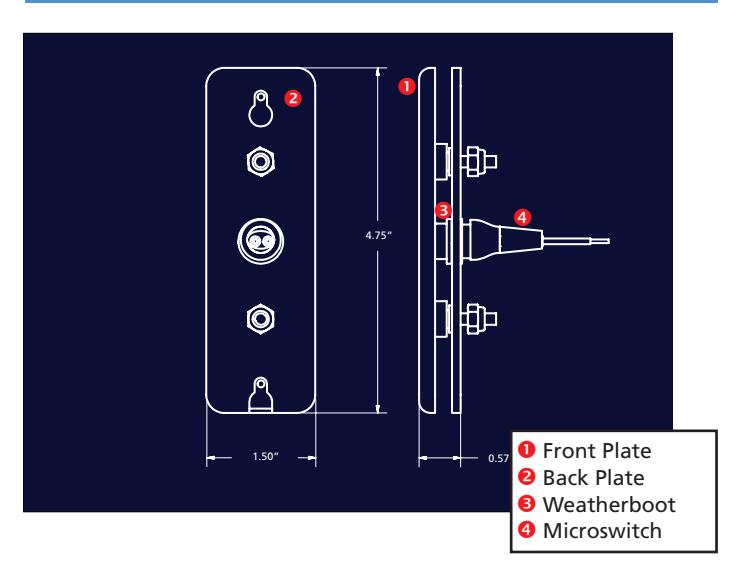

COMPONENTS

International Door Closers, Inc.

COPYRIGHT 2018 INTERNATIONAL DOOR CLOSERS, INC www.intldoorclosers.com

The PBJM Series is designed to fit neatly into a jamb style push plate box or to be mounted directly to a door jamb.

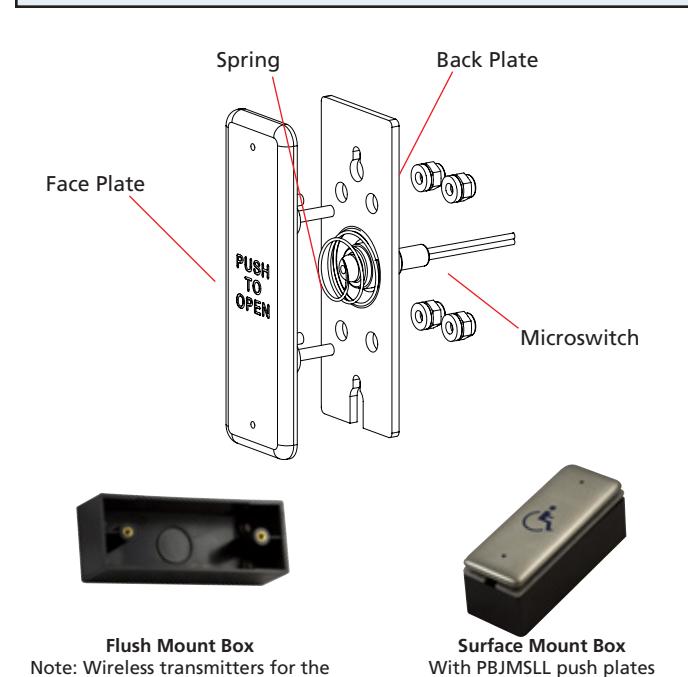

Flush Mount Box With 3-Volt Transmitter

RELATED PRODUCTS

10BOXJAMBFM Jamb Flush Mount Box

LPR Push plate 36" Faceplate For Maximum Accessibility

Surface Mount Box With 3-Volt Transmitter

10BOXJAMBSM Jamb Surface Mount Box

10RD433 Digital Receiver with Sequencing Function

10TD433PB3V 3-Volt Transmitters are Used with the Mounting Boxes

West: 800-544-4422 • East: 800-225-6737

1¾" X 4½" JAMB STYLE EASY INSTALLATION

PBJMS SERIES

• Microswitch design allows for easy installation
• Beveled edges provide a tamper and vandal-proof solution
• Universal touch area at any "push" location
• Stainless steel finish is scratch/scuff resistant and will not deteriorate or rust
• Text and logo are baked onto the surface for maximum durability
• Available in two styles; with plain logo or logo and text

• A. 16 gauge, 304 2B Stainless Steel Faceplate
• B. 1/8" thick, Aluminum Back Plate
• C. Stainless Steel 6-32 x 1: Allen head mounting screws
• D. C&K Switch: Single-pole, 1A

PBJ SERIES FAMILY OF PRODUCTS

10PBJMS1 - Text and Logo 10PBJMSLL - Logo only

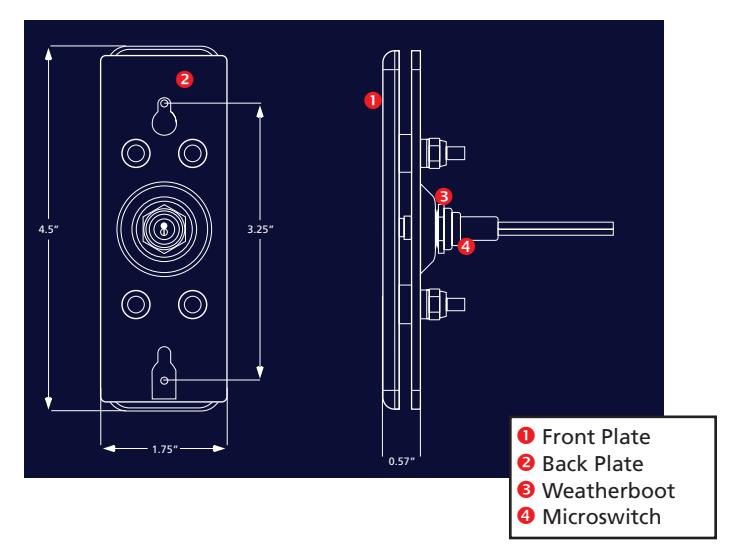

COMPONENTS

International Door Closers, Inc.

COPYRIGHT 2018 INTERNATIONAL DOOR CLOSERS, INC www.intldoorclosers.com

The PBJMS Series is a practical solution to guide rail applications. The narrow body allows for a clean sleek look without the installation of a larger plate or bollard.

RELATED PRODUCTS

RF-433 will not fit

LPR Push plate 36" Faceplate For Maximum Accessibility

West: 800-544-4422 • East: 800-225-6737
