PREMIUM PUSH PLATE FOR KNOWING ACT APPLICATIONS

PBDGP SERIES

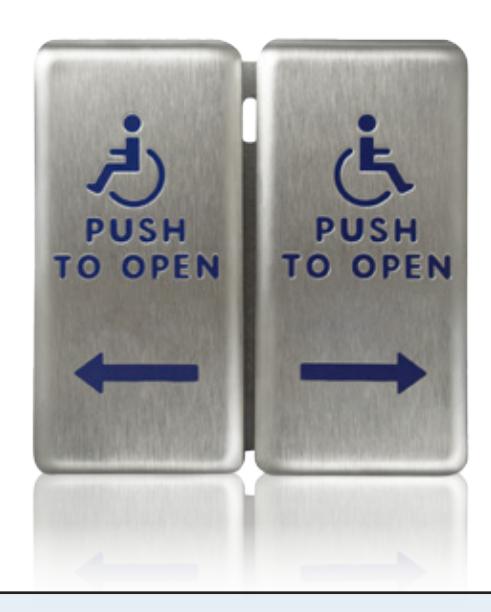

10PBDGP1 Push To Open Text and Logo

PBDGP SERIES HARD WIRE OR WIRELESS

DUAL VESTIBULE PUSH PLATE

The PBDGP Series, dual vestibule push plate, provides an aesthetically pleasing solution for vestibule applications. This provides an option to open one set of doors independently from the other set. Also, this push plate is an ideal addition to any automatic sequencing application.

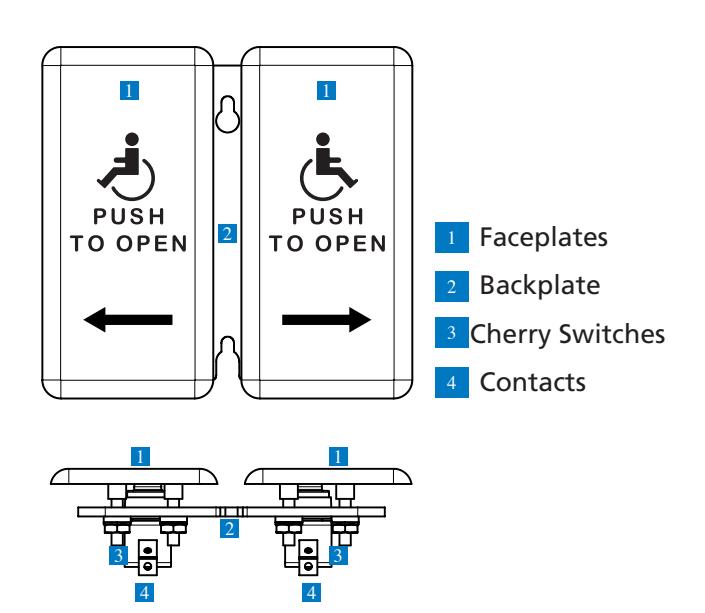

COMPONENTS VIEW

FEATURES

• Provides a more efficient design for vestibule applications by eliminating the need for two separate push plate on a wall
• Beveled edges reduce accidental damage from any side
• Stainless steel faceplate is scratch/scuff resistant and will not deteriorate or rust from exposure to liquids and other cleaning products
• Graphics are etched onto the faceplates for maximum durability
• A weather boot is located between the faceplates and the backplate for all-weather applications

West: 800-544-4422 • East: 800-225-6737

1 PLATE FOR 2 DOORS

10RD433 / 10RD433EH

10TD433PB3V

BENEFITS

APPLICATIONS

RELATED PRODCUTS

• Only one vestibule plate needed for interior vestibule applications

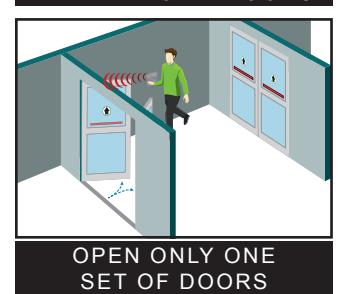

• Conserves energy by only opening selected doors
• Complements any dual vestibule sequencing application
• Provides entrapment protection

MOUNTING ACCESSORIES

10BOX475SQSM 4.75" Square Surface Mount

10BOX475SQFM 4.75" Square Flush Mount

10BOLLARD IDC Mounting Post Bronze/Silver/Black

50.5016 Mounting Adapter Ring

10BOXDG45C Plastic Surface Mount Box

10BOXDGSM Double Gang Surface Mount

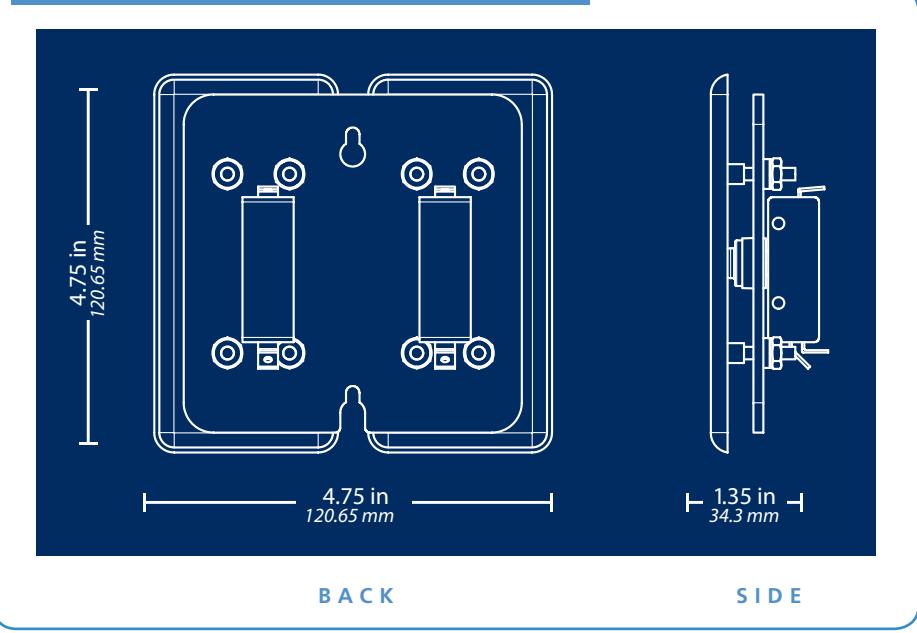

DIMENSION DETAILS

TECHNICAL SPECIFICATIONS

Materials	Faceplate: 16 gauge, 304 2B Stainless Steel
	Backplate: 1/8 inch thick, Aluminum
	Mounting Screws: Stainless Steel, 6-32 × 1 inch; 8-32 × 1 inch
	Allen Head Size: 5/64
Cherry Switch	Single-pole, 15 A, COM/NO/NC
Compatible Wireless Frequencies	433, 390 or 300 MHz

Specifications are subject to change without prior notice.
