P2 Passport 1000 W-DPS 80 Series Template

Open the original PDF document

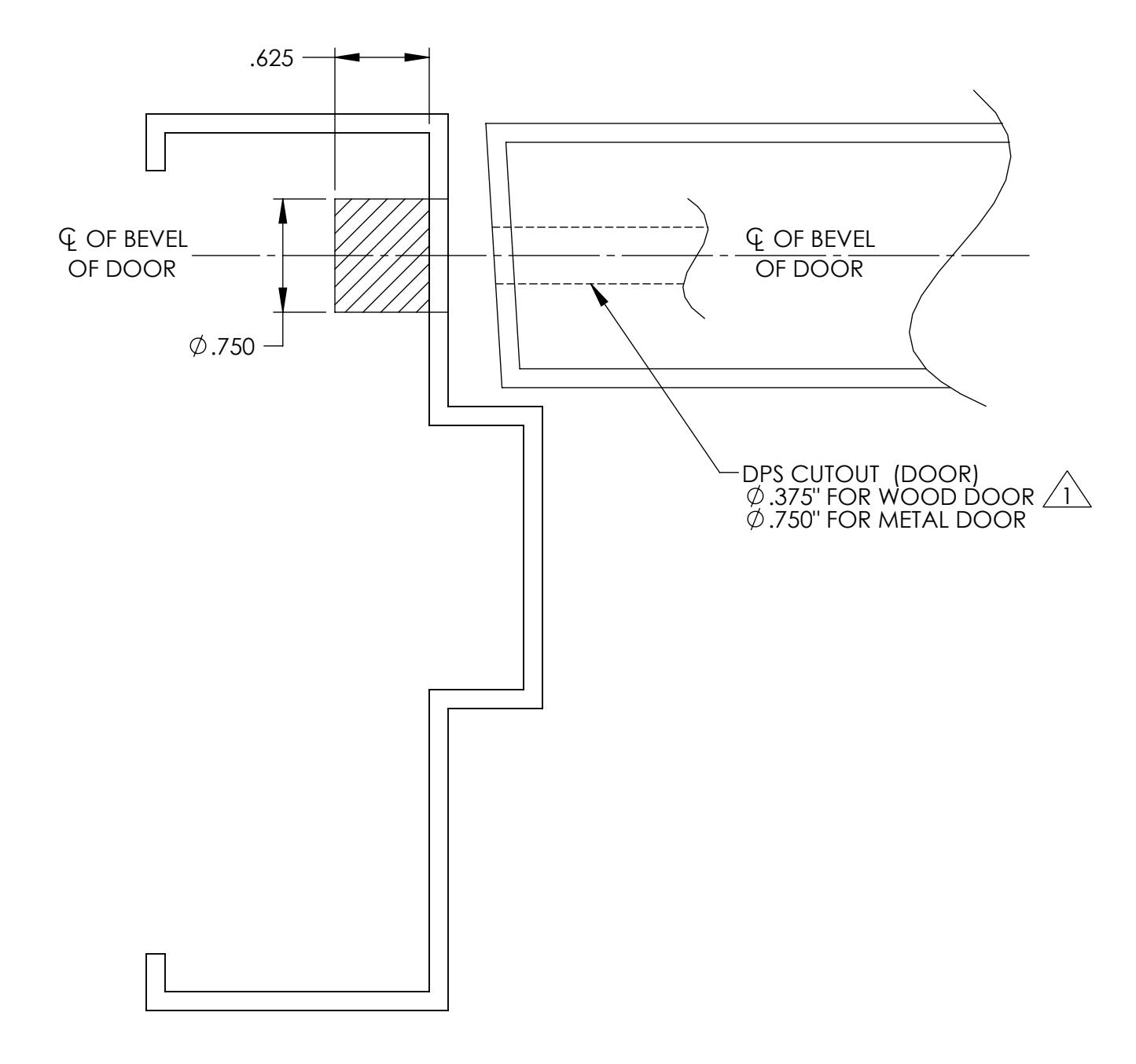

FRAME DETAIL

DOOR SHOWN IN CLOSED POSITION

SARGENT ASSA ABLOY

Sargent Manufacturing Company 100 Sargent Drive New Haven, CT 06511

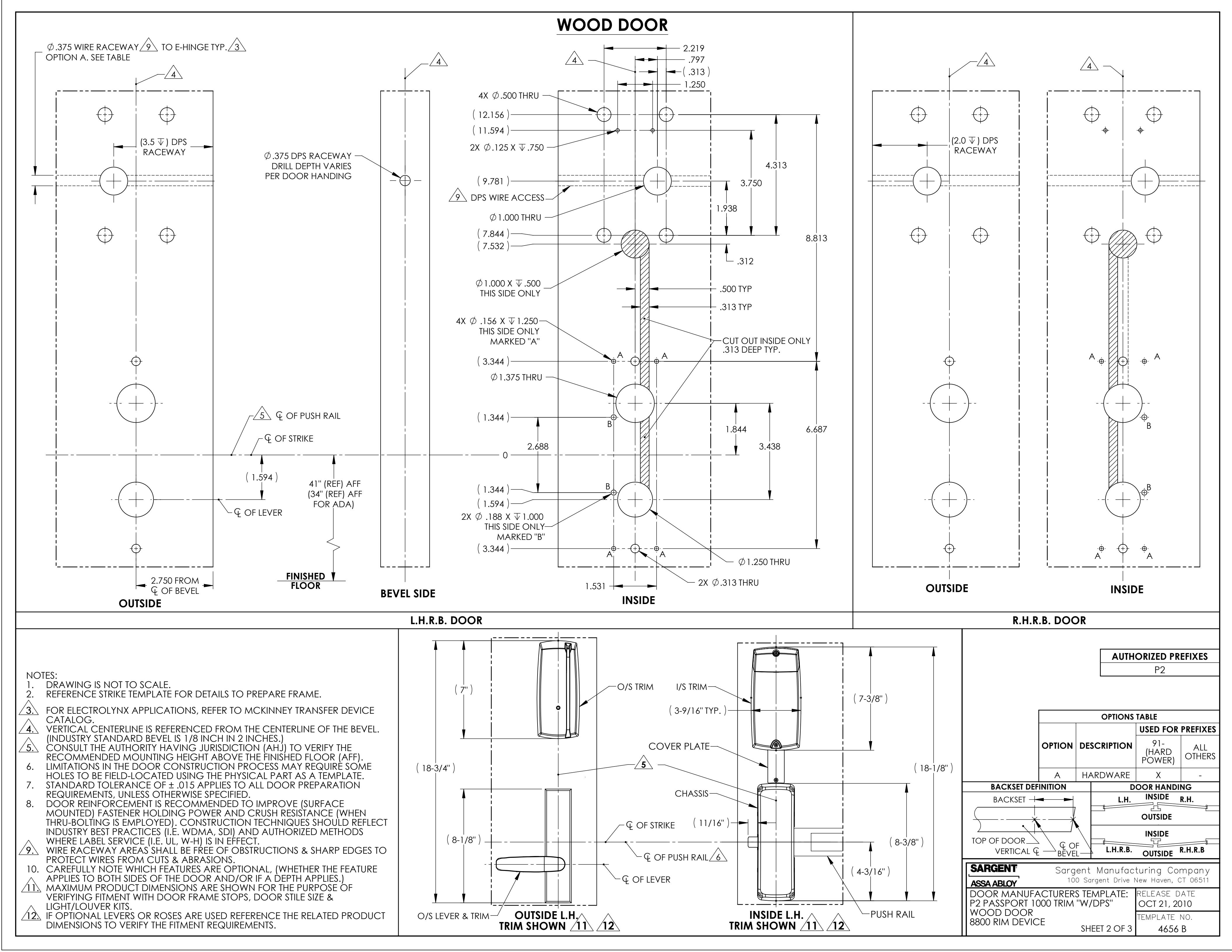

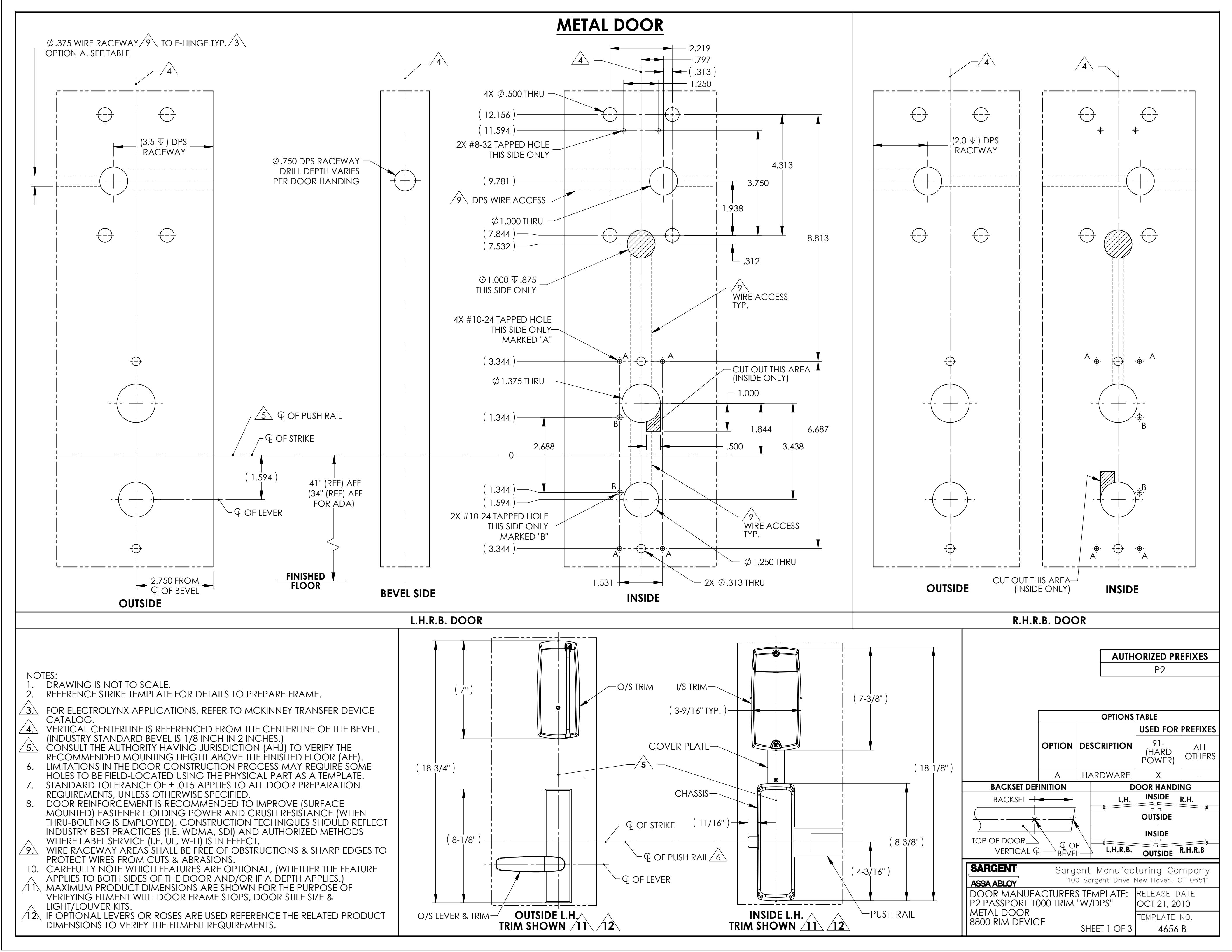

DOOR MANUFACTURERS TEMPLATE: P2 PASSPORT 1000 TRIM "W/DPS" OCT 21, 2010 METAL/WOOD DOOR 8800 RIM DEVICE SHEET 3 OF 3

OCT 21, 2010

4656 B SHEET 3 OF 3

NOTES:

$\stackrel{\checkmark}{1.}$ DPS CUTOUT ON FRAME TO BE ALIGNED HORIZONTAL AND VERTICAL WITH DPS CUTOUT ON DOOR IN CLOSED POSITION.
