View PDFOVERHEAD HOLDERS/STOPS - LEAD LINING

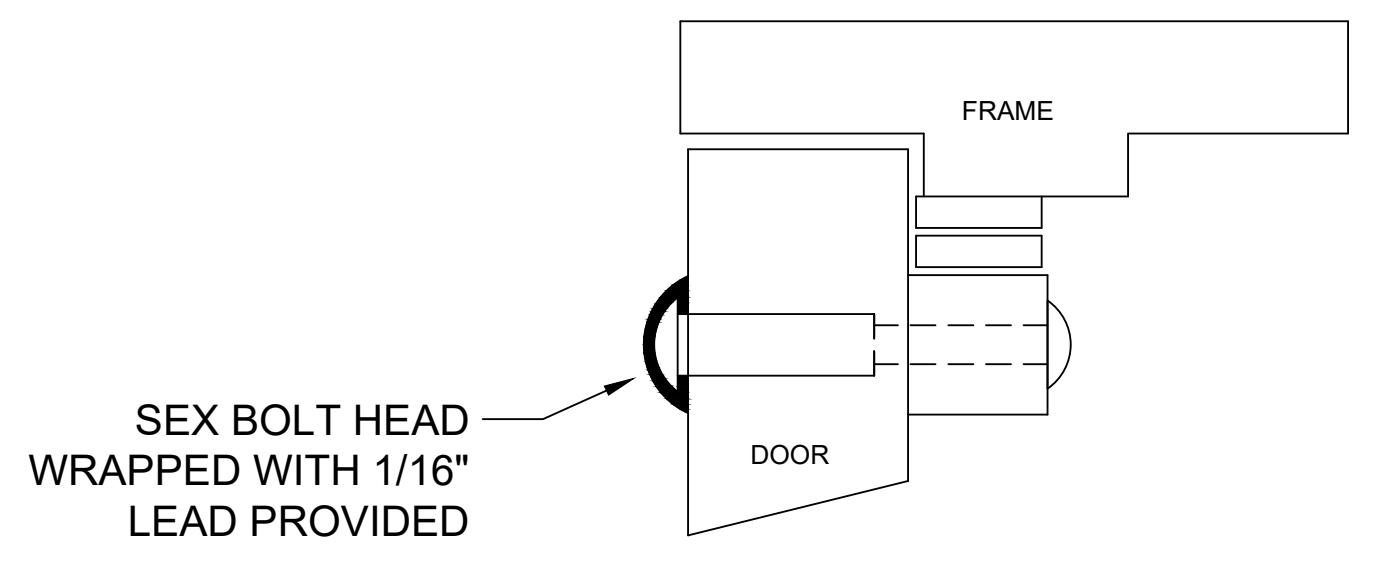

SURFACE MOUNT UNITS
1. Sex bolt head comes wrapped with Lead. Bolt to be inserted into the thru-bolt prep in door per standard template.

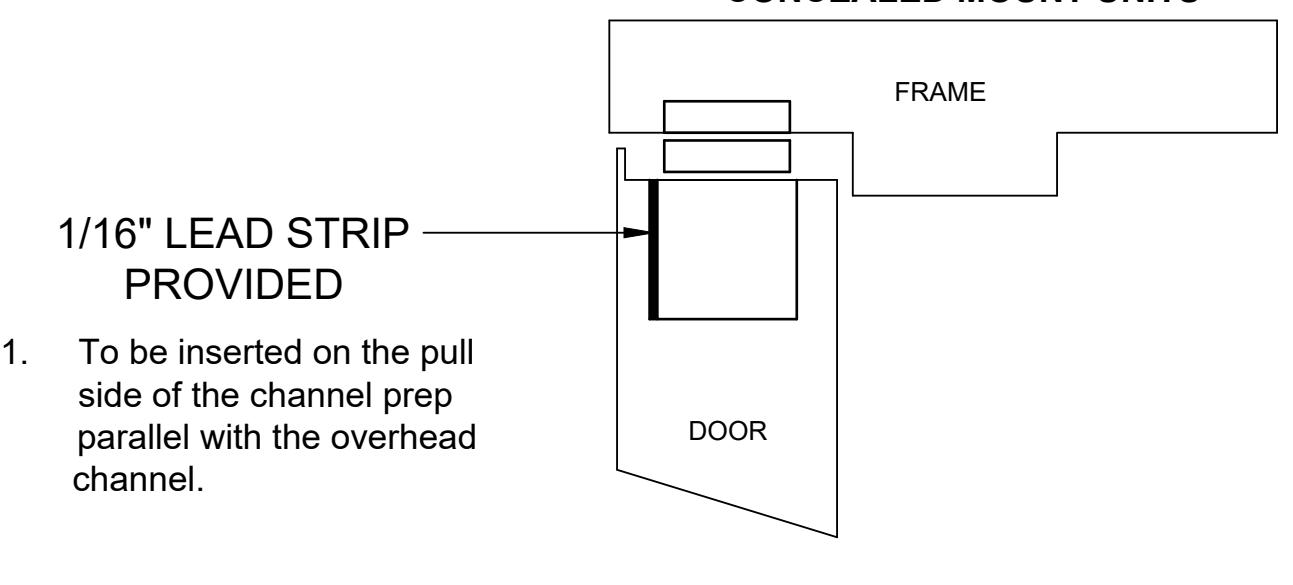

CONCEALED MOUNT UNITS
www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)
TM-LEAD LINING-00.DWG
OVERHEAD STOP W/ LEAD LINING OPTION
printed in USA
ISSUED 01-17-22 c 2022 ABH Mfg., Inc. PAGE 1 OF 1
