View PDFInstallation Instructions
T37
Inserting bolt:
- a. Insert key and turn to 2:00 position.
- b. Insert bolt until spring snaps into place.
Removing bolt:
- a. Turn key to the 2:00 position, pull bolt up.
- b. Using a small tool, depress the bolt spring through the hole on the back of the lock and pull the bolt out.

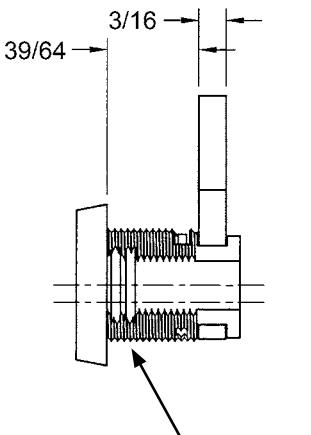

Two slots are available for optional clip mounting. Use of spring clip allows lock to fit material thicknesses of 0" to 11/64". Clip is sold separately.

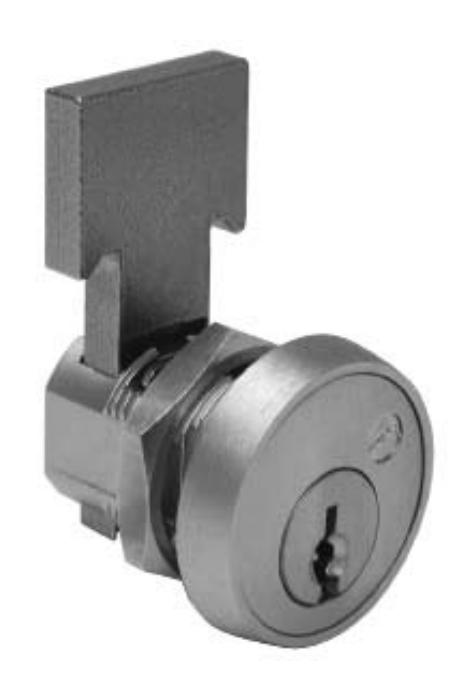

| Title Installation Instructions for T37 Series T-bolt Drawer Lock | ||||
|---|---|---|---|---|
| Series | Max Material | Bolt type | Mounting Surface | Revision Date |
| ΠΆ37 | 1/4" | T-bolt | Surrace | 07/2009 |
