Olympus Lock – Small Format (Best) IC Core 725RL Installation Instructions
Open the original PDF document
View PDFInstallation Instructions
725RL
Includes

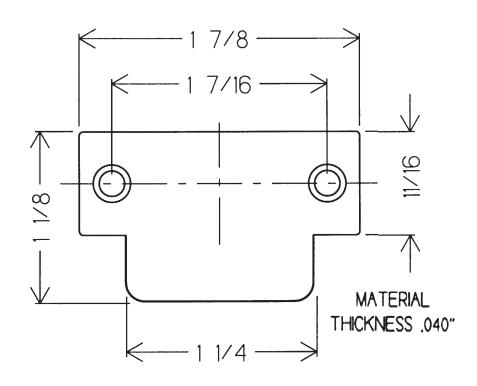

2 Mounting screws #8 x 5/8" 2 Strike screws #5 x 5/8"

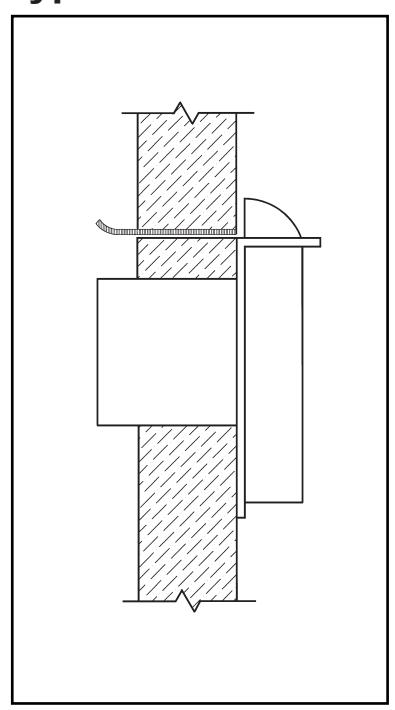

Typical Installation
|
Title

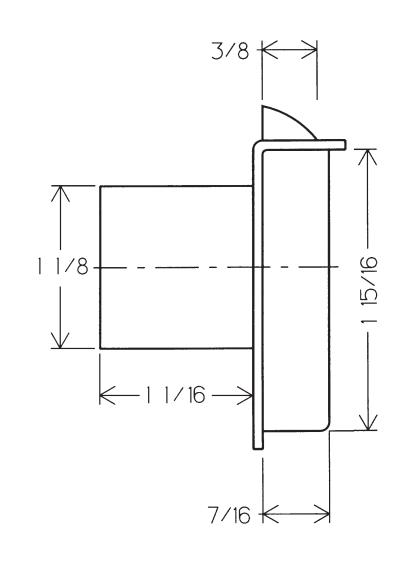

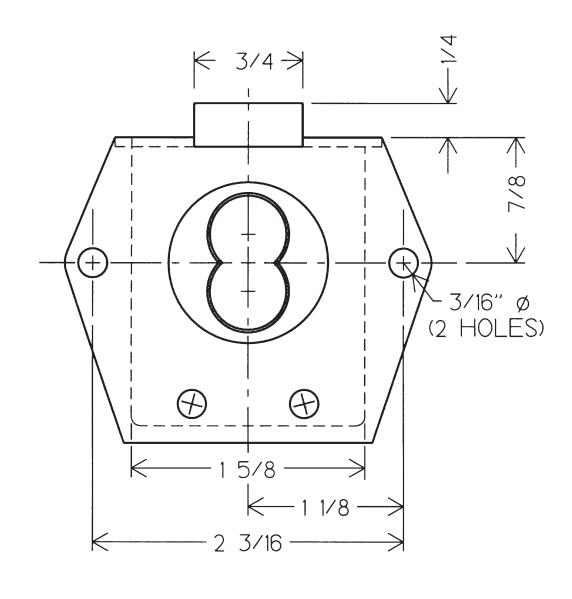

Installation instructions for 725RL series cabinet lock |
||||
|---|---|---|---|---|
| Series | Barrel Length | Bolt type | Mounting | Revision Date |
| 725RL | 1-1/16" | Latch | Surface | 07/2009 |
