Olympus Lock – Small Format (Best) IC Core 725ML Installation Instructions
Open the original PDF document
View PDFInstallation Instructions
725ML
Includes
2 Mounting screws #8 x 5/8" 2 Strike screws #5 x 5/8"

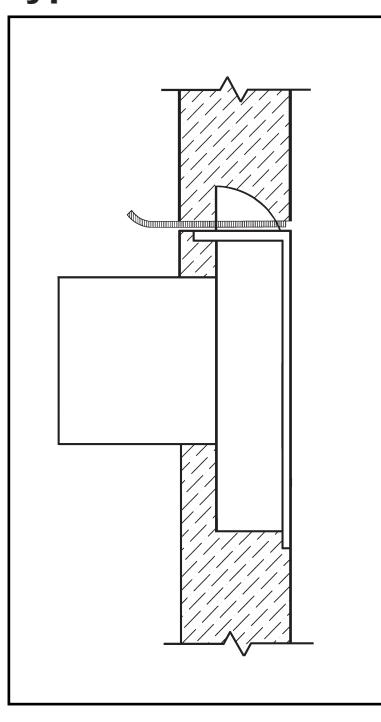

Typical Installation

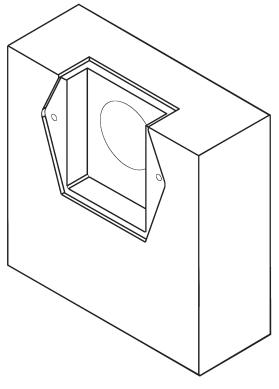

Cutout for mortise application - including back plate (725 only)
Cutout for mortise Application - excluding back plate (725 only)
Title

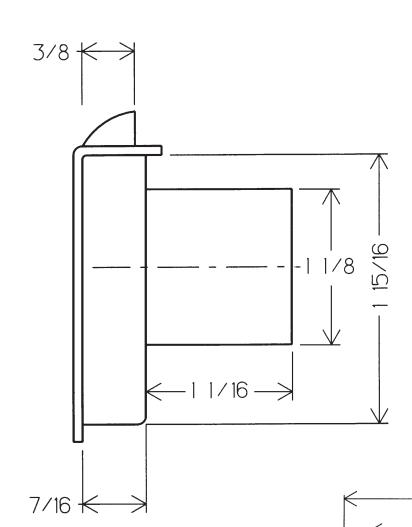

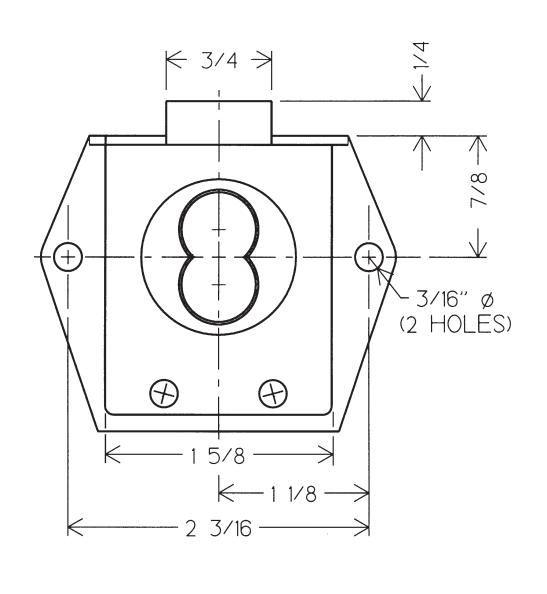

Installation instructions for 725ML series cabinet lock
Series 725ML
Barrel Length 1-1/16"
Bolt type Latch
Mounting Mortise
Revision Date 07/2009
