Olympus Lock – Small Format (Best) IC Core 725MD Installation Instructions
Open the original PDF document
View PDFInstallation Instructions

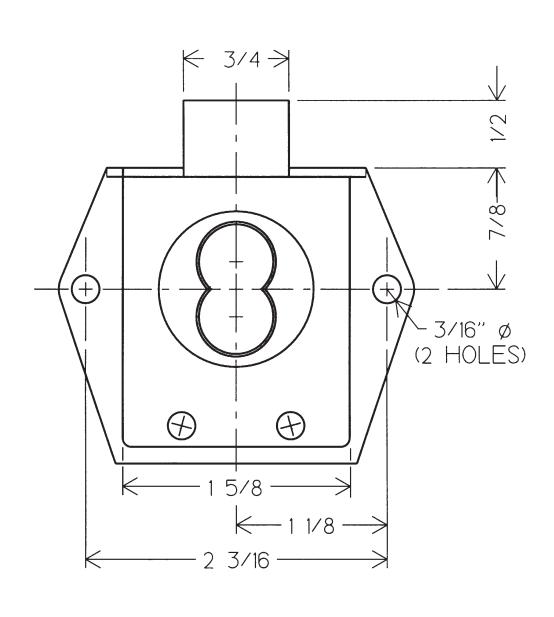

725MD
Includes 2 Mounting screws #8 x 5/8" 2 Strike screws #5 x 5/8"

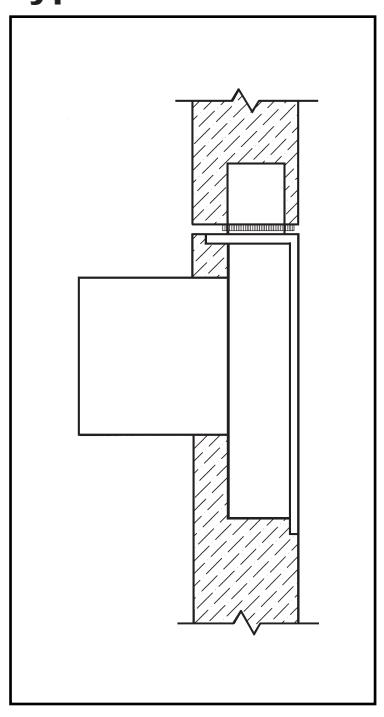

Typical Installation
application - including back plate (725 only)

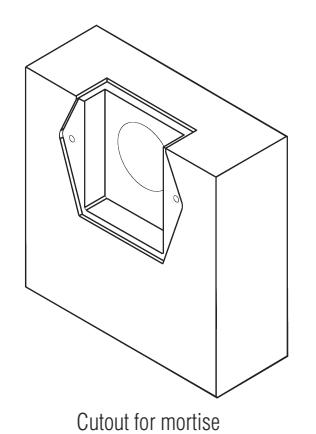

Cutout for mortise Application - excluding back plate (725 only)
|
Title
Installation instructions for 725MD series cabinet lock |
||||
|---|---|---|---|---|
| Series | Barrel Length | Bolt type | Mounting | Revision Date |
| 725MD | 1-1/16" | Deadbolt | Mortise | 07/2009 |
