Olympus Lock – Small Format (Best) IC Core 723 Installation Instructions
Open the original PDF document
View PDFInstallation Instructions
723

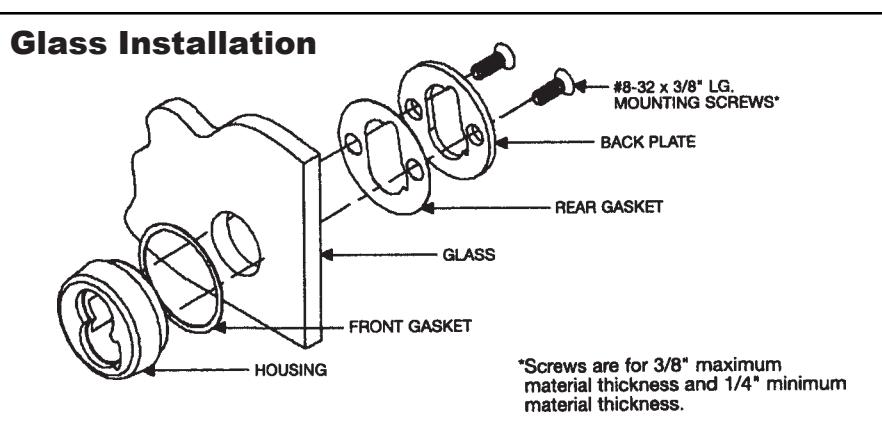

Note: Material thickness can be changed by using an "O" ring or changing the screw length.

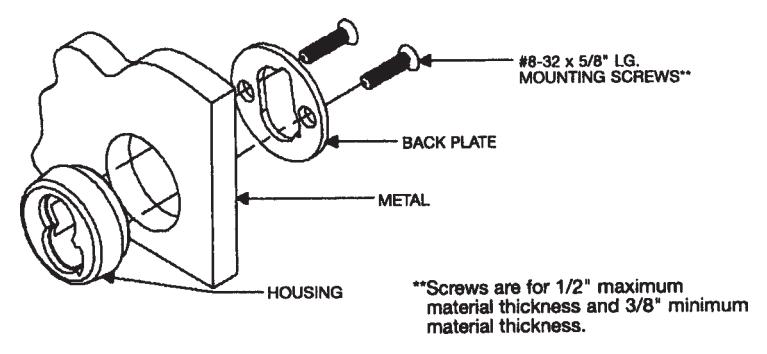

Metal Installation
Note: Material thickness can be changed by using an "O" ring or changing the screw length.

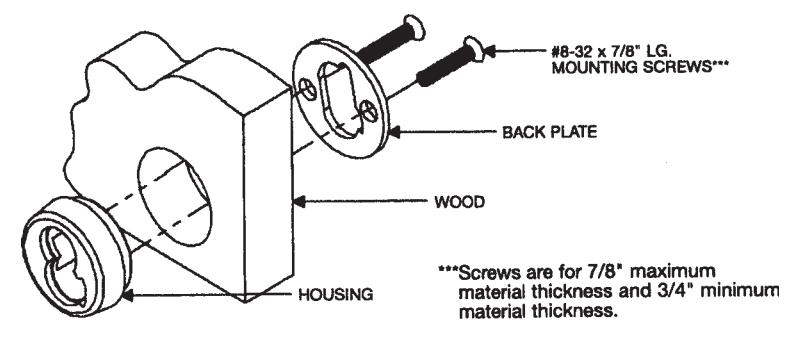

Wood Installation
Note: Material thickness can be changed by using an "O" ring or changing the screw length.
|
Title
Installation instructions for 723 series sliding door lock |
||||
|---|---|---|---|---|
| Series | Barrel Length | Bolt type | Mounting | Revision Date |
| 723 | Adj. | Cyl. Housing | Surface | 01/2006 |
