Olympus Lock – Small Format (Best) IC Core 721DR Installation Instructions
Open the original PDF document
View PDFInstallation Instructions
721DR

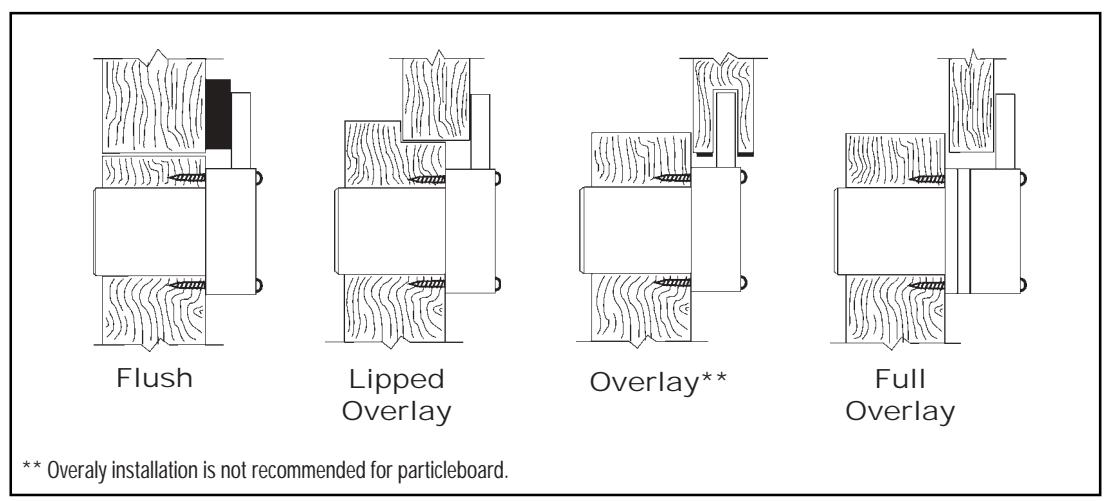

Typical Installation
Use of spacers and strikes depends on application and material thickness.

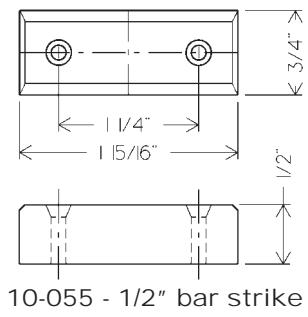

10-055 - 1/2" bar strike 10-054 - 1/4" bar strike 10-350 - 1/8" spacer
| Title | ||||
|---|---|---|---|---|

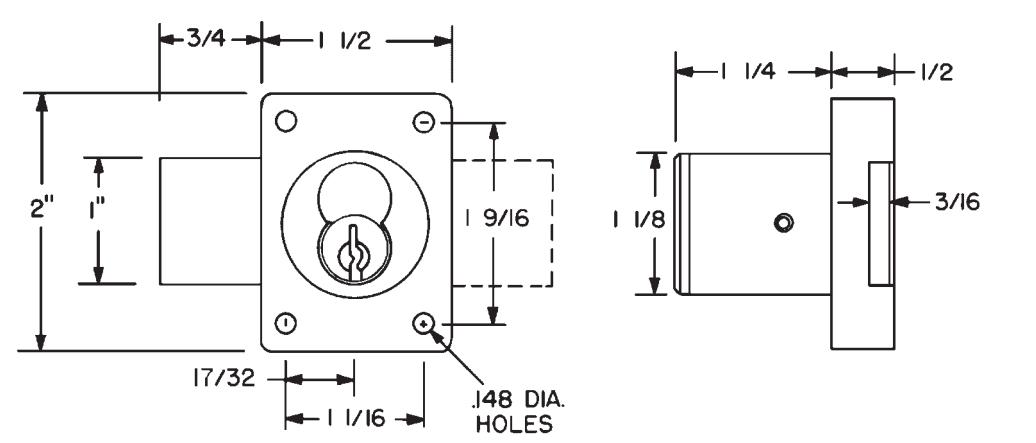

| Installation instructions for 721DR series cabinet lock | ||||
| Series | Barrel Length | Bolt type | Mounting | Revision Date |
| 721DR | 1-1/4" | Deadbolt | Surface | 06/2004 |
