720LM/DM

IMPORTANT:

It is highly recommended that you install the cam/prong driver and lock cylinder into the lock body and cycle to the locked position before assembling cam, cam shifter and stop pin onto the back of the lock.

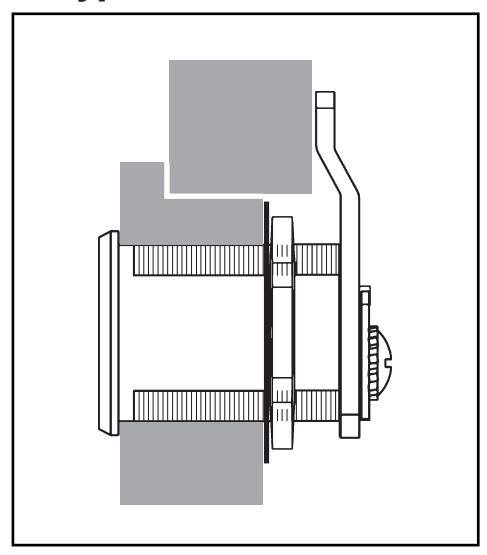

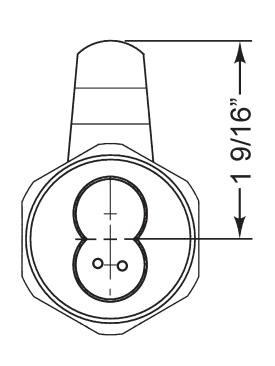

Typical Installation

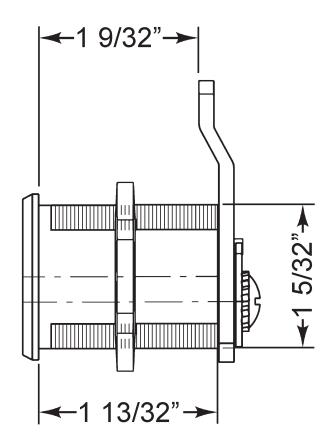

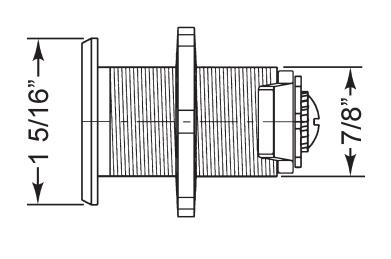

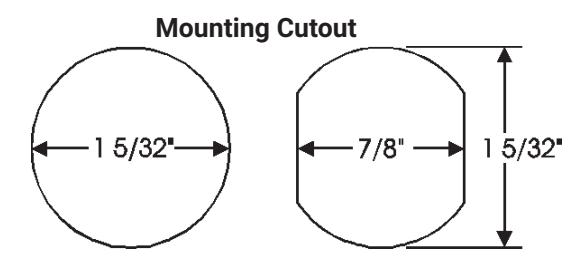

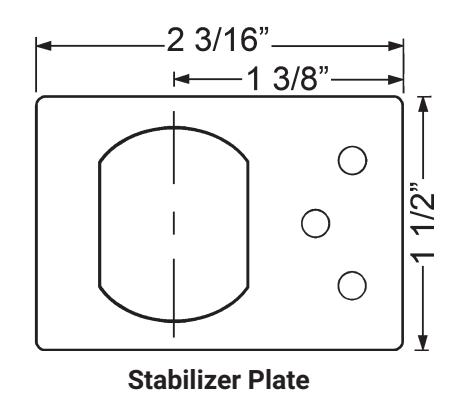

Lock diameter is 1-1/8". Drilled hole should be slightly larger.

Title Installation instructions for 720LM/DM series cam lock
Series	Barrel Length	Bolt type	Mounting	Revision Date
720	1-7/16"	Cam lock	Surface	09/2014

720LM/DM

Assembled with vertical long cam 720-3-2 or extra long 3" cam 720-3-4

720-KR key retaining drawer cam shifter

720-CDDM (A Side) key retaining door cam shifter

key retaining door cam shifter

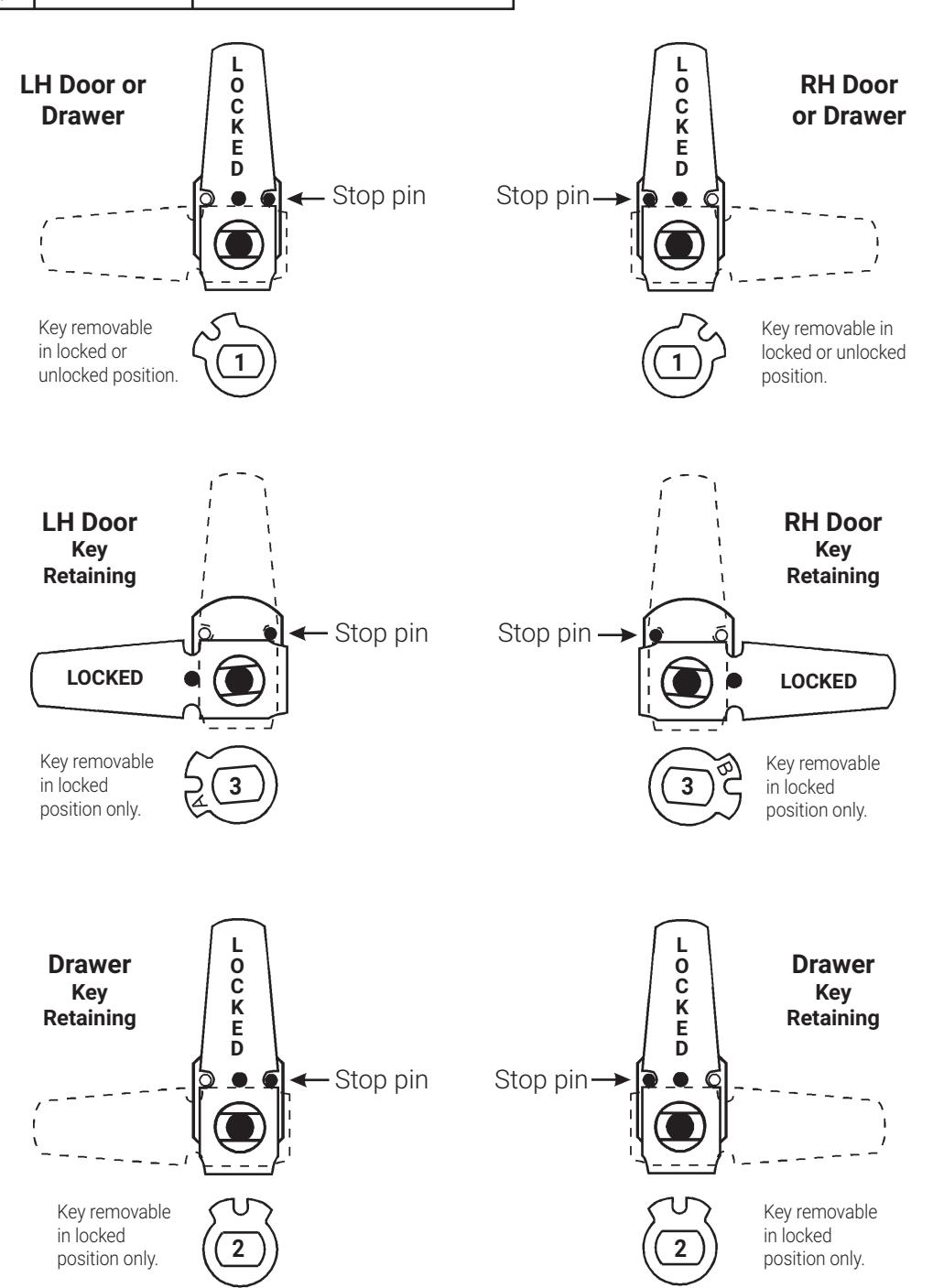

IMPORTANT! If your cam has a brass pin between the two notched cut outs use these instructions, otherwise see page 3.

720LM/DM

Assembled with vertical long cam 720-3-2 or extra long 3" cam 720-3-4

720-CDLM lost motion cam shifter (non-key-retaining)

720-KR key retaining drawer cam shifter

720-CDDM (A Side) key retaining door cam shifter

720-CDDM (B Side) key retaining door cam shifter

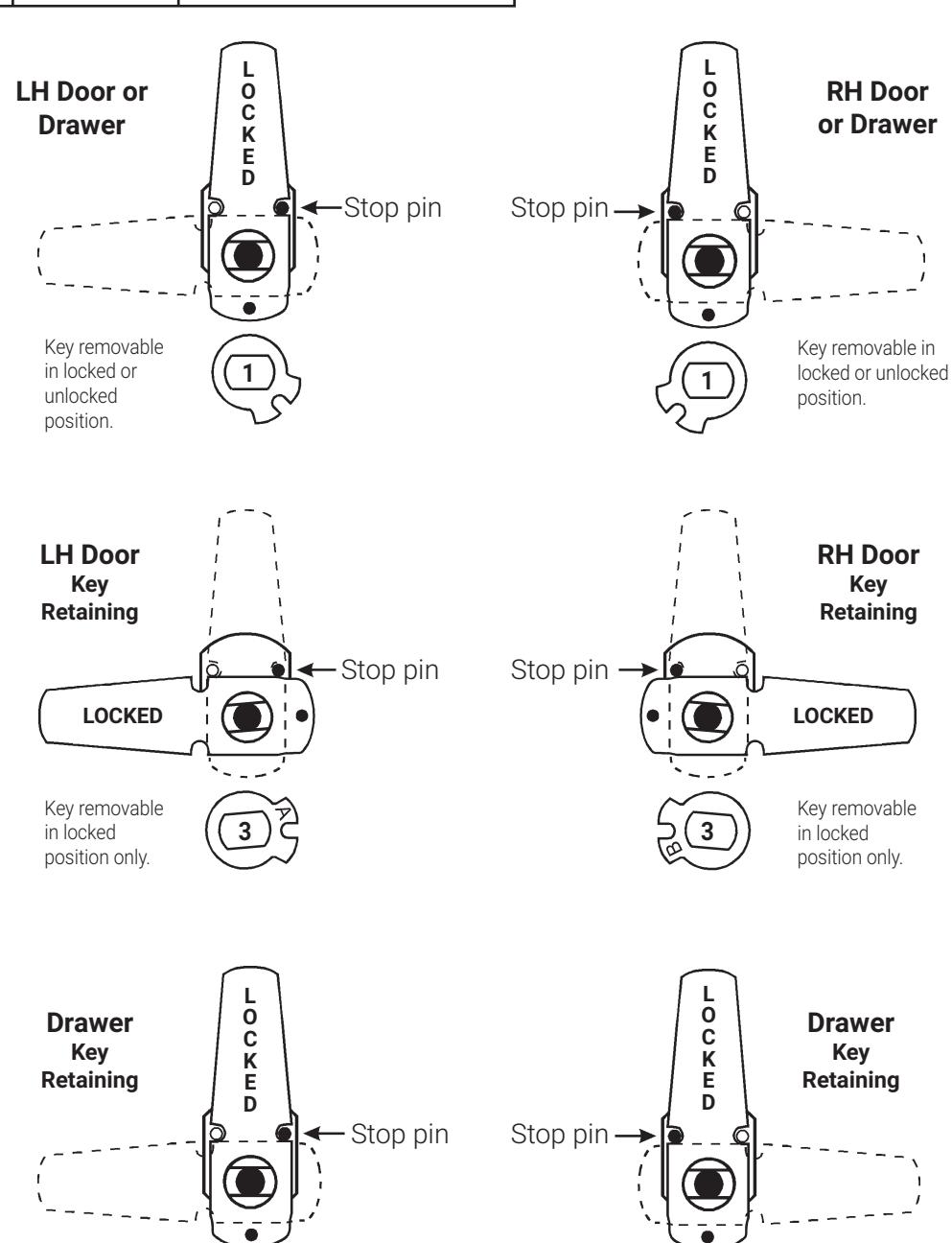

IMPORTANT! If your cam has a brass pin on the bottom of the cam use these instructions, otherwise see page 2.

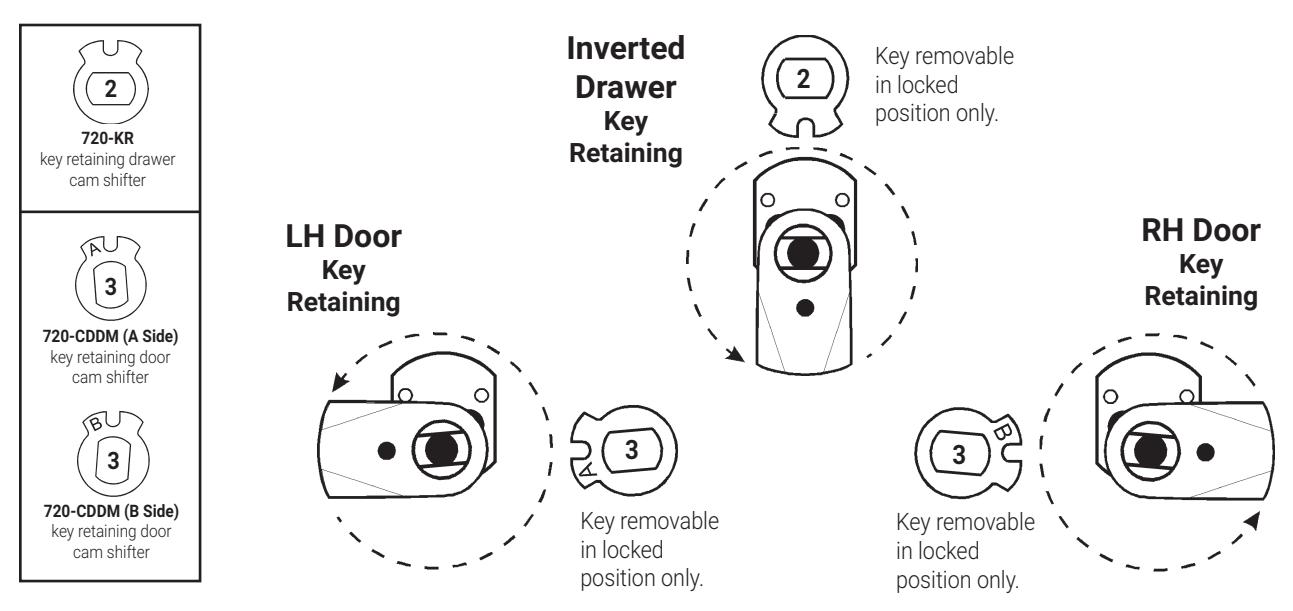

Key removable

position only.

in locked

Key removable

position only.

in locked

Assembled with short cam 720-3-1 720LM/DM

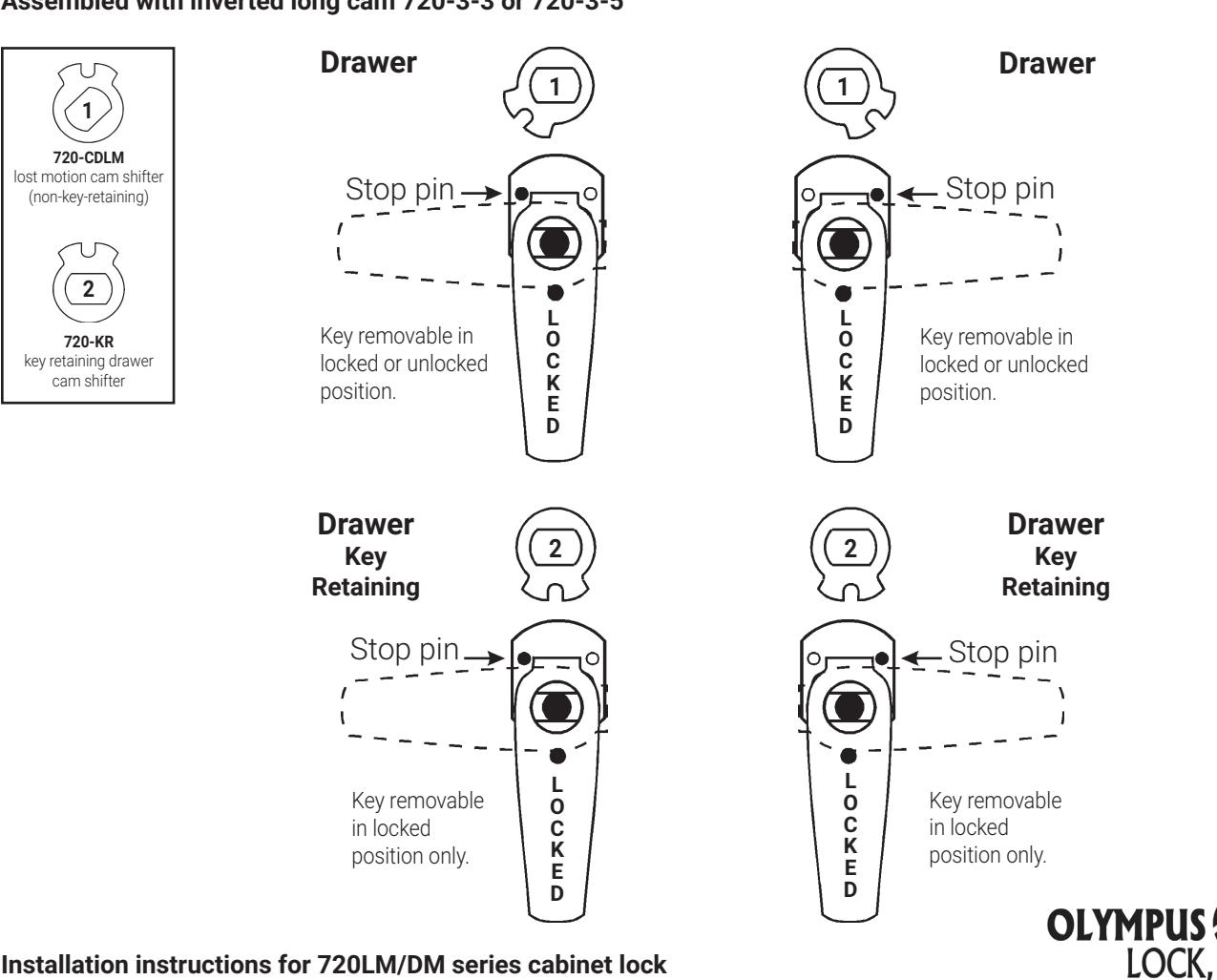

Assembled with inverted long cam 720-3-3 or 720-3-5
