Olympus Lock – Small Format (Best) IC Core 720B-DM Installation Instructions
Open the original PDF document
View PDFInstallation Instructions
720B-DM

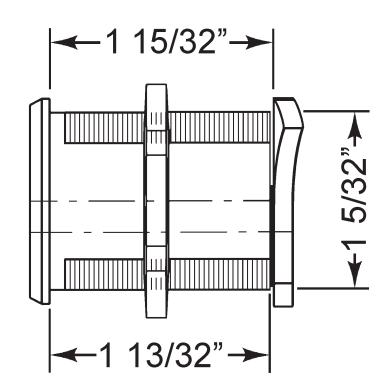

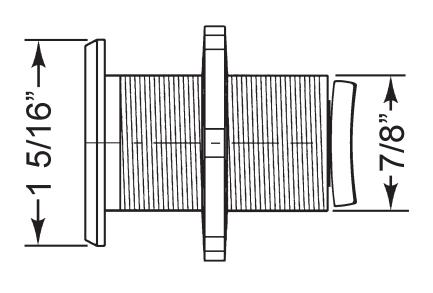

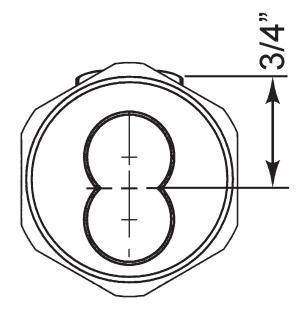

MOUNTING CUTOUT
Lock diameter is 1-1/8". Drilled hole should be slightly larger.
CL-MP-118
Double-D metal hole punch is available separately. Punches double-D cut out in metal. For use with 1-1/8" diameter cam locks.
Order part number CL-MP-118

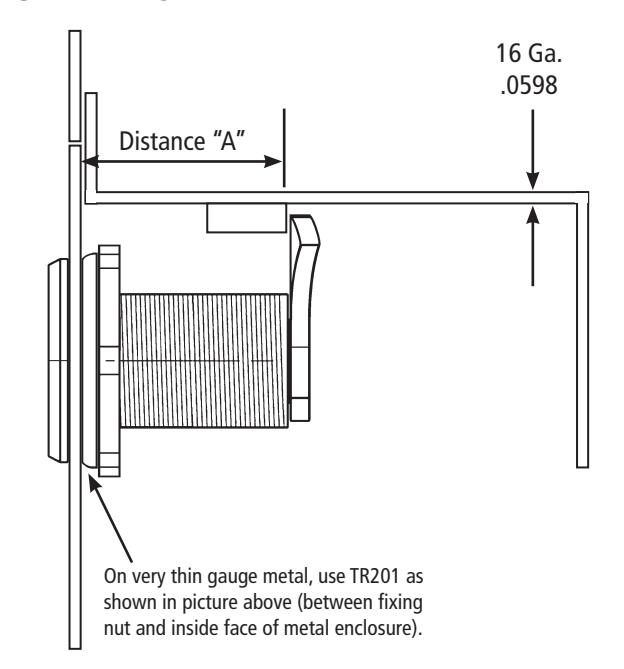

TYPICAL INSTALLATION
Depending on Distance "A" and your specific application, one or both of the supplied spacer collars may be required.
|
Title
Installation instructions for 720B-DM series cam lock |
||||
|---|---|---|---|---|
| Series | Barrel Length | Bolt type | Mounting | Revision Date |
| 720B-DM | 1-7/16" | Cam lock | Surface | 03/2015 |
