Olympus Lock – Sargent Less Cylinder 754 Installation Instructions
Open the original PDF document
View PDFInstallation Instructions

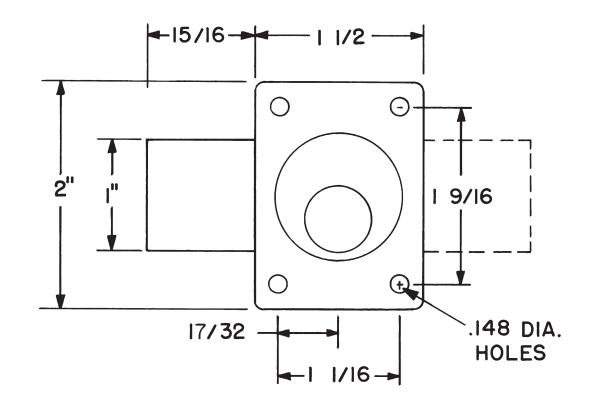

754

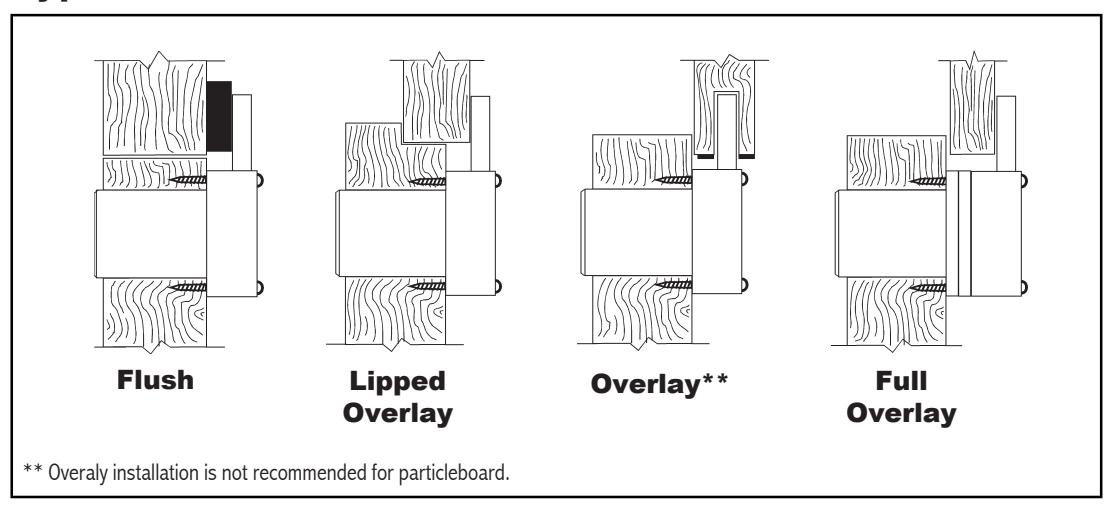

Typical Installation

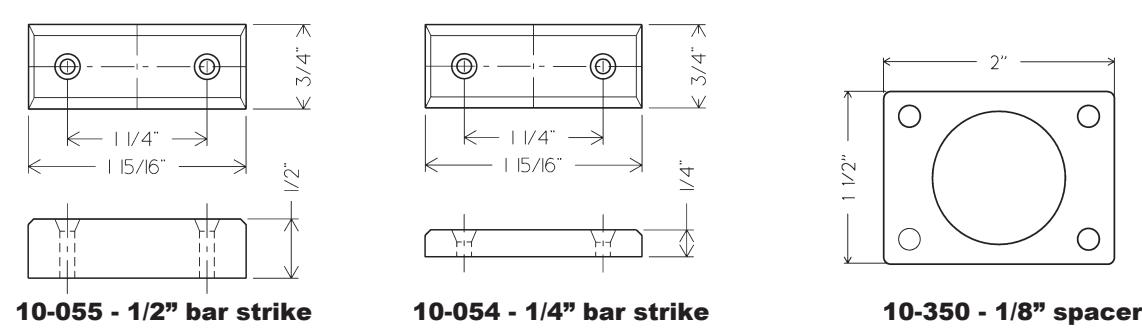

Use of spacers and strikes depends on application and material thickness.
|
Title
Installation instructions for 754 series cabinet door lock |
||||
|---|---|---|---|---|
| Series | Barrel Length | Bolt type | Mounting | Revision Date |
| 754 | 1-3/8" | Deadbolt | Surface | 06/2005 |
