SW-1

Switch Accessory Pack

For 1-1/8" Diameter Cam Locks

Note: Switches not included.

SPECIFICATIONS

Use: Includes parts to convert 720, 820, 920, CR25 ME93, SA54 or YA93 series cam locks into switch locks Special note: Cannot be used with 720B-DM direct drive Configuration: Can be configured for 1 or 2 switches Packaged: Each

GENERAL FEATURES

• Includes parts to convert Olympus Lock 1-1/8" Series cam locks into switch locks.
• Accepts pin plunger style, snap acting, miniature switches.
• Switch manufacturers: Omron, Honeywell, Cherry, Panasonic or C & K.
• See the reverse side for a complete list of available switches for use with the SW-1.

SWITCHES

Switches: Not included.

Accepts: Pin plunger style, snap acting, miniature switches:

• Omron V Series
• Honeywell (MicroSwitch) V Series
• Cherry E Series
• Panasonic (Aromat) ABV Type
• C&K (ITT) TM & TF Series

THE SW-1 CAN BE USED WITH THE FOLLOWING OLYMPUS PRODUCTS

720LM/DM Small Format IC Core

820SC/820LC Schlage C Keyway or Less Cylinder

920LM/DM Schlage Full-Size IC Core

CR25LM/DM Corbin/Russwin IC Core

SA54LM/DM Corbin/Russwin IC Core

ME93 Medeco IC Core

YA93 Yale IC Core

Note: Switches not included.

Switch Accessory Pack For 1-1/8" Diameter Cam Locks

OPTIONAL ACCESSORIES - See our website for a complete list of optional components.

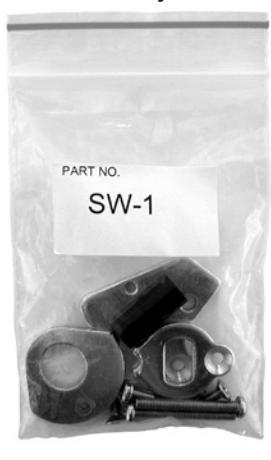

SW-1 Accessory Pack

• Includes parts to convert 720, 820, 920, CR25 ME93, SA54 or YA93 series cam locks into switch locks
• Switch not included
• Accepts pin plunger style, snap acting, miniature switches
• Allows stacking of up to 2 switches

SW-1 Accessory Pack

Manufacturers

• Omron V Series
• Honeywell (MicroSwitch) V Series
• Cherry E Series
• Panasonic (Aromat) ABV Type
• C&K (ITT) TM & TF Series

Common Suppliers

• Newark Electronics 800-463-9275
• Allied Electronics 866-433-5722
• McMaster-Carr 562-463-4277

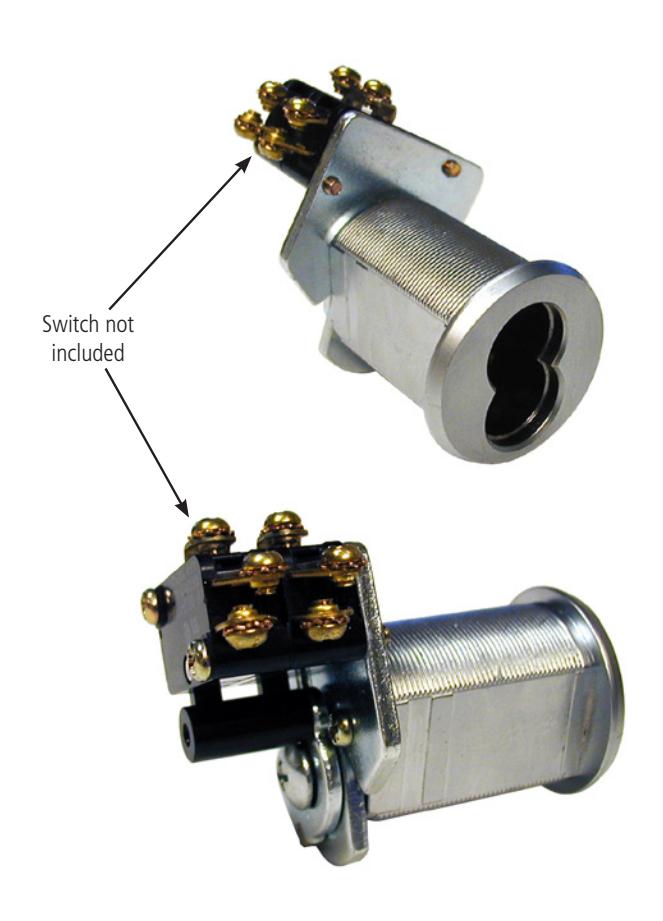

Switch not included.

TR201, TR202, TR203, TR204 Trim Collars Available separately

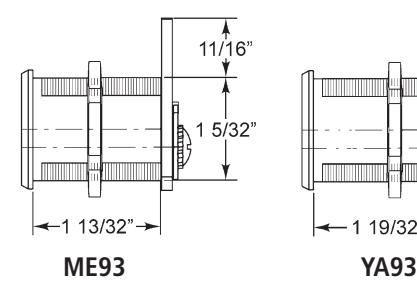

DIMENSIONS

720 920 CR25 / SA54
