SK-004 SERIES

Parts & Accessories Sample & Service Kit

GENERAL FEATURES

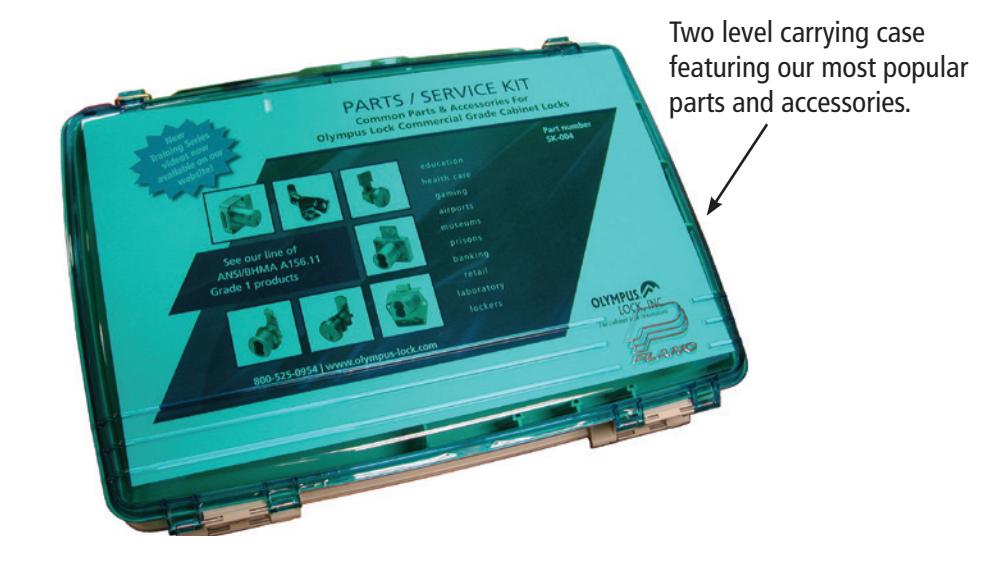

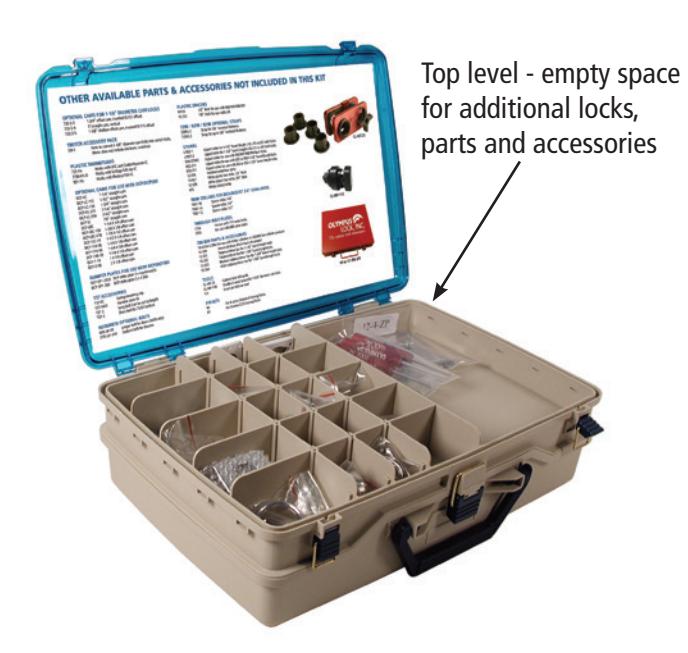

The SK-004 contains a sampling of our most popular parts and accessories. The kit comes in its own plastic, 2 level case with parts marked and separated by dividers. The top section provides additional room for extra locks and accessories.

SK-004 Parts & Accessories Sample & Service Kit

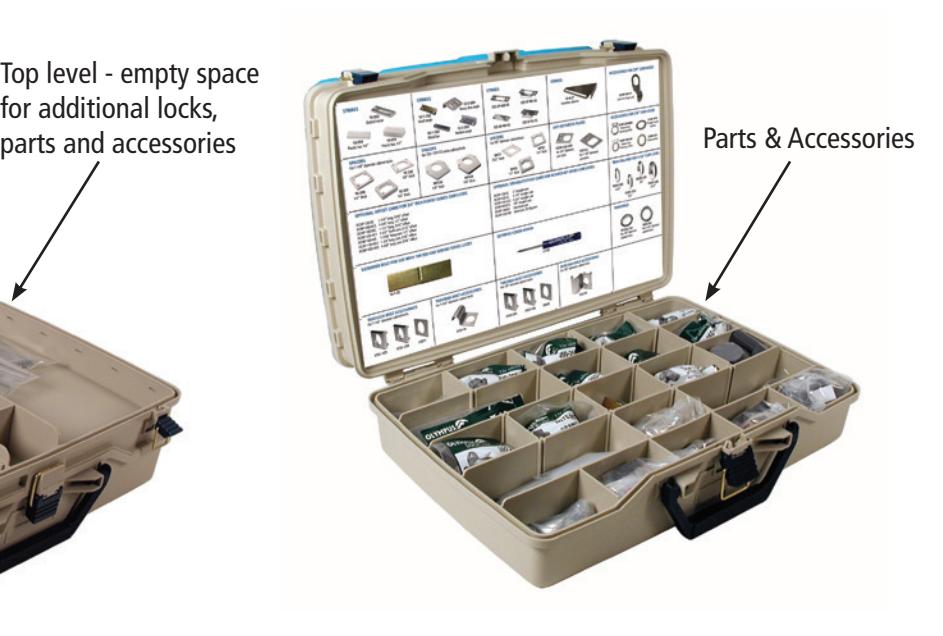

CONTENTS - TOP LAYER

OTHER AVAILABLE PARTS & ACCESSORIES NOT INCLUDED IN THIS KIT

OPTIONAL CAMS FOR 1-1/8" DIAMETER CAM LOCKS

720-3-3 1-3/4" offset cam, inverted (0.422 offset) 720-3-4 3"straight cam, vertical 1-7/8" shallow offset cam, inverted (0.115 offset) 720-3-5

SWITCH ACCESSORY PACK Parts to convert 1-1/8" diameter cam locks into switch locks.

PLASTIC THUMBTURNS

Works with SEIC and Corbin/Russwin IC Works with Schlage full-size IC Works with Medeco/Yale IC 7788-PA-D

OPTIONAL CAMS FOR USF WITH DCP/DCP500

DCP-LC DCP-LC-112 DCP-LC-134 1-1/4" straight cam 1-1/2" straight cam 1-3/4" straight cam DCP-LC-225 2-1/4" straight cam 2-1/2" straight cam DCP-LC-250 DCP-SC 7/8" straight cam 1-1/4 X 1/4 offset cam DCP-IRC DCP-LBC-138 DCP-LBC-178 DCP-112-14 1-3/8 X 3/8 offset cam 1-3/8 X 1/2 offset cam 1-7/8 X 1/2 offset cam 1-1/2 X 1/4 offset cam DCP-114-18 1-1/4 X 1/8 offset cam 1-1/4 X 3/8 offset cam DCP-114-38 DCP-118-18 1-1/8 X 1/8 offset cam

BUMPER PLATES FOR USE WITH DCP/DCP500

DCP-SP1-US32 DCP strike plate 3 x 4 polished S DCP-SP1-26D DCP strike plate 3 x 4 26D

T37 ACCESSORIES T37-RC Spring m T37-NKIT Number T37-2 Long bol Spring mounting clip Number plate kit Long bolt (can be cut to length) T37-3 Short bolt for 25/32 backset

N078/R078 OPTIONAL BOLTS

078-LB-DR Longer bolt for doors (N078 only) 078-LB1-DW Outbent bolt for drawers

PLASTIC SPACERS

1/8" thick for use with 996/997/998/999 10-351 1/8" thick for use with L78

729R / 829R / 929R OPTIONAL STRAPS

Strap for 3/8" material thickness Strap for up to 5/8" material thickness 729RS-2 729RS-3

STRIKES

075

Lipped strike for 1-1/8" barrel length L78, L72 or L92 latch locks Lipped strike for 1-3/8" barrel length L78, L72 or L92 latch locks Lipped strike for use with 996/997/998/999 latch locks Lipped strike for use with 850 or 950 1-1/8" barrel length locks Lipped strike for use with 850 or 950 1-3/8" barrel length locks L78ST-1 L78ST-2 999-STRIKE 10-056 Notched metal bar strike White plastic bar strike, .65" thick 10-057 10-058 White plastic bar strike, 3/8" thick Metal slotted strike

TRIM COLLARS FOR DCN/DCR/B7 3/4" CAM LOCKS

TRR7-18 Spacer collar, 1/8" Spacer collar, 1/4" TRR7-1/ TRB7-12

THROUGH-BOLT PLATES

For use with 777 series locks For use with 888 series locks

700/800 PARTS & ACCESSORIES

78-KABA-CONV For use with KABA Cylinders in 700/800 less cylinder products 10-360 Universal driver (fits in back of cylinder) 10-361 Tailpiece/driver bar for 1-1/8" barrel length locks Tailpiece/driver bar for 1-3/8" barrel length locks 10-362 Medeco tailpiece/driver bar for 1-3/8" barrel length locks ASSA tailpiece/driver bar for 1-3/8" barrel length locks 10-363 10-364

TOOLS

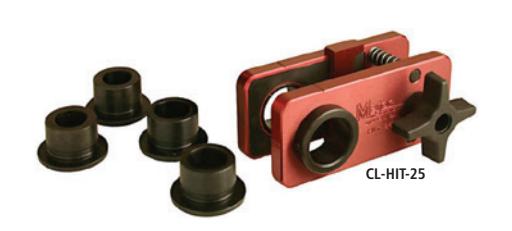

Cabinet lock drill guide Double-D metal punch for 1-1/8" diameter cam locks Small pin follower tool CL-MP-118

PIN KITS

For N series (National Keyway) locks For R series (CCL keyway) locks

CONTENTS - BOTTOM LAYER

WP726

OPTIONAL OFFSET CAMS FOR 3/4" DCN/DCR/R7 SERIES CAM LOCKS

DCNP-100-BC 1-1/4" long, 5/16" offset DCNP-100-BC5 1-1/4" long, 1/2" offset DCNP-100-LBC 1-1/2" long, 5/16" offset DCNP-100-HC1 1-1/2" hook cam, 5/16" offset DCNP-100-HD 1-7/16" long cam, 1/2" offset DCNP-100-HD2 1-3/4"long cam, 5/16" offset DCNP-100-HD3 1-1/8" long cam, 5/16" offset

DCNP-100-LC 3" straight cam DCNP-100-SC 1-1/4" straight cam DCNP-100-SC2 1-3/4" straight cam DCNP-HD-875 7/8" straight cam DCNP-100-B3 Flat hook cam DCNP-100-WB Short cam. 90 deg arm
