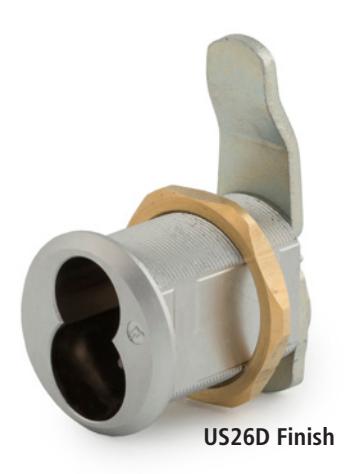

SA54

IC Core: Cam Lock For Sargent IC cores

SPECIFICATIONS

Cylinder diameter: 1-1/8"

Across flats: 7/8"

Max. material thickness: 1-1/8" Min. material thickness: 0.08"

Functions: Includes parts for key-retaining or non-

key-retaining function Body: Zinc die cast Finish: 26D

Packaged: Packed 10 per box

CYLINDER INFORMATION

Cylinder: Not included

Accepts: Sargent 6300 Series interchangeable core

cylinders

Note: Use of Sargent "Degree" interchangeable cores requires purchase of alternate SA54-PD-DG

prong driver.

INCLUDED ACCESSORIES

Plastic actuator to operate lock without core 720-PL3 anti-rotation plate 720-3-1 short inverted cam

720-3-2 long vertical cam

720-CDLM lost motion cam shifter

720-CDDM key retaining door cam shifter

720-KR key retaining drawer cam shifter Prong driver for Sargent 6300 series

interchangeable cores

OPTIONAL ACCESSORIES

Optional cams: 7-3-2, 7-3-3, 7-3-4, 7-3-5

Trim collars: TR200 Series Switch accessory pack: SW-1 CL-MP-118: Double-D metal punch

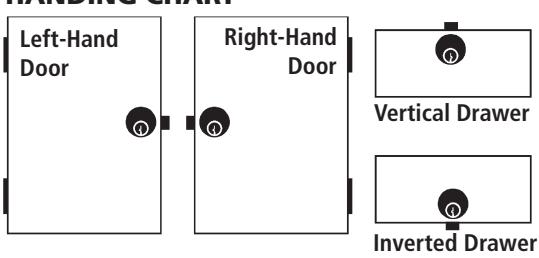

HANDING CHART

For SARGENT interchangeable core cylinders

SA54

Function: Cam Lock

720-PL3 anti-rotation plate keeps lock from rotating in hole, traps fixing nut

INCLUDED CAMS

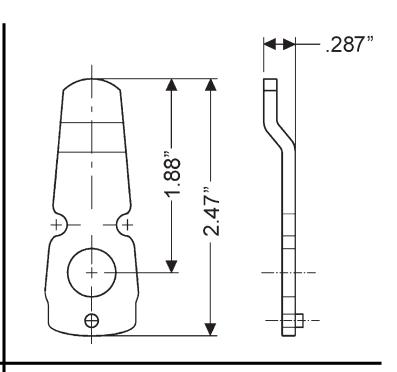

720-3-1 for inverted function

720-3-2 inbent cam for vertical function (bottom-pin style)

WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

SA54

IC Core: Cam Lock For Sargent IC cores

OPTIONAL ACCESSORIES - See our website for a complete list of optional components.

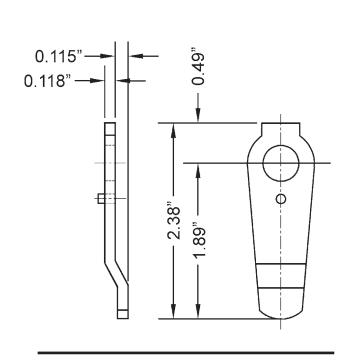

720-3-3 inbent cam for inverted function

720-3-4 3"straight cam for vertical function

720-3-5 inbent cam for inverted function

Optional Cams CL-MP-118 Double-D Metal Punch

Hole size: Punches a DOUBLE "D" hole size approximately 7/8" wide by 1-1/8" high.

SW-1 Switch Accessory Pack

Use: Includes parts to convert 720, 820, 920, CR25 ME93, SA54 or YA93 series cam locks into switch locks

Switches: Not included.

Accepts: Pin plunger style, snap acting, miniature switches:

• Omron V Series
• Honeywell (MicroSwitch) V Series
• Cherry E Series
• Panasonic (Aromat) ABV Type
• C&K (ITT) TM & TF Series

Configuration: Can be configured for 1 or 2 switches

TR200 Series Trim Collars

Finish: TR201, TR202 and TR203 available in US32D or US3 finish. TR204* available in US32D finish only.

TR201 1/8"

TR202 1/4"

TR203 3/8"

TR204* 5/32"

DIMENSIONS

Mounting cutout:
