R1

R Series: CCL R1 Keyway

Pin Kit

SPECIFICATIONS

Keyway: R Series (CCL R1 Keyway) Pins: Color coded, .095 diameter brass pins, Olympus B4R ball end bottom pins, type B4R & 4R master pins

USE WITH

500, 600, 400, 429, 996, 997, R078, DCR1,2,3,4

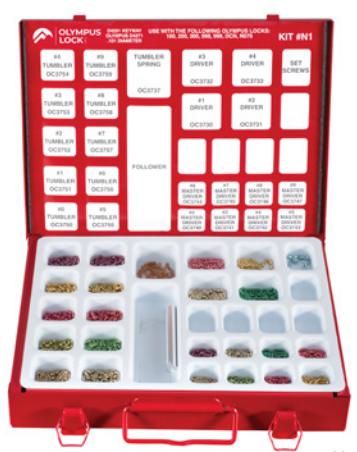

EACH KIT INCLUDES

100 each: Master pins 2 through 9 100 each: Bottom pins 0 through 9

100 each: Drivers 0 and 5 100 each: Tumbler springs 10 each: Set screws 1 each: Plug follower

ADDITIONAL PINS

Additional pins available (100 pcs. per pkg.) Specify item number from chart on right when ordering replacement pins.

Made in USA

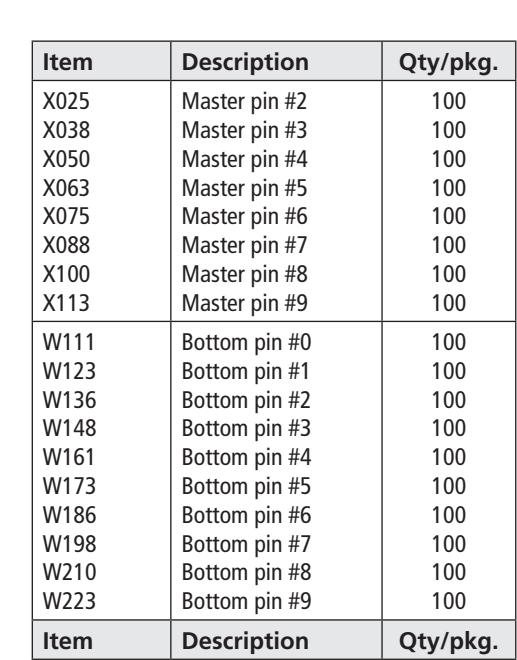

Item	Description	Qty/pkg.
X025	Master pin #2	100
X038	Master pin #3	100
X050	Master pin #4	100
X063	Master pin #5	100
X075	Master pin #6	100
X088	Master pin #7	100
X100	Master pin #8	100
X113	Master pin #9	100
W111	Bottom pin #0	100
W123	Bottom pin #1	100
W136	Bottom pin #2	100
W148	Bottom pin #3	100
W161	Bottom pin #4	100
W173	Bottom pin #5	100
W186	Bottom pin #6	100
W198	Bottom pin #7	100
W210	Bottom pin #8	100
W223	Bottom pin #9	100
Item	Description	Qty/pkg.
X155	Driver #0	100
X088	Driver #5	100
OC3737	Tumbler springs	100
S100	Set screws	10
FL1	Plug follower	1 ea.
