R078 SERIES

R Series: Deadbolt Door & Drawer Cabinet/Furniture Locks

SPECIFICATIONS

Keying: Can be keyed together with other

R Series locks

Rekeyable: Easily rekeyable via set screw

cylinder release mechanism US Patent Nos: 4,899,563; 4,920,774

Body: Zinc die cast

Cylinder: Solid brass, pin tumbler

Cylinder length: 1-1/8" Barrel diameter: 7/8" Finish: 26D or US4

Packaged: Packed 10 per box

KEYING INFORMATION

Keyway: R Series (equivalent to CCL R1 system)

Keys: Includes 2 keys per lock Stock keying: KD/KA - 5 pin standard Stock KA#: 4T21579, 4T37526 Masterkeyed: 5 pin standard Grand masterkeyed: Available Keyblank 5-pin: KBR-5-NP (equivalent to CO106, 1003A)

OPTIONAL ACCESSORIES

Spacers: WP20 (3/16" thick), WP21 (3/32" thick),

WP22 (1/4" thick), WP23 (1/2" thick)

Strikes: 07S, 56-1, 12-1, 12-2, 12-3, 12-4 strikes

Trim collar: TR1256

Optional bolt: 078-LB1-DW optional 1/2"

outbent drawer bolt

R078

Function: Drawer lock Extended offset bolt: Specify -LB option at time of order.

AVAILABLE FINISHES

US26D US4

R078 SERIES

R Series: Deadbolt Door & Drawer Cabinet/Furniture Locks

OPTIONAL ACCESSORIES - See our website for a complete list of optional components.

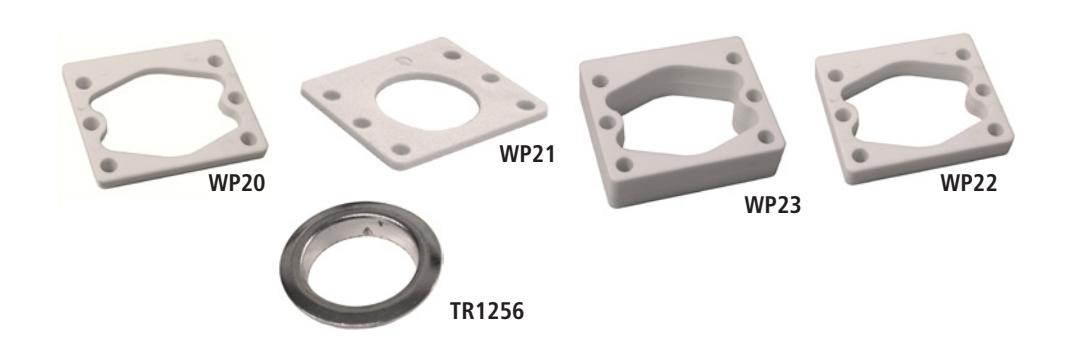

Internal plastic spacers

• WP20 3/16" thick plastic spacer
• WP21 3/32" thick plastic spacers
• WP22 1/4" thick plastic spacers
• WP23 1/2" thick plastic spacers

Strikes

• 12-1, 12-2, 12-3, 12-4, 12-5, 07S

Trim Ring

• TR1256 trim ring

Extended bolt

• Optional drawer bolt: 078-LB1-DW long bolt with 1/2" offset (drawer only)

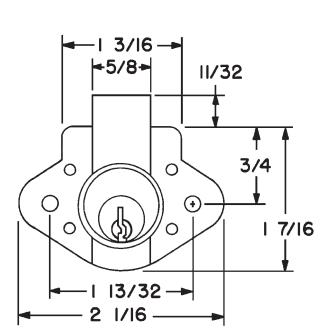

DIMENSIONS

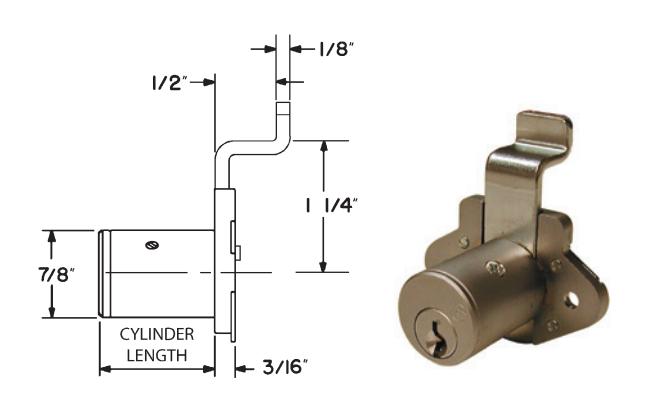

R078 Drawer Lock

With extended bolt option for drawer lock.

Specify -LB1 option when ordering.
