SPACERS

For small-pin, 7/8" diameter cabinet locks

SPECIFICATIONS

Material: White plastic

Function: To space the lock farther into the cabinet so that the lock face is flush with the face of the cabinet.

Thickness sizes:

WP20 = 3/16"

WP21 = 3/32"

WP22 = 1/4"

WP23 = 1/2"

WP24 = 1/8"

See back for product dimensions.

SPACERS

For small-pin, 7/8" diameter cabinet locks

DIMENSIONS

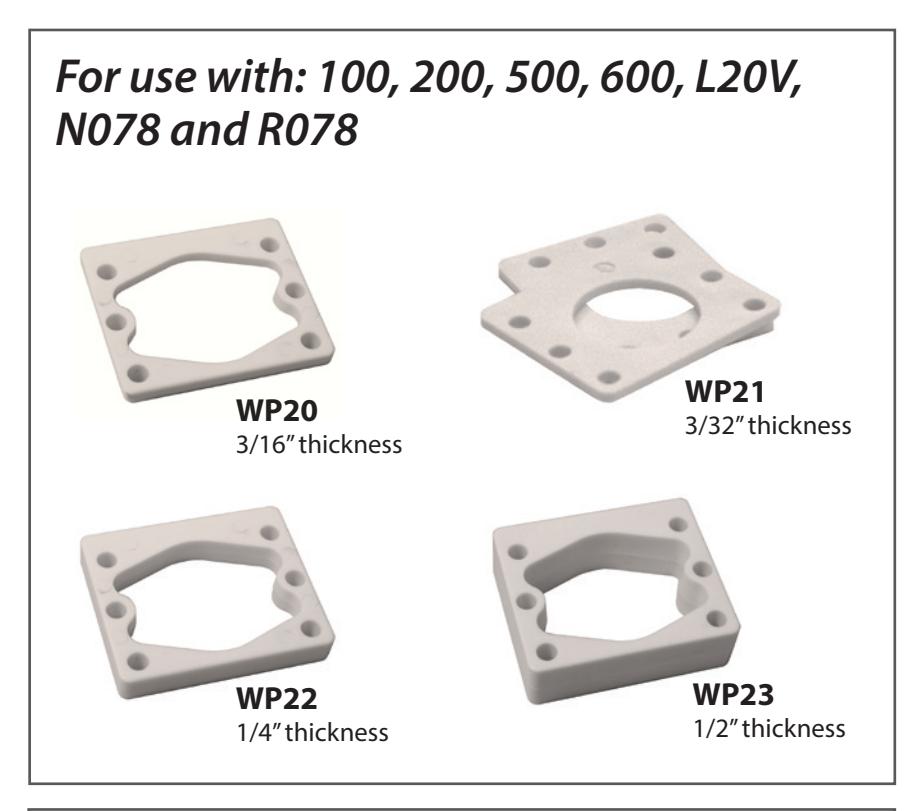

For use with: 100, 200, 500, 600, L20V, N078 and R078

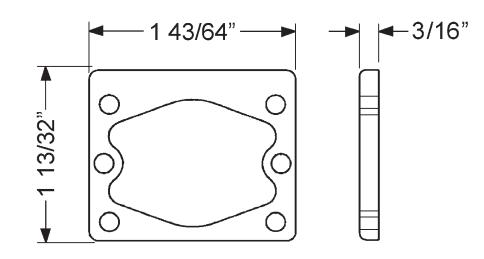

WP20

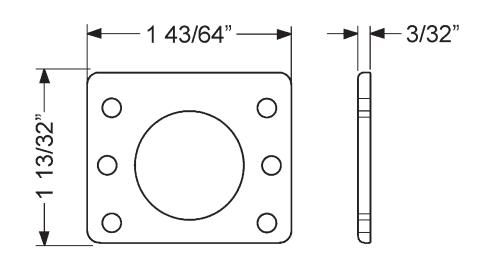

WP21

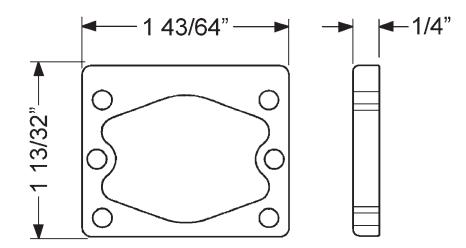

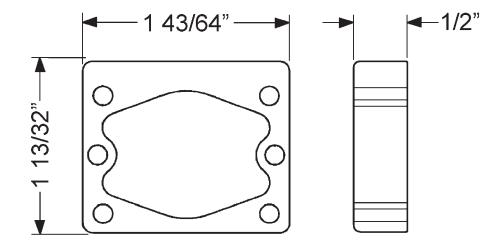

WP22 WP23

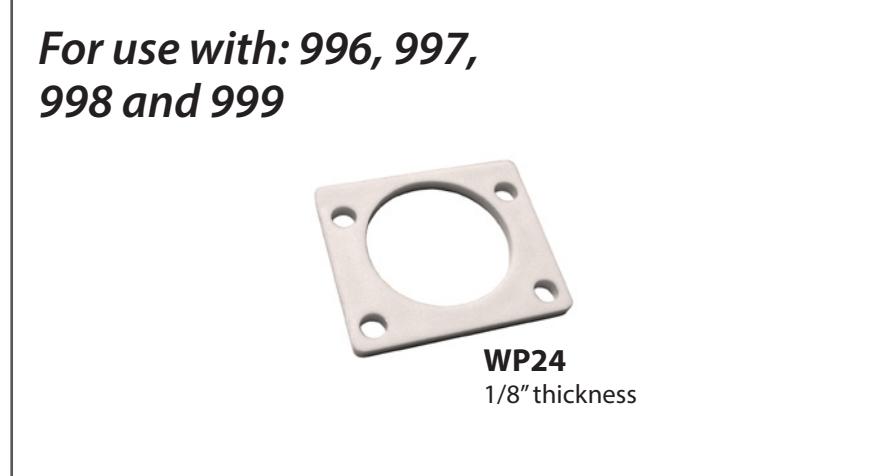

For use with: 996, 997, 998 and 999

WP24
